010 - CUTTERHEAD GEARBOX ASSEMBLY
INHALTSVERZEICHNIS
SCHALTPLAN
STÜCKLISTE
ALLE LÖSCHEN
Seriennummerfenster
Erstellungsdatum
Alle auswählen
Ref.
Menge
Teilenummer
Alts
Beschreibung
  • AR
    9621819
    GETRIEBE; Cutterhead Gearbox Assy., Except European Machines, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • 1
    9621819
    GETRIEBE; Cutterhead Gearbox Assy., Except European Machines, 2100;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • AR
    643224
    GETRIEBE; Cutterhead Gearbox Assy., European Machines Only, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • 1
    643224
    GETRIEBE; Cutterhead Gearbox Assy., European Machines Only, 2100;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • 1
    1
    612922
    LAGERSCHALE 2.562'' ID x 6.5'' OD x 1.78125''; Cover, 4.81'' (122mm) OD x 1.39'' (35mm) Bearing Shoulder;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171
  • 1
    1
    572456
    LAGERBAURUPPE; 4.13'' (105mm) OD x .25'' (6.35mm) Bearing Shoulder, 2100;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171
  • 6
    88011
    SCHRAUBE Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
  • 6
    80680
    SICHERUNGSSCHEIBE 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 2
    1
    710773
    ÖLDICHTUNG; Seal, Oil
  • 3
    AR
    854170
    AUSGLEICHSSCHEIBE .003'' Thk; (.076mm), 4.84'' (123mm) ID .003'' Thk;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171
  • 3
    AR
    572801
    AUSGLEICHSSCHEIBE .003'' Thk; (.076mm), 4.16'' (106mm) ID, 2100 .003'' Thk;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171
  • 3
    AR
    854171
    AUSGLEICHSSCHEIBE .010'' Thk; (.254mm), 4.84'' (123mm) ID .010'' Thk;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171
  • 3
    AR
    86516693
    AUSGLEICHSSCHEIBE; .010'' (.254mm) Thick, 4.16'' (106mm) ID, 2100;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171
  • 4
    1
    572267
    LAGERSCHALE 105mm OD x 29mm W; Cup, Bearing
  • 5
    1
    572268
    ROLLENLAGER 49.99mm ID x 36mm W; Cone, Bearing
  • 6
    1
    287554
    ZAHNRADSATZ; Except European Machines, 12T & 38T
  • 6
    1
    610557
    ZAHNRADSATZ; European Machines Only, 15T & 37T
  • 10
    280438
    SCHRAUBE Hex, 1/2 - 20 x 1, Gr 8, Full Thd; Cap, HH, G8, 1/2''-20 x 1''
  • 10
    281038

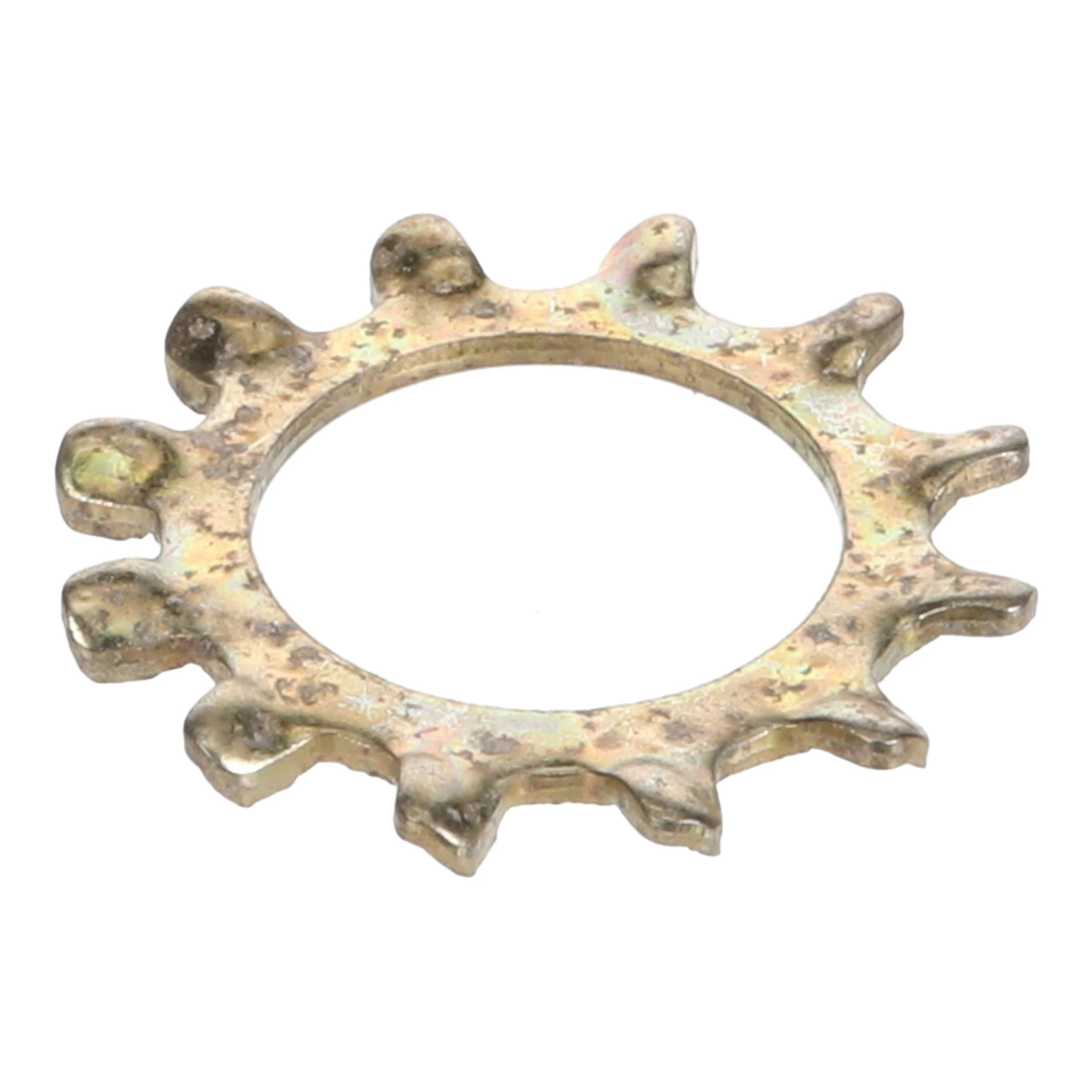

    SICHERUNGSSCHEIBE 13.46mm ID x 22.86mm OD x 1.14mm Thk; Washer, Lock, Ext T, 1/2''
  • 7
    1
    86536195

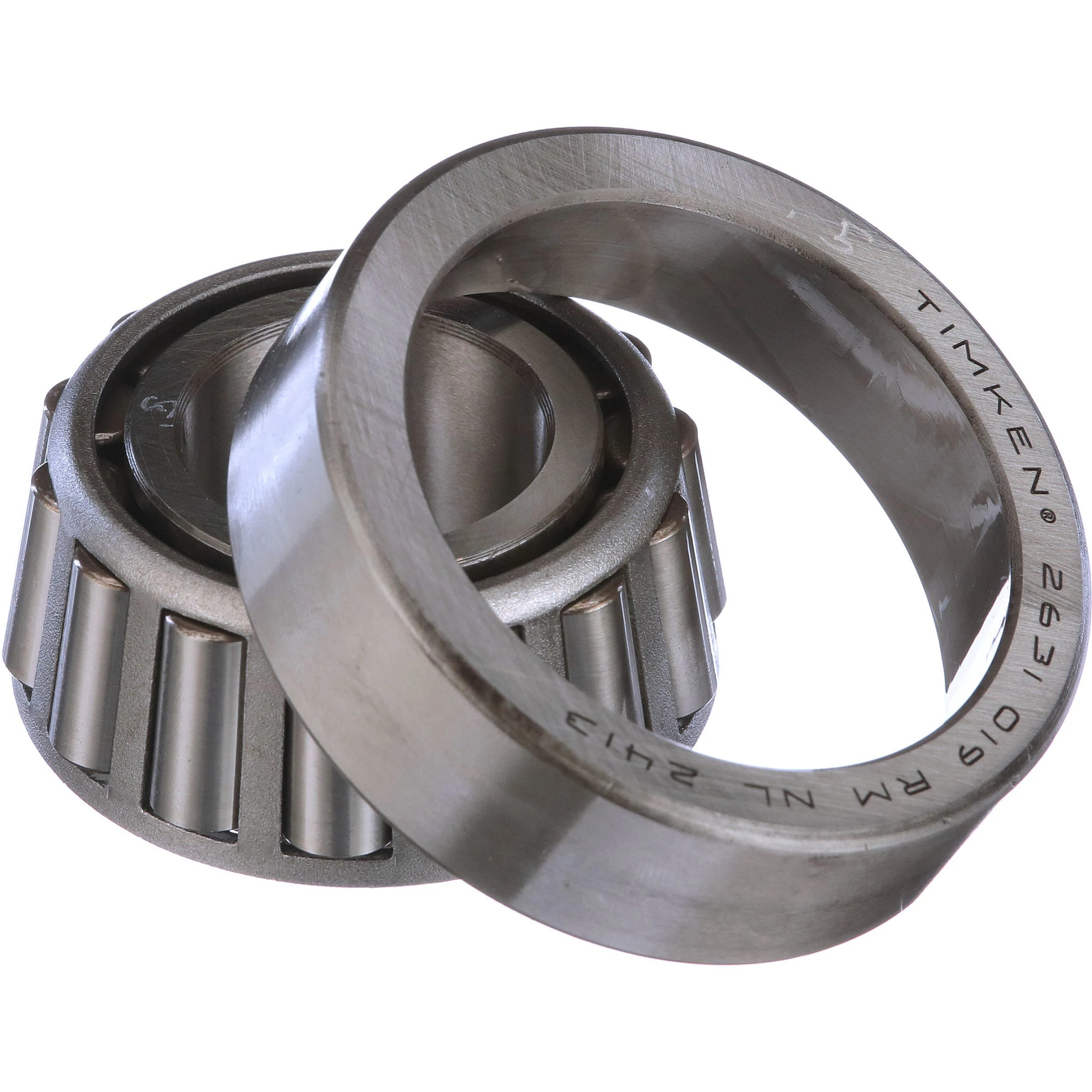

    LAGERBAURUPPE Tapered Roller, 28.57mm ID x 68.26mm OD x 22.23mm W; Bearing,Tapered Cup & Cone Assy.
  • 8
    AR
    572794
    AUSGLEICHSSCHEIBE .010'' Thk; (.254mm) .010'' Thk
  • 8
    AR
    572795
    AUSGLEICHSSCHEIBE .003'' Thk; (.076mm) .003'' Thk
  • 8
    AR
    572796
    AUSGLEICHSSCHEIBE .002'' Thk; (.050mm) .002'' Thk
  • 9
    1
    627273
    GETRIEBE; Housing, Gearbox, 4.81'' (122mm) ID Hole, for Cover Ref. 1;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171
  • 9
    1
    718857
    GEHÄUSE; Gearbox, 4.13'' (103mm), ID Hole, for Cover Ref. 1a, 2100;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171
  • 1
    87569
    SCHMIERNIPPEL 45 Degree, 1/4'' NPT x 4/5'' L, Drive; Fitting, Lube, 1/4''-28, 45?
  • 10
    1
    572806
    UNTERLEGSCHEIBE; Special
  • 11
    1
    199954
    LAGERKONUS 50mm ID x 21.5mm W; Cone, Bearing
  • 12
    1
    287066

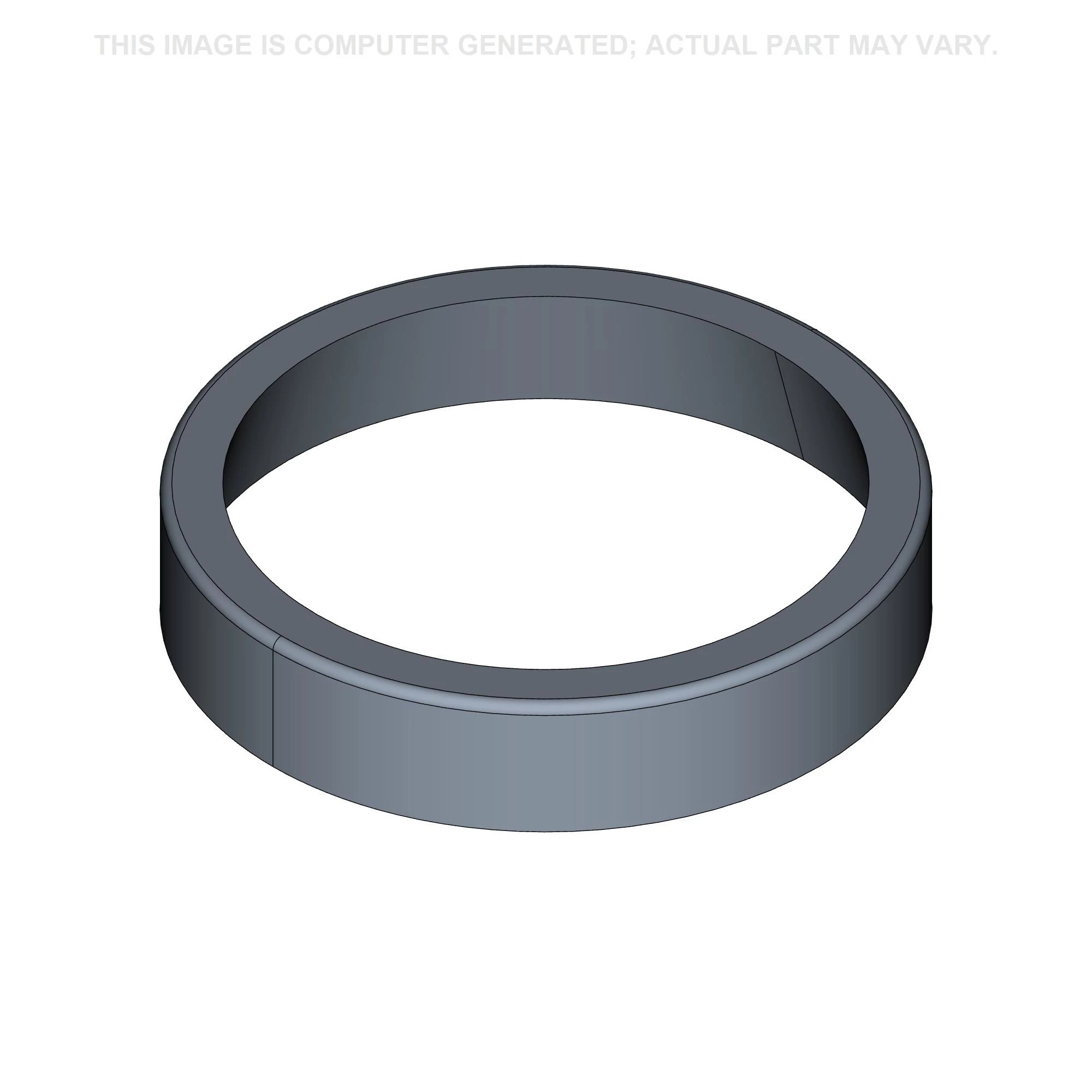

    LAGERSCHALE 82.58mm OD x 16.51mm W; Cup, Bearing
  • 13
    1
    86516694
    UNTERLEGSCHEIBE 19.4mm ID x 53.9mm OD x 6.3mm Thk; Special
  • 14
    1
    88886
    NUTMUTTER 3/4''-16;
  • 1
    80708
    SPLINT 1/8'' x 1 1/2''; Pin, Split
  • 15
    AR
    854173
    AUSGLEICHSSCHEIBE .010'' Thk; (.254mm) .010'' Thk
  • 15
    AR
    854172
    AUSGLEICHSSCHEIBE .003'' Thk; (.076mm) .003'' Thk
  • 16
    1
    572458
    KAPPE; Cap
  • 4
    88011
    SCHRAUBE Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
  • 4
    80680
    SICHERUNGSSCHEIBE 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 17
    1
    80775
    ABLASSSCHRAUBE 1/4'' - 18 NPT; Plug, Pipe, Square Hd., 1/4'' NPT
  • 18
    1
    9823249
    ENTLÜFTER; Assy.
  • 19
    1
    288279
    NABE; Ring Gear, 9-5/16'' (236mm) OD, Except European Machines
  • 19
    1
    612924
    NABE; Ring Gear, 6-15/16'' (176mm) OD, European Machines Only
  • 20
    1
    572809
    DISTANZSTÜCK;
  • 21
    1
    572270
    ROLLENLAGER 2.5005'' ID x 0.869''; Cone, Bearing
  • 22
    1
    163044
    LAGERSCHALE 110.03mm OD x 18.82mm W; Cup, Bearing
  • 23
    AR
    572791
    AUSGLEICHSSCHEIBE .002'' Thk; (.050mm) .002'' Thk
  • 23
    AR
    86516692
    AUSGLEICHSSCHEIBE; .003'' (.076mm) Thick
  • 23
    AR
    572793
    AUSGLEICHSSCHEIBE .010'' Thk; (.254mm) .010'' Thk
  • 24
    1
    572808
    UNTERLEGSCHEIBE; Special
  • 25
    1
    86529540
    SPRENGRING 4.331'', Int, #433; Ring, Snap, 4.331'', Int, #433
  • 26
    1
    572804
    ÖLDICHTUNG; Seal, Oil
  • 27
    1
    9621818
    WELLE; & Collar Assy.
  • 28
    2
    280304
    PASSSTIFT; Pin, Dowel, 5/8'' x 1-1/4''
  • 29
    1
    718839
    DICHTUNG;
  • 30
    1
    612639
    ÖLKÜHLER; Cooler, Oil, 5-5/8'' (143mm) Overall Long, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • 30
    1
    608375
    KÜHLER; Cooler, Oil, 8-1/2'' (216mm) Overall Long, 2100
  • 31
    1
    510185
    O-RING 56.7mm ID x 3.53mm Thk, NBR; 2.234'' ID x .139'' Thk, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • 31
    1
    86977781
    O-RING 66.3mm ID x 3.53mm Thk, NBR; 2.625'' ID x .135'' Thk, 2100
  • 32
    1
    612641
    O-RING 2.55'' ID x 2.756'' OD x 0.103''; 2.550'' ID x .103'' Thk, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • 32
    1
    608377
    O-RING 2.984'' ID x 3.262'' OD x 0.139''; -234, Cl 7, 2.984'' ID x .139'' Thk, 2100
  • 33
    2
    221964
    O-RING 21.9mm ID x 1.78mm Thk, FKM; .862'' ID x .070'' Thk;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • 33
    2
    122056
    O-RING 17.2mm ID x 1.78mm Thk, NBR; .676'' ID x .070'' Thk, 2100
  • 34
    1
    9616663
    PLATTE; 27/32'' (21.4mm) Oil Cooler Holes, Replaces 719582, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • 34
    1
    608376
    PLATTE; 23/32'' (18.2mm) Oil Cooler Holes, 2100
  • 2
    87872
    SCHRAUBE Hex, 5/16'' - 18 x 3/4'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 3/4''
  • 4
    87362
    UNTERLEGSCHEIBE 5/16'' SAE; SAE, 5/16''
  • 2
    80681
    SICHERUNGSSCHEIBE 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
  • 35
    1
    612633
    GETRIEBE; Bottom, Gearbox, for 612639 Cooler, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.
  • 35
    1
    608390
    GEHÄUSE; Bottom, Gearbox, for 608375 Cooler, 2100
  • 10
    88206
    SCHRAUBE Hex, 3/8'' - 16 x 1'', Gr 5;
  • 10
    80680
    SICHERUNGSSCHEIBE 3/8 0.381 CST ZND; Washer, Lock, 3/4''
  • 36
    1
    87628
    BUCHSE; Pipe, Hex; (SN Break) Between 1/4'' and 3/8''
  • 37
    1
    232480
    SIGNALGEBER; Sender, Oil Temperature, Spade Terminal, 225? F or 107? C
  • 37
    1
    86533697
    TEMPERATURGEBER; Sender, Oil Temperature, Screw Terminal, 240? F or 115.5? C
Alle auswählen

Select

Ref.

Menge

AR

Verfügbarkeit

Teilenummer

9621819

Beschreibung

GETRIEBE; Cutterhead Gearbox Assy., Except European Machines, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

Menge

1

Verfügbarkeit

Teilenummer

9621819

Beschreibung

GETRIEBE; Cutterhead Gearbox Assy., Except European Machines, 2100;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

Menge

AR

Verfügbarkeit

Teilenummer

643224

Beschreibung

GETRIEBE; Cutterhead Gearbox Assy., European Machines Only, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

Menge

1

Verfügbarkeit

Teilenummer

643224

Beschreibung

GETRIEBE; Cutterhead Gearbox Assy., European Machines Only, 2100;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

1

Menge

1

Verfügbarkeit

Teilenummer

612922

Beschreibung

LAGERSCHALE 2.562'' ID x 6.5'' OD x 1.78125''; Cover, 4.81'' (122mm) OD x 1.39'' (35mm) Bearing Shoulder;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171


Alts

Select

Ref.

1

Menge

1

Verfügbarkeit

Teilenummer

572456

Beschreibung

LAGERBAURUPPE; 4.13'' (105mm) OD x .25'' (6.35mm) Bearing Shoulder, 2100;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171


Alts

Select

Ref.

Menge

6

Verfügbarkeit

Teilenummer

88011

Beschreibung

SCHRAUBE Hex, 3/8'' - 16 x 1 1/4'', Gr 5;


Alts

Select

Ref.

Menge

6

Verfügbarkeit

Teilenummer

80680

Beschreibung

SICHERUNGSSCHEIBE 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''


Alts

Select

Ref.

2

Menge

1

Verfügbarkeit

Teilenummer

710773

Beschreibung

ÖLDICHTUNG; Seal, Oil


Alts

Select

Ref.

3

Menge

AR

Verfügbarkeit

Teilenummer

854170

Beschreibung

AUSGLEICHSSCHEIBE .003'' Thk; (.076mm), 4.84'' (123mm) ID .003'' Thk;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171


Alts

Select

Ref.

3

Menge

AR

Verfügbarkeit

Teilenummer

572801

Beschreibung

AUSGLEICHSSCHEIBE .003'' Thk; (.076mm), 4.16'' (106mm) ID, 2100 .003'' Thk;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171


Alts

Select

Ref.

3

Menge

AR

Verfügbarkeit

Teilenummer

854171

Beschreibung

AUSGLEICHSSCHEIBE .010'' Thk; (.254mm), 4.84'' (123mm) ID .010'' Thk;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171


Alts

Select

Ref.

3

Menge

AR

Verfügbarkeit

Teilenummer

86516693

Beschreibung

AUSGLEICHSSCHEIBE; .010'' (.254mm) Thick, 4.16'' (106mm) ID, 2100;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171


Alts

Select

Ref.

4

Menge

1

Verfügbarkeit

Teilenummer

572267

Beschreibung

LAGERSCHALE 105mm OD x 29mm W; Cup, Bearing


Alts

Select

Ref.

5

Menge

1

Verfügbarkeit

Teilenummer

572268

Beschreibung

ROLLENLAGER 49.99mm ID x 36mm W; Cone, Bearing


Alts

Select

Ref.

6

Menge

1

Verfügbarkeit

Teilenummer

287554

Beschreibung

ZAHNRADSATZ; Except European Machines, 12T & 38T


Alts

Select

Ref.

6

Menge

1

Verfügbarkeit

Teilenummer

610557

Beschreibung

ZAHNRADSATZ; European Machines Only, 15T & 37T


Alts

Select

Ref.

Menge

10

Verfügbarkeit

Teilenummer

280438

Beschreibung

SCHRAUBE Hex, 1/2 - 20 x 1, Gr 8, Full Thd; Cap, HH, G8, 1/2''-20 x 1''


Alts

Select

Ref.

Menge

10

Verfügbarkeit

Teilenummer

281038

Beschreibung

SICHERUNGSSCHEIBE 13.46mm ID x 22.86mm OD x 1.14mm Thk; Washer, Lock, Ext T, 1/2''


Alts

Select

Ref.

7

Menge

1

Verfügbarkeit

Teilenummer

86536195

Beschreibung

LAGERBAURUPPE Tapered Roller, 28.57mm ID x 68.26mm OD x 22.23mm W; Bearing,Tapered Cup & Cone Assy.


Alts

Select

Ref.

8

Menge

AR

Verfügbarkeit

Teilenummer

572794

Beschreibung

AUSGLEICHSSCHEIBE .010'' Thk; (.254mm) .010'' Thk


Alts

Select

Ref.

8

Menge

AR

Verfügbarkeit

Teilenummer

572795

Beschreibung

AUSGLEICHSSCHEIBE .003'' Thk; (.076mm) .003'' Thk


Alts

Select

Ref.

8

Menge

AR

Verfügbarkeit

Teilenummer

572796

Beschreibung

AUSGLEICHSSCHEIBE .002'' Thk; (.050mm) .002'' Thk


Alts

Select

Ref.

9

Menge

1

Verfügbarkeit

Teilenummer

627273

Beschreibung

GETRIEBE; Housing, Gearbox, 4.81'' (122mm) ID Hole, for Cover Ref. 1;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171


Alts

Select

Ref.

9

Menge

1

Verfügbarkeit

Teilenummer

718857

Beschreibung

GEHÄUSE; Gearbox, 4.13'' (103mm), ID Hole, for Cover Ref. 1a, 2100;Please Check Description Carefully Before Ordering. P/N 718857 has been replaced by P/N's 627273,612922, 854170 & 8854171


Alts

Select

Ref.

Menge

1

Verfügbarkeit

Teilenummer

87569

Beschreibung

SCHMIERNIPPEL 45 Degree, 1/4'' NPT x 4/5'' L, Drive; Fitting, Lube, 1/4''-28, 45?


Alts

Select

Ref.

10

Menge

1

Verfügbarkeit

Teilenummer

572806

Beschreibung

UNTERLEGSCHEIBE; Special


Alts

Select

Ref.

11

Menge

1

Verfügbarkeit

Teilenummer

199954

Beschreibung

LAGERKONUS 50mm ID x 21.5mm W; Cone, Bearing


Alts

Select

Ref.

12

Menge

1

Verfügbarkeit

Teilenummer

287066

Beschreibung

LAGERSCHALE 82.58mm OD x 16.51mm W; Cup, Bearing


Alts

Select

Ref.

13

Menge

1

Verfügbarkeit

Teilenummer

86516694

Beschreibung

UNTERLEGSCHEIBE 19.4mm ID x 53.9mm OD x 6.3mm Thk; Special


Alts

Select

Ref.

14

Menge

1

Verfügbarkeit

Teilenummer

88886

Beschreibung

NUTMUTTER 3/4''-16;


Alts

Select

Ref.

Menge

1

Verfügbarkeit

Teilenummer

80708

Beschreibung

SPLINT 1/8'' x 1 1/2''; Pin, Split


Alts

Select

Ref.

15

Menge

AR

Verfügbarkeit

Teilenummer

854173

Beschreibung

AUSGLEICHSSCHEIBE .010'' Thk; (.254mm) .010'' Thk


Alts

Select

Ref.

15

Menge

AR

Verfügbarkeit

Teilenummer

854172

Beschreibung

AUSGLEICHSSCHEIBE .003'' Thk; (.076mm) .003'' Thk


Alts

Select

Ref.

16

Menge

1

Verfügbarkeit

Teilenummer

572458

Beschreibung

KAPPE; Cap


Alts

Select

Ref.

Menge

4

Verfügbarkeit

Teilenummer

88011

Beschreibung

SCHRAUBE Hex, 3/8'' - 16 x 1 1/4'', Gr 5;


Alts

Select

Ref.

Menge

4

Verfügbarkeit

Teilenummer

80680

Beschreibung

SICHERUNGSSCHEIBE 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''


Alts

Select

Ref.

17

Menge

1

Verfügbarkeit

Teilenummer

80775

Beschreibung

ABLASSSCHRAUBE 1/4'' - 18 NPT; Plug, Pipe, Square Hd., 1/4'' NPT


Alts

Select

Ref.

18

Menge

1

Verfügbarkeit

Teilenummer

9823249

Beschreibung

ENTLÜFTER; Assy.


Alts

Select

Ref.

19

Menge

1

Verfügbarkeit

Teilenummer

288279

Beschreibung

NABE; Ring Gear, 9-5/16'' (236mm) OD, Except European Machines


Alts

Select

Ref.

19

Menge

1

Verfügbarkeit

Teilenummer

612924

Beschreibung

NABE; Ring Gear, 6-15/16'' (176mm) OD, European Machines Only


Alts

Select

Ref.

20

Menge

1

Verfügbarkeit

Teilenummer

572809

Beschreibung

DISTANZSTÜCK;


Alts

Select

Ref.

21

Menge

1

Verfügbarkeit

Teilenummer

572270

Beschreibung

ROLLENLAGER 2.5005'' ID x 0.869''; Cone, Bearing


Alts

Select

Ref.

22

Menge

1

Verfügbarkeit

Teilenummer

163044

Beschreibung

LAGERSCHALE 110.03mm OD x 18.82mm W; Cup, Bearing


Alts

Select

Ref.

23

Menge

AR

Verfügbarkeit

Teilenummer

572791

Beschreibung

AUSGLEICHSSCHEIBE .002'' Thk; (.050mm) .002'' Thk


Alts

Select

Ref.

23

Menge

AR

Verfügbarkeit

Teilenummer

86516692

Beschreibung

AUSGLEICHSSCHEIBE; .003'' (.076mm) Thick


Alts

Select

Ref.

23

Menge

AR

Verfügbarkeit

Teilenummer

572793

Beschreibung

AUSGLEICHSSCHEIBE .010'' Thk; (.254mm) .010'' Thk


Alts

Select

Ref.

24

Menge

1

Verfügbarkeit

Teilenummer

572808

Beschreibung

UNTERLEGSCHEIBE; Special


Alts

Select

Ref.

25

Menge

1

Verfügbarkeit

Teilenummer

86529540

Beschreibung

SPRENGRING 4.331'', Int, #433; Ring, Snap, 4.331'', Int, #433


Alts

Select

Ref.

26

Menge

1

Verfügbarkeit

Teilenummer

572804

Beschreibung

ÖLDICHTUNG; Seal, Oil


Alts

Select

Ref.

27

Menge

1

Verfügbarkeit

Teilenummer

9621818

Beschreibung

WELLE; & Collar Assy.


Alts

Select

Ref.

28

Menge

2

Verfügbarkeit

Teilenummer

280304

Beschreibung

PASSSTIFT; Pin, Dowel, 5/8'' x 1-1/4''


Alts

Select

Ref.

29

Menge

1

Verfügbarkeit

Teilenummer

718839

Beschreibung

DICHTUNG;


Alts

Select

Ref.

30

Menge

1

Verfügbarkeit

Teilenummer

612639

Beschreibung

ÖLKÜHLER; Cooler, Oil, 5-5/8'' (143mm) Overall Long, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

30

Menge

1

Verfügbarkeit

Teilenummer

608375

Beschreibung

KÜHLER; Cooler, Oil, 8-1/2'' (216mm) Overall Long, 2100


Alts

Select

Ref.

31

Menge

1

Verfügbarkeit

Teilenummer

510185

Beschreibung

O-RING 56.7mm ID x 3.53mm Thk, NBR; 2.234'' ID x .139'' Thk, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

31

Menge

1

Verfügbarkeit

Teilenummer

86977781

Beschreibung

O-RING 66.3mm ID x 3.53mm Thk, NBR; 2.625'' ID x .135'' Thk, 2100


Alts

Select

Ref.

32

Menge

1

Verfügbarkeit

Teilenummer

612641

Beschreibung

O-RING 2.55'' ID x 2.756'' OD x 0.103''; 2.550'' ID x .103'' Thk, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

32

Menge

1

Verfügbarkeit

Teilenummer

608377

Beschreibung

O-RING 2.984'' ID x 3.262'' OD x 0.139''; -234, Cl 7, 2.984'' ID x .139'' Thk, 2100


Alts

Select

Ref.

33

Menge

2

Verfügbarkeit

Teilenummer

221964

Beschreibung

O-RING 21.9mm ID x 1.78mm Thk, FKM; .862'' ID x .070'' Thk;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

33

Menge

2

Verfügbarkeit

Teilenummer

122056

Beschreibung

O-RING 17.2mm ID x 1.78mm Thk, NBR; .676'' ID x .070'' Thk, 2100


Alts

Select

Ref.

34

Menge

1

Verfügbarkeit

Teilenummer

9616663

Beschreibung

PLATTE; 27/32'' (21.4mm) Oil Cooler Holes, Replaces 719582, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

34

Menge

1

Verfügbarkeit

Teilenummer

608376

Beschreibung

PLATTE; 23/32'' (18.2mm) Oil Cooler Holes, 2100


Alts

Select

Ref.

Menge

2

Verfügbarkeit

Teilenummer

87872

Beschreibung

SCHRAUBE Hex, 5/16'' - 18 x 3/4'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 3/4''


Alts

Select

Ref.

Menge

4

Verfügbarkeit

Teilenummer

87362

Beschreibung

UNTERLEGSCHEIBE 5/16'' SAE; SAE, 5/16''


Alts

Select

Ref.

Menge

2

Verfügbarkeit

Teilenummer

80681

Beschreibung

SICHERUNGSSCHEIBE 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''


Alts

Select

Ref.

35

Menge

1

Verfügbarkeit

Teilenummer

612633

Beschreibung

GETRIEBE; Bottom, Gearbox, for 612639 Cooler, 1900;Two different Gearboxes are used for production. However, the Model 2100 Gearbox Assy. is used to service both the Model 1900 (BSN 440434) & the Model 2100.


Alts

Select

Ref.

35

Menge

1

Verfügbarkeit

Teilenummer

608390

Beschreibung

GEHÄUSE; Bottom, Gearbox, for 608375 Cooler, 2100


Alts

Select

Ref.

Menge

10

Verfügbarkeit

Teilenummer

88206

Beschreibung

SCHRAUBE Hex, 3/8'' - 16 x 1'', Gr 5;


Alts

Select

Ref.

Menge

10

Verfügbarkeit

Teilenummer

80680

Beschreibung

SICHERUNGSSCHEIBE 3/8 0.381 CST ZND; Washer, Lock, 3/4''


Alts

Select

Ref.

36

Menge

1

Verfügbarkeit

Teilenummer

87628

Beschreibung

BUCHSE; Pipe, Hex; (SN Break) Between 1/4'' and 3/8''


Alts

Select

Ref.

37

Menge

1

Verfügbarkeit

Teilenummer

232480

Beschreibung

SIGNALGEBER; Sender, Oil Temperature, Spade Terminal, 225? F or 107? C


Alts

Select

Ref.

37

Menge

1

Verfügbarkeit

Teilenummer

86533697

Beschreibung

TEMPERATURGEBER; Sender, Oil Temperature, Screw Terminal, 240? F or 115.5? C


Alts
