TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11SET OF PARTS; Kit, HSS Dual Clutch Valve, Used On & ASN UV25205, Includes: Ref. 2 thru 32;DIA for NH-NA, Installed on tractor for NH-E; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
21CONTROL VALVE; Valve, Control Includes: Ref. 3 thru 9 & 16; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
31O-RING 2.4mm Thk x 14.8mm ID; P15; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
41O-RING; P16; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
51CIRCLIP M15, Ext, PHC; SNAP, M15, Ext; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
61SNAP RING M16, Ext; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
72ADAPTER; Adaptor; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
81LOCK PIN M6 x 30, Slotted; PIN, Spring, Slot, M6 OD x 30 L; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
91LEVER; Change; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
101FLANGE BOLT; Bolt, Eye; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
111O-RING 2.4mm Thk x 19.8mm ID, 70 Duro; P20; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
121SEALING WASHER 16.4mm ID x 27mm OD x 2mm Thk; Seal, #16; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
131CLAMP; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
141BOLT M10 x 16; M10 x 16; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
141CAPTIVE WASHER SCREW Hex, M10 x 30, G5; SCREW, CAPTIVE WASHER, Hex, M10 x 1.5 x 30, G5;W/New Aux. Setp; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
161SPOOL; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
151CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
171ROD; Assy. Includes: Ref. 18 thru 20; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
181ROD; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
191CLEVIS; Joint, M8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
201NUT M8 x 1.25, Cl 8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
211CONNECTING LINK; Link; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
221BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
231LOCK WASHER 10.2mm ID x 18.1mm OD x 2.2mm Thk; WASHER, LOCK, M10; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
241NUT Hex, M10 x 1.5, Cl 8, ZND; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
251PIN; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
261SPRING; Holder, Spring; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
271BOLT Hex, M8 x 1.25 x 40mm, Cl 8.8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
281LOCK WASHER M8; Washer, Spring, A8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
291NUT M8 x 1.25, Cl 8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
301TUBE; Pipe, Oil; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
-
311TUBE; Pipe, Oil; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996
Select All
Select
Ref.
1Qty
1Availability
Part #
SBA340002590Description
SET OF PARTS; Kit, HSS Dual Clutch Valve, Used On & ASN UV25205, Includes: Ref. 2 thru 32;DIA for NH-NA, Installed on tractor for NH-E; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
2Qty
1Availability
Part #
SBA340014790Description
CONTROL VALVE; Valve, Control Includes: Ref. 3 thru 9 & 16; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
3Qty
1Availability
Part #
SBA052109078Description
O-RING 2.4mm Thk x 14.8mm ID; P15; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
4Qty
1Availability
Part #
SBA052100160Description
O-RING; P16; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
5Qty
1Availability
Part #
301615Description
CIRCLIP M15, Ext, PHC; SNAP, M15, Ext; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
6Qty
1Availability
Part #
300625Description
SNAP RING M16, Ext; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
7Qty
2Availability
Part #
SBA340671580Description
ADAPTER; Adaptor; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
8Qty
1Availability
Part #
9511051Description

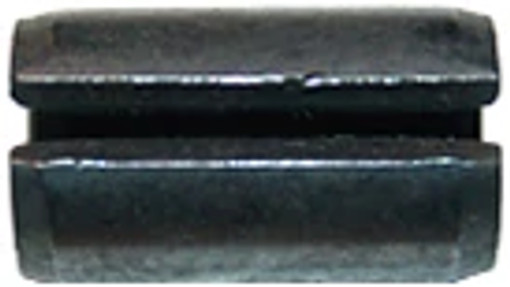

LOCK PIN M6 x 30, Slotted; PIN, Spring, Slot, M6 OD x 30 L; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
9Qty
1Availability
Part #
SBA324101481Description
LEVER; Change; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
10Qty
1Availability
Part #
SBA398481470Description
FLANGE BOLT; Bolt, Eye; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
11Qty
1Availability
Part #
SBA052100200Description
O-RING 2.4mm Thk x 19.8mm ID, 70 Duro; P20; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
12Qty
1Availability
Part #
SBA025100016Description
SEALING WASHER 16.4mm ID x 27mm OD x 2mm Thk; Seal, #16; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
13Qty
1Availability
Part #
SBA399112740Description
CLAMP; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
14Qty
1Availability
Part #
SBA011511016Description
BOLT M10 x 16; M10 x 16; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
14Qty
1Availability
Part #
SBA011511030Description
CAPTIVE WASHER SCREW Hex, M10 x 30, G5; SCREW, CAPTIVE WASHER, Hex, M10 x 1.5 x 30, G5;W/New Aux. Setp; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
16Qty
1Availability
Part #
SBA340320260Description
SPOOL; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
15Qty
1Availability
Part #
SBA011510820Description
CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
17Qty
1Availability
Part #
SBA358050370Description
ROD; Assy. Includes: Ref. 18 thru 20; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
18Qty
1Availability
Part #
SBA358511090Description
ROD; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
19Qty
1Availability
Part #
SBA358550030Description
CLEVIS; Joint, M8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
20Qty
1Availability
Part #
89706690Description
NUT M8 x 1.25, Cl 8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
21Qty
1Availability
Part #
SBA358450030Description
CONNECTING LINK; Link; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
22Qty
1Availability
Part #
43140Description
BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
23Qty
1Availability
Part #
140028Description
LOCK WASHER 10.2mm ID x 18.1mm OD x 2.2mm Thk; WASHER, LOCK, M10; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
24Qty
1Availability
Part #
100016Description
NUT Hex, M10 x 1.5, Cl 8, ZND; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
25Qty
1Availability
Part #
SBA031310820Description
PIN; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
26Qty
1Availability
Part #
SBA358350380Description
SPRING; Holder, Spring; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
27Qty
1Availability
Part #
43129Description
BOLT Hex, M8 x 1.25 x 40mm, Cl 8.8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
28Qty
1Availability
Part #
87016617Description
LOCK WASHER M8; Washer, Spring, A8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
29Qty
1Availability
Part #
89706690Description
NUT M8 x 1.25, Cl 8; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
30Qty
1Availability
Part #
SBA340703910Description
TUBE; Pipe, Oil; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
Select
Ref.
31Qty
1Availability
Part #
SBA340703900Description
TUBE; Pipe, Oil; (Prod Date) Between 01-Jan-1987 and 31-Dec-1996Img
Alts
