TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11SUPPORT; Assy., Includes: Ref. 2 & 3;Complete Wobble Assembly 215875 Includes: Ref. 1 thru 23, plus Belt 214252, Ref 50.
-
11SUPPORT; Does Not Include Ref. 2 & 3;Component of 87029655
-
11PIPE 1/8'' NPT x 1/8'' NPT; Grease Line
-
11COUPLING 1/8'' - 27 NPT x 1/8'' - 27 NPT; Pipe, 1/8''
-
11LUBE NIPPLE 1/8'' NPT; NIPPLE, LUBE, 90?, 1/8'' NPT x .84'' lg
-
11PLOW BOLT #3, 5/8'' - 11 x 3 1/4'', Gr 5; Bolt, Plow, G5, 5/8''-11 x 3-1/4''
-
12BOLT Hex, 5/8'' - 11 x 3 1/4'', Gr 5; HH, G5, 5/8''-11 x 3-1/4''
-
11BOLT Hex, 5/8'' - 11 x 1-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-3/4''
-
12BOLT 1/2''-13 x 1.813'' OAL, Gr 5;
-
12WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;
-
14LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
12LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
12NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11
-
12NUT 1/2''-13, G5;
-
22BEARING CUP 59.16mm OD x 11.94mm W; Cup, Tapered Roller Bearing
-
3ARBEARING CUP 82mm OD x 17mm W; Cup, Tapered Roller Bearing, Marked Timken or New Departure JLM 104910 W/Outside Dia. of 3.228'';Check Bearing Manufacturer's Number to Identify
-
3ARBEARING CUP 82.58mm OD x 16.51mm W; Cup, Tapered Roller Bearing, Marked Timken or New Departure LM 10491 W/Outside Dia. of 3.250'';Check Bearing Manufacturer's Number to Identify
-
41SPACER; Pivot Pin;Not used with 87029655
-
51SUPPORT; Weld Assy.; (SN Break) Up to 902533
-
51SUPPORT; Component of 87029655; (SN Break) From 902534
-
53BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;
-
53WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; SAE, 1/2''
-
53LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
61YOKE; Weld Assy., Includes: Ref. 7
-
61YOKE; Includes: Ref. 7;Component of 87029655
-
71BUSHING 12.75mm ID x 25.4mm OD x 21.44mm L;
-
81BALL BEARING 25.4mm ID x 52mm OD x 15mm W; Bearing, Ball
-
91COLLAR; Bearing Lock
-
91SET SCREW 1/4'' - 20 x 1/4''; Screw, Set, HS, Cup Pt, 1/4''-20 x 1/4''
-
101GASKET;
-
111BEARING CAP 2.187'' ID x 4.25'' OD x 0.25''; Cap, Bearing
-
111LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
112BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
112LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
121SHAFT; Wobble Shaft
-
121WOBBLE BOX; Shaft Assy., Wobble;215875 Wobble Assembly, Includes: Ref. 1 thru 23, plus Belt 214252, Ref 50.
-
121WOBBLE BOX; Shaft Assy., Wobble;Includes: Ref. 1 thru 23, plus Belt 214252, Ref. 50;Will replace 215875 for service
-
132BEARING CONE 50mm ID x 21.5mm W; Cone, Tapered Roller Bearing
-
142BEARING CONE 35 mm ID x 16.764 mm; Cone, Tapered Roller Bearing
-
152WASHER .766'' ID x 1.075'' OD; Special
-
162SLOTTED NUT 3/4''-16; Nut, Slotted, G2, 3/4''-16
-
162COTTER PIN 1/8'' OD x 1-1/4'' OAL; PIN, SPLIT (COTTER), 1/8'' x 1-1/4''
-
172HUB CAP;
-
181HUB; Assy., Includes: Ref. 2 & 3
-
191SEAL 63.5mm ID x 82.75mm OD x 6.76mm Thk; Oil
-
202BEARING, ROLLER, CYL 0.7505'' ID x 1.825'' OD x 0.655''; Cone & Seal, Tapered Roller Bearing
-
212BEARING CUP 45.26mm OD x 12.06mm W; Cup, Tapered Roller Bearing
-
22ARSHIM .003'' Thk;
-
22ARSHIM .005'' Thk;
-
22ARSHIM .0075 Thk; .0075'' Thk
-
22ARSHIM; .020''
-
232COVER; Cap, Bearing Retainer
-
232LUBE NIPPLE 90 Degree, 1/4'' NPT x 3/4'' L, Drive; NIPPLE, LUBE, 90?, 1/4'' NPT x .75'' lg, Drive
-
234BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
-
234LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
241NO LONGER SERVICED; Knife Assy., Smooth, (577872);Smooth knife assembly is no longer available, Use either underserrated or overserrated assembly
-
241KNIFE; Assy., OSR, Bolted, Includes: Ref. 25, 27, 28, 29, & 30C thru 34
-
241KNIFE; Assy., Overserrated, Rivited, Includes: Ref. 25, 27, 28, 29, & 30C thru 34
-
241KNIFE; Assy., Underserrated, Bolted, Includes: Ref. 25, 27, 28, 29, & 30A thru 34
-
241KNIFE; Assy., Underserrated, Rivited, Includes: Ref. 25, 27, 28, 29, & 30A thru 34
-

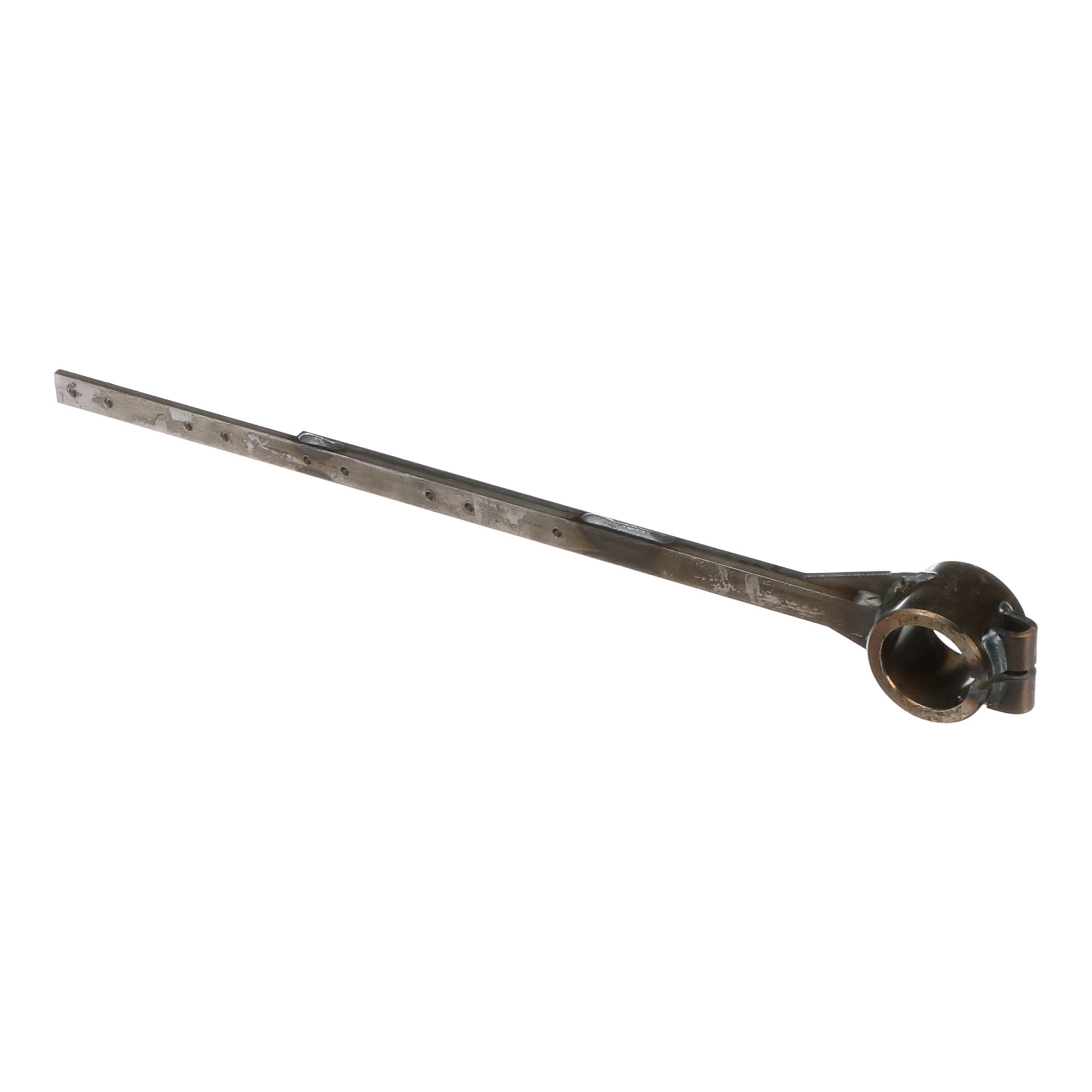

251KNIFE HEAD; Knife Hd. Weld Assy.
-
261BOLT Hex, 1/2'' - 20 x 4'', Gr 8; Screw, Cap, HH, G8, 1/2''-20 x 4''
-
261NUT 1/2''-20, GC; Nut, Lock, GC, 1/2''-20
-
271BOLT Hex, 3/8'' - 16 x 2 1/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 2-1/4''
-
272WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
-
271LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16
-
281BUSHING 12.7mm ID x 46.15mm OD x 58.98mm L; Rubber, Knife Hd., 2.32'' long
-
291KNIFE; Back
-
3037KNIFE SECTION; Smooth
-
30A37KNIFE SECTION; Underserrated
-
30B37KNIFE SECTION; Underserrated, Chrome, Not Shown on Art
-
30C37KNIFE SECTION 14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES; Overserrated
-
311KNIFE SECTION; Knife Half Section
-
3267RIVET Button, 5.33mm OD x 15.75mm L; Button Hd, #5-1/2, 7/32''x 5/8'', Refer to Ref. 34A
-
334RIVET Button, 8.28mm OD x 23.8mm L; Button Hd, #5-1/2 , 7/32''x 15/16'', Refer to Ref. 34A
-
345RIVET Button, 8.28mm OD x 30.2mm L; Button Hd, #5-1/2, 7/32''x 1-3/16'', Refer to Ref. 34A
-
34AARKIT; Rivet Package, Includes: (75) Ref. 32, (12) Ref. 33, (6) Ref. 34 & (7) P/N 137636 - #5 1/2'' x 9/16'' Countersunk Head Rivets, Not Shown on Art
-
351CLIP; Knife, Outer
-
367KNIFE CLIP; Clip, Knife, Low
-
3719GUARD; Double, Std., Gray
-
3719GUARD; Double, Std., Yellow
-
371CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 3/4'', Gr 5; BOLT, CARRIAGE, Short NK, 7/16''-14 x 1 3/4'', G5
-
3718CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 1-1/2''
-
3717CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 7/16''-14 x 1-1/4''
-
372BOLT Hex, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd;
-
3738NUT 7/16''-14, G5;
-
381GUARD; Stub, Special, RH;Applicable to Machines W/Stub Guards
-
381CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 2''
-
381BOLT Hex, 7/16'' - 14 x 1 1/2'', Gr 5;
-
382NUT 7/16''-14, G5;
-
3917GUARD; Stub;Applicable to Machines W/Stub Guards
-
392CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 2''
-
3932CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 1-1/2''
-
3934NUT 7/16''-14, G5;
-
401GUARD; Stub, Special, LH;Applicable to Machines W/Stub Guards
-
401CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 2''
-
401BOLT Hex, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd;
-
402NUT 7/16''-14, G5;
-
411CLIP; Holddown End, R.H.;Applicable to Machines W/Stub Guards
-
423KNIFE CLIP; Clip, Knife, Holddown, High;Applicable to Machines W/Stub Guards
-
4315CLIP; Holddown;Applicable to Machines W/Stub Guards
-
4636SHIM; .036'';Applicable to Machines W/Stub Guards
-
4618SHIM 26.99mm OD x 0.25mm Thk; .010'';Applicable to Machines W/Stub Guards
-
4738PLATE; Ledger, Component of Obseleted Stub Guard Assy., P/N 132146
-
4776RIVET; Countersunk Hd., #5, 1/2'' x 7/8''
-
481SPACER;
-
491IDLER WHEEL; Idler Assy.
-
491CARRIAGE BOLT 5/8'' - 11 x 2 1/2'', Gr 5; Bolt, Carriage, G5, 5/8''-11 x 2-1/2''
-
491SPACER 14.6 mm ID x 35.17 mm OD x 3.4 mm Thk;
-
49ARWASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;
-
491LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
491NUT 1/2''-13, G5;
-
501BELT V-Belt, 0.88in W x 86.5in L; V-BELT 0.88'' W x 86.49'' L
Select All
Ref.
1Qty
1Availability
Part #
285289Description
SUPPORT; Assy., Includes: Ref. 2 & 3;Complete Wobble Assembly 215875 Includes: Ref. 1 thru 23, plus Belt 214252, Ref 50.Img
Alts
Ref.
1Qty
1Availability
Part #
86554193Description
SUPPORT; Does Not Include Ref. 2 & 3;Component of 87029655Img
Alts
Ref.
1Qty
1Availability
Part #
124160Description
PIPE 1/8'' NPT x 1/8'' NPT; Grease LineImg
Alts
Ref.
1Qty
1Availability
Part #
91932Description
COUPLING 1/8'' - 27 NPT x 1/8'' - 27 NPT; Pipe, 1/8''Img
Alts
Ref.
1Qty
1Availability
Part #
80719Description
LUBE NIPPLE 1/8'' NPT; NIPPLE, LUBE, 90?, 1/8'' NPT x .84'' lgImg
Alts
Ref.
1Qty
1Availability
Part #
86517892Description
PLOW BOLT #3, 5/8'' - 11 x 3 1/4'', Gr 5; Bolt, Plow, G5, 5/8''-11 x 3-1/4''Img
Alts
Ref.
1Qty
2Availability
Part #
9827853Description
BOLT Hex, 5/8'' - 11 x 3 1/4'', Gr 5; HH, G5, 5/8''-11 x 3-1/4''Img
Alts
Ref.
1Qty
1Availability
Part #
9627896Description
BOLT Hex, 5/8'' - 11 x 1-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-3/4''Img
Alts
Ref.
1Qty
2Availability
Part #
80700Description
WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;Img
Alts
Ref.
1Qty
4Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Ref.
1Qty
2Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Ref.
1Qty
2Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11Img
Alts
Ref.
2Qty
2Availability
Part #
175508Description
BEARING CUP 59.16mm OD x 11.94mm W; Cup, Tapered Roller BearingImg
Alts
Ref.
3Qty
ARAvailability
Part #
199955Description
BEARING CUP 82mm OD x 17mm W; Cup, Tapered Roller Bearing, Marked Timken or New Departure JLM 104910 W/Outside Dia. of 3.228'';Check Bearing Manufacturer's Number to IdentifyImg
Alts
Ref.
3Qty
ARAvailability
Part #
287066Description
BEARING CUP 82.58mm OD x 16.51mm W; Cup, Tapered Roller Bearing, Marked Timken or New Departure LM 10491 W/Outside Dia. of 3.250'';Check Bearing Manufacturer's Number to IdentifyImg
Alts
Ref.
4Qty
1Availability
Part #
134139Description
SPACER; Pivot Pin;Not used with 87029655Img
Alts
Ref.
5Qty
1Availability
Part #
134142Description
SUPPORT; Weld Assy.; (SN Break) Up to 902533Img
Alts
Ref.
5Qty
1Availability
Part #
86549599Description
SUPPORT; Component of 87029655; (SN Break) From 902534Img
Alts
Ref.
5Qty
3Availability
Part #
87670Description
BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;Img
Alts
Ref.
5Qty
3Availability
Part #
87364Description
WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; SAE, 1/2''Img
Alts
Ref.
5Qty
3Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Ref.
6Qty
1Availability
Part #
86554385Description
YOKE; Includes: Ref. 7;Component of 87029655Img
Alts
Ref.
7Qty
1Availability
Part #
127637Description
BUSHING 12.75mm ID x 25.4mm OD x 21.44mm L;Img
Alts
Ref.
8Qty
1Availability
Part #
134130Description
BALL BEARING 25.4mm ID x 52mm OD x 15mm W; Bearing, BallImg
Alts
Ref.
9Qty
1Availability
Part #
80430Description
SET SCREW 1/4'' - 20 x 1/4''; Screw, Set, HS, Cup Pt, 1/4''-20 x 1/4''Img
Alts
Ref.
11Qty
1Availability
Part #
134485Description
BEARING CAP 2.187'' ID x 4.25'' OD x 0.25''; Cap, BearingImg
Alts
Ref.
11Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Ref.
11Qty
2Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
12Qty
1Availability
Part #
215875Description
WOBBLE BOX; Shaft Assy., Wobble;215875 Wobble Assembly, Includes: Ref. 1 thru 23, plus Belt 214252, Ref 50.Img
Alts
Ref.
12Qty
1Availability
Part #
87029655Description
WOBBLE BOX; Shaft Assy., Wobble;Includes: Ref. 1 thru 23, plus Belt 214252, Ref. 50;Will replace 215875 for serviceImg
Alts
Ref.
13Qty
2Availability
Part #
199954Description
BEARING CONE 50mm ID x 21.5mm W; Cone, Tapered Roller BearingImg
Alts
Ref.
14Qty
2Availability
Part #
175507Description
BEARING CONE 35 mm ID x 16.764 mm; Cone, Tapered Roller BearingImg
Alts
Ref.
16Qty
2Availability
Part #
88886Description
SLOTTED NUT 3/4''-16; Nut, Slotted, G2, 3/4''-16Img
Alts
Ref.
16Qty
2Availability
Part #
87395Description
COTTER PIN 1/8'' OD x 1-1/4'' OAL; PIN, SPLIT (COTTER), 1/8'' x 1-1/4''Img
Alts
Ref.
19Qty
1Availability
Part #
223297Description
SEAL 63.5mm ID x 82.75mm OD x 6.76mm Thk; OilImg
Alts
Ref.
20Qty
2Availability
Part #
67372Description
BEARING, ROLLER, CYL 0.7505'' ID x 1.825'' OD x 0.655''; Cone & Seal, Tapered Roller BearingImg
Alts
Ref.
21Qty
2Availability
Part #
36725Description
BEARING CUP 45.26mm OD x 12.06mm W; Cup, Tapered Roller BearingImg
Alts
Ref.
23Qty
2Availability
Part #
87415Description
LUBE NIPPLE 90 Degree, 1/4'' NPT x 3/4'' L, Drive; NIPPLE, LUBE, 90?, 1/4'' NPT x .75'' lg, DriveImg
Alts
Ref.
23Qty
4Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
24Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Knife Assy., Smooth, (577872);Smooth knife assembly is no longer available, Use either underserrated or overserrated assemblyImg
Alts
Ref.
24Qty
1Availability
Part #
9623570Description
KNIFE; Assy., OSR, Bolted, Includes: Ref. 25, 27, 28, 29, & 30C thru 34Img
Alts
Ref.
24Qty
1Availability
Part #
9623793Description
KNIFE; Assy., Overserrated, Rivited, Includes: Ref. 25, 27, 28, 29, & 30C thru 34Img
Alts
Ref.
24Qty
1Availability
Part #
858700Description
KNIFE; Assy., Underserrated, Bolted, Includes: Ref. 25, 27, 28, 29, & 30A thru 34Img
Alts
Ref.
24Qty
1Availability
Part #
648840Description
KNIFE; Assy., Underserrated, Rivited, Includes: Ref. 25, 27, 28, 29, & 30A thru 34Img
Alts
Ref.
26Qty
1Availability
Part #
88966Description
BOLT Hex, 1/2'' - 20 x 4'', Gr 8; Screw, Cap, HH, G8, 1/2''-20 x 4''Img
Alts
Ref.
26Qty
1Availability
Part #
88130Description
NUT 1/2''-20, GC; Nut, Lock, GC, 1/2''-20Img
Alts
Ref.
27Qty
1Availability
Part #
88546Description
BOLT Hex, 3/8'' - 16 x 2 1/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 2-1/4''Img
Alts
Ref.
27Qty
2Availability
Part #
80702Description
WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;Img
Alts
Ref.
27Qty
1Availability
Part #
88902Description
LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16Img
Alts
Ref.
28Qty
1Availability
Part #
254132Description
BUSHING 12.7mm ID x 46.15mm OD x 58.98mm L; Rubber, Knife Hd., 2.32'' longImg
Alts
Ref.
30BQty
37Availability
Part #
706226Description
KNIFE SECTION; Underserrated, Chrome, Not Shown on ArtImg
Alts
Ref.
30CQty
37Availability
Part #
86615988Description
KNIFE SECTION 14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES; OverserratedImg
Alts
Ref.
32Qty
67Availability
Part #
46436Description
RIVET Button, 5.33mm OD x 15.75mm L; Button Hd, #5-1/2, 7/32''x 5/8'', Refer to Ref. 34AImg
Alts
Ref.
33Qty
4Availability
Part #
65474Description
RIVET Button, 8.28mm OD x 23.8mm L; Button Hd, #5-1/2 , 7/32''x 15/16'', Refer to Ref. 34AImg
Alts
Ref.
34Qty
5Availability
Part #
130436Description
RIVET Button, 8.28mm OD x 30.2mm L; Button Hd, #5-1/2, 7/32''x 1-3/16'', Refer to Ref. 34AImg
Alts
Ref.
34AQty
ARAvailability
Part #
706227Description
KIT; Rivet Package, Includes: (75) Ref. 32, (12) Ref. 33, (6) Ref. 34 & (7) P/N 137636 - #5 1/2'' x 9/16'' Countersunk Head Rivets, Not Shown on ArtImg
Alts
Ref.
37Qty
1Availability
Part #
86508778Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 3/4'', Gr 5; BOLT, CARRIAGE, Short NK, 7/16''-14 x 1 3/4'', G5Img
Alts
Ref.
37Qty
18Availability
Part #
88586Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 1-1/2''Img
Alts
Ref.
37Qty
17Availability
Part #
86508777Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 7/16''-14 x 1-1/4''Img
Alts
Ref.
37Qty
2Availability
Part #
9627887Description
BOLT Hex, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd;Img
Alts
Ref.
38Qty
1Availability
Part #
86617059Description
GUARD; Stub, Special, RH;Applicable to Machines W/Stub GuardsImg
Alts
Ref.
38Qty
1Availability
Part #
280804Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 2''Img
Alts
Ref.
38Qty
1Availability
Part #
9637916Description
BOLT Hex, 7/16'' - 14 x 1 1/2'', Gr 5;Img
Alts
Ref.
39Qty
17Availability
Part #
86617061Description
GUARD; Stub;Applicable to Machines W/Stub GuardsImg
Alts
Ref.
39Qty
2Availability
Part #
280804Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 2''Img
Alts
Ref.
39Qty
32Availability
Part #
88586Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 1-1/2''Img
Alts
Ref.
40Qty
1Availability
Part #
86617060Description
GUARD; Stub, Special, LH;Applicable to Machines W/Stub GuardsImg
Alts
Ref.
40Qty
1Availability
Part #
280804Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 2''Img
Alts
Ref.
40Qty
1Availability
Part #
9627887Description
BOLT Hex, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd;Img
Alts
Ref.
41Qty
1Availability
Part #
577311Description
CLIP; Holddown End, R.H.;Applicable to Machines W/Stub GuardsImg
Alts
Ref.
42Qty
3Availability
Part #
288074Description
KNIFE CLIP; Clip, Knife, Holddown, High;Applicable to Machines W/Stub GuardsImg
Alts
Ref.
43Qty
15Availability
Part #
287458Description
CLIP; Holddown;Applicable to Machines W/Stub GuardsImg
Alts
Ref.
46Qty
36Availability
Part #
86622662Description
SHIM; .036'';Applicable to Machines W/Stub GuardsImg
Alts
Ref.
46Qty
18Availability
Part #
86622663Description
SHIM 26.99mm OD x 0.25mm Thk; .010'';Applicable to Machines W/Stub GuardsImg
Alts
Ref.
47Qty
38Availability
Part #
132120Description
PLATE; Ledger, Component of Obseleted Stub Guard Assy., P/N 132146Img
Alts
Ref.
47Qty
76Availability
Part #
84864Description
RIVET; Countersunk Hd., #5, 1/2'' x 7/8''Img
Alts
Ref.
49Qty
1Availability
Part #
280557Description
CARRIAGE BOLT 5/8'' - 11 x 2 1/2'', Gr 5; Bolt, Carriage, G5, 5/8''-11 x 2-1/2''Img
Alts
Ref.
49Qty
1Availability
Part #
143479Description
SPACER 14.6 mm ID x 35.17 mm OD x 3.4 mm Thk;Img
Alts
Ref.
49Qty
ARAvailability
Part #
80700Description
WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;Img
Alts
Ref.
49Qty
1Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Ref.
50Qty
1Availability
Part #
214252Description
BELT V-Belt, 0.88in W x 86.5in L; V-BELT 0.88'' W x 86.49'' LImg
Alts
