001[3] - HEADER ATTACHING & SPRING, 2450/2550, HW SERIES, ASN
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    86558509
    PIN 31.75mm OD x 228mm L;
  • 2
    8
    47704
    WASHER 35.7mm ID x 50.8mm OD x 5mm Thk;
  • 3
    8
    130358
    WASHER 16.28mm ID x 38.35mm OD x 4.11mm Thk; Hardened, 5/8''
  • 4
    2
    86558514
    SPRING; Includes: Ref. 5, 6 & 22, 4 per 12', 2 per 14' & 16'

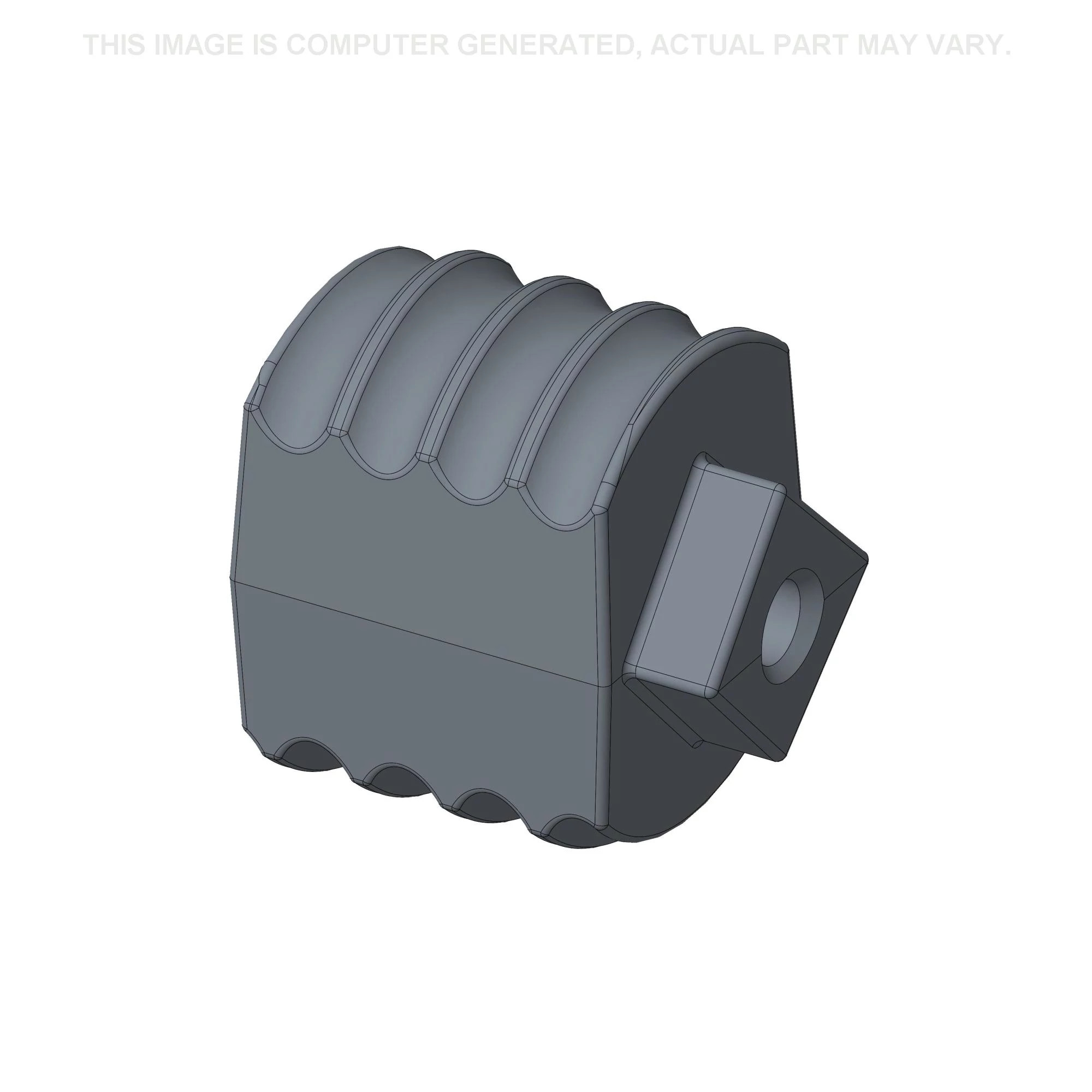

  • 5
    2
    9846359
    SPRING NUT; Spring
  • 6
    2
    621339
    SPRING; 4 per 12', 2 per 14' & 16'
  • 7
    4
    280374
    NUT Hex, 5/8'' - 11, Gr 5;
  • 8
    4
    694420
    PIVOT; Spring
  • 9
    4
    257460
    BOLT Hex, 5/8'' - 11 x 17.12'', Full Thd; Spring Adjusting
  • 10
    2
    86562473
    SPRING; Includes: Ref. 11-14 & 22, 2 per 14' & 16', 4 per 18'
  • 11
    2
    621922
    SPRING NUT; Spring, Outer
  • 12
    2
    621339
    SPRING; Outer, 2 per 14' & 16', 4 per 18'
  • 13
    2

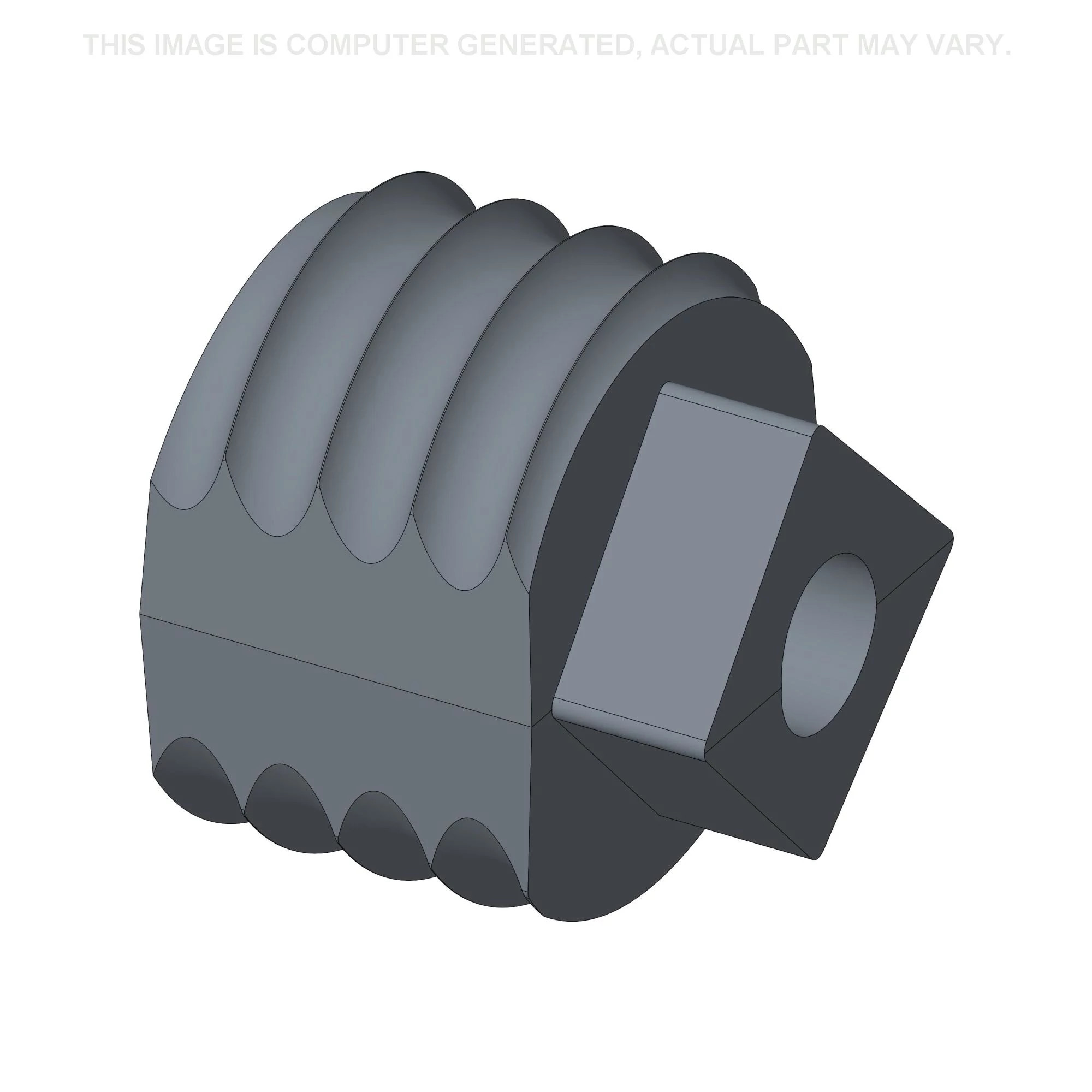

    621920
    SPRING NUT; Spring, Inner
  • 14
    2
    621340
    SPRING; Inner, 2 per 14' & 16', 4 per 18'
  • 15
    4
    87041
    COTTER PIN 1/4'' x 1 3/4'';
  • 16
    2
    9801108
    SPACER;
  • 17
    2
    50204
    BOLT Hex, 1'' - 8 x 6'', Gr 5;
  • 18
    2
    87342
    LOCK WASHER 25.48mm ID x 42.06mm OD x 6.35mm Thk;
  • 19
    2
    9849633
    NUT 1'' - 8, Gr 5;
  • 20
    2
    255622
    PIN; 1/2'' x 6-7/16''
  • 21
    2
    86628570
    COTTER PIN; M4 x 62
  • 22
    4
    86558512
    SPRING NUT; Spring
  • 23
    AR
    86621016
    KIT; Spring, Includes: Ref. 1, 2, 15, 22;Kit To Convert Springs With Grade 8 Bolts At Front Of Spring To Lug Type Spring Nut
