043 - KNOTTER FRAME, TWINE , 565 & 570
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    KNOTTER FRAME Assembly; Knotter, Twine, Includes: Ref. 1A - 29
  • 1A
    2
    KNOTTER; Frame, Includes: 781216 Cam Kit & Ref. 2
  • 6
    LUBE NIPPLE 90 Degree, 1/4'' NPT x 3/4'' L, Drive;
  • 8
    LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP;
  • 2
    2
    PIN 8.73mm OD x 25.4mm L; 11/32'' x 1''
  • 3
    2
    BOLT Sq Hd, 5/16'' - 18 x 2 5/8'', Gr 2; Cap, Sq Hd, G2, 5/16''-18 x 2-5/8'', Adjusting
  • 2
    NUT; Pal, 5/16''-18
  • 4
    2
    KNOTTER HOOK;
  • 5
    2
    SPRING;
  • 6
    2
    KIT; Twine Holder
  • 7
    2
    SCREW BTN HD, 5/16'' - 18 x 0.88''; Cap, HS, Button Hd, Special, 5/16''-18 x 7/8''
  • 8
    2
    BILL HOOK; Standard;Hardened steel roller to use with knotter frames with a bolt on ramp for the roller - Kit 781216, Plastic Twine, Includes: Ref. 9 & Groove Pin
  • 8
    2
    BILL HOOK; Optional, Large Diameter Sisel Twine;Steel Roller, Sisal Twine, Includes: Ref. 9 & Groove Pin
  • 9
    2
    TONGUE;
  • 2
    GROOVED PIN; Type C, Shear Proof, 3/16'' x 1/2''
  • 10
    2
    PINION; Bill Hook
  • 10
    AR
    PINION; Bill Hook;P/N 614898 & 226288 are used only as replacement parts when P/N 645744, Cam Gear Kit has been installed. Cam Gear Kit can be identified by (2) 1/2'' x 3/16'' Wear Inserts in the Cam Gear. P/N 645744 Includes: P/N 614898 & 226288
  • 2
    GROOVED PIN 4.76mm OD x 22.22mm L;
  • 11
    2
    SHAFT; Pinion
  • 12
    2
    WORM GEAR; Pinion
  • 12
    AR
    DRIVE PINION; Worm, (Increased Hardness Depth);P/N 614898 & 226288 are used only as replacement parts when P/N 645744, Cam Gear Kit has been installed. Cam Gear Kit can be identified by (2) 1/2'' x 3/16'' Wear Inserts in the Cam Gear. P/N 645744 Includes: P/N 614898 & 226288
  • 13
    AR
    WASHER; 570 & 575;Replaces 11158 W/ Washer, Shim #748216 & Shim #748217
  • 13
    AR
    WASHER; 9/16''
  • 13
    AR
    WASHER; Special, 1/32'' Thick
  • 14
    2
    WORM SCREW; Knotter
  • 15
    2
    DISC;
  • 16
    2
    DRIVE PINION; Twine Disc
  • 17
    4
    CLEANER; Disc
  • 18
    2
    SPRING; Tension
  • 2
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; 565, 570
  • 19
    2
    ARM; Kit, Knife, Includes: Ref. 20 - 29
  • 20
    2
    KNIFE; Kit, Standard, Includes: Ref. 21 - 23 & (1) Knife

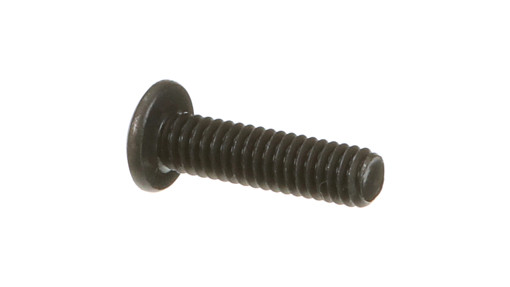

  • 21
    2
    HEX SOC SCREW BTN HD, #8 - 32 x 5/8'';
  • 22
    2
    LOCK WASHER #8;
  • 23
    2
    NUT #8-32;
  • 24
    2
    GUIDE;
  • 25
    2
    COTTER PIN 1/8'' x 7/8'';
  • 26
    AR
    CALE .015'' Thk;
  • 26
    AR
    CALE .025'' Thk;
  • 27
    2
    GALET 25.4mm OD x 12.7mm L; Knife Arm

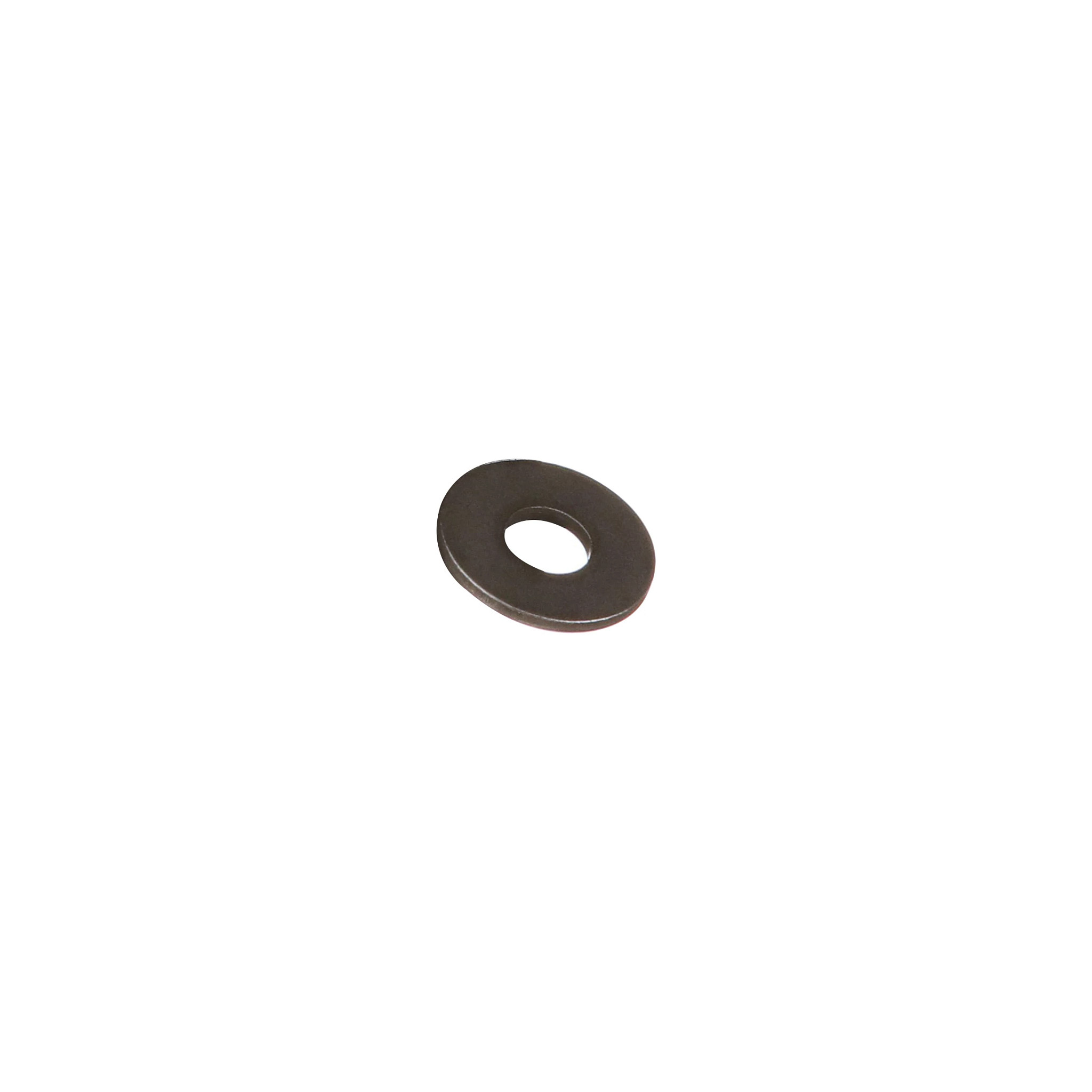

  • 28
    2
    RONDELLE 6.76mm ID x 17.48mm OD x 1.52mm Thk; Heat-Treated, 17/64''
  • 29
    2
    ERGOT D'ARRET Button Hd, 1/4'' - 20 x 0.50''; Button Hd, HS, Self-Locking,1/4''-20 x 1/2''
  • 30
    2
    COUTEAU; Optional
  • 31
    AR
    KIT; Bill Hook Cam, Includes: Cam, (2) Cap Screws & Retaining Compound

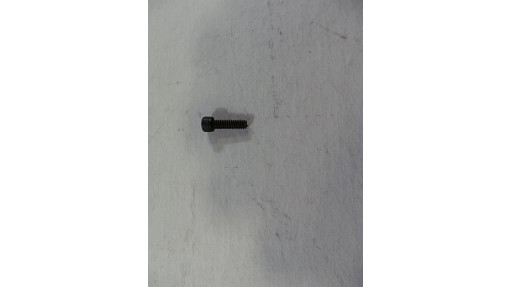

  • 2
    VIS A EMBASE HEXAGON #6 - 32 x 1/2'';
  • 32
    8
    GROOVED PIN 4.76mm OD x 22.23mm L; Double Shear, 6990 lbs. (Optional)
  • 33
    2
    NUT 3/8'' - 24, Gr 5;
