Ref.
Qty
Part #
Alts
Description
-
6BALL BEARING 20mm ID x 47mm OD x 14mm W; Net Wrap
-
2BUSHING 31.83mm ID x 38.19mm OD x 25.4mm L;
-
2SPRING Compression, 11.91mm OD x 25.4mm L; Overrun Clutch, Rotor Units
-
2PIN 12.7mm OD x 35mm L; Overrun Clutch, Rotor Units
-
5BOLT Hex, M8 x 1.25 x 40mm, Cl 8.8; Floor Roll, Rotor Units
-
4BALL BEARING 27.33mm ID x 47.092mm OD x 12.827mm W;
-
2SPROCKET RC80, 13T; & Bearing
-
2DISC 77.7mm ID x 146mm OD x 3.56mm Thk; Sledge Roll Drive Slip Clutch
-
2BALL BEARING 44.45mm ID x 84.99mm OD x 22mm W; Dimple Rolls
-
1ROLLER BEARING 40mm ID x 80mm OD x 21mm W, Round Bore;
-
1BALL BEARING 25.4mm ID x 52mm OD x 21.4mm W; 2M Wide Pickup
-
2KNIFE SECTION; Twine Cutting
-
1GAUGE; 3000 PSI, Bale Density
-
1SUPPORT; Dimple Roll
-
3KNIFE 382mm L x 38.1mm W x 3.4mm Thk;
-
1IDLER GEAR; 17T, Sledge Roll Drive
-
2BALL BEARING 35mm ID x 72mm OD x 17mm W; Sledge Roll Drive
-
2SCRAPER BLADE; Silage/High Moisture Units
-
4BALL BEARING 38.1mm ID x 80mm OD x 30.2mm W; Tailgate Idler Roll
-
1REPAIR KIT; Lacing, (1) Box, (18) cards, (45) hooks per card, NA & AUS Units
-
2BELT 178mm W x 1830mm L; Repair Section for Laced Belt;NORTH AMERICA
-
1LATCH; Side & Front Door Latch
-
4CAM FOLLOWER Ball, 38.1mm OD x 19mm W;
-
2BEARING ASSY 40mm ID; Tailgate & Backwrap Rolls, Includes: 563733 Lock Collar
-
1BEARING ASSY Ball, 50mm ID x 110mm OD x 29mm W; 1.969'' ID, Endless Belt Units
-
2BEARING ASSY Ball, 40mm ID x 80mm OD x 22mm W; 1.575'' ID, Endless Belt Units
-
7KNIFE SECTION; USR, Bale Slice
-
1SENSOR; Tailgate & Rotor Knives
-
3BEARING ASSY Flanged, 45mm ID x 58.7mm W; 1.772'' ID, Endless Belt Units
-
2BEARING ASSY Ball, 45mm ID x 85mm OD x 22mm W; 1.772'' ID, Starter Roll
-
1GEAR; 24T, Sledge Roll
-
1SPECIAL BOLT M12 x 40mm, Drilled; Apron Drive, Cap, HH, M12 x 1.75 x 40, W/ Hole Drilled Lenghwise
-
5GUARD; Pickup, Yellow
-
1CLIP; 1.8M & 2M Wide Pickups
-
2DISC; PTO Slip Clutch
-
5LOCK NUT Hex, M8 x 1.25, Cl 8, ZND; Shearbolt, Floor Roll, Rotor Units
-
2BELT Flat, 177.8mm W x 10671mm L; Laced, Mini Rough Top Pattern
-
5GUARD; 1.8M & 2M Wide Pickups
-
5GUARD; 2M Rotor Pickups
-
1POTENTIOMETER 3000 Ohm, 16 VDC;
-
1BUSHING; PTO Slip Clutch
-
1CAMSHAFT BEARING Ball, 0.376 ID x 0.75 OD x 0.5; Cam Follower, Net Wrap
-
4KNIFE 445.8mm L x 38.1mm W x 3.4mm Thk; Net Wrap
-
9TUBE 4.80 mm OD x 1850 mm L; Lube Line, 3/16'' x 6'
-
1SWITCH; Hall Effect
-
2SEAL KIT;
-
2SEAL KIT;
-
2CLUTCH;
-
1SEAL KIT;
-
10KNIFE; Rotors Cutter Units
-
2BELT Flat, 178mm W x 10681mm L; Endless
-
2BELT Flat, 177.8mm W x 1828.8mm L; Endless, Repair Section
-
5DIA KIT, HARVESTER;
-
36TORSION SPRING Coiled, 2 Prong, 186.5mm L, Yellow; NORTH AMERICA
-
2HUB 12.5mm ID x 47.42mm OD x 13.2mm L;
Select All
Select
Ref.
Qty
6Availability
Part #
27291Description
BALL BEARING 20mm ID x 47mm OD x 14mm W; Net WrapImg
Alts
Select
Ref.
Qty
2Availability
Part #
27639Description

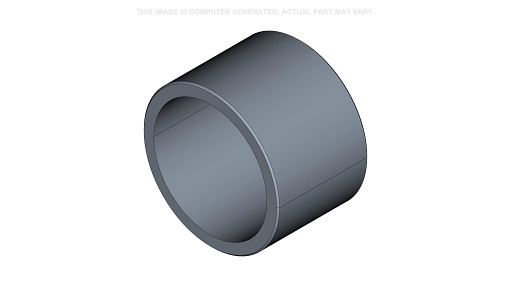

BUSHING 31.83mm ID x 38.19mm OD x 25.4mm L;Img
Alts
Select
Ref.
Qty
2Availability
Part #
29840Description
SPRING Compression, 11.91mm OD x 25.4mm L; Overrun Clutch, Rotor UnitsImg
Alts
Select
Ref.
Qty
2Availability
Part #
29860Description
PIN 12.7mm OD x 35mm L; Overrun Clutch, Rotor UnitsImg
Alts
Select
Ref.
Qty
5Availability
Part #
43129Description
BOLT Hex, M8 x 1.25 x 40mm, Cl 8.8; Floor Roll, Rotor UnitsImg
Alts
Select
Ref.
Qty
4Availability
Part #
54770Description
BALL BEARING 27.33mm ID x 47.092mm OD x 12.827mm W;Img
Alts
Select
Ref.
Qty
2Availability
Part #
127434Description
DISC 77.7mm ID x 146mm OD x 3.56mm Thk; Sledge Roll Drive Slip ClutchImg
Alts
Select
Ref.
Qty
2Availability
Part #
133941Description

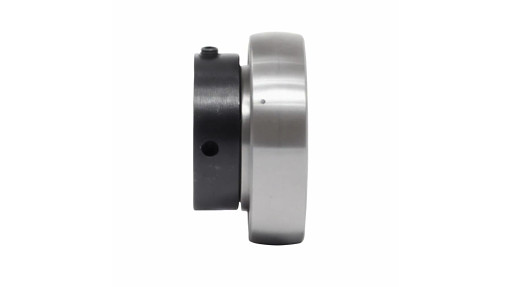

BALL BEARING 44.45mm ID x 84.99mm OD x 22mm W; Dimple RollsImg
Alts
Select
Ref.
Qty
1Availability
Part #
412441Description

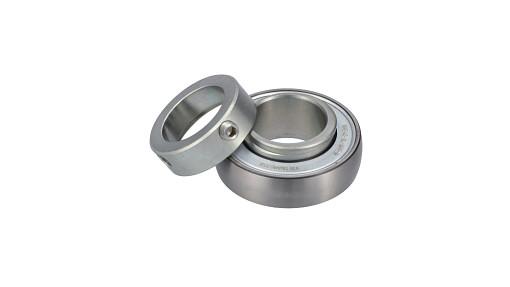

ROLLER BEARING 40mm ID x 80mm OD x 21mm W, Round Bore;Img
Alts
Select
Ref.
Qty
1Availability
Part #
574844Description
BALL BEARING 25.4mm ID x 52mm OD x 21.4mm W; 2M Wide PickupImg
Alts
Select
Ref.
Qty
3Availability
Part #
9806864Description
KNIFE 382mm L x 38.1mm W x 3.4mm Thk;Img
Alts
Select
Ref.
Qty
1Availability
Part #
51547649Description
IDLER GEAR; 17T, Sledge Roll DriveImg
Alts
Select
Ref.
Qty
2Availability
Part #
51547648Description
BALL BEARING 35mm ID x 72mm OD x 17mm W; Sledge Roll DriveImg
Alts
Select
Ref.
Qty
2Availability
Part #
9845575Description

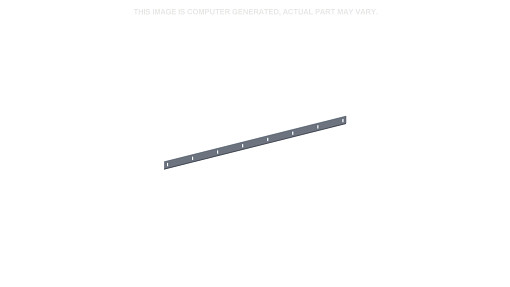

SCRAPER BLADE; Silage/High Moisture UnitsImg
Alts
Select
Ref.
Qty
4Availability
Part #
9845576Description
BALL BEARING 38.1mm ID x 80mm OD x 30.2mm W; Tailgate Idler RollImg
Alts
Select
Ref.
Qty
1Availability
Part #
9847138Description

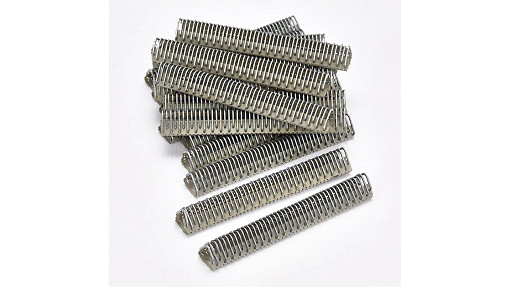

REPAIR KIT; Lacing, (1) Box, (18) cards, (45) hooks per card, NA & AUS UnitsImg
Alts
Select
Ref.
Qty
2Availability
Part #
9848483Description

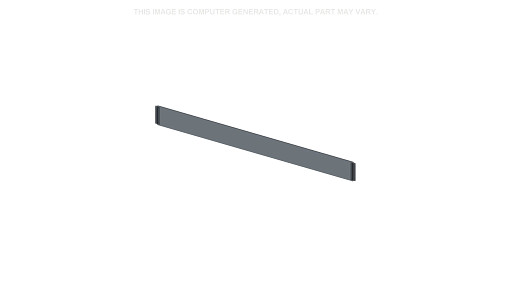

BELT 178mm W x 1830mm L; Repair Section for Laced Belt;NORTH AMERICAImg
Alts
Select
Ref.
Qty
4Availability
Part #
84350126Description

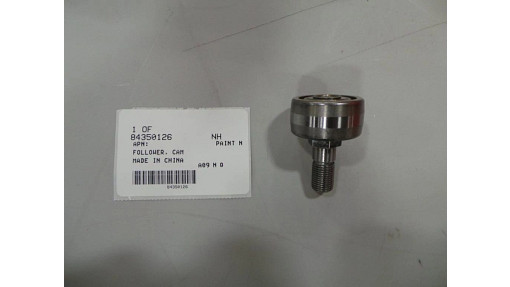

CAM FOLLOWER Ball, 38.1mm OD x 19mm W;Img
Alts
Select
Ref.
Qty
2Availability
Part #
86590751Description
BEARING ASSY 40mm ID; Tailgate & Backwrap Rolls, Includes: 563733 Lock CollarImg
Alts
Select
Ref.
Qty
1Availability
Part #
86590752Description

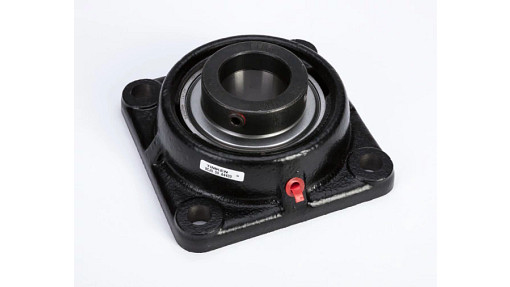

BEARING ASSY Ball, 50mm ID x 110mm OD x 29mm W; 1.969'' ID, Endless Belt UnitsImg
Alts
Select
Ref.
Qty
2Availability
Part #
86590753Description

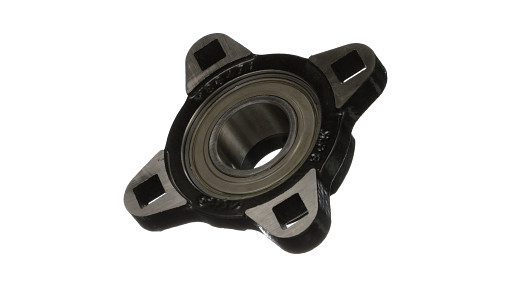

BEARING ASSY Ball, 40mm ID x 80mm OD x 22mm W; 1.575'' ID, Endless Belt UnitsImg
Alts
Select
Ref.
Qty
3Availability
Part #
86609558Description

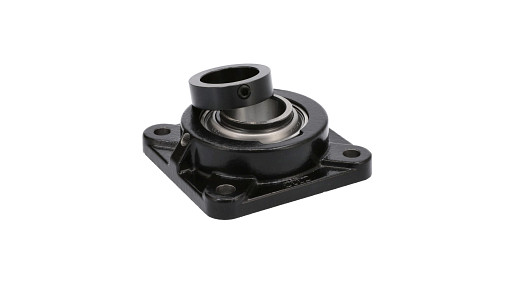

BEARING ASSY Flanged, 45mm ID x 58.7mm W; 1.772'' ID, Endless Belt UnitsImg
Alts
Select
Ref.
Qty
2Availability
Part #
86610638Description

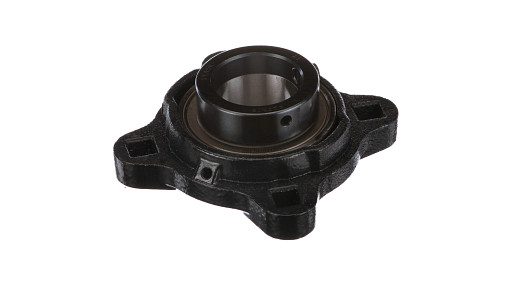

BEARING ASSY Ball, 45mm ID x 85mm OD x 22mm W; 1.772'' ID, Starter RollImg
Alts
Select
Ref.
Qty
1Availability
Part #
86618213Description
SPECIAL BOLT M12 x 40mm, Drilled; Apron Drive, Cap, HH, M12 x 1.75 x 40, W/ Hole Drilled LenghwiseImg
Alts
Select
Ref.
Qty
5Availability
Part #
86629542Description
LOCK NUT Hex, M8 x 1.25, Cl 8, ZND; Shearbolt, Floor Roll, Rotor UnitsImg
Alts
Select
Ref.
Qty
2Availability
Part #
86642412Description
BELT Flat, 177.8mm W x 10671mm L; Laced, Mini Rough Top PatternImg
Alts
Select
Ref.
Qty
1Availability
Part #
87010284Description
CAMSHAFT BEARING Ball, 0.376 ID x 0.75 OD x 0.5; Cam Follower, Net WrapImg
Alts
Select
Ref.
Qty
4Availability
Part #
87013989Description
KNIFE 445.8mm L x 38.1mm W x 3.4mm Thk; Net WrapImg
Alts
Select
Ref.
Qty
9Availability
Part #
87014413Description

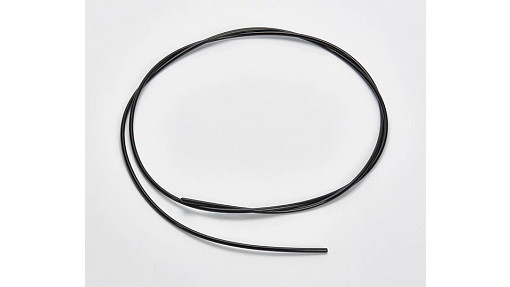

TUBE 4.80 mm OD x 1850 mm L; Lube Line, 3/16'' x 6'Img
Alts
Select
Ref.
Qty
2Availability
Part #
84141594Description

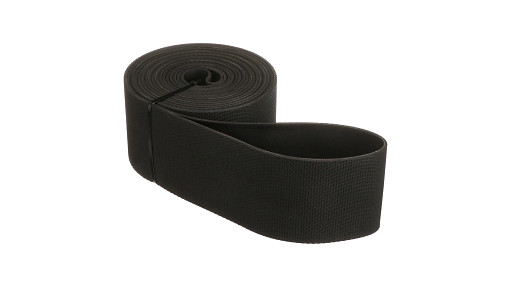

BELT Flat, 178mm W x 10681mm L; EndlessImg
Alts
Select
Ref.
Qty
2Availability
Part #
87042212Description
BELT Flat, 177.8mm W x 1828.8mm L; Endless, Repair SectionImg
Alts
Select
Ref.
Qty
36Availability
Part #
87394243Description

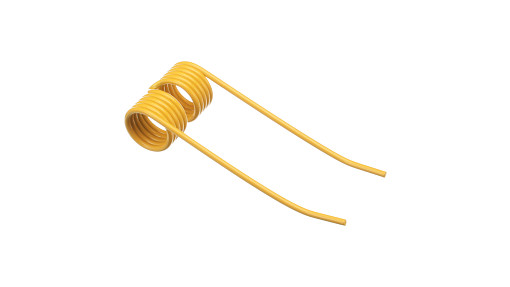

TORSION SPRING Coiled, 2 Prong, 186.5mm L, Yellow; NORTH AMERICAImg
Alts
Select
Ref.
Qty
2Availability
Part #
87398962Description

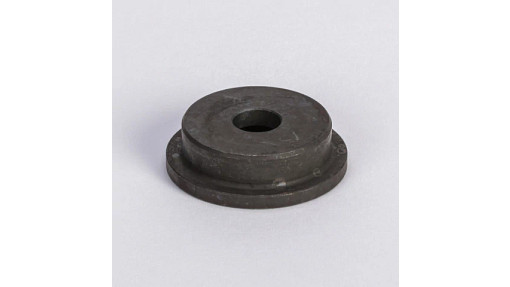

HUB 12.5mm ID x 47.42mm OD x 13.2mm L;Img
Alts
