PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11HANDLED SHAFT;
-
21WASHER 13.5mm ID x 24mm OD x 3mm Thk;
-
31WASHER 6.6mm ID x 12mm OD x 1.6mm Thk;
-
41NUT Hex, M6 x 1, Cl 10.9;
-
51CLIP,ELECTRICAL;
-
61CONTROL LEVER;
-
71CONTROL LEVER;
-
81CONTROL LEVER; 3rd Bank
-
93SUPPORT;
-
106BOLT Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd;
-
116LOCK NUT M6 x 1, Cl 8;
-
123KNOB; 5 mm
-
131LOCK;
-
143SPRING;
-
156PIN 6mm OD x 17mm L;
-
166CIRCLIP;
-
173BALL 6mm OD, Gr 200;
-
183CIRCLIP;
-
196CIRCLIP M6;
-
201GROMMET; Version with, 2 Valve
-
223CABLE ASSY. 1524mm L;
-
233CONTROL LEVER; Includes 24
-
242BUSHING 16mm ID x 18mm OD x 15mm L;
-
253PIN 7.9mm OD x 34mm L;
-
263CLIP;
-
271SYMBOLS; SYMBOL , No.1
-
281SYMBOLS; SYMBOL , No.2
-
291SYMBOLS; SYMBOL , No.3
-
301SUPPORT;
-
312BOLT Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd;
-
321BOLT Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd;
-
334BOLT Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd;
-
345NUT M10 x 1.5, Cl 10.9;
-
354WASHER 11mm ID x 20mm OD x 2mm Thk; 11 x 21 x 2 mm
-
362WASHER 13.5mm ID x 24mm OD x 3mm Thk;
-
371SUPPORT;
-
391SUPPORT;
-
401BOLT Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd;
-
412NUT M12 x 1.75, Cl 10.9;
-
421SPACER; 44 mm
-
433ROD; 12 mm
-
446CLIP;
-
453CABLE; See Bulletin NTR SB MX 9020 00
-
466NUT Hex, M6 x 1, Cl 10.9;
-
473BALL JOINT;
-
483CIRCLIP M13;
-
491SUPPORT;
-
6B1CONTROL LEVER; Not Illustrated, Use with 1A,7A,23A,43 - 49
-
7B1CONTROL LEVER; Not Illustrated, Use with 1A,6A,23A,43 - 49
-
8B1CONTROL LEVER; 3rd Bank
-
1B1HANDLED SHAFT; Use with 6A,7A,23A,43 - 49
-
23A3CONTROL LEVER; Includes 24
-
1VALVE; Third Remote
-
8A1CONTROL LEVER;
Select All
Select
Ref.
2Qty
1Availability
Part #
896-11012Description
WASHER 13.5mm ID x 24mm OD x 3mm Thk;Img
Alts
Select
Ref.
3Qty
1Availability
Part #
895-11006Description
WASHER 6.6mm ID x 12mm OD x 1.6mm Thk;Img
Alts
Select
Ref.
10Qty
6Availability
Part #
614-6020Description
BOLT Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd;Img
Alts
Select
Ref.
20Qty
1Availability
Part #
182220A1Description

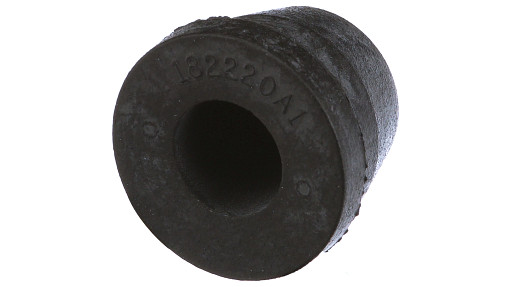

GROMMET; Version with, 2 ValveImg
Alts
Select
Ref.
24Qty
2Availability
Part #
1533536C1Description

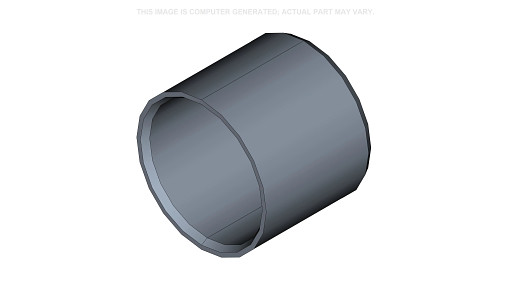

BUSHING 16mm ID x 18mm OD x 15mm L;Img
Alts
Select
Ref.
31Qty
2Availability
Part #
628-10025Description
BOLT Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
32Qty
1Availability
Part #
628-12035Description
BOLT Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
33Qty
4Availability
Part #
628-10030Description
BOLT Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
35Qty
4Availability
Part #
895-11010Description
WASHER 11mm ID x 20mm OD x 2mm Thk; 11 x 21 x 2 mmImg
Alts
Select
Ref.
36Qty
2Availability
Part #
896-11012Description
WASHER 13.5mm ID x 24mm OD x 3mm Thk;Img
Alts
Select
Ref.
40Qty
1Availability
Part #
828-10040Description
BOLT Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
45Qty
3Availability
Part #
352716A1Description

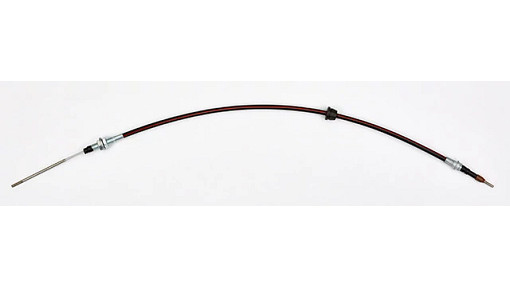

CABLE; See Bulletin NTR SB MX 9020 00Img
