6-170 - UNIVERSAL CAST REAR WHEELS, SINGLE OR DUAL, 38, 42 AND 46 INCH RIMS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    A67688
    WHEEL ASSY.; WHEEL ATTACHMENT - rear, universal cast, Machinery Item, Includes: Ref. 1 P/N 1334480C1 and Ref. 2 thru 8
  • 1
    2
    1334480C1
    RIM; - wheel, For 18.4-38 tire
  • 1
    A67690
    RIM; WHEEL ATTACHMENT - rear, universal cast, Machinery Item, Includes: Ref. 1 P/N 1334481C1 and Ref. 2 thru 8
  • 1
    2
    1334481C1
    RIM; - wheel, For 20.8-38 tire
  • 1
    A67779
    WHEEL ASSY.; WHEEL ATTACHMENT - rear, universal cast, Machinery Item, Includes: Ref. 1 P/N 1334482C1 and Ref. 2 thru 8
  • 1
    2
    1334482C1
    RIM; - wheel, For 18.4-42 tire
  • 1
    A67933
    WHEEL ASSY.; WHEEL ATTACHMENT - rear, universal cast, Machinery Item, Includes: Ref. 1 P/N 1334483C1 and Ref. 2 thru 8
  • 1
    2
    1334483C1
    RIM; - wheel, For 20.8-42 tire
  • 2
    2
    A145464
    WHEEL; - rear, universal cast
  • 3
    16
    326-1244

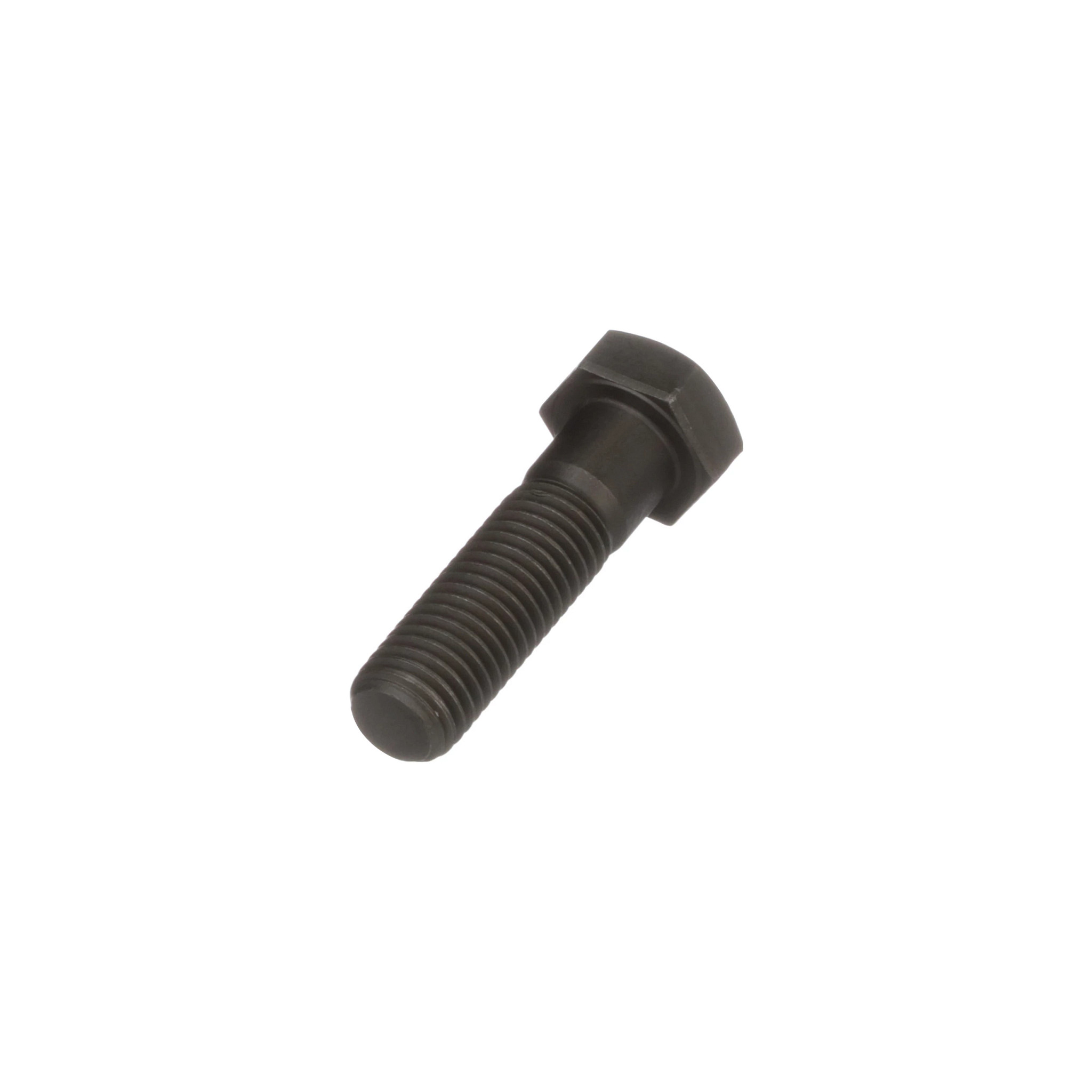

    BOLT Hex, 3/4'' - 10 x 2-3/4'', Gr 8;
  • 4
    16
    396-31081
    WASHER 20.63mm ID x 38.1mm OD x 5.56mm Thk;
  • 5
    24
    117-618

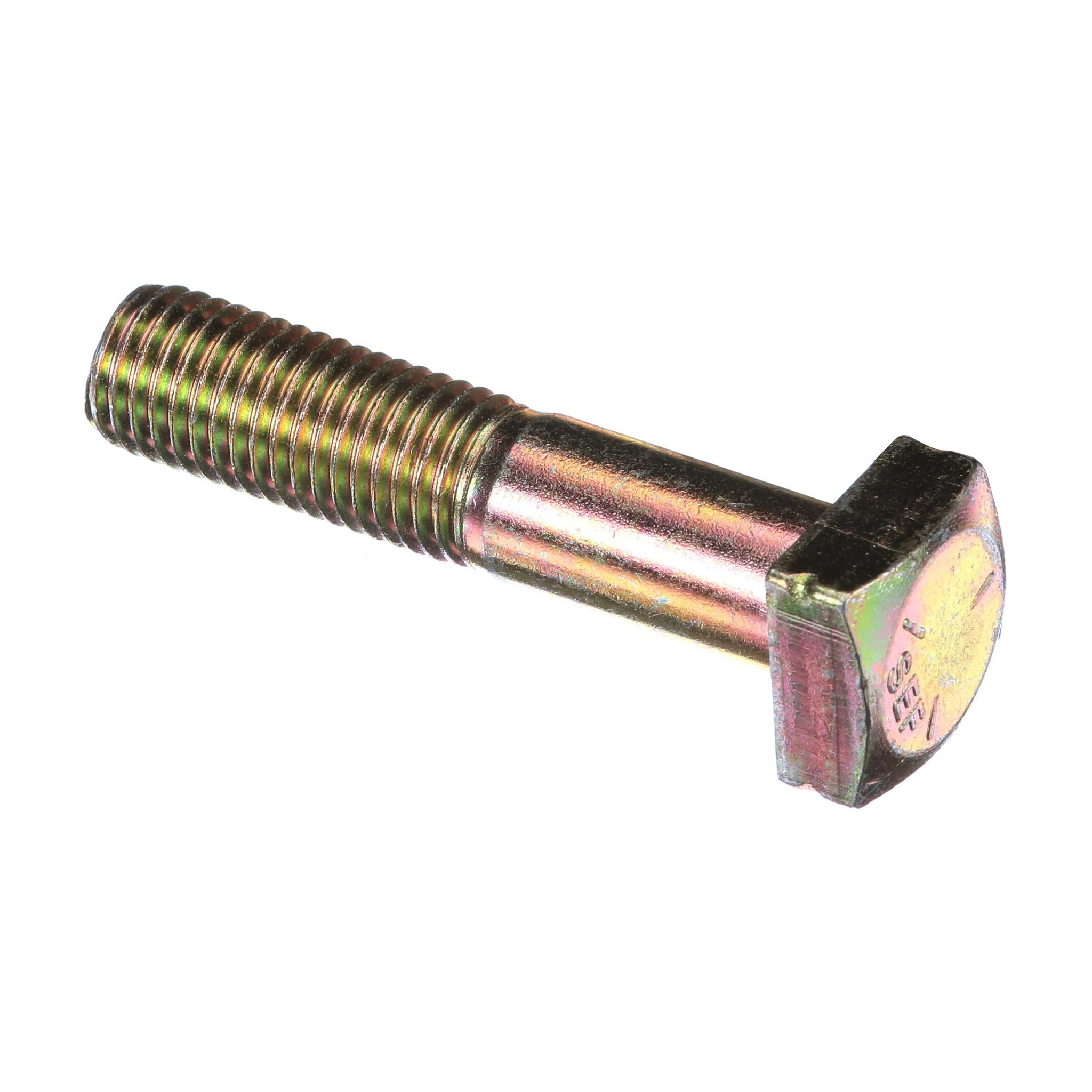

    SQUARE BOLT 3/4'' - 10 x 3 1/2'', Gr 5; - square head, 3/4 NC x 3-1/2 inch
  • 6
    24
    A57654
    CLAMP; - adjusting, double ramp
  • 7
    24
    A161560

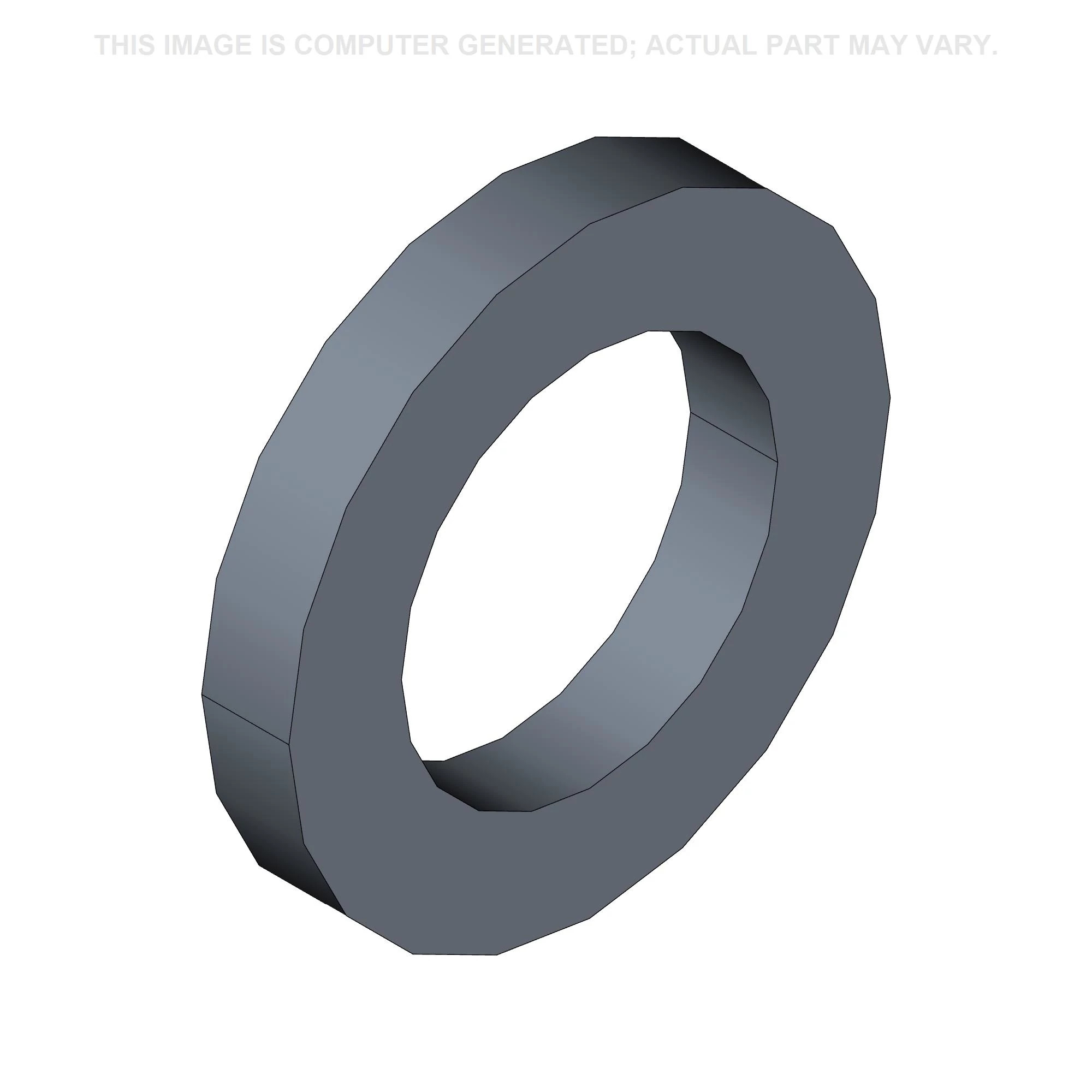

    WASHER 19.84mm ID x 31.7mm OD x 4.6mm Thk; - flat, wheel
  • 8
    24
    129-593
    NUT Hvy Hex, 3/4'' - 10, Gr 5;
  • 11
    2
    1978549C3
    RIM; - wheel, 12 x 46
  • 11
    2
    1348323C1
    RIM; - wheel, 16 x 46
  • 12
    2
    1348284C1
    RIM; WHEEL - rear, universal cast, Replaces: P/N 1978551C1
  • 13
    16

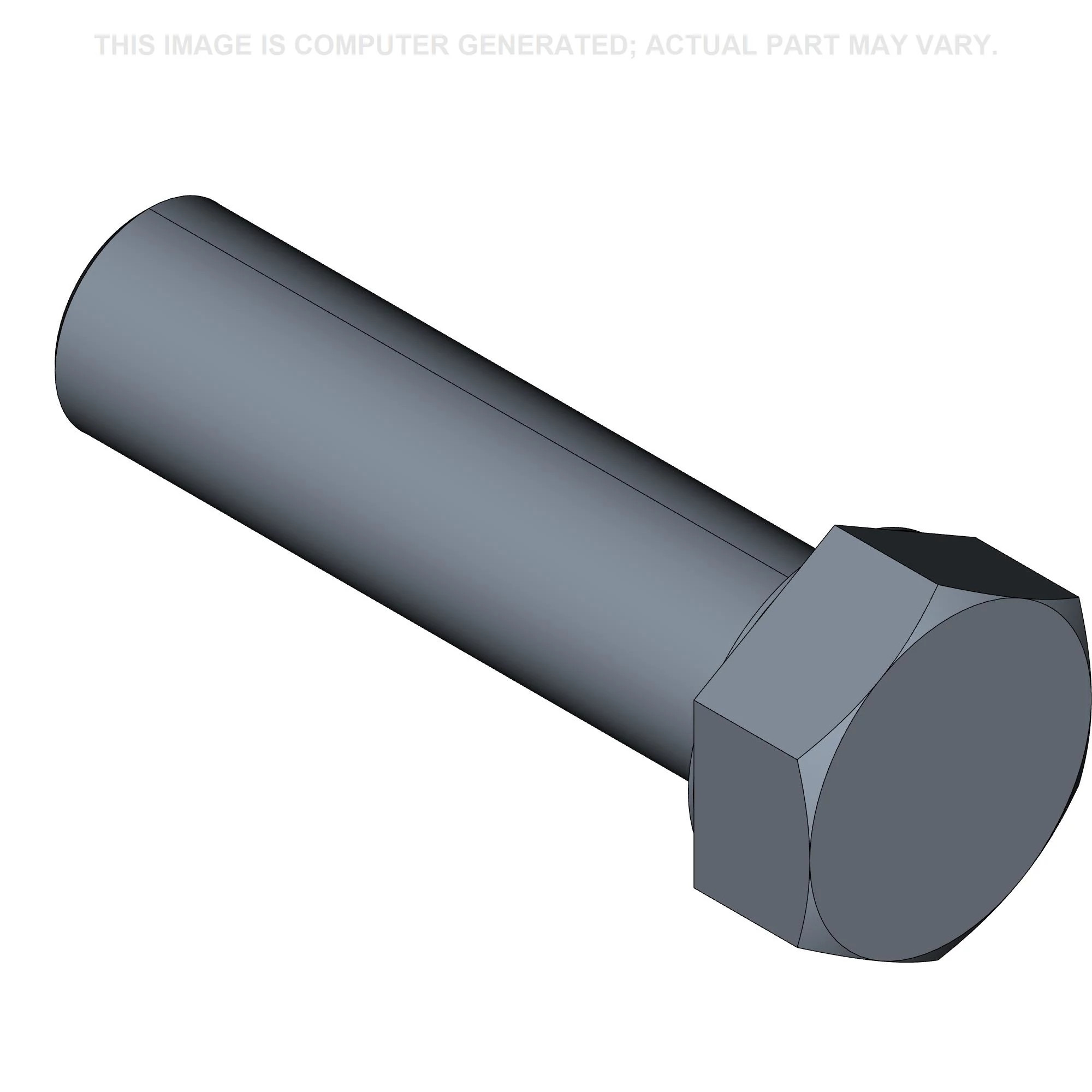

    426-1244
    BOLT Hex, 3/4'' - 10 x 2-3/4'', Gr 8; - hex, 3/4 NC x 2-3/4 inch, Grade 8, If used, Replaces P/N 26-1244
  • 14
    16
    396-31081
    WASHER 20.63mm ID x 38.1mm OD x 5.56mm Thk;
  • 15
    24
    A161560
    WASHER 19.84mm ID x 31.7mm OD x 4.6mm Thk; - flat, wheel, if used
  • 16
    24
    129-593
    NUT Hvy Hex, 3/4'' - 10, Gr 5; If used 3/4''-10, G5, Hvy
  • 17
    24
    1348513C1
    BOLT; - hex 3/4 NC x 2-1/4 inch, if used
  • 18
    24
    496-31081
    WASHER 13/16'' x 1 1/2'' x .219'', HDN; - flat, 13/16 x 1-1/2 x 7/32 inch, hardened, if used
  • 1
    A67685
    KIT; HUB ATTACHMENT - wheel, 8 bolt, Machinery Item, Includes: Ref. 21-26
  • 21
    2
    A145322
    HUB; - wheel, tapered
  • 22
    2
    1289233C1
    HUB; BUSHING - wheel, 4 inch ID
  • 23
    12
    1533578C1

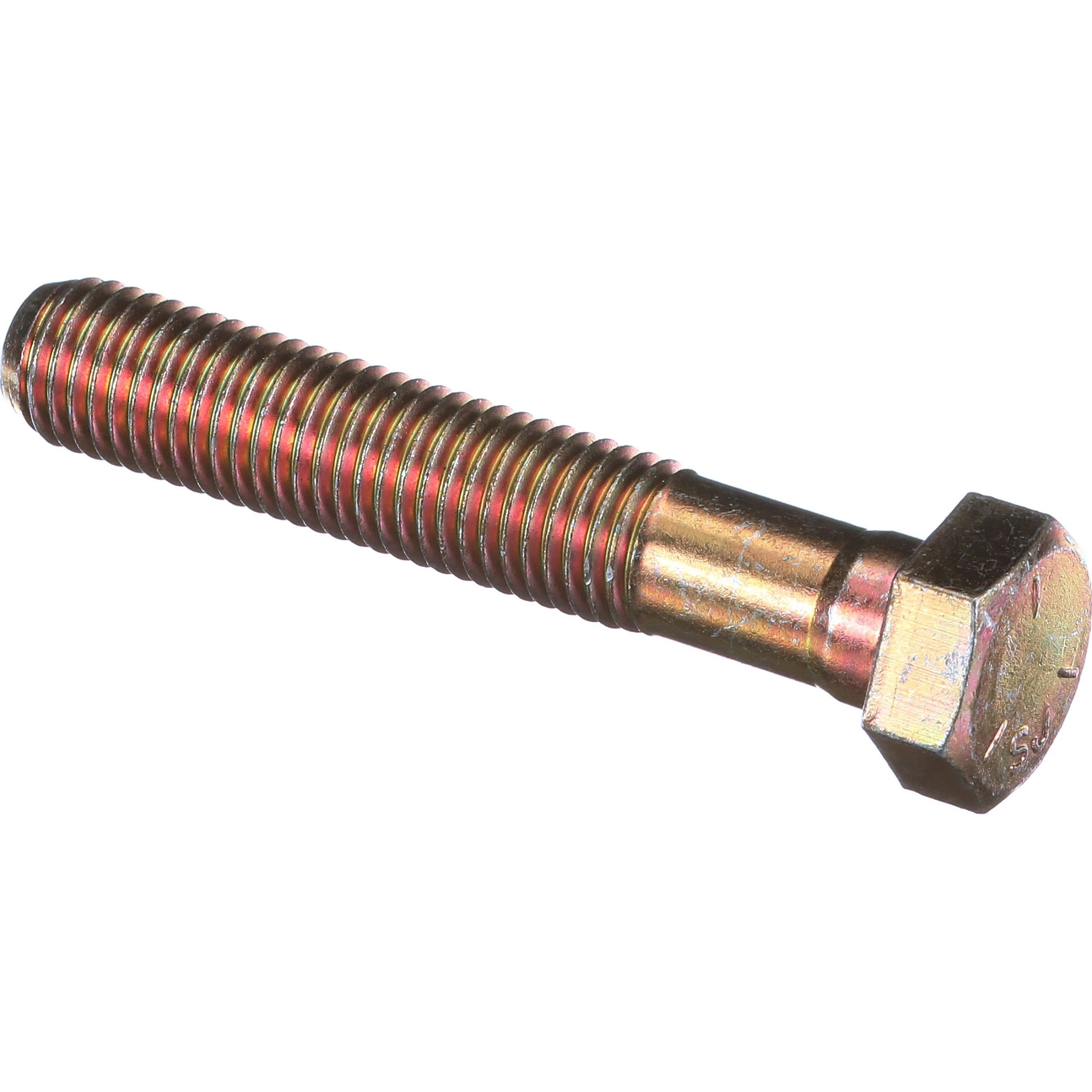

    SPECIAL BOLT Hex, 3/4'' - 10 x 4.38'', Gr 5; SCREW - bushing
  • 24
    12
    396-31081
    WASHER 20.63mm ID x 38.1mm OD x 5.56mm Thk;
  • 25
    2
    A63219
    KEY; - axle, 3/4 x 6 inch
  • 26
    2
    138-127
    LOCK PIN 1/4'' x 1/2'', Slotted; PIN, 1/4'' x 1/2'', Slotted
  • 32
    12
    1533578C1
    SPECIAL BOLT Hex, 3/4'' - 10 x 4.38'', Gr 5;
  • 33
    12
    496-31081
    WASHER 13/16'' x 1 1/2'' x .219'', HDN;
