TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11COMPRESSOR;
-
21SUPPORT;
-
34HEX SOC SCREW M8 x 30mm, Cl 8.8;
-
44LOCK WASHER 8mm ID;
-
54NUT Hex, M8 x 1.25, Cl 10.9;
-
61BELT V-Belt, 12.7mm W x 900mm L;
-
71SEAL;
-
1PULLEY ASSY.; Includes 8 - 12
-
8XSHIM 88mm ID x 117.9mm OD x 1mm Thk;
-
94LOCK WASHER 5/16'';
-
104BOLT;
-
111PULLEY;
-
121PULLEY;
-
131FITTING;
-
141LOCK WASHER 3/4'';
-
151THIN NUT Thin, M18 x 1.5, Cl 04;
-
161ADAPTER;
-
171SEAL;
-
181INTAKE AIR HOSE 54.00 mm ID;
-
191SEALING RING M26 x 31 x 2;
-
201ADAPTER;
-
214BOLT Hex, M10 x 1.5 x 25mm, Cl 8.8;
-
221SEAL;
-
231CLAMP 5/8'', Insul, 5/16'' Bolt;
-
241ADAPTER;
-
251ADAPTER;
-
261HOSE; Supply
-
271HOSE; Return
-
281FITTING;
-
291PULLEY; With Air Conditioning
Select All
Select
Ref.
3Qty
4Availability
Part #
864-8030Description
HEX SOC SCREW M8 x 30mm, Cl 8.8;Img
Alts
Select
Ref.
6Qty
1Availability
Part #
293956A1Description
BELT V-Belt, 12.7mm W x 900mm L;Img
Alts
Select
Ref.
8Qty
XAvailability
Part #
897499H1Description

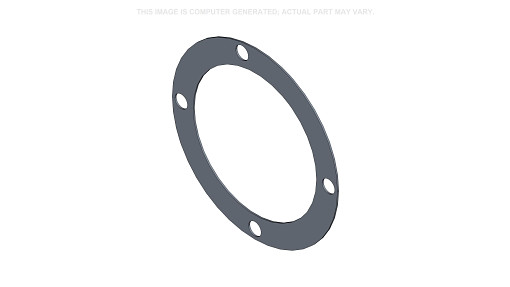

SHIM 88mm ID x 117.9mm OD x 1mm Thk;Img
Alts
Select
Ref.
15Qty
1Availability
Part #
933678R1Description
THIN NUT Thin, M18 x 1.5, Cl 04;Img
Alts
Select
Ref.
21Qty
4Availability
Part #
614-10025Description
BOLT Hex, M10 x 1.5 x 25mm, Cl 8.8;Img
Alts
Select
Ref.
23Qty
1Availability
Part #
515-22159Description

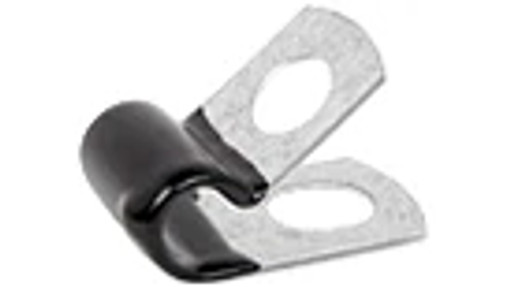

CLAMP 5/8'', Insul, 5/16'' Bolt;Img
Alts
Select
Ref.
29Qty
1Availability
Part #
315527A1Description
PULLEY; With Air ConditioningImg
Alts
