PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11FRAME; Subframe
-
21BRACKET; Mounting, Rear
-
31BRACKET; Mounting, Front, Left
-
41BRACKET; Mounting, Front, Right
-
54BUSHING; .75 I.D. x 1.25 O.D. x 1''
-
62SUPPORT; Brace
-
72PIN 3.25'' L; Assembly, 3/4'' x 3''
-
82PIN; Lynch
-
96BOLT Hex, 3/4'' - 16 x 2 3/4'', Spcl, Gr 5; Hex, 3/4'' - 16 x 2 3/4'', Spcl, Gr 5
-
1010PROCURE LOCALLY; Nut, Lock, 3/4''
-
112PROCURE LOCALLY; Screw, Cap, 7/8-9 x 3-1/2''
-
122LOCK WASHER 7/8''; 7/8''
-
132BOLT Hex, M16 x 2 x 110mm, Cl 8.8; Cap, HH, CL 8.8, M16 x 2 x 110
-
1514LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; WASHER, LOCK, 5/8''
-
168BOLT Hex, M16 x 2 x 100mm, Cl 8.8; BOLT, Hex, M16 x 100, 8.8
-
174BOLT Hex, M16 x 35mm, Cl 8.8, Full Thd;
-

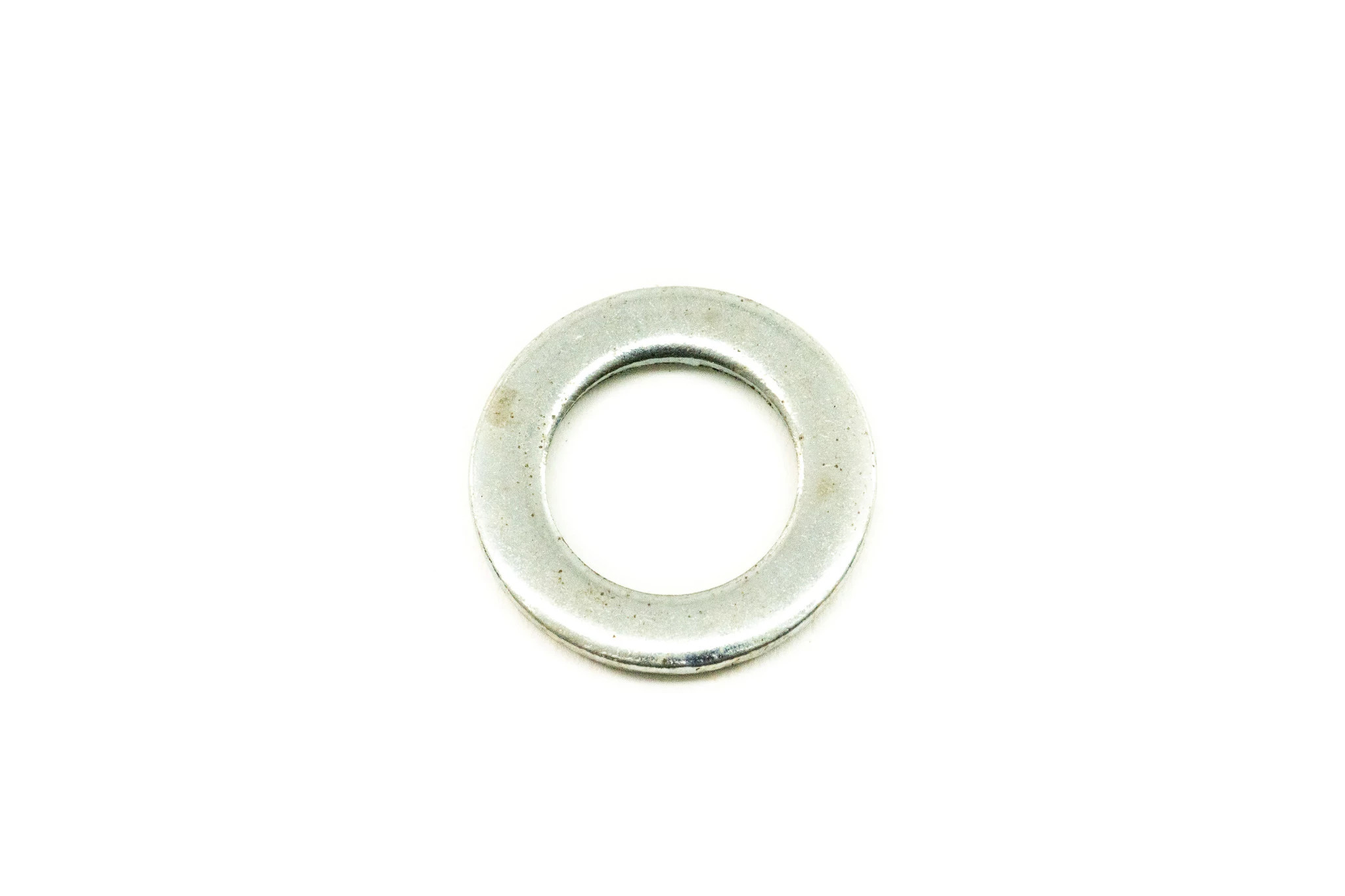

183WASHER 0.66'' ID x 1.31'' OD x 0.1'' Thk;
-
194BOLT 1/2''-13 x 1.813'' OAL, Gr 5;
-
204LOCK NUT 1/2'' - 13, Gr C; NUT, LOCK, 1/2''-13, GC
-
211BRACKET; Hanger, Rear
-
221BRACKET; Stop
-
231BOLT Hex, 5/8'' - 11 x 1-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-3/4''
-
241LOCK NUT 5/8'' - 11, Gr C; Nut, Lock, GC, 5/8''-11
-
251SPACER;
-
261SPACER; Bushing
-
276BOLT Hex, M16 x 2 x 70mm, Cl 8.8;
-
282NUT 7/8''-9, G5; G5, 7/8''-9
