TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11AIR INTAKE TUBE; For Decelerator Switch, See Figure 09-21
-
11AIR INTAKE TUBE; Wheel Tractor
-
21COLLIER; Muffler
-
31BOLT Hex, M10 x 1.5 x 100mm, Cl 10.9;
-
41LOCK NUT M10 x 1.5, Cl 8;
-
51WASHER 11mm ID x 20mm OD x 2mm Thk;
-
61PRESCREENER ASSY.; Air Intake, Inc. 7
-
71COLLAR CLAMP; Intake Pre-Screen
-
84BOLT Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd;
-
910WASHER 11mm ID x 21mm OD x 2.5mm Thk;
-
104RONDELLE 11mm ID x 24mm OD x 3mm Thk;
-
114LOCK NUT M10 x 1.5, Cl 8;
-
121HOSE; Aspirator, Check
-
131HOSE 50.80 mm ID x 206.60 mm; Aspirator, Air Cleaner to Check Valve;For Decelerator Switch, See Figure 09-21
-
131HOSE 50.80 mm ID x 375.0 mm; Aspirator, Air Cleaner to Check Valve;Wheel Tractor
-
144HOSE CLAMP 1-3/4'' - 2-5/8'', HD Worm, W/ Liner;
-
151VALVE; Check
-
161CLAMP; Check Valve
-
171BOLT Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd;
-
184LOCK NUT M8 x 1.25, Cl 8.8;
-
193WASHER 9mm ID x 16mm OD x 1.6mm Thk;
-
201BOLT Hex, M8 x 1.25 x 45mm, Cl 10.9;
-
212HOSE CLAMP 8-1/4'' - 9-1/8'', HD Worm, W/ Liner;
-
221HOSE; Connector, 203mm (8'')
-
231AIR CLEANER; See Figure: 02-09
-
242SPECIAL CLAMP 8.75'' - 9.62'', Worm Gear;
-
251AIR DUCT; Flexible Intake
-
262HOSE CLAMP 6.75'' - 7.62'', Worm Gear;
-
271BRACKET; Intake
-
282LOCK NUT 5/16''-18, GB;
-
291U-BOLT;
-
302WASHER 5/16'', SAE;
-
311AIR INTAKE TUBE;
-
321HOSE CLAMP 7-1/4'' - 8-1/8'', HD Worm, W/ Liner;
-
331AIR INTAKE TUBE; STX530;STEIGER 530
-
331AIR INTAKE TUBE; STX480;STEIGER 480
-
341HOSE CLAMP 6-1/4'' - 7-1/8'', HD Worm, W/ Liner;
-
351SUPPORT; Rear Hood
-
364WASHER 13.5mm ID x 24mm OD x 3mm Thk;
-
374BOLT Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd;
-
386BOLT Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd;
-
391SUPPORT 758, 546 mm L; Hood
-
391SUPPORT; Hood
-
403BOLT Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd;
-
418WASHER 13.5mm ID x 28mm OD x 4mm Thk;
-
428BOLT Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd;
-
431CLEVIS PIN M16 x 100;
-
443NUT M12 x 1.75, Cl 10.9;
-
451COTTER PIN M4 x 32;
-
462PLASTIC PLUG Dome, .750'' hole, Nylon;
-
471SUPPORT; Air Intake Tube
-
471SUPPORT; Air Intake Tube
-
481FOAM INSULATION; Air Intake
-
491BOLT Hex, M10 x 1.5 x 120mm, Cl 10.9;
-
502GUIDE BUSHING; Latch Pin
-
512NUT M10, Cl 10;
Select All
Select
Ref.
1Qty
1Availability
Part #
87673446Description
AIR INTAKE TUBE; For Decelerator Switch, See Figure 09-21Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87673448Description
AIR INTAKE TUBE; Wheel TractorImg
Alts
Select
Ref.
3Qty
1Availability
Part #
827-10100Description
BOLT Hex, M10 x 1.5 x 100mm, Cl 10.9;Img
Alts
Select
Ref.
5Qty
1Availability
Part #
895-11010Description
WASHER 11mm ID x 20mm OD x 2mm Thk;Img
Alts
Select
Ref.
6Qty
1Availability
Part #
87443716Description
PRESCREENER ASSY.; Air Intake, Inc. 7Img
Alts
Select
Ref.
7Qty
1Availability
Part #
87443800Description
COLLAR CLAMP; Intake Pre-ScreenImg
Alts
Select
Ref.
8Qty
4Availability
Part #
827-10040Description
BOLT Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
9Qty
10Availability
Part #
896-11010Description
WASHER 11mm ID x 21mm OD x 2.5mm Thk;Img
Alts
Select
Ref.
10Qty
4Availability
Part #
896-15010Description
RONDELLE 11mm ID x 24mm OD x 3mm Thk;Img
Alts
Select
Ref.
13Qty
1Availability
Part #
87304275Description

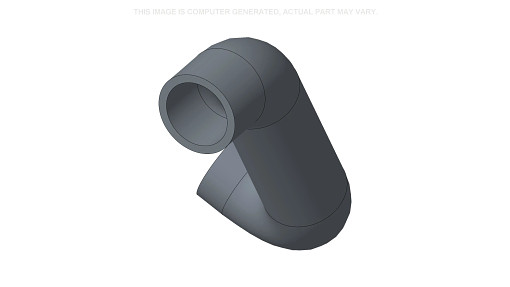

HOSE 50.80 mm ID x 206.60 mm; Aspirator, Air Cleaner to Check Valve;For Decelerator Switch, See Figure 09-21Img
Alts
Select
Ref.
13Qty
1Availability
Part #
87304243Description

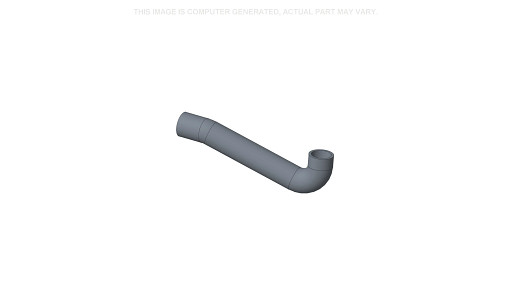

HOSE 50.80 mm ID x 375.0 mm; Aspirator, Air Cleaner to Check Valve;Wheel TractorImg
Alts
Select
Ref.
14Qty
4Availability
Part #
214-3240Description
HOSE CLAMP 1-3/4'' - 2-5/8'', HD Worm, W/ Liner;Img
Alts
Select
Ref.
17Qty
1Availability
Part #
627-8030Description
BOLT Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
19Qty
3Availability
Part #
895-11008Description
WASHER 9mm ID x 16mm OD x 1.6mm Thk;Img
Alts
Select
Ref.
20Qty
1Availability
Part #
827-8045Description
BOLT Hex, M8 x 1.25 x 45mm, Cl 10.9;Img
Alts
Select
Ref.
21Qty
2Availability
Part #
214-32144Description
HOSE CLAMP 8-1/4'' - 9-1/8'', HD Worm, W/ Liner;Img
Alts
Select
Ref.
23Qty
1Availability
Part #
87443705Description
AIR CLEANER; See Figure: 02-09Img
Alts
Select
Ref.
24Qty
2Availability
Part #
87443916Description
SPECIAL CLAMP 8.75'' - 9.62'', Worm Gear;Img
Alts
Select
Ref.
26Qty
2Availability
Part #
87437258Description

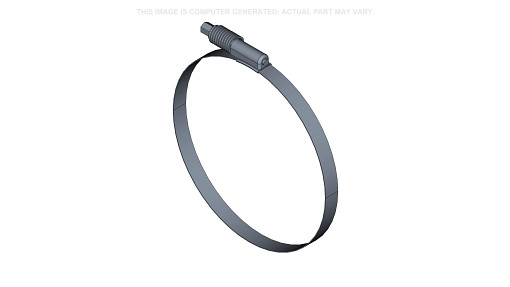

HOSE CLAMP 6.75'' - 7.62'', Worm Gear;Img
Alts
Select
Ref.
32Qty
1Availability
Part #
214-32128Description
HOSE CLAMP 7-1/4'' - 8-1/8'', HD Worm, W/ Liner;Img
Alts
Select
Ref.
33Qty
1Availability
Part #
87317551Description

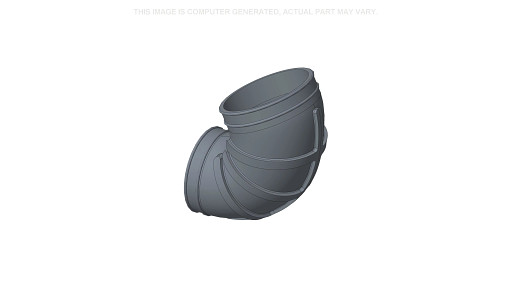

AIR INTAKE TUBE; STX530;STEIGER 530Img
Alts
Select
Ref.
33Qty
1Availability
Part #
87327365Description

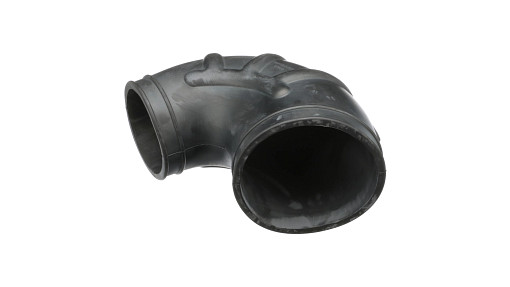

AIR INTAKE TUBE; STX480;STEIGER 480Img
Alts
Select
Ref.
34Qty
1Availability
Part #
214-32112Description
HOSE CLAMP 6-1/4'' - 7-1/8'', HD Worm, W/ Liner;Img
Alts
Select
Ref.
36Qty
4Availability
Part #
896-11012Description
WASHER 13.5mm ID x 24mm OD x 3mm Thk;Img
Alts
Select
Ref.
37Qty
4Availability
Part #
627-12040Description
BOLT Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
38Qty
6Availability
Part #
627-10020Description
BOLT Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
40Qty
3Availability
Part #
627-12030Description
BOLT Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
41Qty
8Availability
Part #
896-15012Description
WASHER 13.5mm ID x 28mm OD x 4mm Thk;Img
Alts
Select
Ref.
42Qty
8Availability
Part #
627-12040Description
BOLT Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
46Qty
2Availability
Part #
353-408Description
PLASTIC PLUG Dome, .750'' hole, Nylon;Img
Alts
Select
Ref.
49Qty
1Availability
Part #
827-10120Description
BOLT Hex, M10 x 1.5 x 120mm, Cl 10.9;Img
Alts
