TABLE DES MATIÈRES
SCHÉMA
LISTE DES PIÈCES
EFFACER TOUT
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
-
22GASKET; WASHER, check valve actuator plug
-
32RESSORT DE SOUPAPE; SPRING, check valve
-
42SOUPAPE; check, replaces 350664R1
-
5-ISOLANT; BOOT, piston sleeve, rubber, will work for leather boot, 352005R3
-
61BAGUE; connecting rod
-
71TIGE; W/BUSHING, 352007R1, connecting
-
81CHAPE; connecting rod, serial no. 138825 and above
-
92JOINT TORIQUE 0.21'' Thk x 1.35'' ID, -324, Cl 5, 75 Duro; RING, piston sleeve seal
-
101PISTON ASSY.; PISTON ASSY, serial no. 138825 and above
-
111JOINT TORIQUE 0.21'' Thk x 1.6'' ID, -326, Cl 6, 90 Duro; RING, piston head seal
-
1GASKET; filler plug, used with 7/8 in. plug, 445096
-
7BOUCHON Hex Soc, 1/8''-27; 1/8-27 auto. sq-hd pipe
-
1BOUCHON Sq Hd, 1/4''-14 NPTF; 3/4-14 auto. sq-hd pipe. filler plug, used with blocks 354383R1 (NSS) and 354383R2 (NSS)
-
1BOUCHON Exp, 1 1/2''; 1-1/2 diameter expansion, in cylinder block, 8 used on block, 351981R1 (NSS) without relief valve
-
1BOUCHON; 7/8-18 hex-hd outside filler and drain, used with blocks 354383R3 (NSS) and 354383R4 (NSS)
-
4VIS Hex, 1/2'' - 13 x 1 1/2'', Gr 5;
-
4RONDELLE FREIN 1/2''; WASHER, LOCK, 1/2''
-
141RESSORT; pressure regulator valve ball rider
-
151PISTON; safety valve
-
161CREPINE FILTRANTE; STRAINER ASSY, cylinder block oil
-
171RESSORT; safety valve
-
181PISTON ASSY.; PISTON ASSY, pressure regulator valve
-
191GASKET; cylinder head
-
1BOUCHON Sq Soc, 1/4''-18 NPTF; 1/4-18 auto. sq-soc pipe
-
2BOUCHON DE VIDANGE Sq Soc, 3/8''-18 NPTF; PLUG, 3/8-16 x 1 hex-hd cap, serial no. 99068 and below
-
2VIS; 3/8-16 x 1-1/4 type 8 hex-hd cap, serial no. 99069 and above
-
7VIS Hex, 3/8'' - 16 x 1-3/8'', Gr 5; SCREW, 3/8-16 x 1-3/8 hex-hd cap, serial no. 99068 and below
-
7VIS Hex, 3/8'' - 16 x 1 1/2'', Gr 8; SCREW, 3/8-16 x 1-1/2 type 8 hex-hd cap, serial no. 99069 and above
-
1VIS Hex, 3/8'' - 16 x 1 3/4'', Gr 5; SCREW, 3/8-16 x 1-3/4 hex-hd cap, serial no. 99068 and below
-
1VIS Hex, 3/8''-16 x 2'', G8; 3/8-16 x 2 type 8 hex-hd cap, serial no. 99069 and above
-
221BUSE D'AERATION; ORIFICE ASSY, replaces 351156R1
-
241SIEGE CONDUCTEUR; RIDER, pressure regulator valve ball
-
251BILLE; 9/16 diameter chrome steel, pressure regulator valve
-
261RACCORD; SEAT, pressure regulator valve
-
272JOINT TORIQUE 0.551'' ID x 0.07'' Width; RING, pressure regulator valve piston seal
-
291GASKET; WASHER, check valve actuator stop
-
302JOINT TORIQUE 0.364'' ID x 0.003'' Width; 3/8 x 1/2 x 1/16, check valve actuator
-
311ISOLANT; BOOT, control valve, rubber, will work for leather boot, 351753R3
-
321JOINT TORIQUE 0.482'' ID x 0.153'' Width; RING, control valve seal
-
2ENTRETOISE;
-
351CONTRE-ECROU 1/2''-20, GC; NUT, 1/2-20 PHC gripo lock type 8, connecting rod yoke
-
371BROCHE; control valve operating link
-
1GOUPILLE FENDUE 3/32'' x 3/4''; Pin, Split (Cotter), 3/32'' x 3/4''
-
381GOUJON; PIN, connecting rod
-
1ECROU 1/2''-20, G5; 1/2-20 hex.
-
1BROCHE; 1/16 x 7/8 cot.
-
1RONDELLE FREIN 1/2''; WASHER, LOCK, 1/2''
-
1BROCHE; 1/16 x 7/16 cot.
-
1BROCHE; 1/16 x 7/16 cot.
-
1BOUCHON Hex Soc, 1/8''-27; 1/8-27 auto. sq-hd pipe, Control valve
-
1VIS DE REGLAGE Hex Soc, 1/4''-20 x 3/8''; SCREW, 1/4-20 x 3/8 hex-soc-hd cup point set, in control valve
-
441GASKET; cylinder block cover
-
10VIS Hex, 5/16'' - 18 x 3/4'', Gr 5;
-
10RONDELLE FREIN 5/16''; WASHER, LOCK, 5/16''
-
461GRILLE, TAMIS; SCREEN, relief valve, used with blocks 354383R1 (NSS) through 354383R4 (NSS)
-
471SOUPAPE; ASSY, relief, used with blocks 354383R1 (NSS) through 354383R4 (NSS)
-
491GRILLE, TAMIS; SCREW, relief valve, used with block 351981R1 (NSS), serial nos; (SN Break) Between 74701 and 85189
-
501SOUPAPE; ASSY, relief, used with block 351981R1 (NSS), serial nos; (SN Break) Between 74701 and 85189
-
522ECROU DE TUYAU 7/16''-24; NUT, 7/16-24 nylon insert hi-duty tube fitting, used with block 351981R1 (NSS), serial nos 74701 to 85189
-
541JOINT TORIQUE 0.424'' ID x 0.103'' Width; 7/16 x 5/8 x 3/32, connecting rod yoke seal, serial no. 138825 and above
-
551COUDE 90 Degree x 1/8'' NPT x 7/16''-24; 7/16-24 x 90 deg hi-duty tube male pipe, used with block 351981R1 (NSS), serial nos 74701 to 85189
-
ARLIQUIDE; hy-tran, gallon can
-
ARLIQUIDE; hy-tran, five gallon can
-
1KIT DE JOINTS; PACKAGE, cylinder block gasket and seal ring, consists of (1) gasket 351983R1, (1) gasket 351989R6, (1) gasket 352034R1, (2) o-ring 253070R1, (2) o-ring 350667R1, (1) o-ring 355966R1, (2) o-ring 355967R1, (1) ring 350672R1, (2) ring 352004R1, (1) ring 461173R1, (3) washer 13727D
-
1PACKAGE; PACKAGE, control valve lever field improvement, used with block 351981R1 (NSS), serial no. 74700 and below, consists of (1) lever 354391R91, (1) lock 351697R1, (1) pin 107762, (2) pin 137130, (1) pin 350680R2, (1) pin 354392R1, (1) pin 354394R1, (1) stop 352027R2, (1) yoke 354395R1
Sélectionner Tout
Ref.
2Qté
2Disponibilité
N° de pièce
13727DDescription
GASKET; WASHER, check valve actuator plugImg
Alts
Ref.
3Qté
2Disponibilité
N° de pièce
350668R1Description
RESSORT DE SOUPAPE; SPRING, check valveImg
Alts
Ref.
4Qté
2Disponibilité
N° de pièce
354057R2Description
SOUPAPE; check, replaces 350664R1Img
Alts
Ref.
5Qté
-Disponibilité
N° de pièce
364833R1Description
ISOLANT; BOOT, piston sleeve, rubber, will work for leather boot, 352005R3Img
Alts
Ref.
7Qté
1Disponibilité
N° de pièce
352006R11Description
TIGE; W/BUSHING, 352007R1, connectingImg
Alts
Ref.
8Qté
1Disponibilité
N° de pièce
355729R1Description
CHAPE; connecting rod, serial no. 138825 and aboveImg
Alts
Ref.
9Qté
2Disponibilité
N° de pièce
352004R1Description
JOINT TORIQUE 0.21'' Thk x 1.35'' ID, -324, Cl 5, 75 Duro; RING, piston sleeve sealImg
Alts
Ref.
10Qté
1Disponibilité
N° de pièce
358207R91Description
PISTON ASSY.; PISTON ASSY, serial no. 138825 and aboveImg
Alts
Ref.
11Qté
1Disponibilité
N° de pièce
461173R1Description
JOINT TORIQUE 0.21'' Thk x 1.6'' ID, -326, Cl 6, 90 Duro; RING, piston head sealImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
3405HDescription
GASKET; filler plug, used with 7/8 in. plug, 445096Img
Alts
Ref.
Qté
7Disponibilité
N° de pièce
444687Description
BOUCHON Hex Soc, 1/8''-27; 1/8-27 auto. sq-hd pipeImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
444592Description
BOUCHON Sq Hd, 1/4''-14 NPTF; 3/4-14 auto. sq-hd pipe. filler plug, used with blocks 354383R1 (NSS) and 354383R2 (NSS)Img
Alts
Ref.
Qté
1Disponibilité
N° de pièce
172574Description
BOUCHON Exp, 1 1/2''; 1-1/2 diameter expansion, in cylinder block, 8 used on block, 351981R1 (NSS) without relief valveImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
445096Description
BOUCHON; 7/8-18 hex-hd outside filler and drain, used with blocks 354383R3 (NSS) and 354383R4 (NSS)Img
Alts
Ref.
Qté
4Disponibilité
N° de pièce
179885Description
VIS Hex, 1/2'' - 13 x 1 1/2'', Gr 5;Img
Alts
Ref.
Qté
4Disponibilité
N° de pièce
103323Description
RONDELLE FREIN 1/2''; WASHER, LOCK, 1/2''Img
Alts
Ref.
14Qté
1Disponibilité
N° de pièce
352026R2Description
RESSORT; pressure regulator valve ball riderImg
Alts
Ref.
16Qté
1Disponibilité
N° de pièce
351984R92Description
CREPINE FILTRANTE; STRAINER ASSY, cylinder block oilImg
Alts
Ref.
18Qté
1Disponibilité
N° de pièce
352940R21Description
PISTON ASSY.; PISTON ASSY, pressure regulator valveImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
444654Description
BOUCHON Sq Soc, 1/4''-18 NPTF; 1/4-18 auto. sq-soc pipeImg
Alts
Ref.
Qté
2Disponibilité
N° de pièce
444660Description
BOUCHON DE VIDANGE Sq Soc, 3/8''-18 NPTF; PLUG, 3/8-16 x 1 hex-hd cap, serial no. 99068 and belowImg
Alts
Ref.
Qté
2Disponibilité
N° de pièce
23164R1Description
VIS; 3/8-16 x 1-1/4 type 8 hex-hd cap, serial no. 99069 and aboveImg
Alts
Ref.
Qté
7Disponibilité
N° de pièce
413-622Description
VIS Hex, 3/8'' - 16 x 1-3/8'', Gr 5; SCREW, 3/8-16 x 1-3/8 hex-hd cap, serial no. 99068 and belowImg
Alts
Ref.
Qté
7Disponibilité
N° de pièce
354921R1Description
VIS Hex, 3/8'' - 16 x 1 1/2'', Gr 8; SCREW, 3/8-16 x 1-1/2 type 8 hex-hd cap, serial no. 99069 and aboveImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
179845Description
VIS Hex, 3/8'' - 16 x 1 3/4'', Gr 5; SCREW, 3/8-16 x 1-3/4 hex-hd cap, serial no. 99068 and belowImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
354922R1Description
VIS Hex, 3/8''-16 x 2'', G8; 3/8-16 x 2 type 8 hex-hd cap, serial no. 99069 and aboveImg
Alts
Ref.
22Qté
1Disponibilité
N° de pièce
355372R93Description
BUSE D'AERATION; ORIFICE ASSY, replaces 351156R1Img
Alts
Ref.
24Qté
1Disponibilité
N° de pièce
350084R2Description
SIEGE CONDUCTEUR; RIDER, pressure regulator valve ballImg
Alts
Ref.
25Qté
1Disponibilité
N° de pièce
16018R1Description
BILLE; 9/16 diameter chrome steel, pressure regulator valveImg
Alts
Ref.
26Qté
1Disponibilité
N° de pièce
352025R1Description
RACCORD; SEAT, pressure regulator valveImg
Alts
Ref.
27Qté
2Disponibilité
N° de pièce
352024R2Description
JOINT TORIQUE 0.551'' ID x 0.07'' Width; RING, pressure regulator valve piston sealImg
Alts
Ref.
29Qté
1Disponibilité
N° de pièce
13727DDescription
GASKET; WASHER, check valve actuator stopImg
Alts
Ref.
30Qté
2Disponibilité
N° de pièce
355967R1Description
JOINT TORIQUE 0.364'' ID x 0.003'' Width; 3/8 x 1/2 x 1/16, check valve actuatorImg
Alts
Ref.
31Qté
1Disponibilité
N° de pièce
364832R1Description
ISOLANT; BOOT, control valve, rubber, will work for leather boot, 351753R3Img
Alts
Ref.
32Qté
1Disponibilité
N° de pièce
350672R1Description
JOINT TORIQUE 0.482'' ID x 0.153'' Width; RING, control valve sealImg
Alts
Ref.
35Qté
1Disponibilité
N° de pièce
9411648Description

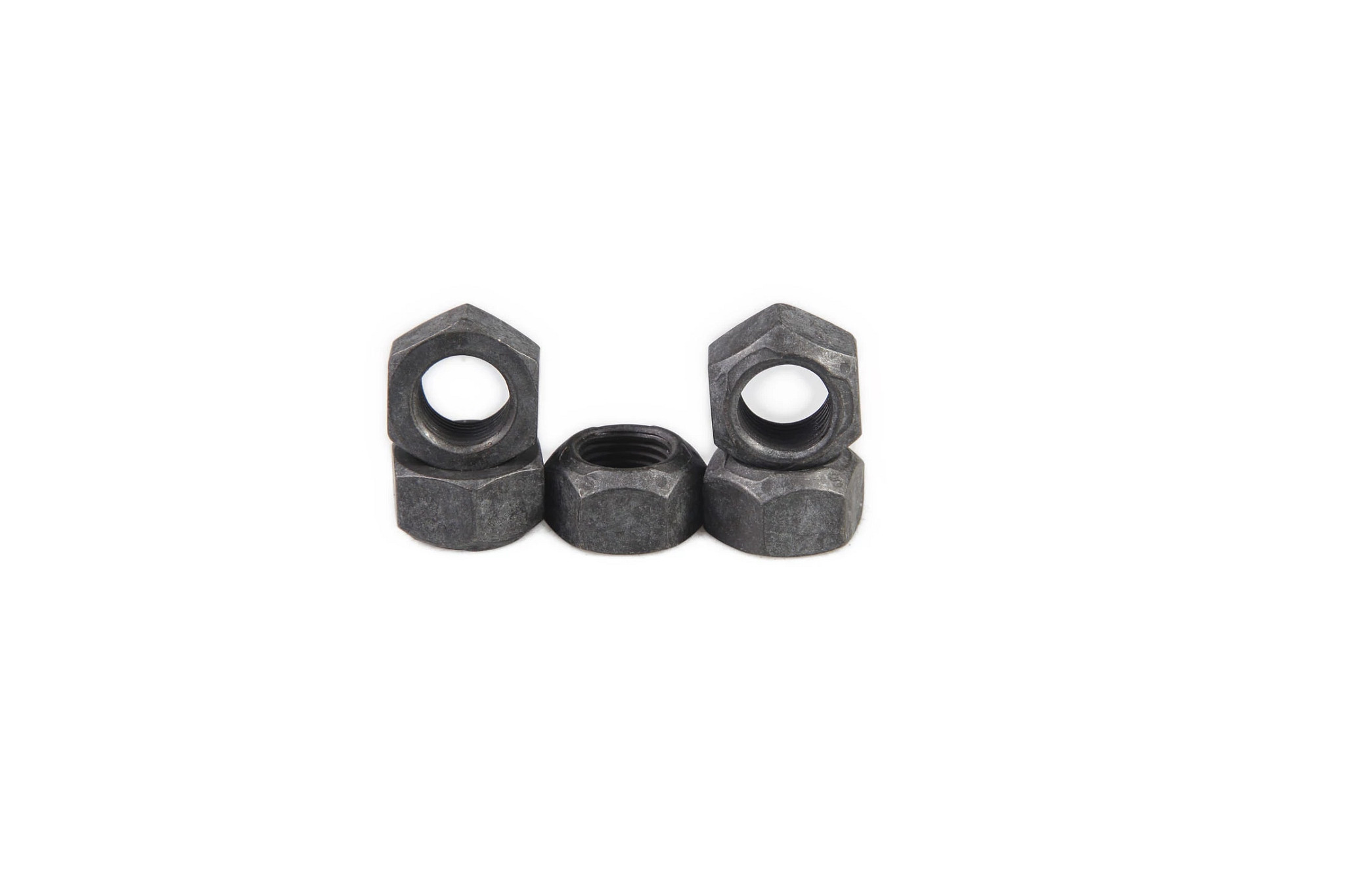

CONTRE-ECROU 1/2''-20, GC; NUT, 1/2-20 PHC gripo lock type 8, connecting rod yokeImg
Alts
Ref.
37Qté
1Disponibilité
N° de pièce
350680R2Description
BROCHE; control valve operating linkImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
103373Description
GOUPILLE FENDUE 3/32'' x 3/4''; Pin, Split (Cotter), 3/32'' x 3/4''Img
Alts
Ref.
Qté
1Disponibilité
N° de pièce
103323Description
RONDELLE FREIN 1/2''; WASHER, LOCK, 1/2''Img
Alts
Ref.
Qté
1Disponibilité
N° de pièce
444687Description
BOUCHON Hex Soc, 1/8''-27; 1/8-27 auto. sq-hd pipe, Control valveImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
83-1256Description
VIS DE REGLAGE Hex Soc, 1/4''-20 x 3/8''; SCREW, 1/4-20 x 3/8 hex-soc-hd cup point set, in control valveImg
Alts
Ref.
Qté
10Disponibilité
N° de pièce
179816Description
VIS Hex, 5/16'' - 18 x 3/4'', Gr 5;Img
Alts
Ref.
Qté
10Disponibilité
N° de pièce
103320Description
RONDELLE FREIN 5/16''; WASHER, LOCK, 5/16''Img
Alts
Ref.
46Qté
1Disponibilité
N° de pièce
354269R1Description
GRILLE, TAMIS; SCREEN, relief valve, used with blocks 354383R1 (NSS) through 354383R4 (NSS)Img
Alts
Ref.
47Qté
1Disponibilité
N° de pièce
354264R91Description
SOUPAPE; ASSY, relief, used with blocks 354383R1 (NSS) through 354383R4 (NSS)Img
Alts
Ref.
49Qté
1Disponibilité
N° de pièce
354269R1Description
GRILLE, TAMIS; SCREW, relief valve, used with block 351981R1 (NSS), serial nos; (SN Break) Between 74701 and 85189Img
Alts
Ref.
50Qté
1Disponibilité
N° de pièce
354264R91Description
SOUPAPE; ASSY, relief, used with block 351981R1 (NSS), serial nos; (SN Break) Between 74701 and 85189Img
Alts
Ref.
52Qté
2Disponibilité
N° de pièce
19984R1Description
ECROU DE TUYAU 7/16''-24; NUT, 7/16-24 nylon insert hi-duty tube fitting, used with block 351981R1 (NSS), serial nos 74701 to 85189Img
Alts
Ref.
54Qté
1Disponibilité
N° de pièce
355966R1Description
JOINT TORIQUE 0.424'' ID x 0.103'' Width; 7/16 x 5/8 x 3/32, connecting rod yoke seal, serial no. 138825 and aboveImg
Alts
Ref.
55Qté
1Disponibilité
N° de pièce
30402DDescription
COUDE 90 Degree x 1/8'' NPT x 7/16''-24; 7/16-24 x 90 deg hi-duty tube male pipe, used with block 351981R1 (NSS), serial nos 74701 to 85189Img
Alts
Ref.
Qté
ARDisponibilité
N° de pièce
372705R5Description
LIQUIDE; hy-tran, five gallon canImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
354008R95Description
KIT DE JOINTS; PACKAGE, cylinder block gasket and seal ring, consists of (1) gasket 351983R1, (1) gasket 351989R6, (1) gasket 352034R1, (2) o-ring 253070R1, (2) o-ring 350667R1, (1) o-ring 355966R1, (2) o-ring 355967R1, (1) ring 350672R1, (2) ring 352004R1, (1) ring 461173R1, (3) washer 13727DImg
Alts
Ref.
Qté
1Disponibilité
N° de pièce
354646R91Description
PACKAGE; PACKAGE, control valve lever field improvement, used with block 351981R1 (NSS), serial no. 74700 and below, consists of (1) lever 354391R91, (1) lock 351697R1, (1) pin 107762, (2) pin 137130, (1) pin 350680R2, (1) pin 354392R1, (1) pin 354394R1, (1) stop 352027R2, (1) yoke 354395R1Img
Alts
