TABLE DES MATIÈRES
SCHÉMA
LISTE DES PIÈCES
EFFACER TOUT
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
-
11VENTILATEUR; Pusher, 6 Blades, 50mm BC, - JAF0041367
-
11VENTILATEUR; No Longer Available, Order 1998736C1
-
11VENTILATEUR 7 Blades, 450mm OD; Pusher, 7 Blades, 60mm BC, Replaces A173543, JAF0041368 - , , Not Illustrated
-
11VENTILATEUR; Pusher, Used on Models with Emissions Certified Engine, 7 Blades, Not Illustrated
-
24VIS Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd; Used with A171555
-
24VIS Hex, M10 x 1.5 x 25mm, Cl 8.8; Used with A173543
-
24VIS Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; Replaces 614-10030, Used with 1998736C1
-
24VIS Hex, M10 x 1.5 x 50mm, Cl 8.8;
-
24VIS Hex, M10 x 1.5 x 70mm, Cl 8.8; Used with A184545, See Below, Models with Emissions Certified Engine, Used with Fuel Injection Pump J931397, See Fig 03-09
-
24VIS Hex, M10 x 1.5 x 80mm, Cl 8.8; Used with D142327, Ref 21, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J935677, See Fig 03-10
-
24VIS Hex, M10 x 1.5 x 75mm, Cl 8.8; Used with A184523, Ref 21, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J935677
-
34RONDELLE; Used with A171555, See Above
-
34RONDELLE 13/32'' x 13/16'' x .089'', HDN; Used with A173543, 301849A1
-
41V-BELT V-Belt, 27.92mm W x 1498.6mm L, 8 Ribs; Alternator and Fan
-
41V-BELT V-Belt, 27.92mm W x 1574.8mm L, 8 Ribs; Alternator and Fan, European Models, 89 DBA Noise Kit
-
52COUVERCLE;
-
66VIS Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd;
-
76RONDELLE FREIN M10;
-
81BRIDE;
-
94VIS Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd;
-
104RONDELLE 11.51mm ID x 19.05mm OD x 1.59mm Thk;
-
114VIS Hex, 7/16'' - 20 x 1'', Gr 5;
-
124RONDELLE FREIN 7/16'';
-
131ARBRE; Universal Drive Shaft, Incl. 14 - 19, No Longer Available, Order D70624, D70626, D70629, N13217
-
131ARBRE; Universal Drive Shaft, Replaces D132913, Not Available as an Assembly, Order Component Parts Below, Incl. 14 - 20
-
141CHAPE; UNIVERSAL JOINT YOKE
-
151CHAPE; UNIVERSAL JOINT YOKE Carrier
-
161CHAPE; Yoke W/O Grease Fitting, Used with D132913
-
161CHAPE; Yoke W/ Grease Fitting, Used with H435187
-
2CROISILLON DE CARDAN; Kit, Incl. 17 - 19
-
171PAS VENDU SÉPARÉMENT; Joint, Universal
-
184PAS VENDU SÉPARÉMENT; Race
-
194ANNEAU D'ARRET;
-
201GRAISSEUR FITTING LUBE; Used with H435187
-
211ENTRETOISE; - JAF0041367
-
211ENTRETOISE 15mm ID x 74mm OD x 6mm Thk; 6 mm, JAF0041368 -
-
211ENTRETOISE 15mm ID x 74mm OD x 24.5mm W; 24 mm, Used with 252930A1, See Fig 02-01, Ref 1
-
211ENTRETOISE 15mm ID x 74mm OD x 42.5mm W; 43 mm, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J931397, See Fig 03-09
-
211ENTRETOISE 15mm ID x 74mm OD x 54mm Thk; 54 mm, Spacer, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J935677, See Fig 03-10
-
211ENTRETOISE 15mm ID x 74mm OD x 48mm Thk; Used with Fan 301849A1, Bolts 814-10075, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J935677
Sélectionner Tout
Ref.
1Qté
1Disponibilité
N° de pièce
A171555Description
VENTILATEUR; Pusher, 6 Blades, 50mm BC, - JAF0041367Img
Alts
Ref.
1Qté
1Disponibilité
N° de pièce
A173543Description
VENTILATEUR; No Longer Available, Order 1998736C1Img
Alts
Ref.
1Qté
1Disponibilité
N° de pièce
1998736C1Description
VENTILATEUR 7 Blades, 450mm OD; Pusher, 7 Blades, 60mm BC, Replaces A173543, JAF0041368 - , , Not IllustratedImg
Alts
Ref.
1Qté
1Disponibilité
N° de pièce
301849A1Description
VENTILATEUR; Pusher, Used on Models with Emissions Certified Engine, 7 Blades, Not IllustratedImg
Alts
Ref.
2Qté
4Disponibilité
N° de pièce
827-8025Description
VIS Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd; Used with A171555Img
Alts
Ref.
2Qté
4Disponibilité
N° de pièce
614-10025Description
VIS Hex, M10 x 1.5 x 25mm, Cl 8.8; Used with A173543Img
Alts
Ref.
2Qté
4Disponibilité
N° de pièce
43140Description
VIS Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; Replaces 614-10030, Used with 1998736C1Img
Alts
Ref.
2Qté
4Disponibilité
N° de pièce
814-10050Description
VIS Hex, M10 x 1.5 x 50mm, Cl 8.8;Img
Alts
Ref.
2Qté
4Disponibilité
N° de pièce
814-10070Description
VIS Hex, M10 x 1.5 x 70mm, Cl 8.8; Used with A184545, See Below, Models with Emissions Certified Engine, Used with Fuel Injection Pump J931397, See Fig 03-09Img
Alts
Ref.
2Qté
4Disponibilité
N° de pièce
814-10080Description
VIS Hex, M10 x 1.5 x 80mm, Cl 8.8; Used with D142327, Ref 21, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J935677, See Fig 03-10Img
Alts
Ref.
2Qté
4Disponibilité
N° de pièce
814-10075Description
VIS Hex, M10 x 1.5 x 75mm, Cl 8.8; Used with A184523, Ref 21, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J935677Img
Alts
Ref.
3Qté
4Disponibilité
N° de pièce
H426775Description
RONDELLE; Used with A171555, See AboveImg
Alts
Ref.
3Qté
4Disponibilité
N° de pièce
496-21041Description
RONDELLE 13/32'' x 13/16'' x .089'', HDN; Used with A173543, 301849A1Img
Alts
Ref.
4Qté
1Disponibilité
N° de pièce
J911558Description
V-BELT V-Belt, 27.92mm W x 1498.6mm L, 8 Ribs; Alternator and FanImg
Alts
Ref.
4Qté
1Disponibilité
N° de pièce
J911559Description
V-BELT V-Belt, 27.92mm W x 1574.8mm L, 8 Ribs; Alternator and Fan, European Models, 89 DBA Noise KitImg
Alts
Ref.
6Qté
6Disponibilité
N° de pièce
614-10020Description
VIS Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd;Img
Alts
Ref.
9Qté
4Disponibilité
N° de pièce
514-830Description
VIS Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd;Img
Alts
Ref.
10Qté
4Disponibilité
N° de pièce
A30013Description
RONDELLE 11.51mm ID x 19.05mm OD x 1.59mm Thk;Img
Alts
Ref.
11Qté
4Disponibilité
N° de pièce
414-716Description
VIS Hex, 7/16'' - 20 x 1'', Gr 5;Img
Alts
Ref.
13Qté
1Disponibilité
N° de pièce
D132913Description
ARBRE; Universal Drive Shaft, Incl. 14 - 19, No Longer Available, Order D70624, D70626, D70629, N13217Img
Alts
Ref.
13Qté
1Disponibilité
N° de pièce
H435187Description
ARBRE; Universal Drive Shaft, Replaces D132913, Not Available as an Assembly, Order Component Parts Below, Incl. 14 - 20Img
Alts
Ref.
15Qté
1Disponibilité
N° de pièce
D70626Description
CHAPE; UNIVERSAL JOINT YOKE CarrierImg
Alts
Ref.
16Qté
1Disponibilité
N° de pièce
N13217Description
CHAPE; Yoke W/O Grease Fitting, Used with D132913Img
Alts
Ref.
16Qté
1Disponibilité
N° de pièce

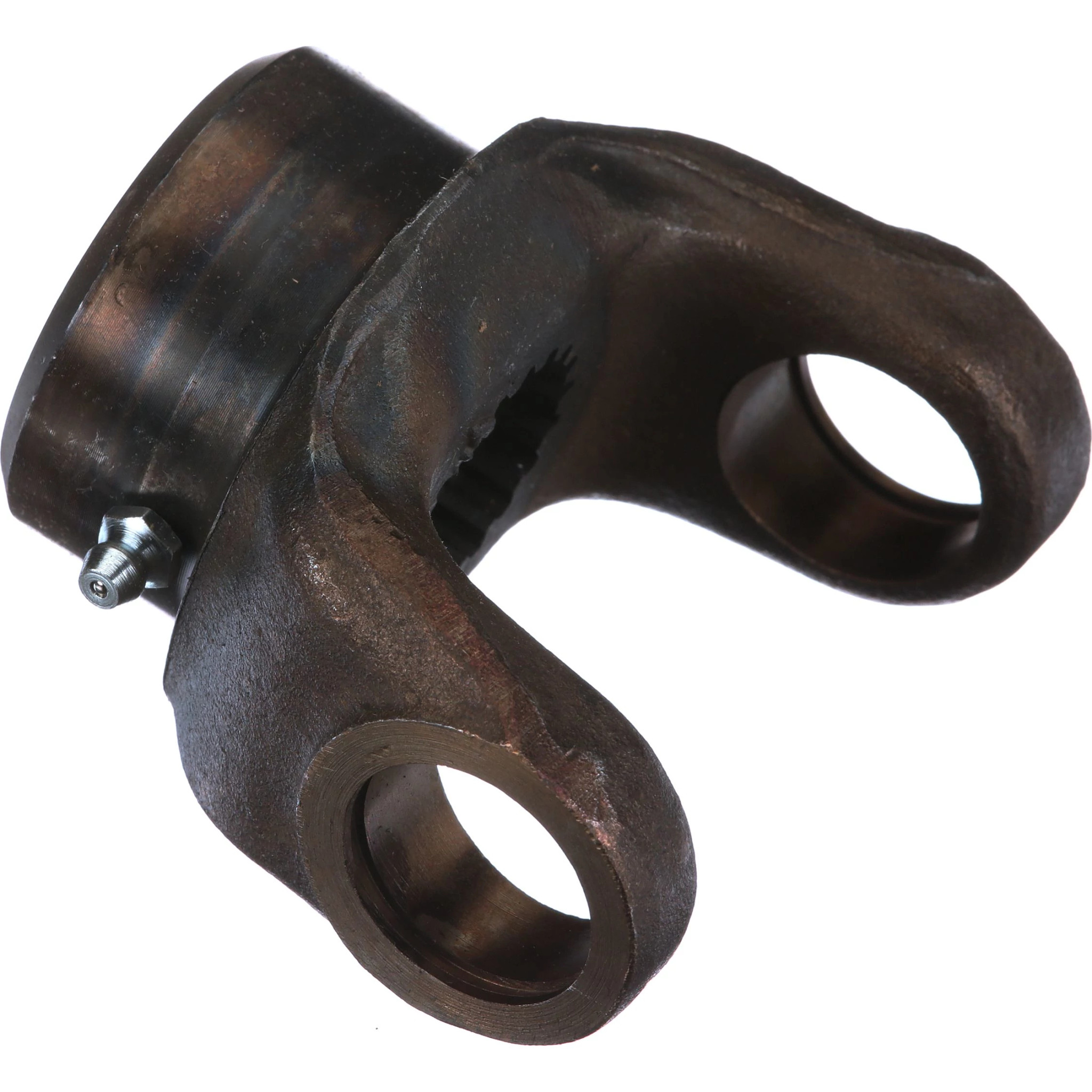

H435903Description
CHAPE; Yoke W/ Grease Fitting, Used with H435187Img
Alts
Ref.
Qté
2Disponibilité
N° de pièce
D70629Description
CROISILLON DE CARDAN; Kit, Incl. 17 - 19Img
Alts
Ref.
17Qté
1Disponibilité
N° de pièce
NSSDescription
PAS VENDU SÉPARÉMENT; Joint, UniversalImg
Alts
Ref.
20Qté
1Disponibilité
N° de pièce
219-8Description
GRAISSEUR FITTING LUBE; Used with H435187Img
Alts
Ref.
21Qté
1Disponibilité
N° de pièce
H437716Description
ENTRETOISE 15mm ID x 74mm OD x 6mm Thk; 6 mm, JAF0041368 -Img
Alts
Ref.
21Qté
1Disponibilité
N° de pièce

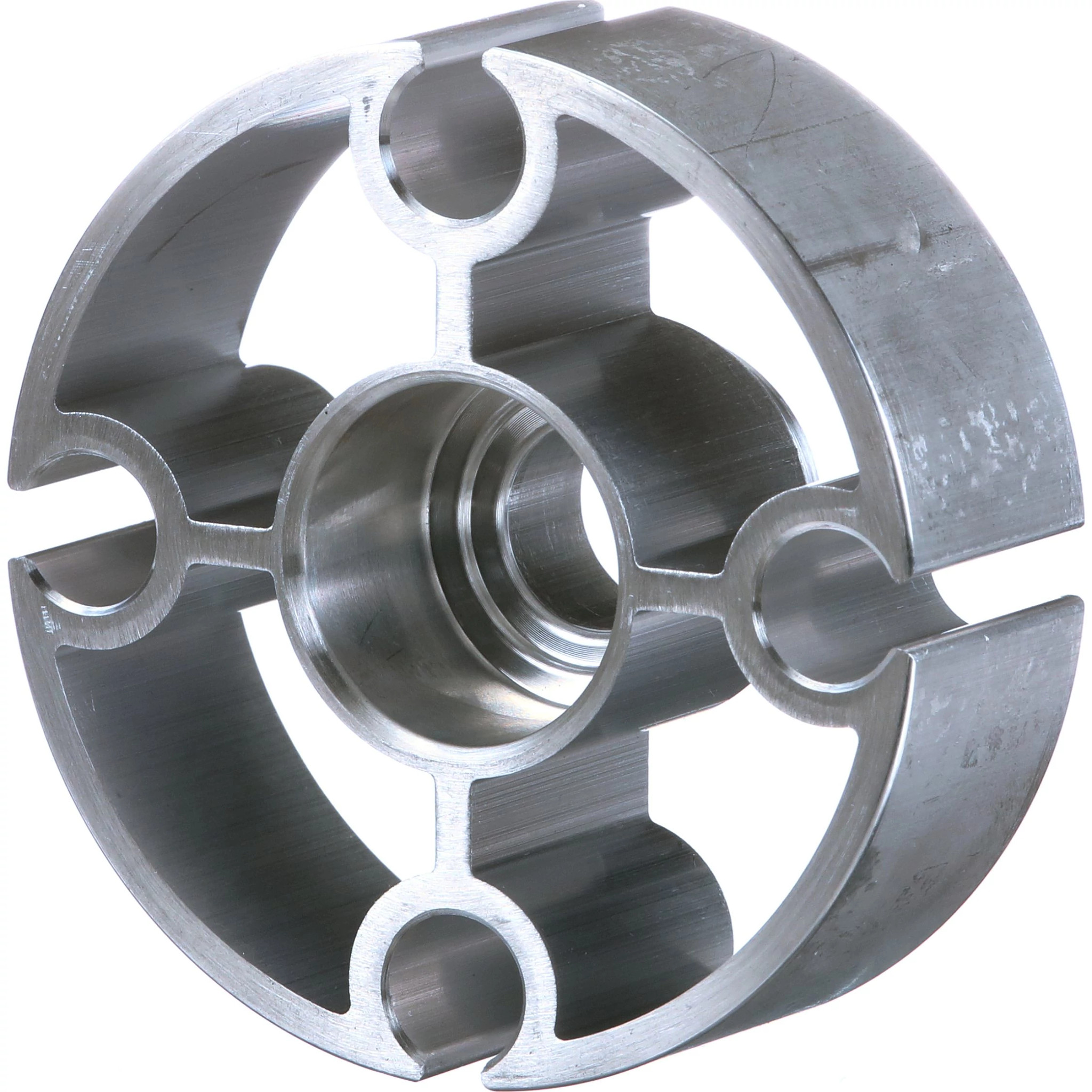

A184544Description
ENTRETOISE 15mm ID x 74mm OD x 24.5mm W; 24 mm, Used with 252930A1, See Fig 02-01, Ref 1Img
Alts
Ref.
21Qté
1Disponibilité
N° de pièce
A184545Description
ENTRETOISE 15mm ID x 74mm OD x 42.5mm W; 43 mm, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J931397, See Fig 03-09Img
Alts
Ref.
21Qté
1Disponibilité
N° de pièce
CASD142327Description
ENTRETOISE 15mm ID x 74mm OD x 54mm Thk; 54 mm, Spacer, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J935677, See Fig 03-10Img
Alts
Ref.
21Qté
1Disponibilité
N° de pièce
A184523Description
ENTRETOISE 15mm ID x 74mm OD x 48mm Thk; Used with Fan 301849A1, Bolts 814-10075, Used on Models with Emissions Certified Engine, Used with Fuel Injection Pump J935677Img
Alts
