003[4] - BUCKET CYLINDER, USED PRIOR TO 10/06/2003, SPANNER STYLE HEAD
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

2

Availability

Part #

87035652

Description

CYLINDER Double Acting, 31.75mm Rod, 484.12mm Stroke; Bucket;Manufacturer's Production Date Stamp Located Near Base of Cylinder.Stamp Includes PN.87026740, Mfg. Logo & Date Code.


Alts

Select

Ref.

2

Qty

1

Availability

Part #

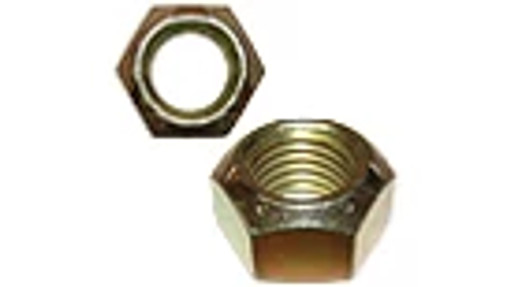

231-41414

Description

NUT 7/8''-9, GB; GB, 7/8''-14


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87038307

Description

PISTON;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87038321

Description

BARREL 2.75'' DIA x 23.82'' L;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

87038323

Description

ROD ASSY.;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

87038322

Description

GLAND;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Wear Ring


Alts

Select

Ref.

8

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Seal, Piston


Alts

Select

Ref.

9

Qty

2

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Wear Ring


Alts

Select

Ref.

10

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; O-Ring


Alts

Select

Ref.

11

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Backup Washer


Alts

Select

Ref.

12

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Seal


Alts

Select

Ref.

13

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Oil Seal


Alts

Select

Ref.

14

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; O-Ring


Alts

Select

Ref.

15

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Seal


Alts

Select

Ref.

16

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Lock Ring


Alts

Select

Ref.

17

Qty

1

Availability

Part #

87040377

Description

SEAL KIT;


Alts
