35.723.030[02] - BUCKET CYLINDER, HYDRAULIC CYLINDER - NSL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    LDR12712510

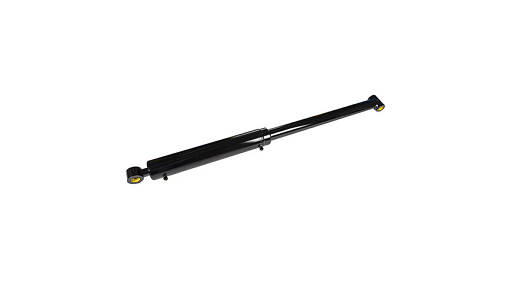

    CYLINDER Double Acting, 40mm Rod, 570mm Stroke; Bucket Lift, Incl 2 - 16
  • 2
    1
    LDR12708011
    GLAND; Bearing
  • 3
    1
    LDR12708012
    PISTON; Lift Cylinder
  • 4
    1
    LDR5016620
    RING; Retaining
  • 5
    1
    LDR5016667
    RING; Retaining
  • 6
    1
    LDR12712523
    ROD; Piston
  • 7
    2
    LDR5018514
    BUSHING;
  • 8
    2
    LDR5018515
    BUSHING ID = 30.20mm OD = 34.15mm;
  • 9
    1
    LDR5033706
    SEAL KIT; Services 1, Contains 7 Seals, Incl 10 - 16
  • 10
    1
    NSS
    NOT SOLD SEPARAT; O - Ring, Incl in 1, 9
  • 11
    1
    NSS
    NOT SOLD SEPARAT; Guide Ring, Incl in 1, 9
  • 12
    1
    NSS
    NOT SOLD SEPARAT; Cover Seal, Incl in 1, 9
  • 13
    1
    NSS
    NOT SOLD SEPARAT; Wiper, Incl in 1, 9
  • 14
    1
    NSS
    NOT SOLD SEPARAT; Piston Seal, Incl in 1, 9
  • 15
    1
    NSS
    NOT SOLD SEPARAT; Seal, Incl in 1, 9
  • 16
    1
    NSS
    NOT SOLD SEPARAT; Guide Ring, Incl in 1, 9
