05.100.01 - INITIAL STOCKING LIST (LIST A), 6150/7150 TIER 4B
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

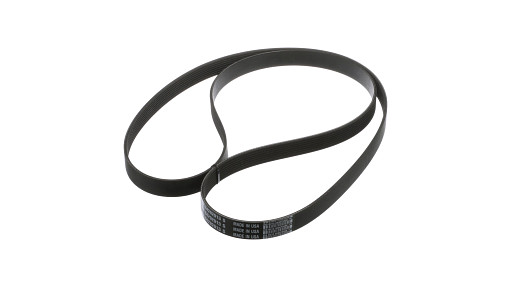

84292913

Description

BELT Timing, 2203mm L, 8 Ribs; Alternator, A/C


Alts

Select

Ref.

2

Qty

1

Availability

Part #

47708569

Description

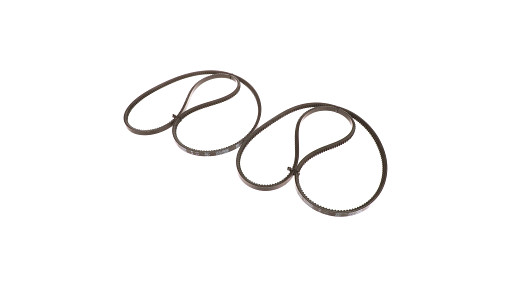

SET OF BELTS V-Belt, 12.7mm W x 1692.5mm L; Engine Fan Drive


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87583785

Description

V-BELT V-Belt, 12.7mm W; Air Screen Drive


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87629601

Description

V-BELT V-Belt, 22.23mm W x 4118mm L, 3 Ribs; Feeder Drive, Rock Trap


Alts

Select

Ref.

5

Qty

1

Availability

Part #

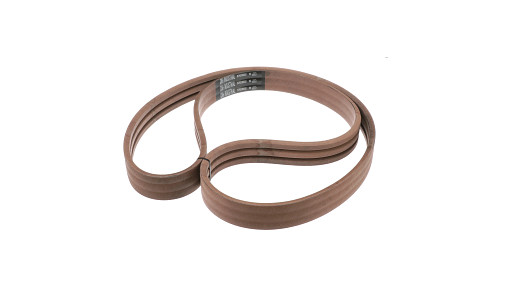

87629602

Description

V-BELT V-Belt, 22.23mm W x 3722.60mm L; Feeder Drive, Non-Rock Trap


Alts

Select

Ref.

6

Qty

1

Availability

Part #

47455617

Description

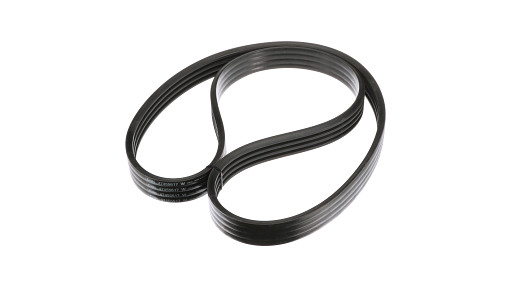

V-BELT V-Belt, 15.24mm W x 3519mm L; Header Drive, Rock Trap


Alts

Select

Ref.

7

Qty

1

Availability

Part #

47616842

Description

V-BELT V-Belt, 15.24mm W x 4000mm L; Header Drive, Non-Rock Trap


Alts

Select

Ref.

8

Qty

1

Availability

Part #

47655498

Description

V-BELT V-Belt, 16mm W x 2830mm L, 1 Rib; Beater Drive


Alts

Select

Ref.

9

Qty

1

Availability

Part #

87714971

Description

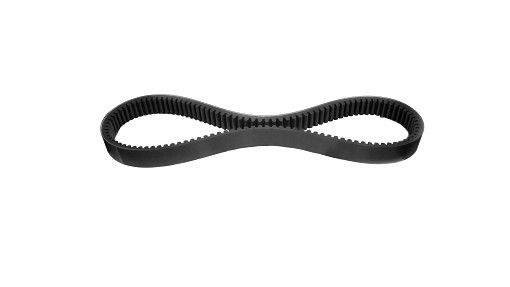

V-BELT V-Belt, 79.45mm W x 2790mm L; Rotor Gearbox


Alts

Select

Ref.

10

Qty

1

Availability

Part #

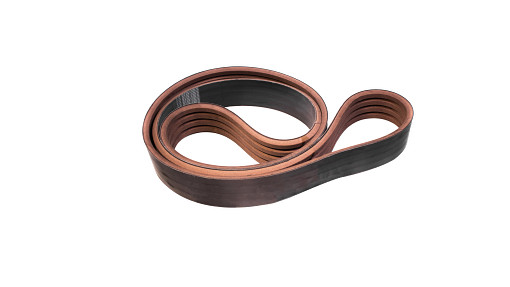

84586129

Description

V-BELT V-Belt, 22.23mm W x 4596mm L; Separator Drive


Alts

Select

Ref.

11

Qty

1

Availability

Part #

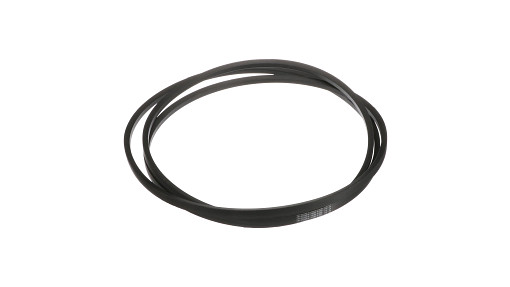

84230076

Description

V-BELT V-Belt, 22.33mm W x 5300mm L; Cleaning System Drive


Alts

Select

Ref.

12

Qty

1

Availability

Part #

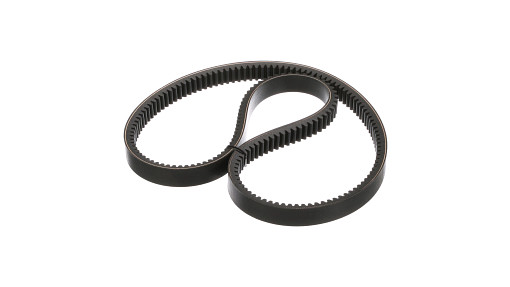

84238446

Description

V-BELT V-Belt, 31.8mm W x 1848mm L; Variable Cleaning Fan


Alts

Select

Ref.

13

Qty

1

Availability

Part #

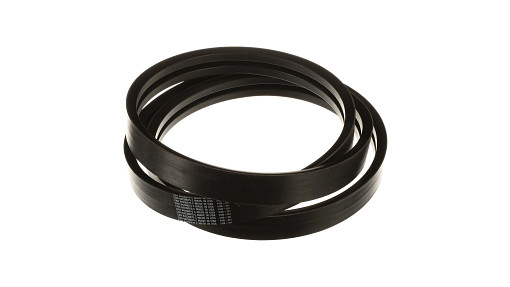

84230075

Description

V-BELT V-Belt, 22.33mm W x 3510mm L; Elevator Jackshaft Drive


Alts

Select

Ref.

14

Qty

1

Availability

Part #

47360559

Description

V-BELT V-Belt, 16mm W, 2 Ribs; Unloader


Alts

Select

Ref.

15

Qty

1

Availability

Part #

87330903

Description

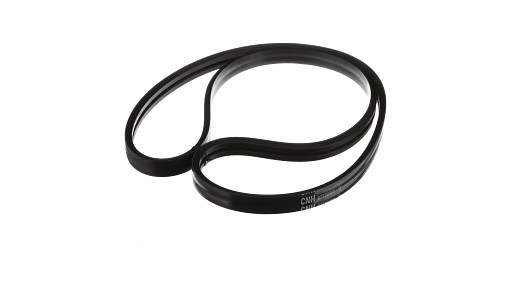

V-BELT V-Belt, 16.2mm W x 2748mm L, 2 Ribs; Chopper Drive, Straw Chopper


Alts

Select

Ref.

16

Qty

1

Availability

Part #

47597575

Description

V-BELT V-Belt, 16mm W x 2900mm L, 2 Rib; Chopper, Flail, High


Alts

Select

Ref.

17

Qty

1

Availability

Part #

47361246

Description

V-BELT V-Belt, 16mm W x 2687mm L, 2 Ribs; Chopper, Flail, Low


Alts

Select

Ref.

18

Qty

1

Availability

Part #

84597064

Description

FUEL FILTER 93mm OD x 212.5mm L, M16 x 1.5; Cursor Engine


Alts

Select

Ref.

19

Qty

1

Availability

Part #

84346773

Description

ENGINE OIL FILTER 110mm OD x 212mm L, M30 x 2; Cursor Engine


Alts

Select

Ref.

20

Qty

1

Availability

Part #

5801659560

Description

OIL SEPARATOR Centrifugal Blow-by Filter; Crankcase Breather


Alts

Select

Ref.

21

Qty

1

Availability

Part #

84348882

Description

FUEL FILTER Spin-on, 96.5mm OD x 184mm L, M16 x 1.5, 30 Microns; Engine Pre-Filter


Alts

Select

Ref.

22

Qty

1

Availability

Part #

47657024

Description

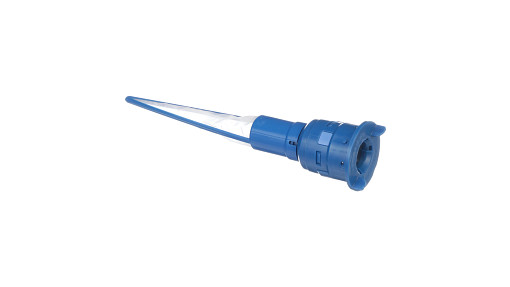

FILTER, DEF 100 Micron; Tank Filler


Alts

Select

Ref.

23

Qty

1

Availability

Part #

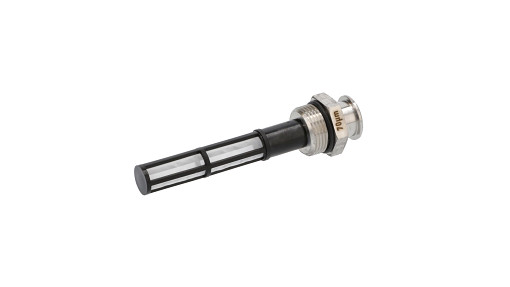

47651824

Description

FILTER, DEF 70 Micron; In-Line, 70 Micron


Alts

Select

Ref.

24

Qty

2

Availability

Part #

47364243

Description

FILTER, DEF; DENOX Unit


Alts

Select

Ref.

25

Qty

1

Availability

Part #

86999949

Description

BREATHER; Tank Vent


Alts

Select

Ref.

26

Qty

1

Availability

Part #

47592872

Description

FILTER, DEF; DEF Tank Vent


Alts

Select

Ref.

27

Qty

1

Availability

Part #

84477370

Description

FUEL FILTER Water Separator, 89mm L x 89mm W x 55mm Thk, 30 Micron; Separator


Alts

Select

Ref.

28

Qty

1

Availability

Part #

360260A2

Description

CAB FILTER A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc; A/C


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87682993

Description

AIR FILTER 91mm ID x 164.5mm OD x 347.5mm L; Cab, Fresh Air


Alts

Select

Ref.

30

Qty

1

Availability

Part #

86998333

Description

AIR FILTER Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc; Outer, Engine


Alts

Select

Ref.

31

Qty

1

Availability

Part #

86998332

Description

AIR FILTER Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc; Inner, Engine


Alts

Select

Ref.

32

Qty

1

Availability

Part #

84253774

Description

FILTER STRAINER 1-5/16'' - 12, 194mm L, 149 Micron; PTO Gearbox


Alts

Select

Ref.

33

Qty

1

Availability

Part #

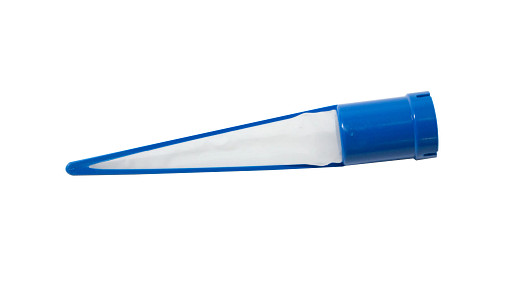

47680524

Description

FILTER, DEF 100 Micron; Fill Neck


Alts

Select

Ref.

34

Qty

1

Availability

Part #

47654660

Description

FILTER STRAINER M22 x 1.5, 145mm L, 60 Micron; Transmission


Alts

Select

Ref.

35

Qty

1

Availability

Part #

84181465

Description

HYDRAULIC OIL FILTER 65mm OD x 159.5mm L, 1 7/16IN - 12 UN, 90 Microns; 90 Micron


Alts

Select

Ref.

36

Qty

1

Availability

Part #

47821526

Description

RECEIVER-DRIER; A/C


Alts

Select

Ref.

37

Qty

1

Availability

Part #

87684758

Description

HYDRAULIC OIL FILTER In-line, 93.5mm OD x 203.8mm L, 27.4mm Hose Barb; Hydraulic Cooler Return


Alts

Select

Ref.

38

Qty

1

Availability

Part #

1329214C1

Description

HYDRAULIC OIL FILTER; Main


Alts
