11-017 - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER

TABLE OF CONTENTS

DIAGRAM

PART LIST

View Callout Only

Clear callout

Add all to Pick List
View Details

Serial Number Window

Select All

Ref.

Qty

Part #

Alts

Description


Log In or Create an Account

1

1

3218124R1

HOSE; LINE LEAK
Log In or Create an Account

2

4

3218128R1

RETAINER; HOLDER
Log In or Create an Account

4

24477R1

BOLT Hex, 5/16'' - 18 x 1'', Gr 8;
Log In or Create an Account

3

2

3132770R1

COLLAR; PIPE
Log In or Create an Account

3

2

3218241R1

CLAMP; PIPE - MOULDED RUBBER INSERT
Log In or Create an Account

2

931330R1

SCREW M6 x 1 x 12mm, Cl 8.8;
Log In or Create an Account

2

86500688

NUT Hex, M6 x 1, Cl 10, ZND;
Log In or Create an Account

4

4

3218129R1

WASHER;
Log In or Create an Account

5

4

NSS

NOT SOLD SEPARAT; HOLDER, INJECTION NOZZLE
Log In or Create an Account

6

4

3218251R2

NOZZLE CAP; D-239, D-246, D-268
Log In or Create an Account

6

4

3218248R2

NOZZLE CAP; D-206
Log In or Create an Account

7

1

3218149R1

INJECTION PIPE; INJECTION CYLINDER 1 - 743/745XL
Log In or Create an Account

7

1

3218174R1

INJECTION PIPE; INJECTION CYLINDER 1 - 844 XL
Log In or Create an Account

7

1

3218481R1

TUBE; INJECTION, CYLINDER 1 - 258-858XL
Log In or Create an Account

7

1

3218154R1

INJECTION PIPE; INJECTION CYLINDER 1 - 268-685XL, 262 F.A.I.
Log In or Create an Account

7

1

3218486R1

INJECTION PIPE; INJECTION CYLINDER 1 - H84-785XL
Log In or Create an Account

7

1

3228396R1

INJECTION PIPE; INJECTION, CYLINDER 1 - 884, 885XL
Log In or Create an Account

7

1

3218169R1

PIPE; INJECTION CYLINDER 1 - SU-644
Log In or Create an Account

8

1

3218150R1

INJECTION PIPE; INJECTION CYLINDER 2 - 743/745XL
Log In or Create an Account

8

1

3218175R1

INJECTION PIPE; INJECTION CYLINDER 2 - 844XL
Log In or Create an Account

8

1

3218482R1

PIPE; INJECTION CYLINDER 2 - 258-858XL
Log In or Create an Account

8

1

3218155R1

INJECTION PIPE; INJECTION CYLINDER 2 -262 F.A.I. 268-685XL
Log In or Create an Account

8

1

3218487R1

INJECTION PIPE; INJECTION CYLINDER 2 - H84-785X L
Log In or Create an Account

8

1

3228397R1

INJECTION PIPE; INJECTION CYLINDER 2 - 884, 885XL
Log In or Create an Account

8

1

3218170R1

PIPE; INJECTION CYLINDER 2 - SU-644
Log In or Create an Account

9

1

3218151R1

INJECTION PIPE; CYLINDER 3 - 743/745XL
Log In or Create an Account

9

1

3218176R1

INJECTION PIPE; INJECTION CYLINDER 3 - 844XL
Log In or Create an Account

9

1

3218156R1

INJECTION PIPE; INJECTION CYLINDER 3 - 262 F.A.I. 268-685XL
Log In or Create an Account

9

1

3218228R1

INJECTION PIPE; INJECTION CYLINDER 3 - 84-785XL
Log In or Create an Account

9

1

3228398R1

INJECTION PIPE; INJECTION CYLINDER 3 - 884, 885XL
Log In or Create an Account

9

1

3218171R1

PIPE; INJECTION CYLINDER 3 - SU-644
Log In or Create an Account

9

1

3218483R1

PIPE; INJECTION CYLINDER 3 - 258-585XL
Log In or Create an Account

10

1

3218152R1

INJECTION PIPE; INJECTION CYLINDER 4 - 743/745XL
Log In or Create an Account

10

1

3218177R1

INJECTION PIPE; CYLINDER 4 - 844XL
Log In or Create an Account

10

1

3218484R1

PIPE; INJECTION CYLINDER 4 - 258-585 XL
Log In or Create an Account

10

1

3218157R1

INJECTION PIPE; INJECTION CYLINDER 4 - 262 F.A.I. 268-685XL
Log In or Create an Account

10

1

3218229R1

INJECTION PIPE; INJECTION CYLINDER 4 - H84-785XL
Log In or Create an Account

10

1

3228399R1

INJECTION PIPE; INJECTION CYLINDER 4 - 884, 885XL
Log In or Create an Account

10

1

3218172R1

TUBE; INJECTION CYLINDER 4 - SU-644
Log In or Create an Account

11

1

3132768R1

CLAMP; PIPE
Log In or Create an Account

11

1

3218243R1

CLAMP; PIPE - MOULDED RUBBER INSERT
Log In or Create an Account

1

931330R1

SCREW M6 x 1 x 12mm, Cl 8.8;
Log In or Create an Account

1

86500688

NUT Hex, M6 x 1, Cl 10, ZND;
Log In or Create an Account

12

1

3059086R1

BANJO BOLT; SCREW, HOLLOW M12
Log In or Create an Account

13

2

713845R1

SEALING WASHER M12 x 15.5 x 1.5;
Log In or Create an Account

14

1

3228329R1

HOSE; LINE OVERFLOW - 743, 745/844XL, 262 F.A.I.
Log In or Create an Account

14

1

3144138R1

TUBE; SPARE PART LINE, OVERFLOW - SU-644 ONLY
Log In or Create an Account

14

1

3144382R1

PIPE; LINE OVERFLOW
Log In or Create an Account

15

1

NSS

NOT SOLD SEPARAT; PUMP, INJECTION, NATURALLY ASPIRATED ENGINES
Log In or Create an Account

15

1

3228395R91

PUMP; INJECTION - 884, 885XL
Log In or Create an Account

1

933981R1

NUT M12 x 1.75, Cl 5;
Log In or Create an Account

2

9635082

NUT 5/16'' - 18, Gr 5;
Log In or Create an Account

2

103320

LOCK WASHER 5/16'';
Log In or Create an Account

1

933834R1

LOCK WASHER M12; 12 MM
Log In or Create an Account

16

1

3055384R1

GASKET;
Log In or Create an Account

17

1

3056885R3

PINION; GEAR, INJECTION PUMP
Log In or Create an Account

17

1

3055066R3

GEAR; INJECTION PUMP - 743, 745XL, SU-644
Log In or Create an Account

18

1

3055067R2

HUB; PUMP GEAR
Log In or Create an Account

3

25228R1

BOLT Hex, 5/16'' - 18 x 3/4'', Gr 8; 5/16 X 19 MM
Log In or Create an Account

19

2

3055574R1

WASHER 8.5mm ID x 19mm OD x 2.5mm Thk;
Log In or Create an Account

20

4

717203R1

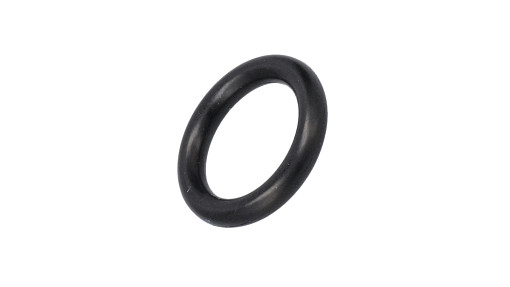

O-RING 4mm Thk x 17mm ID, 72 Duro;
Log In or Create an Account

21

3

30183R1

WASHER M8 x 21.5 x 2.5, HT;
Log In or Create an Account

22

2

3055386R1

CLAMP;
Log In or Create an Account

2

179793

BOLT Hex, 1/4'' - 20 x 5/8'', Gr 5, Full Thd;
Log In or Create an Account

2

103319

LOCK WASHER 1/4'';
Log In or Create an Account

23

2

3055387R1

LINK; FIXING
Log In or Create an Account

23

2

3132174R1

LINK; FIXING - 258-585XL, 268-685XL, H84-785XL, SU-644
Log In or Create an Account

2

179835

BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5, Full Thd;
Log In or Create an Account

2

103321

LOCK WASHER 3/8'';
Log In or Create an Account

24

4

3218130R1

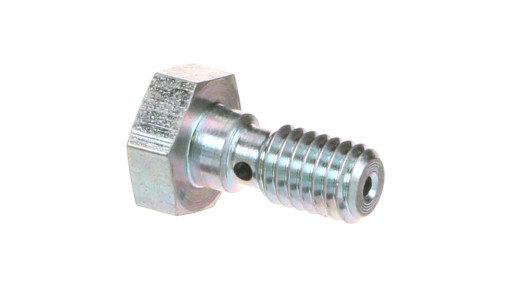

BANJO BOLT Hex, M6 x 133.02mm; HOLLOW M6
Log In or Create an Account

25

8

933696R1

SEALING RING M6 x 10 x 1; Packing
Log In or Create an Account

26

3

3056137R1

PIPE UNION NUT Coupling, M14 x 1.5; COUPLING
Log In or Create an Account

27

3

3056136R1

SLEEVE Cutting Ring, 8mm ID x 11mm OD x 9mm L; SEAL
Log In or Create an Account

28

3

3056138R1

TEE M8 Tube; UNION - 743/745/844XL, SU-644, 262 F.A.I.
Log In or Create an Account

28

1

3055739R1

TEE 1/2'' - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS; T
Log In or Create an Account

29

1

3228536R1

PIPE; RETURN, TO FUEL TANK - 743XL, 745XL
Log In or Create an Account

29

1

3228414R1

PIPE; RETURN, TO FUEL TANK - 844XL
Log In or Create an Account

30

1

3228538R2

TUBE; RETURN - 743/745XL
Log In or Create an Account

30

1

3228416R1

FUEL HOSE; RETURN - 844XL
Log In or Create an Account

31

1

3144656R1

HOSE CLAMP; 743/745/844XL
Log In or Create an Account

32

1

3055678R1

PLATE; ANGLE, 884, 885 XL ONLY
Log In or Create an Account

1

179835

BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5, Full Thd;
Log In or Create an Account

1

103321

LOCK WASHER 3/8'';
Log In or Create an Account

33

2

933610R1

SEALING RING M14 x 18 x 1.8; Packing
Log In or Create an Account

34

1

3133290R1

HOSE; RETURN - SU-644
Log In or Create an Account

35

1

710098R2

BANJO BOLT M14 x 1.5 x 32mm; HOLLOW M14
