74.118.11[02] - SIEVE ASSEMBLY, LOWER MANUAL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87712275

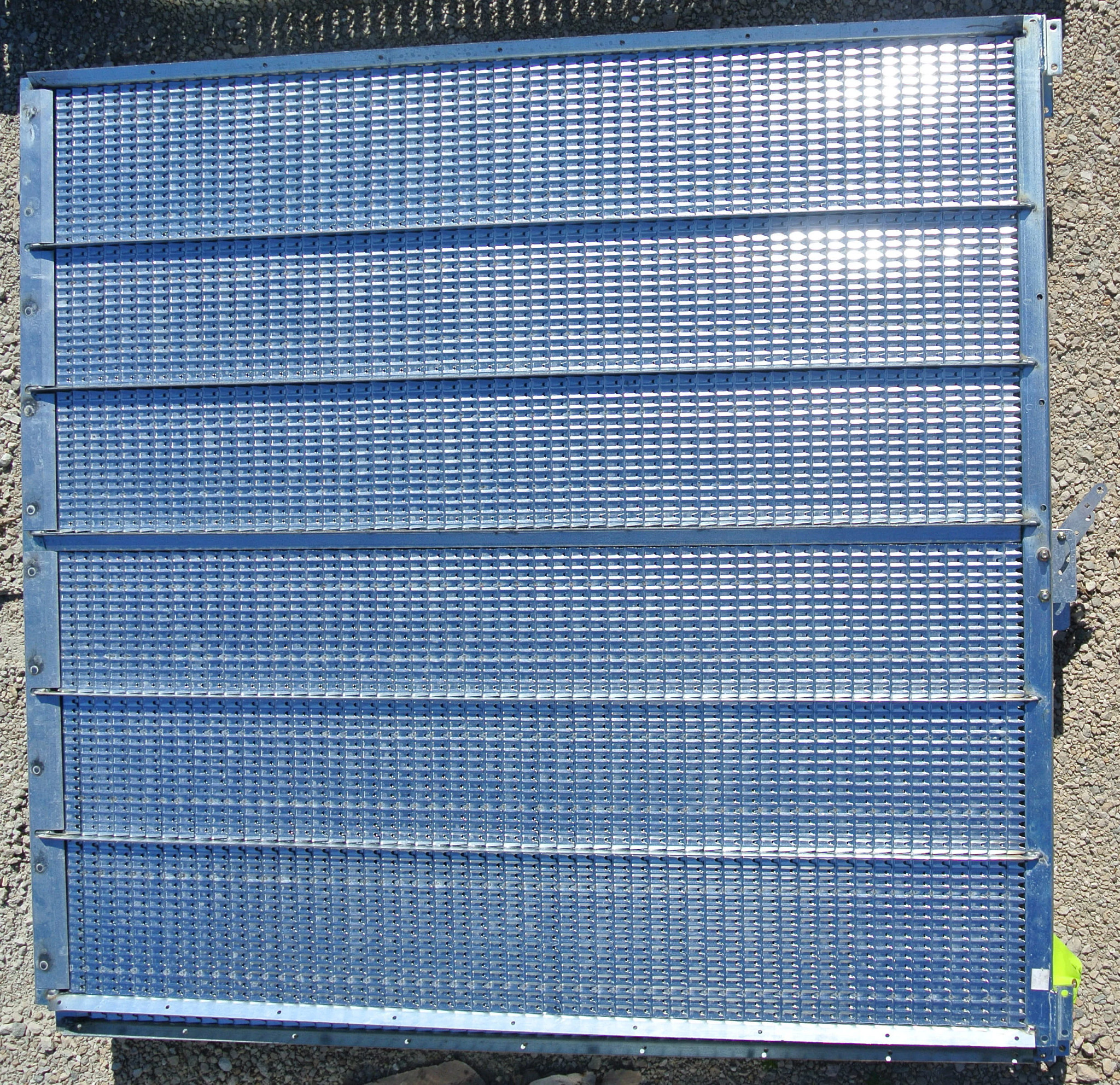

    SIEVE Lower Closz 1-1/8'', 60.20'' x 65.96''; Lower 1-1/8 Closz
  • 1
    1
    87712276

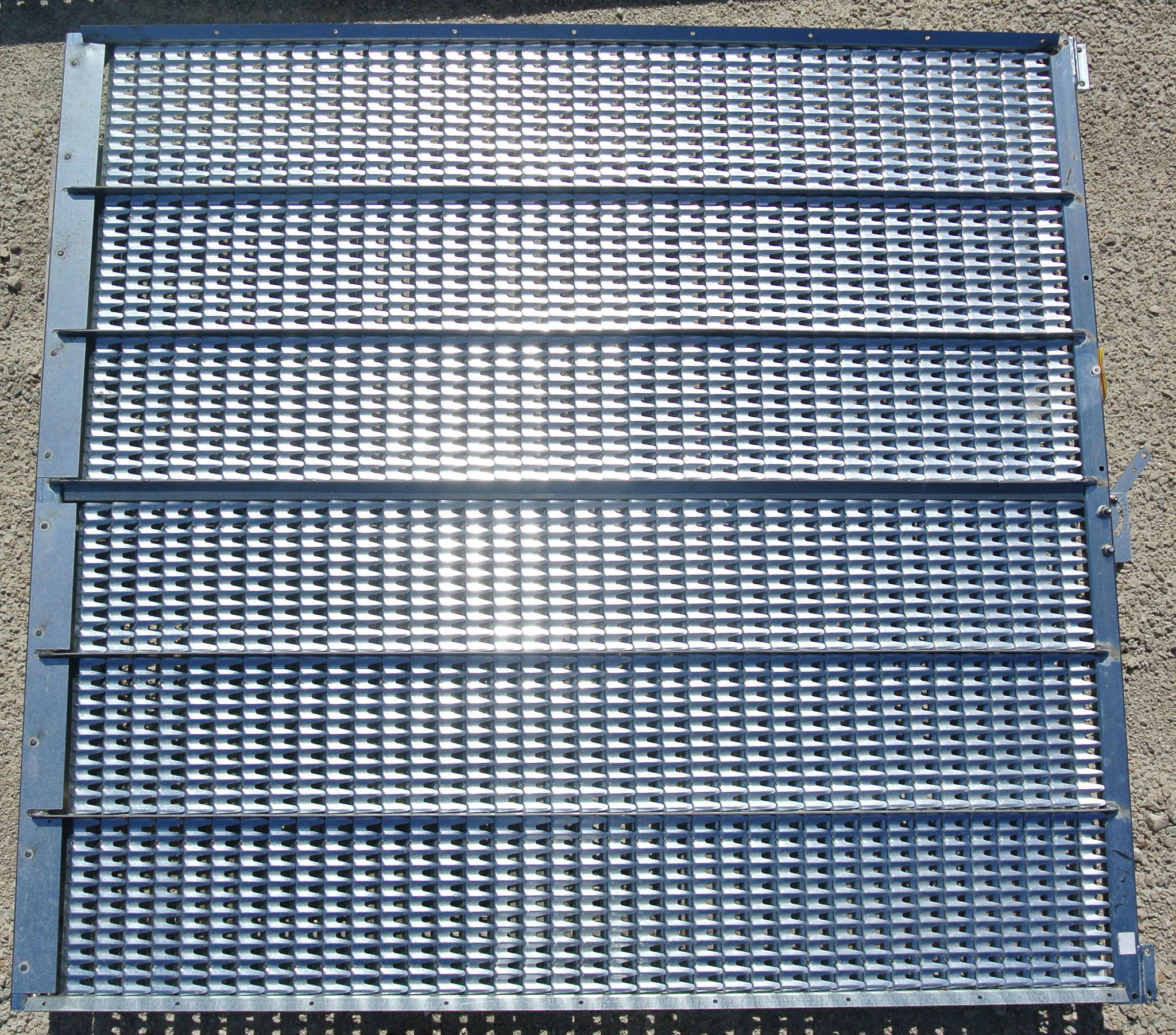

    SIEVE Lower Closz 1-5/8'', 60.20'' x 64.96''; Lower 1-5/8 Closz
  • 2
    2
    198925A1
    SEAL 56mm W x 1790mm L; Shoe Sieve
  • 3
    2
    87712566

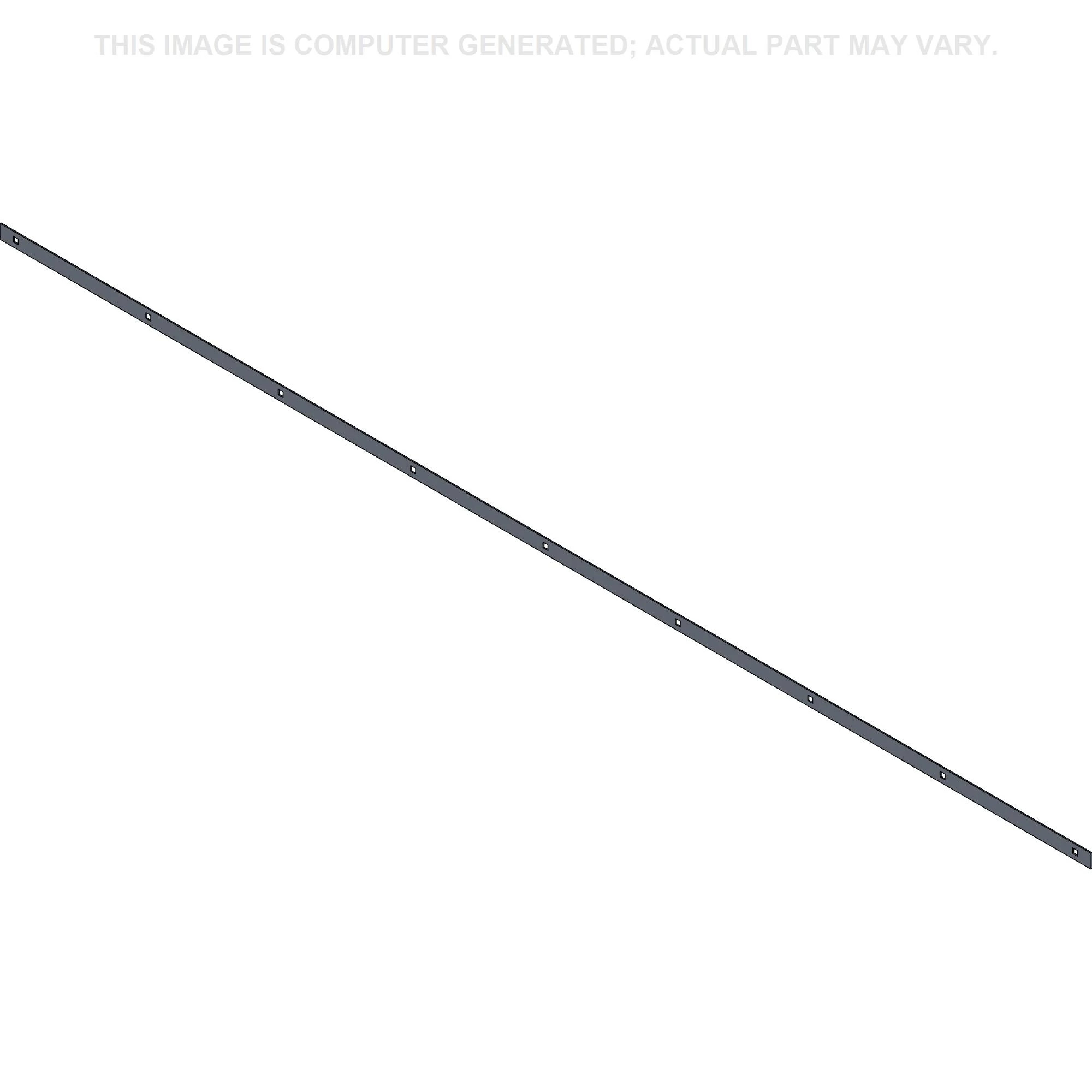

    BAR; Shoe Sieve
  • 4
    18
    86512439
    CARRIAGE BOLT M6 x 16mm, Cl 8.8;
  • 5
    18
    86050300
    FLANGE NUT M6 x 1.0, Cl 10;
  • 6
    2
    827-10120
    BOLT Hex, M10 x 1.5 x 120mm, Cl 10.9;
  • 7
    2
    827-10140
    BOLT Hex, M10 x 1.5 x 140mm, Cl 10.9;
  • 8
    4
    86512554
    LOCK NUT M10 x 1.5, Cl 10;
