35.410.03 - VALVE ASSY - CONTROL - HEADER LIFT WITH REEL FORE AND AFT AND FIELD TRACKER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    124567A3C
    CORE-VALVE HYD; Multi Section, Incl 1 - 20, Header Lift with Reel Fore and Aft and Field Tracker
  • 1
    124567A3
    VALVE, CONTROL; Multi Section, Incl 1 - 20, Header Lift with Reel Fore and Aft and Field Tracker
  • 1
    124567A3R
    REMAN-HYD VALVE; Multi Section, Incl 1 - 20, Header Lift with Reel Fore and Aft and Field Tracker
  • 1
    NSS
    NOT SOLD SEPARAT; BODY, One Piece Valve, Production Only, Service Body with Complete Valve Assy 124567A3 above, Incl 3 - 20
  • 1
    1
    124565A3
    VALVE, CONTROL; Header Lift
  • 2
    1
    131153A2
    CONTROL VALVE; Reel Fore and Aft
  • 1
    114854A1
    CONTROL VALVE; Incl 190984A1, Ref 3 - 20, Field Tracker
  • 1
    190984A1
    VALVE; Incl 3 - 12, 4-Way, 3 Position, Stack
  • 3
    2
    196736A1
    BODY; Solenoid
  • 4
    2
    196737A1
    SPLIT PIN/SAFETY PIN;
  • 5
    2
    196738A1
    SPRING;
  • 6
    2
    196739A1
    WASHER;
  • 7
    1
    196712A1
    PLUG; Orifice 0.035''
  • 8
    1
    196713A1
    PLUG; Orifice 0.043''
  • 1
    191120A1
    SEAL KIT; Repair, 4-Way, 3 Position Valve (Not Shown)
  • 9
    4
    61-31020

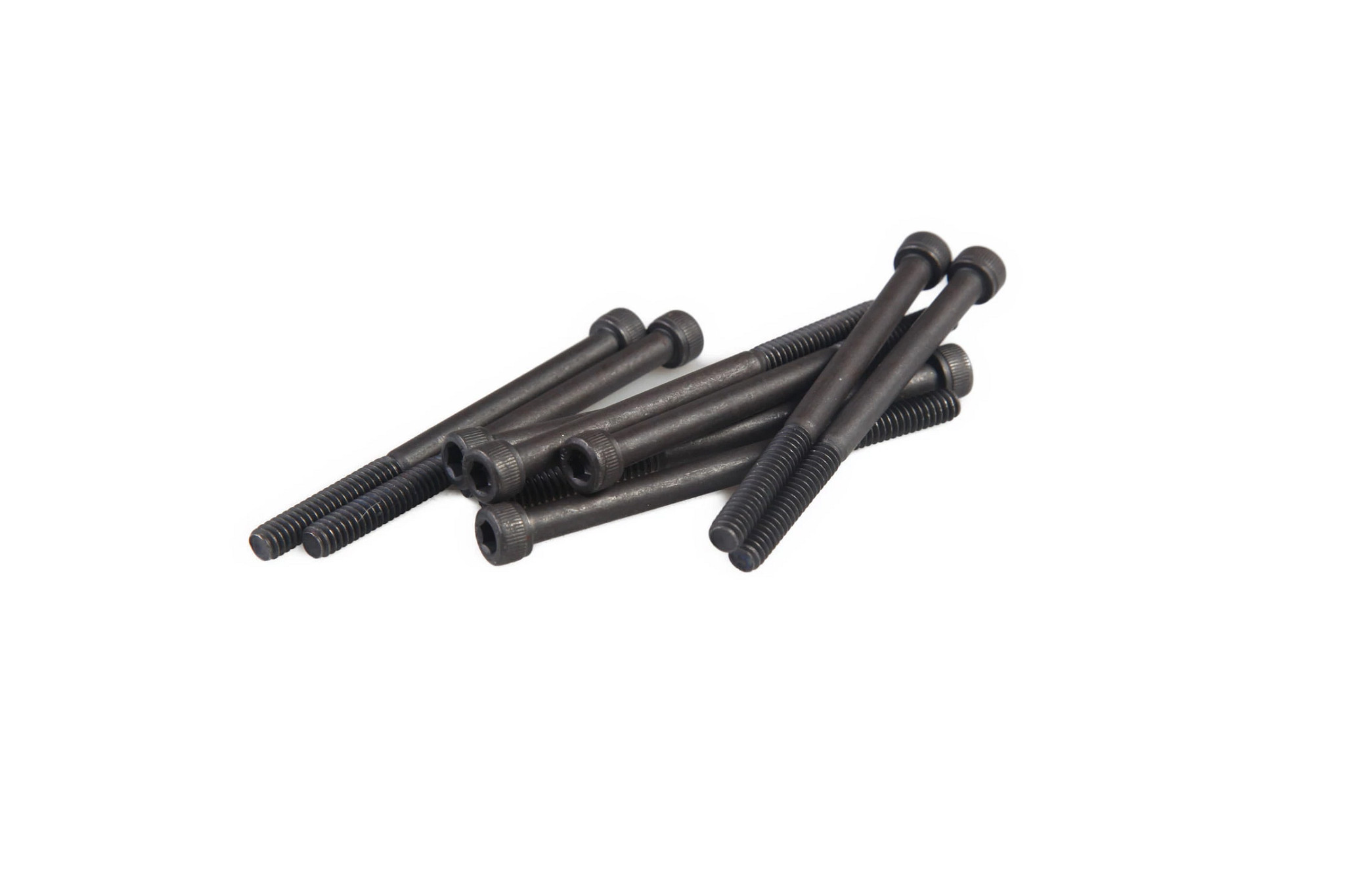

    HEX SOC SCREW #10 - 24 x 1 1/4'';
  • 9
    4
    61-31044
    HEX SOC SCREW #10 - 24 x 2 3/4'';
  • 10
    2
    191119A1
    SOLENOID; Coil, With Diode, 12 Volt, DC
  • 11
    2
    188106A1
    NUT;
  • 12
    2
    238-5017
    O-RING 17.2mm ID x 1.78mm Thk, NBR;
  • 13
    1
    190985A1
    VALVE; Incl 14, Double Pilot Operated
  • 14
    1
    191120A1
    SEAL KIT; Repair, Check Valve (Not Shown)
  • 15
    2
    190986A1
    VALVE PRESSURE RELIE 7/8'' - 14; Incl 16
  • 16
    1
    149942C1
    SEAL KIT; Relief Valve (Not Shown)
  • 17
    1
    238-5111
    O-RING 10.8mm ID x 2.62mm Thk, NBR;
  • 18
    4
    238-5117
    O-RING 20.3mm ID x 2.62mm Thk, NBR;
  • 19
    4
    861-10130
    HEX SOC SCREW M10 x 130mm, Cl 12.9;
  • 20
    4
    864-10070
    HEX SOC SCREW M10 x 70mm, Cl 8.8; Not Used in this Application (Not Shown)
Select All
