TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
18SCREW; STUD, differential shaft outer bearing cover
-
8NUT 3/8''-16, G5;
-
8LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
22COVER ASSY; RETAINER, differential shaft bearing
-
8BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5, Full Thd;
-
32GASKET; differential shaft bearing retainer
-
42SNAP RING; RING, differential shaft bearing lock
-
52BALL BEARING 30mm ID x 62mm OD x 16mm W; BEARING, differential shaft ball
-
61SHAFT; differential LH, 12 teeth
-
72WOODRUFF KEY #13, 3/16'' x 1'', HT; KEY, 3/16 x 1 woodruff no. 13, brake drum
-
81HOUSING; ASSY, rear axle, cub tractors w/serial no. 173600 and below, order package 360043R91, composed of (1) bearing ST973, (1) bearing 350809R1, (1) housing 350806R4 (NSS), (1) oil seal 381907R91
-
2NUT 3/8''-16, G5;
-
2BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5, Full Thd;
-
2NO LONGER SERVICED; 3/8-16 x 1-3/8 hex hd cap
-
2SPACER; 3/8-16 x 1-3/8 hex-hd cap
-
4LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
81HOUSING; ASSY, rear axle, cub tractors w/serial no. 173601 and above, order package 380043R91, composed of (1) bearing ST973, (1) bearing 350809R1, (1) bushing 358756R1, (1) housing 350806R5 (NSS), (1) oil seal 381907R91, (1) plug 9409949
-
2DRAIN PLUG Sq Soc, 3/4'' - 14 NPTF; PLUG, 3/4-14 auto, sq-soc pipe
-
2NUT 3/8''-16, G5;
-
2BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
2NO LONGER SERVICED;
-
4LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
81HOUSING; ASSY, rear axle LH, cub lo-boy tractors, composed of (1) bearing ST973, (1) bearing 350809R1, (1) bushing 358756R1, (1) housing 364026R3 (NSS), (1) oil seal 384907R91, (1) plug 445751
-
1PLUG; 1/2 sq-socket steel pipe
-
5BOLT Hex, 3/8'' - 16 x 1 1/2'', Gr 5;
-
1HEX SOC SCREW 3/8'' - 16 x 1 1/2'';
-
6LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
1PLUG; 1/2 sq-socket steel pipe
-
6NUT 3/8''-16, G5;
-
6LEVER;
-
6LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
92OIL SEAL 39.24mm ID x 62mm OD x 8mm Thk; differential shaft pinion oil
-
102DRUM; brake
-
2NUT 5/16'' - 18, Gr 5;
-
2CAPSCREW Flg, 3/8'' - 16 x 2'', Gr 8; SCREW, lock
-
6BOLT Hex, 3/8'' - 16 x 1 1/8'', Gr 5; SCREW, 3/8-16 x 1-1/8 hex-hd cap
-
6LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
122PIN; DOWEL, differential shaft housing
-
131SHAFT; differential RH, 12 teeth
-
152SEAL; SEAL, rear axle oil
-
8BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5, Full Thd;
-
8LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
162GASKET; rear axle oil seal
-
172TAPERED BEARING 1.6255'' ID x 3.126'' OD x 0.9455''; BEARING ASSY, rear axle outer cone
-
183BUSHING; actuating toggle, cub tractors w/serial no. 173601 and above, all cub lo-boy tractors
-
192TAPERED BEARING 1.688'' ID x 3.126'' OD x 0.9515''; BEARING, rear axle outer cup
-
201SPACER; rear axle bearing, cub tractors w/serial no. 19351 and above, all cub lo-boy tractors
-
222SPACER; rear axle drive gear, cub tractors w/serial no. 19350 and below
-
222SPACER; rear axle drive gear, cub tractors w/serial no. 19351 and above, all cub lo-boy tractors
-
232CUP ASSY.; BEARING, rear axle inner cup
-
24ARSHIM; rear axle drive gear, light, .004
-
24ARSHIM; rear axle drive gear medium, .008
-
24ARSHIM; rear axle drive gear heavy, .015
-
24ARSHIM; rear axle drive gear extra heavy, .030
-
252CONE; BEARING ASSY, rear axle inner cone
-
261NUT; LH rear axle
-
1COTTER PIN 1/8'' x 1 1/2''; Pin, Split (Cotter), 1/8'' x 1 1/2''
-
271GASKET; LH rear axle bearing cap
-
281CAP; LH rear axle bearing
-
4SPACER;
-
4LOCK WASHER 5/16''; WASHER, LOCK, 5/16''
-
291RETAINER; w/oil seal, 382220R91, rear axle nut RH, cub tractors
-
291CAP; rear axle bearing RH, cub lo-boy tractors
-
4SPACER;
-
4LOCK WASHER 5/16''; WASHER, LOCK, 5/16''
-
301GASKET; oil seal retainer or RH brg cap
-
311OIL SEAL 44.32mm ID x 66.78mm OD x 8.33mm Thk; rear axle nut RH retainer oil, cub tractors
-
321NUT; 1-1/8 thick RH rear axle, cub tractors
-
321NUT; RH rear axle, cub lo-boy tractors
-
1COTTER PIN 1/8'' x 1 1/2''; Pin, Split (Cotter), 1/8'' x 1 1/2''
-
331O-RING 0.984'' ID x 0.139'' Width; RING, rear axle nut RH seal, cub tractors
-
341CENTER AXLE; AXLE, RH rear, cub tractors
-
352GASKET; rear axle housing pan
-
362PAN; rear axle housing
-
20BOLT Hex, 5/16'' - 18 x 1/2'', Gr 5, Full Thd; SCREW, 5/16-18 x 1/1 hex-hd cap
-
20LOCK WASHER 5/16''; WASHER, LOCK, 5/16''
-
10BOLT; rear axle extension
-
10LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
-
2COVER; PACKAGE, rear axle housing service, cub tractors, will work for 350806R41, 350806R51 and 353384R92, Farmall cub 501 to 173600, consists of (1) bearing ST973, (1) bearing 350809R1, (2) bushing 358756R41, (1) housing 350806R5 (NSS), (1) oil seal 381907R91, (1) pin 360040R1, (1) pin 359865R1, (1) plug 9409949, (4) screw 179835, (1) spacer 57406H
Select All
Ref.
1Qty
8Availability
Part #
18880DDescription
SCREW; STUD, differential shaft outer bearing coverImg
Alts
Ref.
2Qty
2Availability
Part #
350803R1Description
COVER ASSY; RETAINER, differential shaft bearingImg
Alts
Ref.
Qty
8Availability
Part #
179835Description
BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5, Full Thd;Img
Alts
Ref.
3Qty
2Availability
Part #
350804R1Description
GASKET; differential shaft bearing retainerImg
Alts
Ref.
4Qty
2Availability
Part #
350802R1Description
SNAP RING; RING, differential shaft bearing lockImg
Alts
Ref.
5Qty
2Availability
Part #
ST364Description

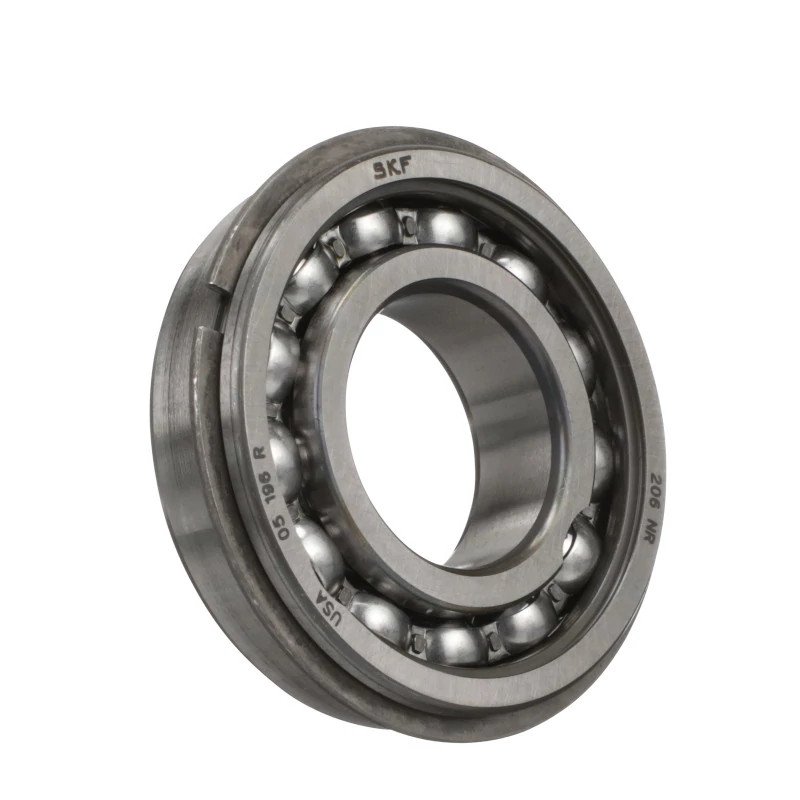

BALL BEARING 30mm ID x 62mm OD x 16mm W; BEARING, differential shaft ballImg
Alts
Ref.
7Qty
2Availability
Part #
126-122Description
WOODRUFF KEY #13, 3/16'' x 1'', HT; KEY, 3/16 x 1 woodruff no. 13, brake drumImg
Alts
Ref.
8Qty
1Availability
Part #
350806R41Description
HOUSING; ASSY, rear axle, cub tractors w/serial no. 173600 and below, order package 360043R91, composed of (1) bearing ST973, (1) bearing 350809R1, (1) housing 350806R4 (NSS), (1) oil seal 381907R91Img
Alts
Ref.
Qty
2Availability
Part #
179835Description
BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5, Full Thd;Img
Alts
Ref.
Qty
2Availability
Part #
NLSDescription
NO LONGER SERVICED; 3/8-16 x 1-3/8 hex hd capImg
Alts
Ref.
8Qty
1Availability
Part #
350806R51Description
HOUSING; ASSY, rear axle, cub tractors w/serial no. 173601 and above, order package 380043R91, composed of (1) bearing ST973, (1) bearing 350809R1, (1) bushing 358756R1, (1) housing 350806R5 (NSS), (1) oil seal 381907R91, (1) plug 9409949Img
Alts
Ref.
Qty
2Availability
Part #
217-469Description
DRAIN PLUG Sq Soc, 3/4'' - 14 NPTF; PLUG, 3/4-14 auto, sq-soc pipeImg
Alts
Ref.
8Qty
1Availability
Part #
364026R31Description
HOUSING; ASSY, rear axle LH, cub lo-boy tractors, composed of (1) bearing ST973, (1) bearing 350809R1, (1) bushing 358756R1, (1) housing 364026R3 (NSS), (1) oil seal 384907R91, (1) plug 445751Img
Alts
Ref.
9Qty
2Availability
Part #
381907R91Description
OIL SEAL 39.24mm ID x 62mm OD x 8mm Thk; differential shaft pinion oilImg
Alts
Ref.
Qty
2Availability
Part #
360270R1Description
CAPSCREW Flg, 3/8'' - 16 x 2'', Gr 8; SCREW, lockImg
Alts
Ref.
Qty
6Availability
Part #
179840Description
BOLT Hex, 3/8'' - 16 x 1 1/8'', Gr 5; SCREW, 3/8-16 x 1-1/8 hex-hd capImg
Alts
Ref.
12Qty
2Availability
Part #
350799R1Description
PIN; DOWEL, differential shaft housingImg
Alts
Ref.
Qty
8Availability
Part #
179835Description
BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5, Full Thd;Img
Alts
Ref.
17Qty
2Availability
Part #
ST2047Description
TAPERED BEARING 1.6255'' ID x 3.126'' OD x 0.9455''; BEARING ASSY, rear axle outer coneImg
Alts
Ref.
18Qty
3Availability
Part #
358756R1Description
BUSHING; actuating toggle, cub tractors w/serial no. 173601 and above, all cub lo-boy tractorsImg
Alts
Ref.
19Qty
2Availability
Part #
ST973Description
TAPERED BEARING 1.688'' ID x 3.126'' OD x 0.9515''; BEARING, rear axle outer cupImg
Alts
Ref.
20Qty
1Availability
Part #
353162R1Description
SPACER; rear axle bearing, cub tractors w/serial no. 19351 and above, all cub lo-boy tractorsImg
Alts
Ref.
22Qty
2Availability
Part #
350825R1Description
SPACER; rear axle drive gear, cub tractors w/serial no. 19350 and belowImg
Alts
Ref.
22Qty
2Availability
Part #
353163R3Description
SPACER; rear axle drive gear, cub tractors w/serial no. 19351 and above, all cub lo-boy tractorsImg
Alts
Ref.
23Qty
2Availability
Part #
350809R1Description
CUP ASSY.; BEARING, rear axle inner cupImg
Alts
Ref.
24Qty
ARAvailability
Part #
353164R1Description
SHIM; rear axle drive gear, light, .004Img
Alts
Ref.
24Qty
ARAvailability
Part #
353165R1Description
SHIM; rear axle drive gear medium, .008Img
Alts
Ref.
24Qty
ARAvailability
Part #
353166R1Description
SHIM; rear axle drive gear heavy, .015Img
Alts
Ref.
24Qty
ARAvailability
Part #
353167R1Description
SHIM; rear axle drive gear extra heavy, .030Img
Alts
Ref.
25Qty
2Availability
Part #
350808R91Description
CONE; BEARING ASSY, rear axle inner coneImg
Alts
Ref.
Qty
1Availability
Part #
103387Description
COTTER PIN 1/8'' x 1 1/2''; Pin, Split (Cotter), 1/8'' x 1 1/2''Img
Alts
Ref.
29Qty
1Availability
Part #
350819R11Description
RETAINER; w/oil seal, 382220R91, rear axle nut RH, cub tractorsImg
Alts
Ref.
29Qty
1Availability
Part #
350821R1Description
CAP; rear axle bearing RH, cub lo-boy tractorsImg
Alts
Ref.
30Qty
1Availability
Part #
350820R1Description
GASKET; oil seal retainer or RH brg capImg
Alts
Ref.
31Qty
1Availability
Part #
382220R91Description
OIL SEAL 44.32mm ID x 66.78mm OD x 8.33mm Thk; rear axle nut RH retainer oil, cub tractorsImg
Alts
Ref.
32Qty
1Availability
Part #
350816R1Description
NUT; 1-1/8 thick RH rear axle, cub tractorsImg
Alts
Ref.
32Qty
1Availability
Part #
350817R1Description
NUT; RH rear axle, cub lo-boy tractorsImg
Alts
Ref.
Qty
1Availability
Part #
103387Description
COTTER PIN 1/8'' x 1 1/2''; Pin, Split (Cotter), 1/8'' x 1 1/2''Img
Alts
Ref.
33Qty
1Availability
Part #
350818R1Description
O-RING 0.984'' ID x 0.139'' Width; RING, rear axle nut RH seal, cub tractorsImg
Alts
Ref.
34Qty
1Availability
Part #
350814R2Description
CENTER AXLE; AXLE, RH rear, cub tractorsImg
Alts
Ref.
Qty
20Availability
Part #
88574Description
BOLT Hex, 5/16'' - 18 x 1/2'', Gr 5, Full Thd; SCREW, 5/16-18 x 1/1 hex-hd capImg
Alts
Ref.
Qty
20Availability
Part #
103320Description
LOCK WASHER 5/16''; WASHER, LOCK, 5/16''Img
Alts
Ref.
Qty
2Availability
Part #
360043R91Description
COVER; PACKAGE, rear axle housing service, cub tractors, will work for 350806R41, 350806R51 and 353384R92, Farmall cub 501 to 173600, consists of (1) bearing ST973, (1) bearing 350809R1, (2) bushing 358756R41, (1) housing 350806R5 (NSS), (1) oil seal 381907R91, (1) pin 360040R1, (1) pin 359865R1, (1) plug 9409949, (4) screw 179835, (1) spacer 57406HImg
Alts
