TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1LAMP; Assy, Flasher, RH
-
1LAMP; & Body Assy., w/Switch, LH
-
1LAMP; & Wire, Emergency Warning, Square Lens, RH, Includes: Ref. 1 thru 5
-
1LAMP; & Wire, Emergency Warning, Square Lens, LH, Includes: Ref. 1 thru 5
-
2LAMP; Assy., w/o Cab;Consists of Ref. 1 & 6 thru 10
-
12LAMP; Assy., w/o Cab, RH, Includes: Ref. 2 thru 5
-
1A2LAMP; Assy., w/Cab, RH & LH, Includes: 2A & 4A
-
22BULB #1156, 12V, 21W; NHNA Only
-
2A2BULB; Assy., # 1076, w/Cab
-
34GASKET;
-
31GASKET; Square Lens
-
44KIT; Lens, Amber, Includes: Seal & Hardware
-
41LENS; Amber, Square, Rear Flasher
-
4ARLENS; Red
-
41LENS; Lens, Amber
-
4A4LENS; Amber, w/Cab
-
4B4CABLE; Assy., w/Cab
-
4C4SPRING; w/Cab
-
512SELF-TAP SCREW Cross Pan Hd, #6 x 5/8''; SCREW, SELF TAPPING, Cross Pan Hd, #6 x 5/8''
-
62BRACKET; w/o Cab
-
72BRACKET;
-
82WASHER;
-
92LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
102NUT Nut, 1/2-20 GR 5 ZND; G5, 1/2''-20
-
111RELAY 12V; Flasher, 2 Terminals
-
121FLASHER SWITCH; Switch Assy., Red Lens
-
121SWITCH ASSY; ., Flasher
-
121SWITCH; Assy., Square Lens
-
1BOOT;
-
131WIRE HARNESS; Wire Assy.
-
13A1TERMINAL;
-
142GASKET; Red Lens
-
142GASKET; w/o Cab
-
14A2GASKET; w/Cab
-
8LOCK WASHER Ext Tooth, 7/16''; Washer, Lock, Ext T, 7/16''
-
8LOCK WASHER Int Tooth, 7/16''; WASHER, LOCK, Int Tooth, 7/16''
-
8NUT 7/16''-14, G5;
-
158CARRIAGE BOLT; Bolt, Carriage, Short Neck, G5, 7/16''-14 x 1''
-
162BRACKET;
-
1KIT; Turn Signal, Includes:
-
1SWITCH ASSY; ., Turn Signal
-
1KNOB; Signal Switch
-
1SCREW Pan, #8 - 32 x 5/16''; Pan Hd, G2, #8-32 x 5/16''
-
1WASHER; Lock, Int T, 11/16''
-
1NUT; 11/16''-28
-
1WIRE HARNESS; Harness Assy., Signal Switch
-
1WIRE HARNESS; Harness Assy., Signal, Rear Wire
-
1WIRE CONNECTOR; Connector, Wire
-
12CABLE TIE 292.1mm L, Nylon, Black; Strap, Cable, .14 x 11 1/2'' L
Select All
![]()
Ref.
Qty
1Availability
Part #
D8NN10B913CADescription
LAMP; & Wire, Emergency Warning, Square Lens, RH, Includes: Ref. 1 thru 5Img
Alts
Ref.
Qty
1Availability
Part #
D8NN10B913DADescription
LAMP; & Wire, Emergency Warning, Square Lens, LH, Includes: Ref. 1 thru 5Img
Alts
Ref.
Qty
2Availability
Part #
D8NN15K551ABDescription
LAMP; Assy., w/o Cab;Consists of Ref. 1 & 6 thru 10Img
Alts
Ref.
1Qty
2Availability
Part #
D4NN13N359ADescription
LAMP; Assy., w/o Cab, RH, Includes: Ref. 2 thru 5Img
Alts
Ref.
1AQty
2Availability
Part #
D6NN13N359BDescription
LAMP; Assy., w/Cab, RH & LH, Includes: 2A & 4AImg
Alts
Ref.
4Qty
4Availability
Part #
F0NN15N581AADescription
KIT; Lens, Amber, Includes: Seal & HardwareImg
Alts
Ref.
4Qty
1Availability
Part #
D8NN13N311AADescription
LENS; Amber, Square, Rear FlasherImg
Alts
Ref.
5Qty
12Availability
Part #
261-14310Description
SELF-TAP SCREW Cross Pan Hd, #6 x 5/8''; SCREW, SELF TAPPING, Cross Pan Hd, #6 x 5/8''Img
Alts
Ref.
9Qty
2Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Ref.
10Qty
2Availability
Part #
280963Description
NUT Nut, 1/2-20 GR 5 ZND; G5, 1/2''-20Img
Alts
Ref.
12Qty
1Availability
Part #
87034883Description

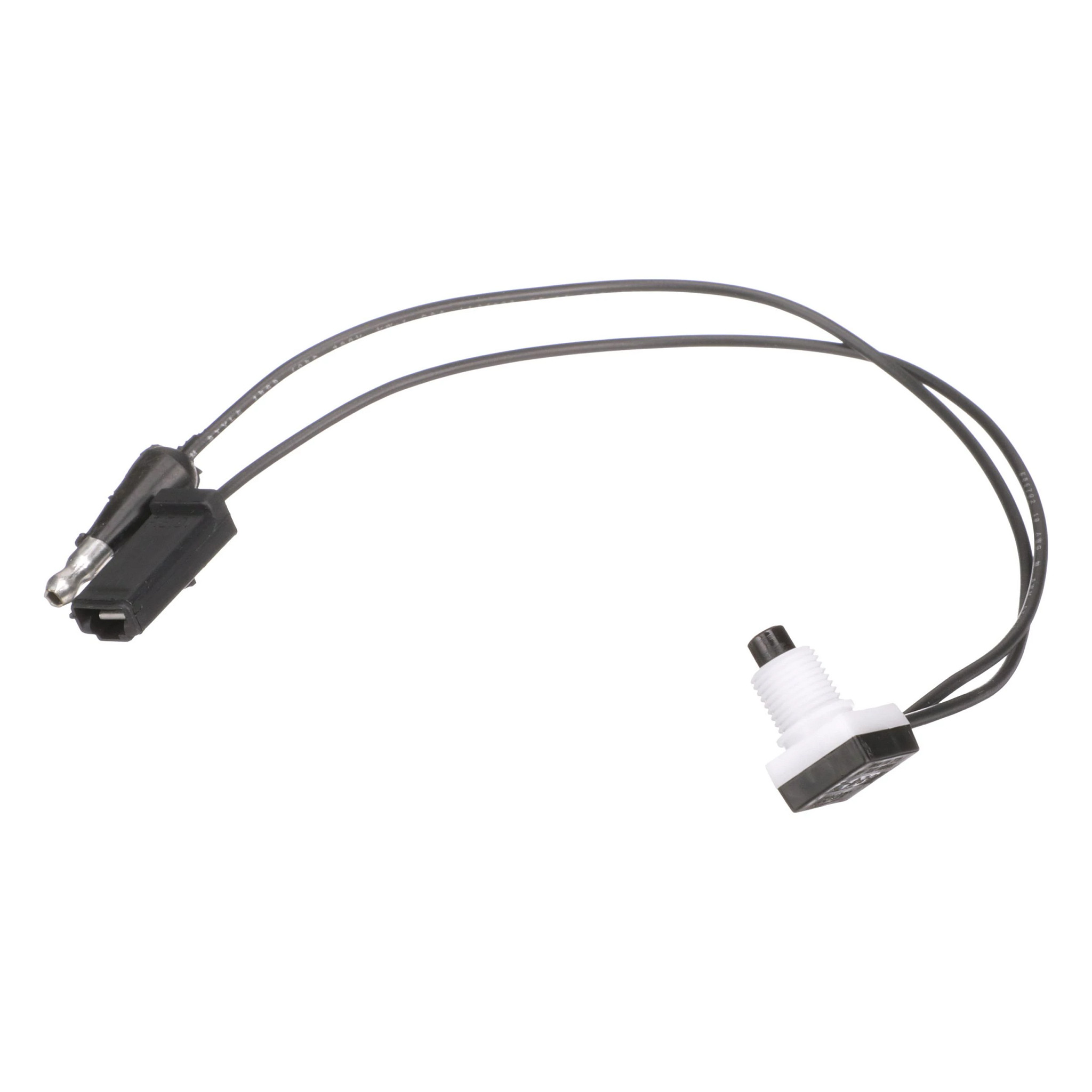

FLASHER SWITCH; Switch Assy., Red LensImg
Alts
Ref.
Qty
8Availability
Part #
9715503Description
LOCK WASHER Ext Tooth, 7/16''; Washer, Lock, Ext T, 7/16''Img
Alts
Ref.
Qty
8Availability
Part #
86512915Description
LOCK WASHER Int Tooth, 7/16''; WASHER, LOCK, Int Tooth, 7/16''Img
Alts
Ref.
15Qty
8Availability
Part #
58833S36Description
CARRIAGE BOLT; Bolt, Carriage, Short Neck, G5, 7/16''-14 x 1''Img
Alts
Ref.
Qty
1Availability
Part #
86511911Description
SCREW Pan, #8 - 32 x 5/16''; Pan Hd, G2, #8-32 x 5/16''Img
Alts
Ref.
Qty
1Availability
Part #
D6NN13R314BDescription
WIRE HARNESS; Harness Assy., Signal SwitchImg
Alts
Ref.
Qty
1Availability
Part #
D6NN14780ADescription
WIRE HARNESS; Harness Assy., Signal, Rear WireImg
Alts
Ref.
Qty
12Availability
Part #
263117Description
CABLE TIE 292.1mm L, Nylon, Black; Strap, Cable, .14 x 11 1/2'' LImg
Alts
