35.355.060 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    31MH-30091
    LEVER; ASSY, Incl 2, 3
  • 2
    1
    NSS
    NOT SOLD SEPARAT; Body, Incl in 1
  • 3
    2
    X500-110001
    HYD CONNECTOR PF 1/4 x 9/16 - 18 UNF;
  • 4
    4
    S631-011004
    O-RING PF 1/4;
  • 5
    10
    S631-014004
    O-RING;
  • 6
    2
    X410-042010
    HYDRAULIC HOSE 9/16 - 18 UNF x 500mm;
  • 7
    2
    X410-042023
    HYDRAULIC HOSE 9/16 - 18 UNF x 1150mm;
  • 8
    14
    S621-011001
    O-RING 9/16 - 18 UNF;
  • 9
    2
    X410-042026

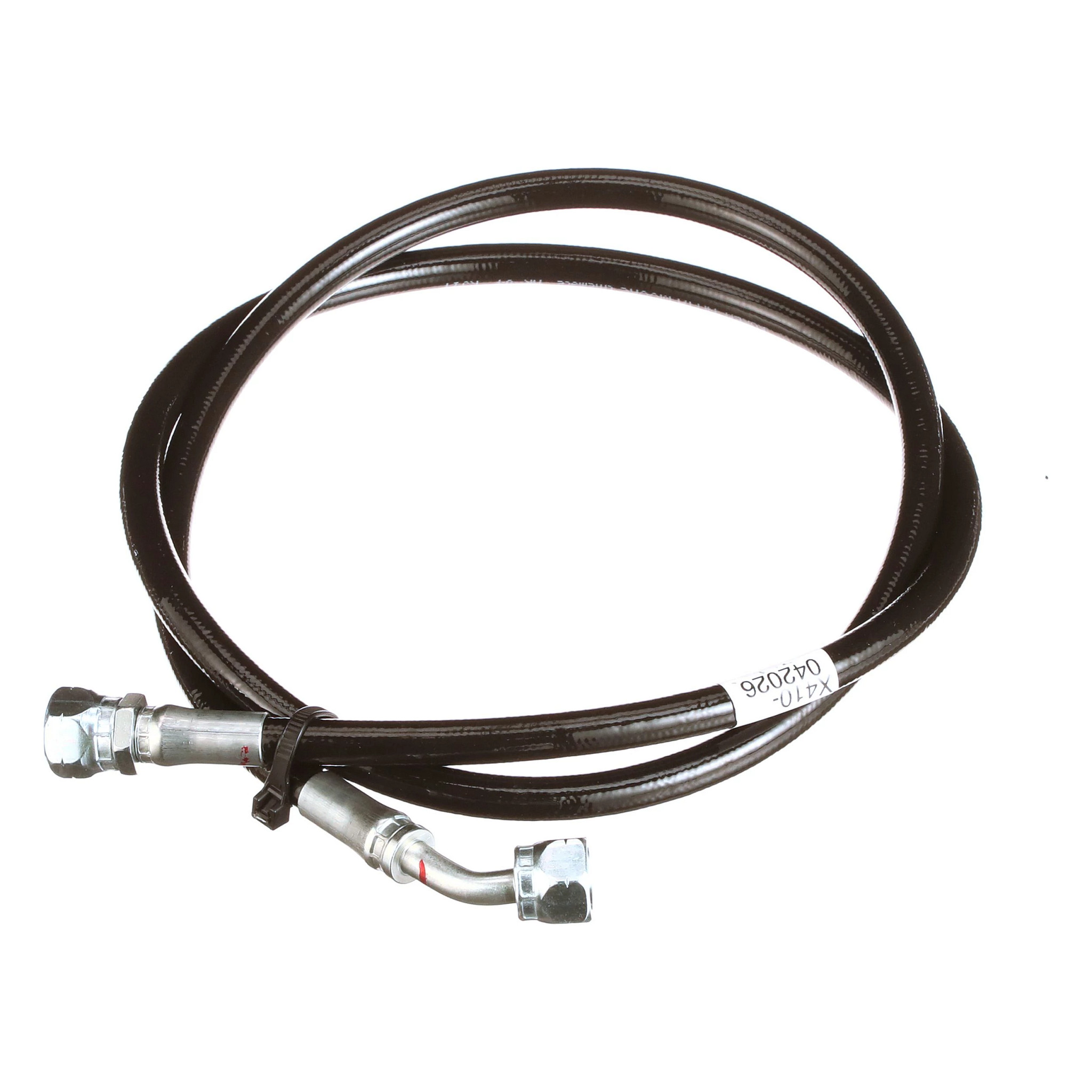

    HYDRAULIC HOSE 9/16 - 18 UNF x 1300mm; Pattern Change, Var. 405047, 405051
  • 10
    3
    X410-042027
    HYDRAULIC HOSE 9/16 - 18 UNF x 1350mm;
  • 10
    4
    X410-042027
    HYDRAULIC HOSE 9/16 - 18 UNF x 1350mm; Without Pattern Change, Var. 405048, 405052
  • 11
    2
    S205-06100B
    NUT M8 x 1mm; With Hammer Pedal Without Flow Circuit, Var. 405019, 405021
  • 12
    1

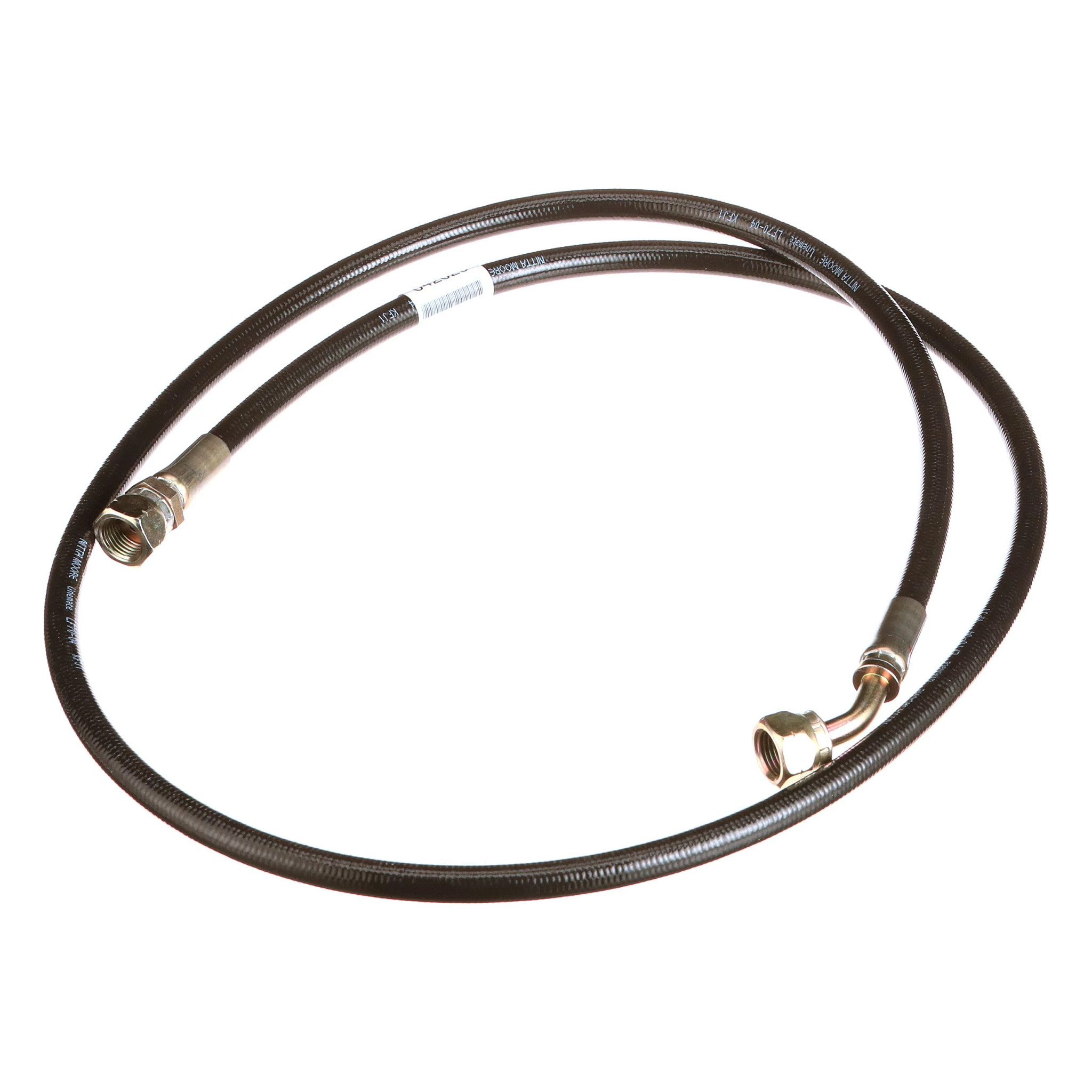

    X410-042029
    HYDRAULIC HOSE;
  • 13
    2
    X410-042030
    HYDRAULIC HOSE 9/16 - 18 UNF x 1500mm; Pattern Change, Var. 405047, 405051
  • 14
    1
    X410-042032
    HYDRAULIC HOSE 9/16 - 18 UNF x 1600mm;
  • 15
    1
    X410-042033
    HYDRAULIC HOSE;
  • 16
    1
    X420-042011
    HYDRAULIC HOSE 9/16 - 18 UNF x 550mm;
  • 17
    1
    X420-042012
    HYDRAULIC HOSE 9/16 - 18 UNF x 600mm;
  • 18
    2
    31M6-51061
    PLATE; With Hammer Pedal Without Flow Circuit, Var. 405019, 405021
  • 19
    1
    31N6-25060
    HYD CONNECTOR Connector, PF 1/4 x 9/16 - 18 UNF;
  • 19
    2
    31N6-25060
    HYD CONNECTOR Connector, PF 1/4 x 9/16 - 18 UNF; With Hammer Joystick, Var. 405023, 405024, 405043, 405044
  • 20
    1
    X500-110001
    HYD CONNECTOR PF 1/4 x 9/16 - 18 UNF;
  • 21
    8

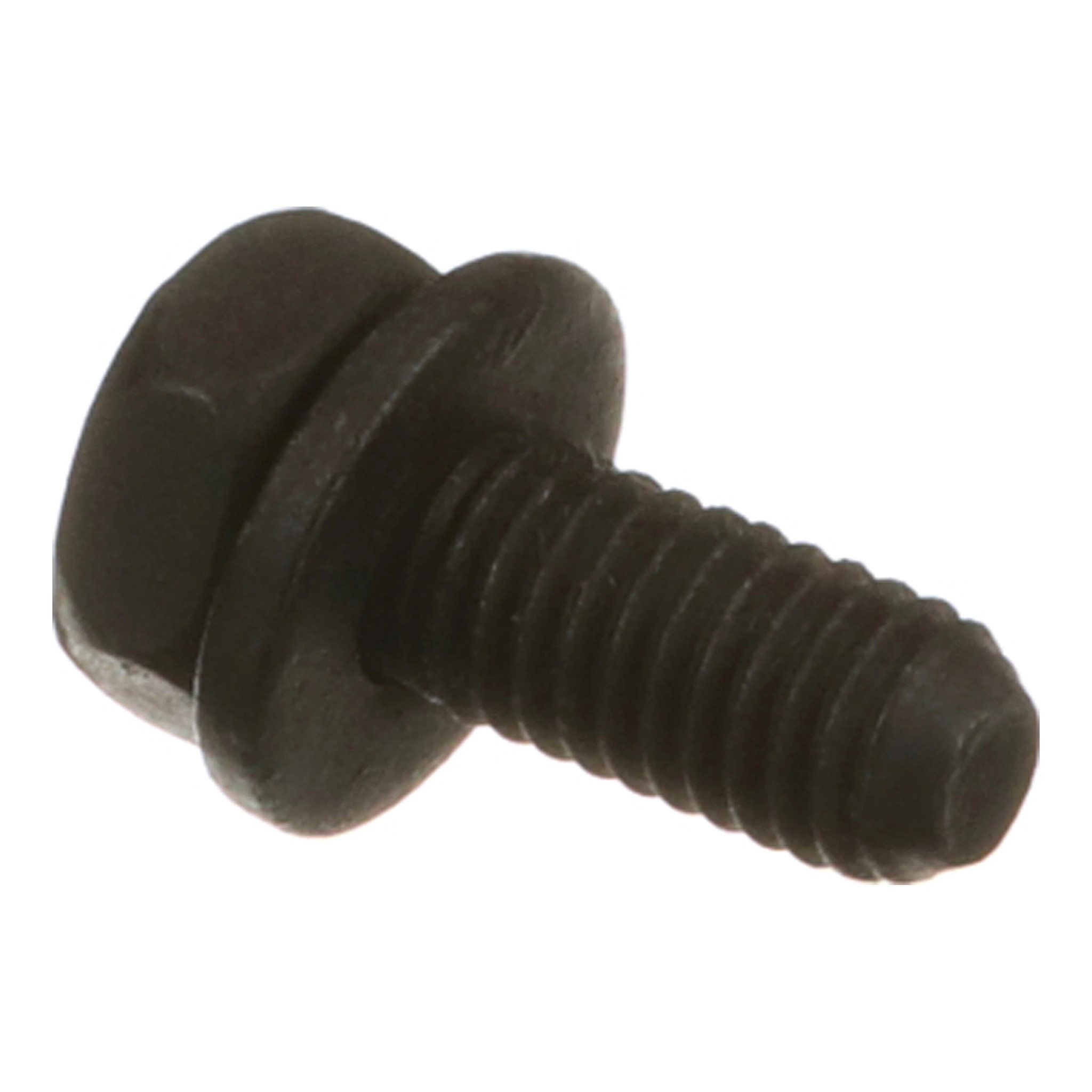

    S035-061556
    BOLT Hex, M6 x 1 x 15mm, Cl 8.8; With Hammer Pedal Without Flow Circuit, Var. 405019, 405021
  • 21
    2
    S035-061556
    BOLT Hex, M6 x 1 x 15mm, Cl 8.8;
  • 21
    6
    S035-062056
    BOLT Hex, M6 x 1 x 20mm, Cl 8.8; With Hammer Joystick, Var. 405023, 405024, 405043, 405044
  • 22
    10
    X500-110013
    HYD CONNECTOR PF 3/8 x 9/16 - 16 UNF; With Hammer Joystick, Var. 405023, 405024, 405043, 405044
