55.100.34[02] - WIRE HARNESS, ENGINE GEARBOX - 8120/8120(LA)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87716827
    WIRE HARNESS; Engine
  • 2
    1
    87637786C
    CORE-WIRE HARNESS WIRE HARNESS GEARBOX; Core Return
  • 2
    1
    87637786
    WIRE HARNESS; Gearbox
  • 2
    1
    87637786R
    REMAN-WIRE HARNESS WIRE HARNESS GEARBOX; Reman Gearbox
  • 3
    1
    43128
    BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd;
  • 4
    1
    9706690
    NUT M8 x 1.25, Cl 8;
  • 5
    2
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 6
    1
    87000220
    HOSE CLAMP;
  • 7
    3

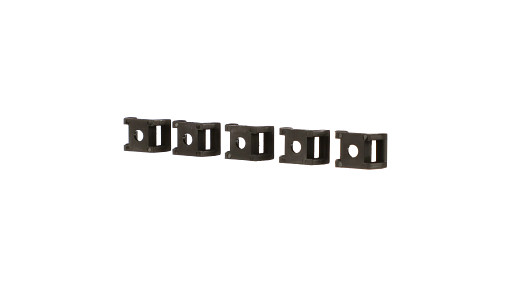

    86590413
    SUPPORT 15.87mm W x 22.22mm OAL x 9.9mm Thk;
  • 8
    3
    445394
    RIVET Pop, 3/16'' x 1/2'' OAL;
  • 9
    AR
    86566989
    CABLE TIE 208mm L, Nylon, Black; CABLE STRAP
  • 10
    1
    120104
    BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd;
