29.212.04[01] - TANDEM PUMP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

87627042

Description

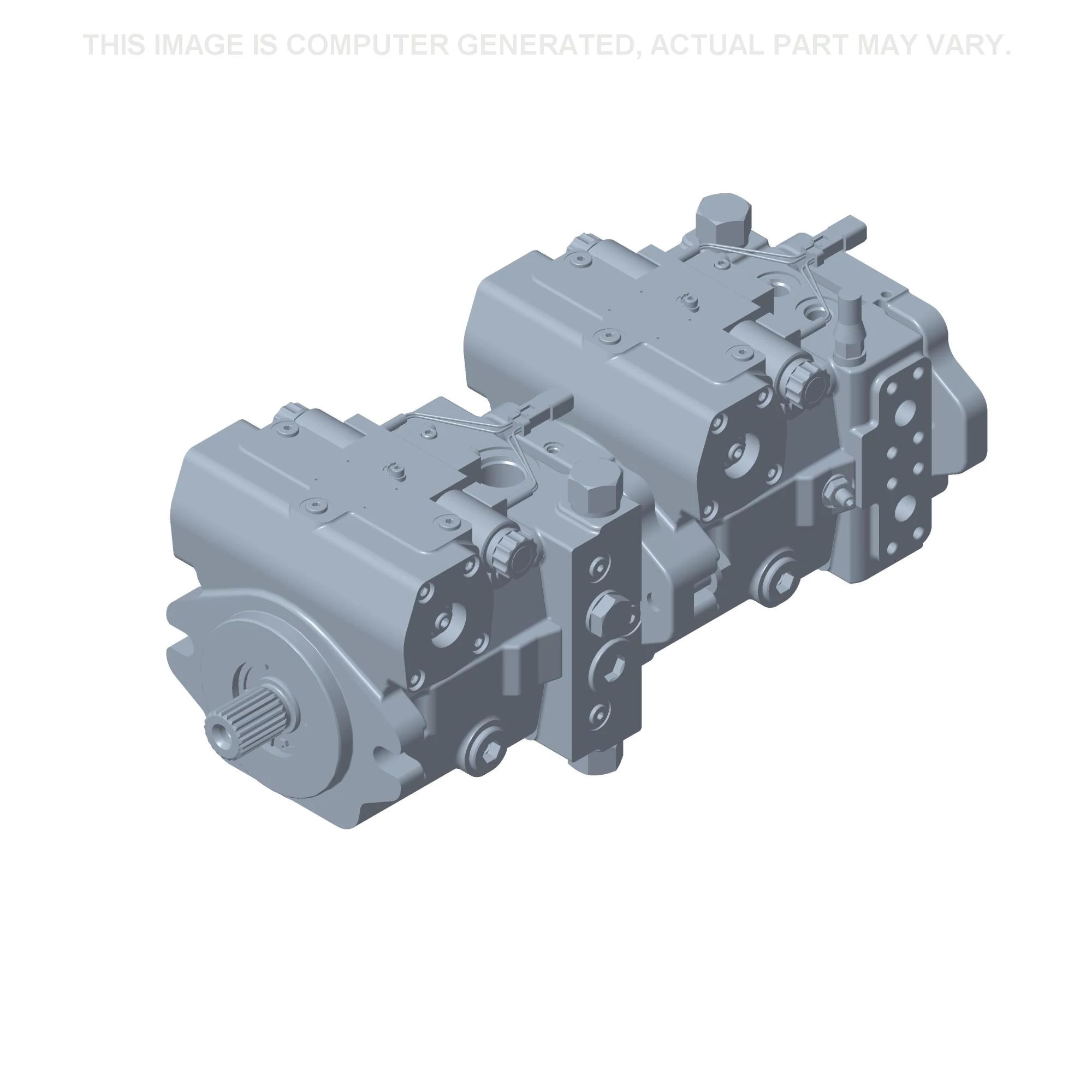

HYDRAULIC PUMP 56 CC; Tandem Pump, Inc. 2-14


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87627042R

Description

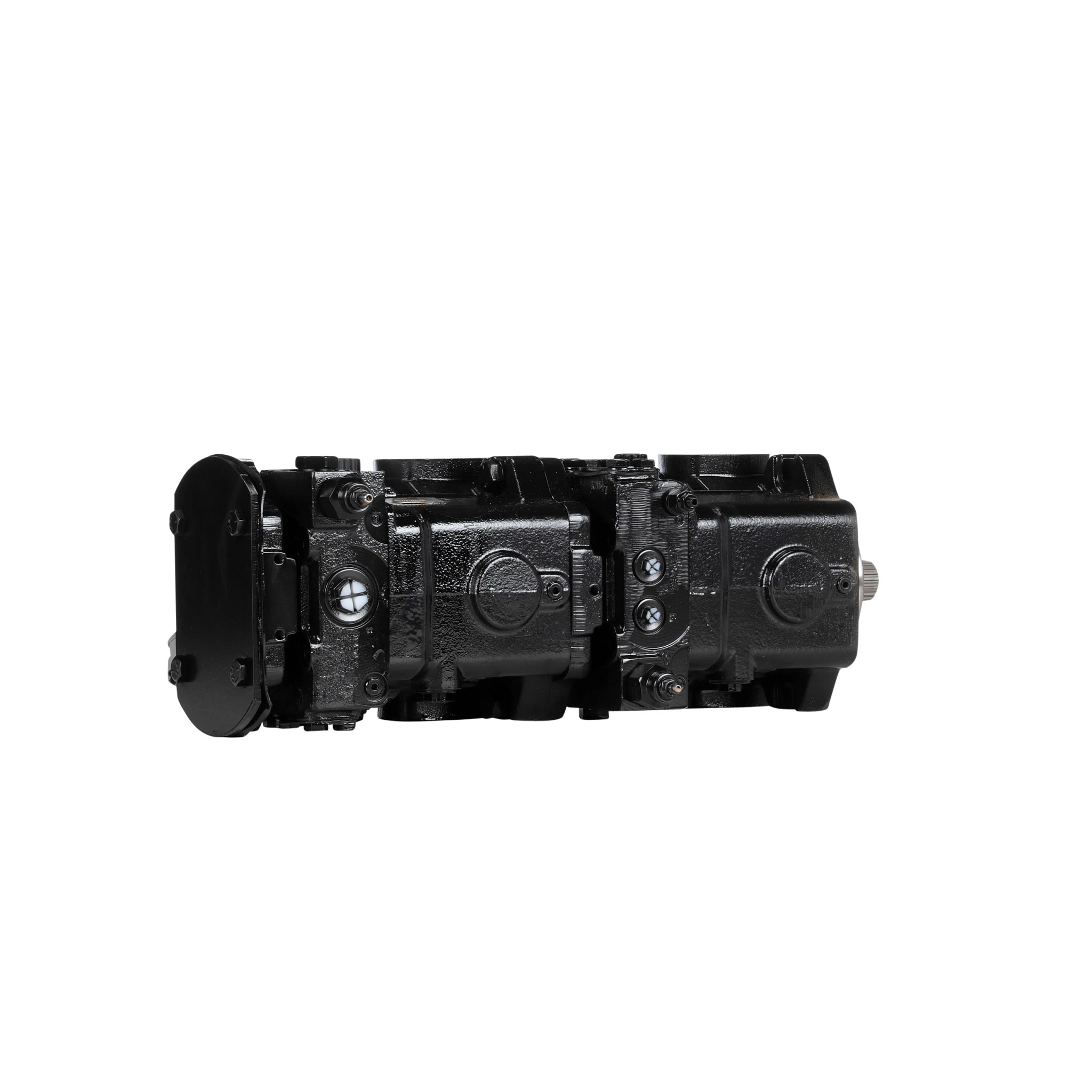

REMAN-HYDROSTAT PUMP 56 CC; 650L TIER 3 (HYDRO) (2/09-)


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87627042C

Description

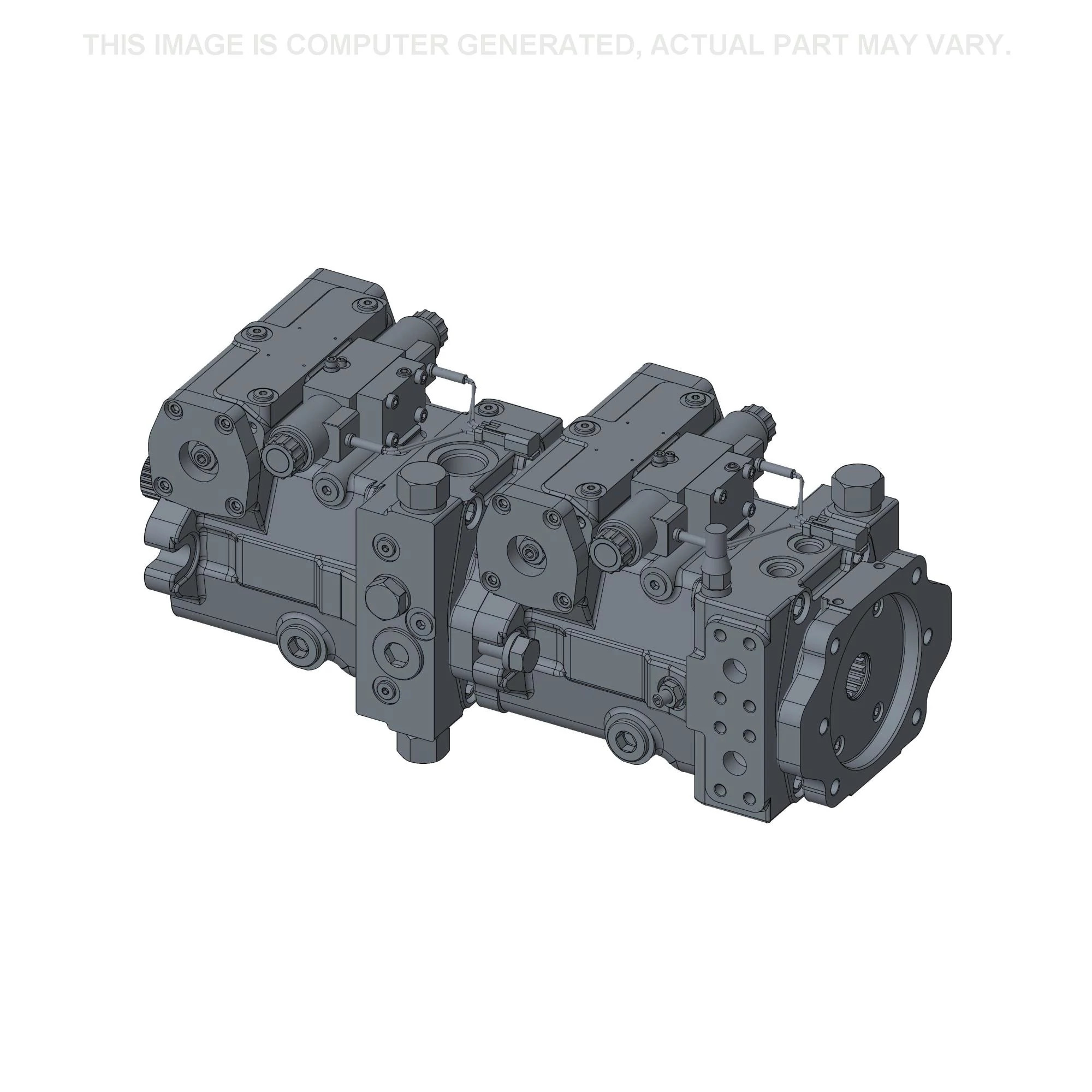

CORE-HYDROSTAT PUMP 56 CC; Return Number


Alts

Select

Ref.

2

Qty

2

Availability

Part #

86625266

Description

WASHER 17.5mm ID x 30mm OD x 4mm Thk, HTS, ZND;


Alts

Select

Ref.

3

Qty

2

Availability

Part #

87758182

Description

CONTROL UNIT;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87758183

Description

PLATE;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

87758184

Description

PUMP; Gear


Alts

Select

Ref.

6

Qty

2

Availability

Part #

87758185

Description

MODULE;


Alts

Select

Ref.

7

Qty

2

Availability

Part #

87516833

Description

PLUG;


Alts

Select

Ref.

8

Qty

4

Availability

Part #

87516834

Description

PLUG;


Alts

Select

Ref.

9

Qty

12

Availability

Part #

87516835

Description

PLUG;


Alts

Select

Ref.

10

Qty

2

Availability

Part #

87516836

Description

PLUG;


Alts

Select

Ref.

11

Qty

2

Availability

Part #

238-6123

Description

O-RING 29.9mm ID x 2.62mm Thk, HNBR;


Alts

Select

Ref.

12

Qty

2

Availability

Part #

87758186

Description

SEAL KIT; Complete (Not Shown)


Alts

Select

Ref.

13

Qty

2

Availability

Part #

426-1012

Description

BOLT Hex, 5/8'' - 11 x 3/4'', Gr 8;


Alts

Select

Ref.

14

Qty

1

Availability

Part #

84140957

Description

PUMP; Internal Gear


Alts
