G284C[01] - ENGINE COMPONENTS - PERIPHERAL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    9578102
    AIR COMPRESSOR;
  • 2
    1

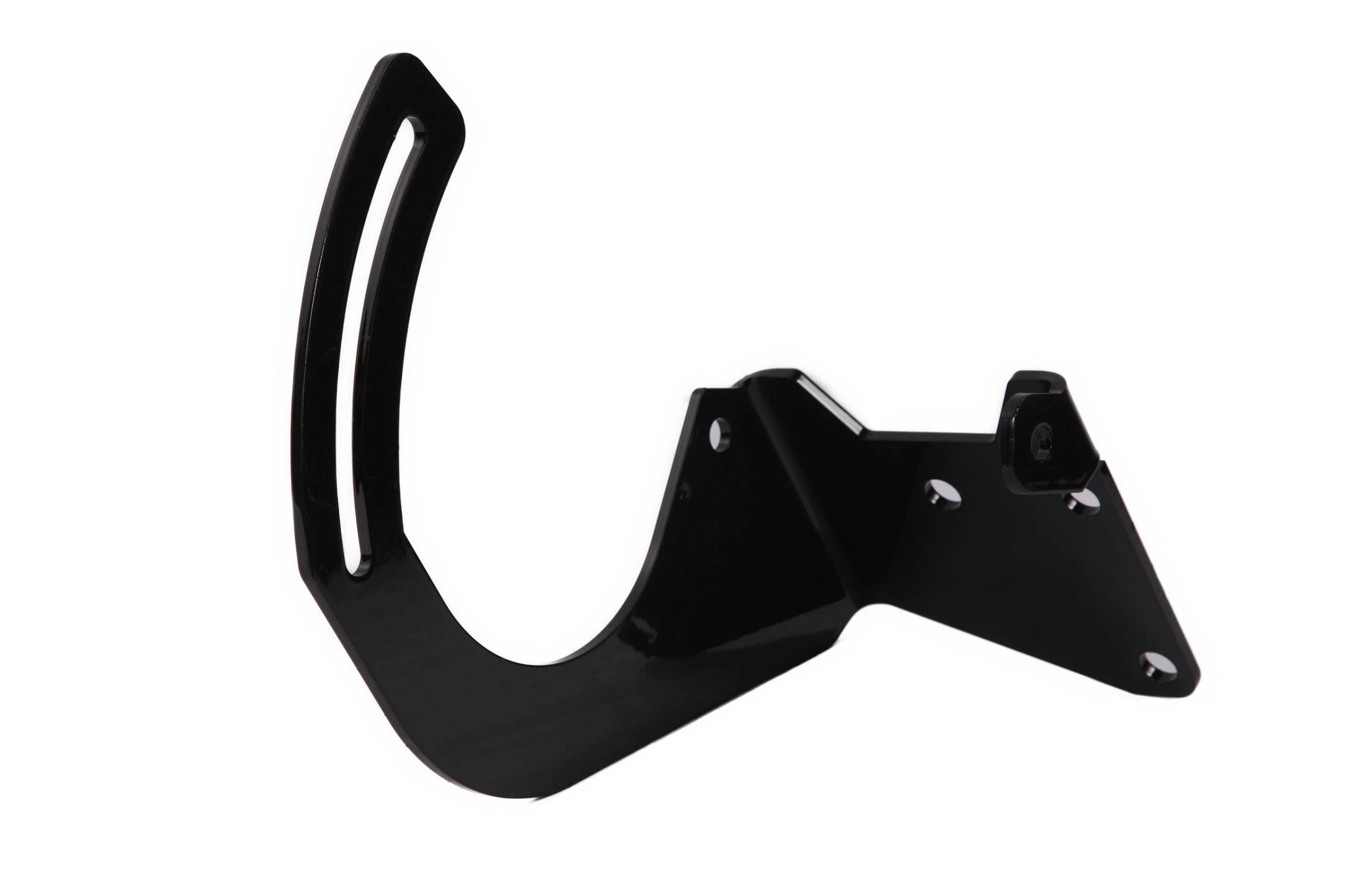

    87567469
    BRACKET;
  • 3
    1

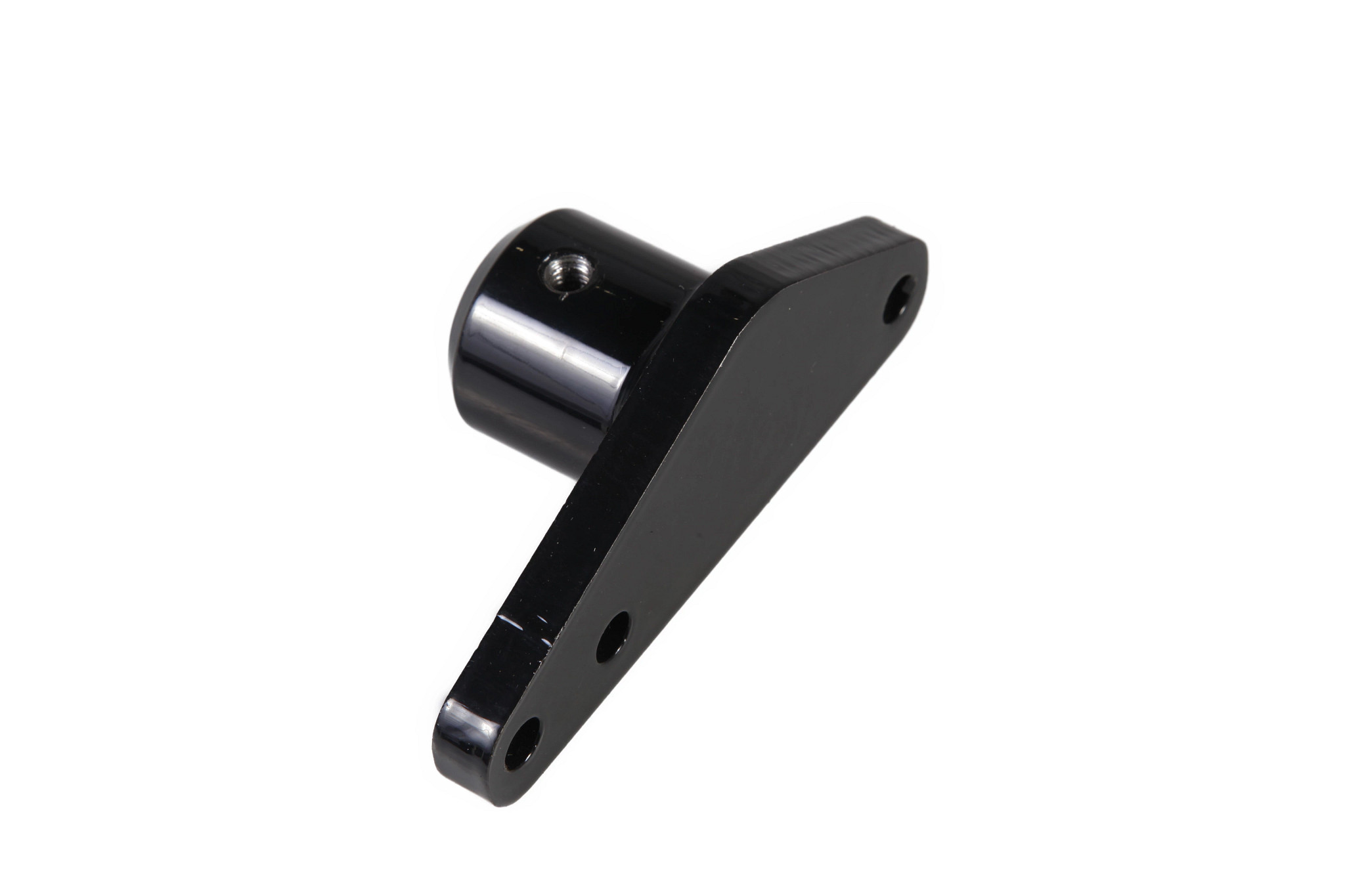

    84994837
    BRACKET;
  • 4
    1

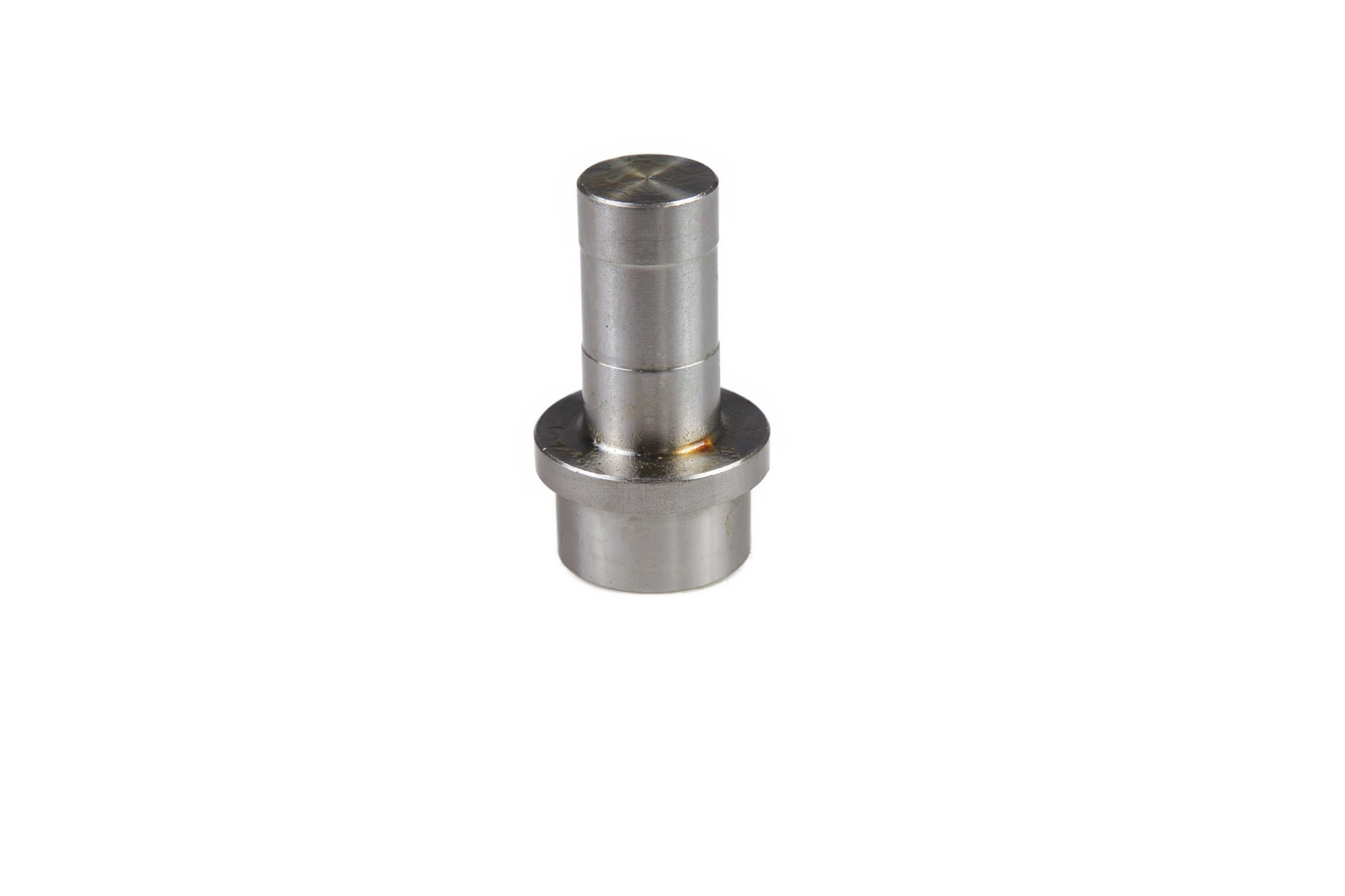

    84995812
    SHAFT;
  • 5
    1

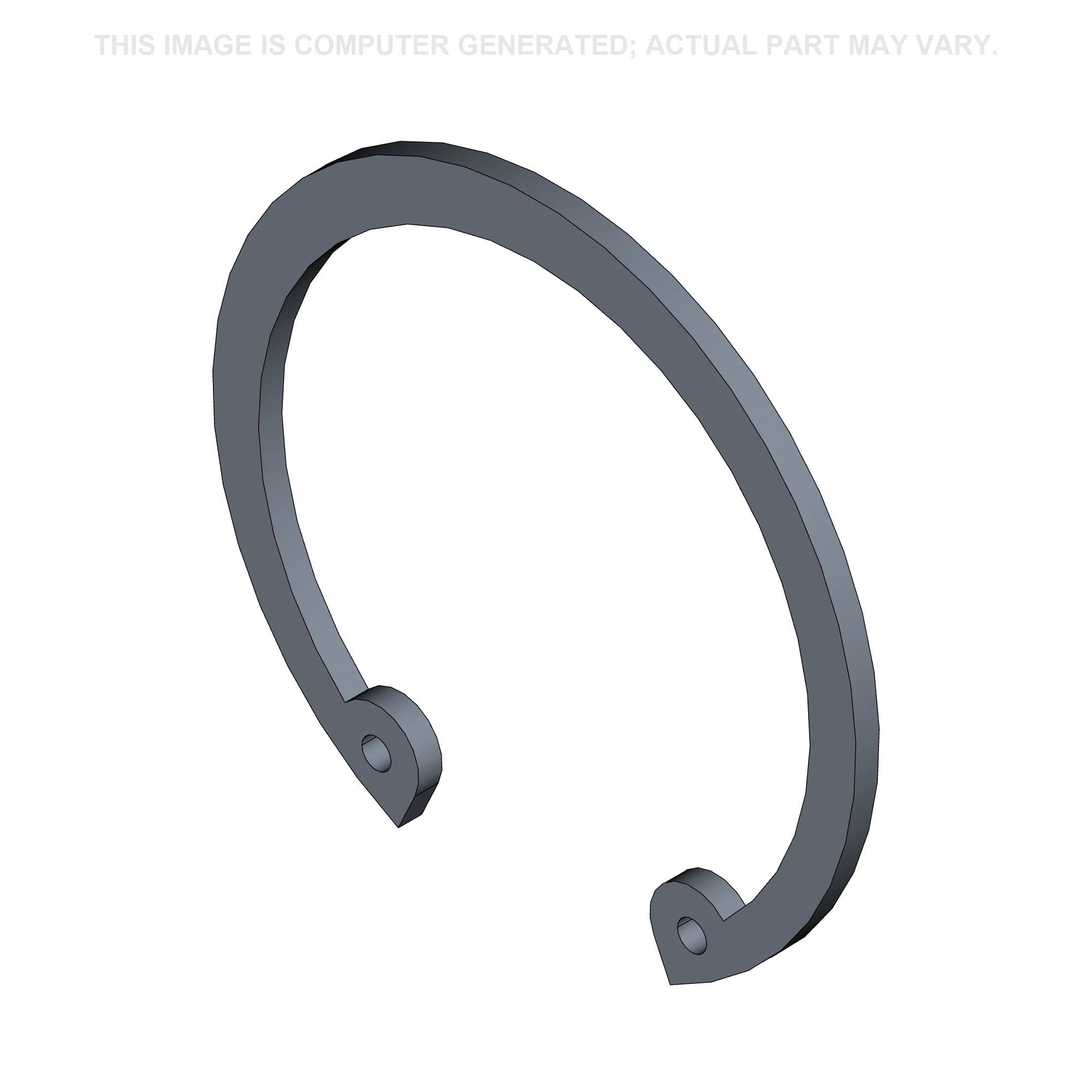

    370011
    CIRCLIP M52, Int, PHC;
  • 6
    1
    443898
    BALL BEARING 25mm ID x 52mm OD x 15mm W;
  • 7
    1
    390515
    RING 25mm ID x 47mm OD x 2.5mm Thk;
  • 8
    1

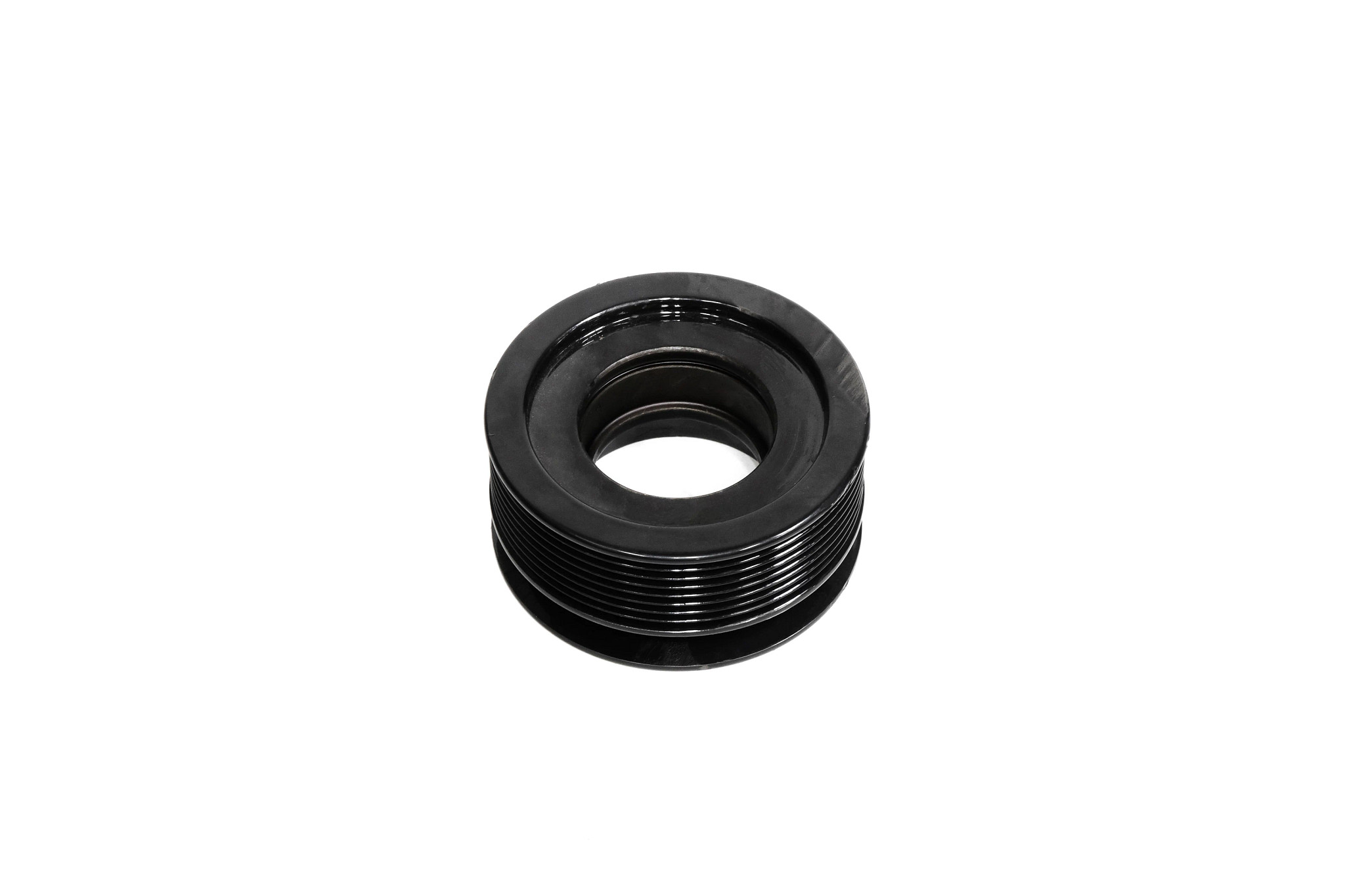

    84994897
    PULLEY 102.5mm OD;
  • 9
    1

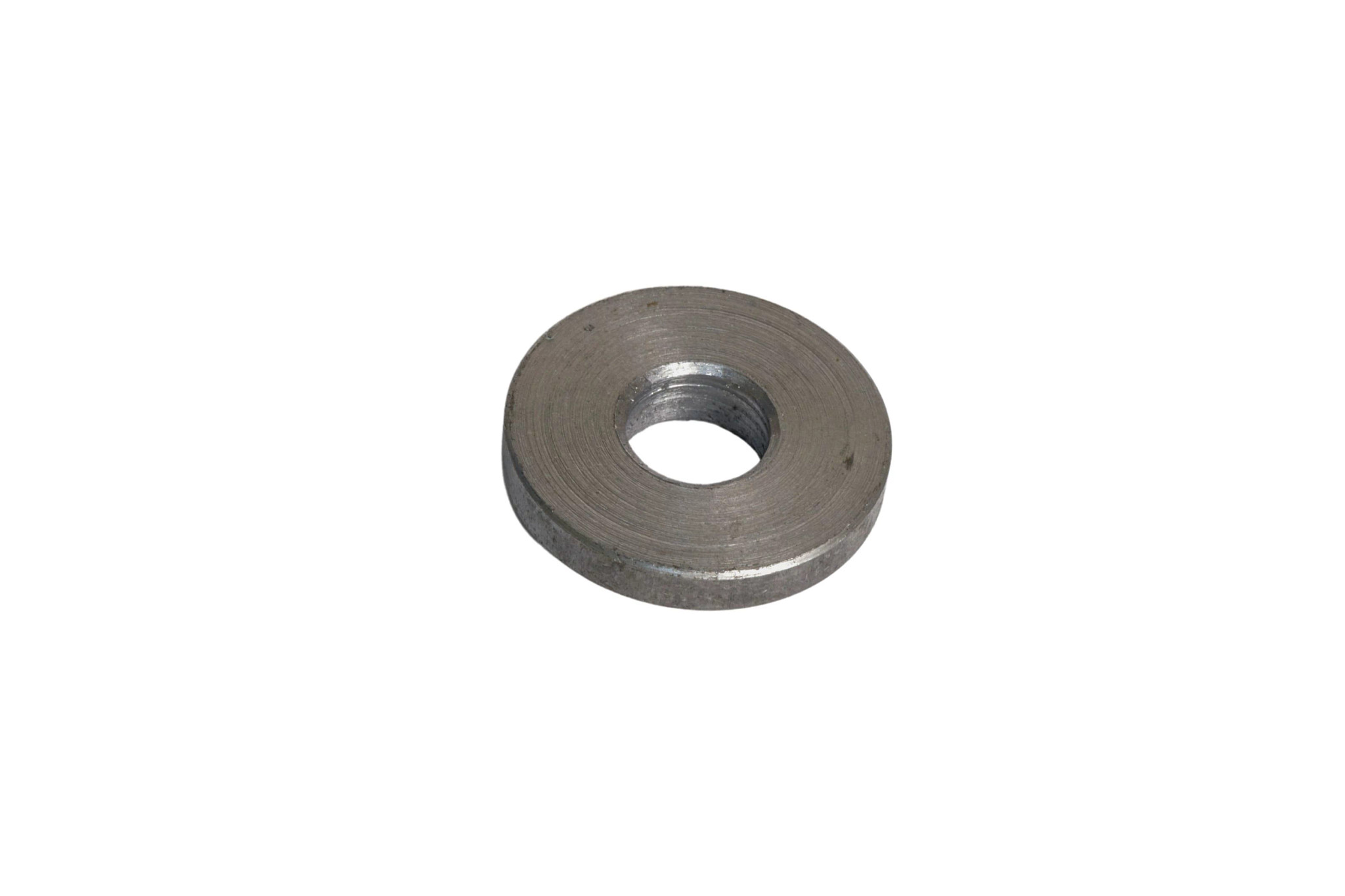

    84995813
    WASHER;
  • 10
    1
    87567471
    BELT Flat, 13mm W x 984mm L;
  • 11
    1
    84994983
    BELT 3.20 mm W x 1670.00 mm L;
  • 12
    1

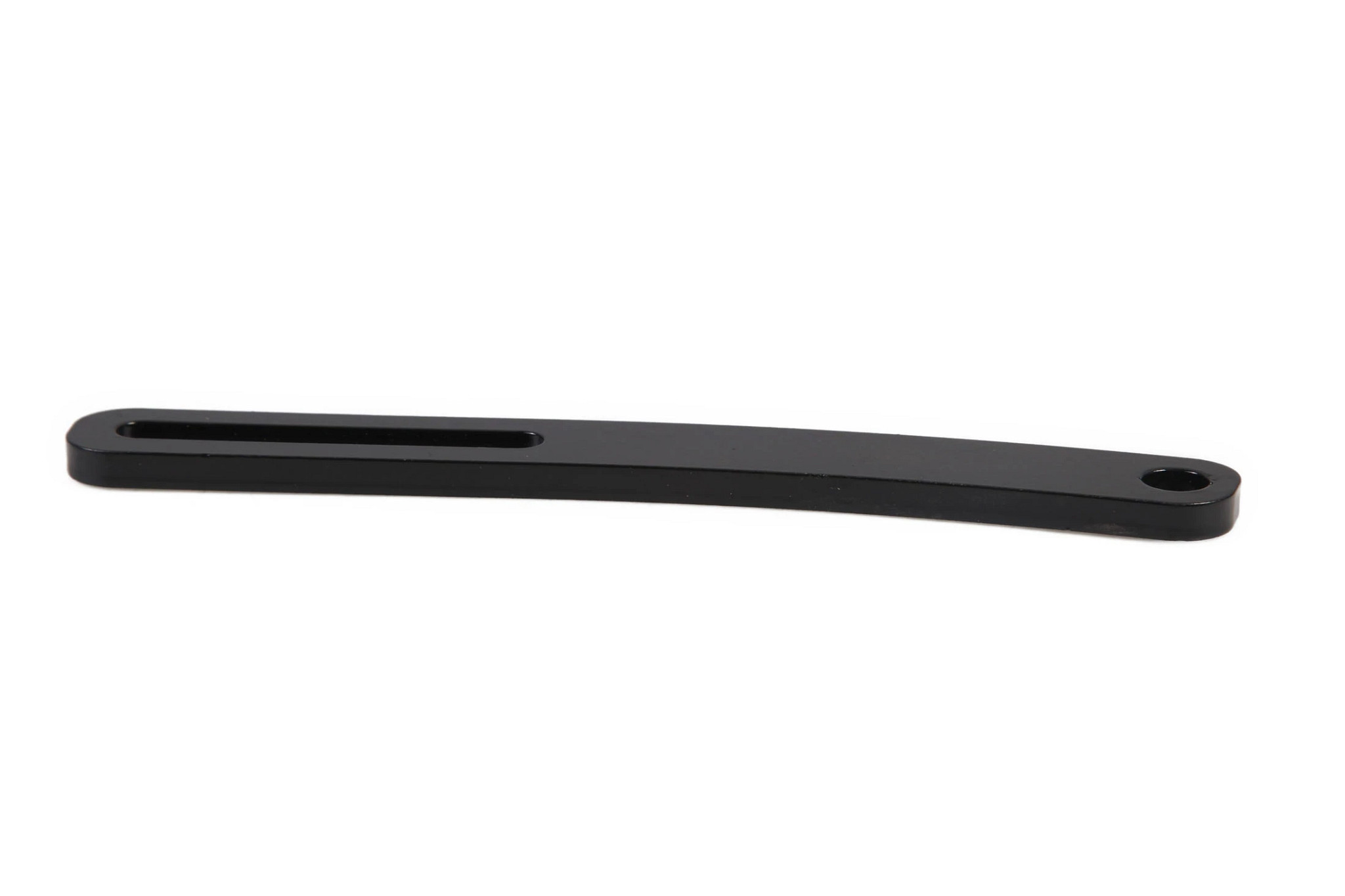

    87573739
    BRACKET;
  • 13
    1
    87576053
    ALTERNATOR 12V, 120A, W/ Pulley;
  • 13
    1
    87576053C
    CORE-ALTERNATOR 12V, 120A, W/ Pulley;
  • 13
    1
    87576053R
    REMAN-ALTERNATOR 12V, 120A, W/ Pulley;
  • 14
    1
    87389344
    HOSE 16mm ID x 2475mm L, SAE 100R6;
  • 15
    2
    418407
    CLAMP 24mm ID, 8.5mm Bolt Hole, P Type;
  • 16
    1
    84994988
    BRACKET;
  • 17
    1
    87583926R
    REMAN-STARTER 12V, 4.2kW;
  • 17
    1
    87583926C
    CORE-STARTER 12V, 4.2kW;
  • 17
    1
    87583926
    STARTER MOTOR 12V, 4.2kW;
  • 17
    1
    87583926R
    REMAN-STARTER 12V, 4.2kW; 12V, 4.2kW
  • 17
    1
    87583926C
    CORE-STARTER 12V, 4.2kW; Return Number
  • 23
    4
    120104
    BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND;
  • 24
    3
    43127
    BOLT Hex, M8 x 1.25 x 25mm, Full Thd, Cl 8.8, ZND;
  • 25
    1
    300381
    BOLT Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd, ZND;
  • 26
    1
    43130
    BOLT Hex, M8 x 1.25 x 50mm, 22mm Thread L, Cl 8.8, ZND;
  • 27
    2
    43139
    BOLT Hex, M10 x 1.5 x 25mm, Full Thd, Cl 8.8, ZND;
  • 28
    1
    43140
    BOLT Hex, M10 x 1.5 x 30mm, Full Thd, Cl 8.8, ZND;
  • 29
    3
    412160
    BOLT Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd;
  • 30
    3
    81869630
    HEX SOC SCREW M10 x 35mm, Cl 8.8;
  • 32
    1
    378243
    WASHER 8.4mm ID x 21mm OD x 1.6mm Thk;
  • 33
    10
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 34
    9
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 37
    2
    86629542
    LOCK NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 38
    6
    9706690
    NUT Hex, M8 x 1.25, Cl 8, ZND;
