TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11FITTING; COUPLING - hydraulic, male, parts list Fig. 38
-
21HOSE 19.05mm ID x 1000mm L, SAE 100R12; - to stabilizer valve, 39-3/8'' (1000 mm) long
-
31ELBOW 90 Degree Elbow, 1-1/16'' - 12 Male JIC x 1-1/16'' - 12 Male ORB; 90?, male, Incl. Ref.#4
-
41O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; - elbow
-
51VALVE; CONTROL VALVE - stabilizer, parts list Fig. 24
-
62BOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5;
-
72LOCK WASHER 5/16'';
-
84HYD CONNECTOR 9/16''-18, 37 Degree x 7/8''-14, O-Ring; FITTING, 9/16''-18, 37? x 7/8''-14, O-Ring, 3/8'', if used
-
84HYD CONNECTOR 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; Adapter, straight, male, 1/2'', if used, Incl. Ref 9 3/4''-16, 37? x 7/8''-14, O-Ring
-
91O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; - 218-5354 or 218-5060 adapters
-
101TUBE; - right-hand, top port of control valve, used with 218-5354
-
101TUBE; - right-hand, top port of control valve, used with 218-5060
-
111TUBE; - right-hand, bottom port of control valve, used with 218-5354
-
111TUBE; - right-hand, bottom port of control valve, used with 218-5060
-
121TUBE; - left-hand, top port of control valve, used with 218-5354
-
121TUBE; - left-hand, top port of control valve, used with 218-5060
-
131TUBE; - left-hand, bottom port of control valve, used with 218-5354
-
131TUBE; - left-hand, bottom port of control valve, used with 218-5060
-
142CLAMP; - left-hand tubes
-
151BOLT Hex, 5/16'' - 18 x 1'', Gr 5;
-
161LOCK WASHER 5/16''; if used 5/16''
-
171NUT 5/16'' - 18, Gr 5; - hex, 5/16'' - 18 NC, if used
-
17A1NUT 5/16''-18, GB; NUT - hex, self-locking, 5/16'' - 18 NC, replaces Ref.#16 and 17, if used
-
184HOSE; HOSE - to cylinders, 17-3/4'' (450 mm) long, used with 218-5354
-
184HOSE 19.05mm ID x 450mm L, SAE 100R2; - to cylinders, 17-3/4'' (450 mm) long, used with 218-5060
-
18A1-4ADAPTER; - used on some machines to adapt D94460 hose to 1/2'' tubes
-
192BOLT Hex, 3/8'' - 16 x 2'', Gr 5; - hex head, 3/8'' - 16 NC x 2-1/2''
-
202CLAMP 10,3mm ID x 77,7mm L; - hose
-
212LOCK NUT 3/8''-16, GB; NUT - hex, self-locking, 3/8'' - 16 NC
-
222HOSE CLAMP #84, 4.88'' - 5.75'', Type F Worm; CLAMP - tube
-
232SUPPORT; SPACER - tube, rubber
-
241CYLINDER; - stabilizer, right-hand, parts list Fig. 40
-
251CYLINDER; - stabilizer, left-hand, parts list Fig. 40
-
261HYD TUBE 0.5'' OD; TUBE - to closed end of right-hand stabilizer cylinder
-
271HYD TUBE 0.5'' OD; TUBE - to closed end of left-hand stabilizer cylinder
-
282ELBOW 90 Degree Elbow, 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; - 90 degree, male, Includes: Ref.#29
-
291O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; - elbow
-
302HYD TUBE 12.7 mm OD x 420, 27 mm L; TUBE - to rod end of stabilizer cylinders
-
312HYD CONNECTOR 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; Adapter, straight, male, Incl. Ref 32 3/4''-16, 37? x 7/8''-14, O-Ring
-
321O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; - adapter
-
33190 ELBOW 90 Degree Elbow, 1-5/16'' - 12 Male JIC x 1-1/16'' - 12 Male ORB; Male, Includes: Ref.#34 90?, 1 5/16''-12, 37? x 1 1/16''-12, O-Ring
-
341O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; - elbow
-
351HYD TUBE 25.4 mm OD x 260, 211 mm L; TUBE - power beyond port of stabilizer control valve to backhoe control valve
-
362ELBOW 90 Degree Elbow, 1-5/16'' - 12 Male JIC x 1-5/16'' - 12 Male ORB; male, Incl. Ref. 37 90?, 1 5/16''-12, 37? x 1 5/16''-12, O-Ring
-
371O-RING 0.116'' Thk x 1.171'' ID, -916, Cl 6, 90 Duro; - elbow
-
381INSTRUCTION; CONTROL VALVE - backhoe, see Fig. 26 for the correct assembly and components
-
393BOLT Hex, 1/2'' - 13 x 2'', Gr 5;
-
403WASHER 1/2''; flat 1/2''
-
413LOCK WASHER 1/2'';
-
423NUT 1/2''-13, G5; - hex, 1/2'' - 13 NC
-
431PLATE; - control valve mounting
-
444BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;
-
454WASHER 1/2''; flat 1/2''
-
464LOCK WASHER 1/2'';
-
474NUT 1/2''-13, G5; - hex, 1/2'' - 13 NC
-
481HYD TUBE 1'' OD; TUBE - backhoe control valve return, models without extendable dipper
-
481HYD TUBE 25.4 mm OD x 316, 268 mm L; TUBE - backhoe control valve return, models with extendable dipper
-
491ELBOW 90 Degree Elbow, 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; - 90 degree, male, Includes: Ref.#50
-
501O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; - elbow
-
511HYD TUBE 19.05 mm OD x 56 mm L; TUBE - three-way
-
521QUICK FEMALE COUPLING; COUPLING - hydraulic, female, parts list Fig. 38
Select All
Select
Ref.
1Qty
1Availability
Part #
D90260Description

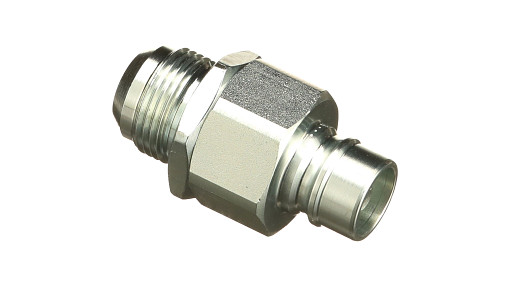

FITTING; COUPLING - hydraulic, male, parts list Fig. 38Img
Alts
Select
Ref.
2Qty
1Availability
Part #
D89645Description
HOSE 19.05mm ID x 1000mm L, SAE 100R12; - to stabilizer valve, 39-3/8'' (1000 mm) longImg
Alts
Select
Ref.
3Qty
1Availability
Part #
218-5108Description
ELBOW 90 Degree Elbow, 1-1/16'' - 12 Male JIC x 1-1/16'' - 12 Male ORB; 90?, male, Incl. Ref.#4Img
Alts
Select
Ref.
4Qty
1Availability
Part #
218-5008Description
O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; - elbowImg
Alts
Select
Ref.
5Qty
1Availability
Part #
D93913Description
VALVE; CONTROL VALVE - stabilizer, parts list Fig. 24Img
Alts
Select
Ref.
6Qty
2Availability
Part #
13-536Description
BOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5;Img
Alts
Select
Ref.
8Qty
4Availability
Part #
218-5354Description
HYD CONNECTOR 9/16''-18, 37 Degree x 7/8''-14, O-Ring; FITTING, 9/16''-18, 37? x 7/8''-14, O-Ring, 3/8'', if usedImg
Alts
Select
Ref.
8Qty
4Availability
Part #
218-5060Description
HYD CONNECTOR 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; Adapter, straight, male, 1/2'', if used, Incl. Ref 9 3/4''-16, 37? x 7/8''-14, O-RingImg
Alts
Select
Ref.
9Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; - 218-5354 or 218-5060 adaptersImg
Alts
Select
Ref.
10Qty
1Availability
Part #
D94451Description
TUBE; - right-hand, top port of control valve, used with 218-5354Img
Alts
Select
Ref.
10Qty
1Availability
Part #
D121656Description
TUBE; - right-hand, top port of control valve, used with 218-5060Img
Alts
Select
Ref.
11Qty
1Availability
Part #
D94453Description
TUBE; - right-hand, bottom port of control valve, used with 218-5354Img
Alts
Select
Ref.
11Qty
1Availability
Part #
D121650Description
TUBE; - right-hand, bottom port of control valve, used with 218-5060Img
Alts
Select
Ref.
12Qty
1Availability
Part #
D94447Description
TUBE; - left-hand, top port of control valve, used with 218-5354Img
Alts
Select
Ref.
12Qty
1Availability
Part #
D121652Description
TUBE; - left-hand, top port of control valve, used with 218-5060Img
Alts
Select
Ref.
13Qty
1Availability
Part #
D94449Description
TUBE; - left-hand, bottom port of control valve, used with 218-5354Img
Alts
Select
Ref.
13Qty
1Availability
Part #
D121654Description
TUBE; - left-hand, bottom port of control valve, used with 218-5060Img
Alts
Select
Ref.
15Qty
1Availability
Part #
13-516Description

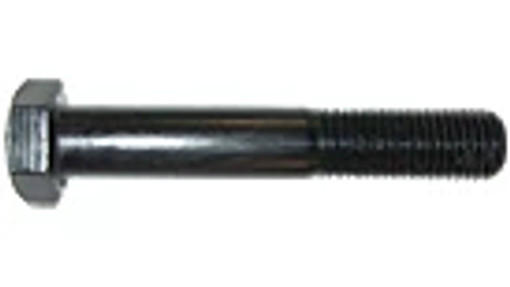

BOLT Hex, 5/16'' - 18 x 1'', Gr 5;Img
Alts
Select
Ref.
16Qty
1Availability
Part #
92-5Description
LOCK WASHER 5/16''; if used 5/16''Img
Alts
Select
Ref.
17Qty
1Availability
Part #
9635082Description
NUT 5/16'' - 18, Gr 5; - hex, 5/16'' - 18 NC, if usedImg
Alts
Select
Ref.
17AQty
1Availability
Part #
131-651Description
NUT 5/16''-18, GB; NUT - hex, self-locking, 5/16'' - 18 NC, replaces Ref.#16 and 17, if usedImg
Alts
Select
Ref.
18Qty
4Availability
Part #
D94460Description
HOSE; HOSE - to cylinders, 17-3/4'' (450 mm) long, used with 218-5354Img
Alts
Select
Ref.
18Qty
4Availability
Part #
D121658Description

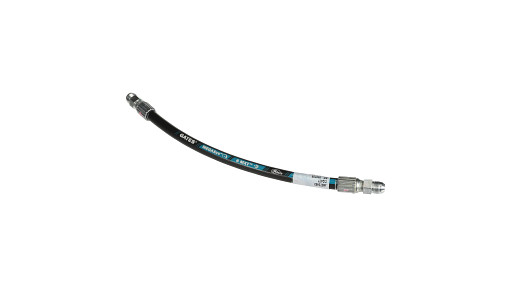

HOSE 19.05mm ID x 450mm L, SAE 100R2; - to cylinders, 17-3/4'' (450 mm) long, used with 218-5060Img
Alts
Select
Ref.
18AQty
1-4Availability
Part #
D121933Description
ADAPTER; - used on some machines to adapt D94460 hose to 1/2'' tubesImg
Alts
Select
Ref.
19Qty
2Availability
Part #
413-632Description
BOLT Hex, 3/8'' - 16 x 2'', Gr 5; - hex head, 3/8'' - 16 NC x 2-1/2''Img
Alts
Select
Ref.
20Qty
2Availability
Part #
D40236Description
CLAMP 10,3mm ID x 77,7mm L; - hoseImg
Alts
Select
Ref.
21Qty
2Availability
Part #
131-652Description
LOCK NUT 3/8''-16, GB; NUT - hex, self-locking, 3/8'' - 16 NCImg
Alts
Select
Ref.
22Qty
2Availability
Part #
214-272Description
HOSE CLAMP #84, 4.88'' - 5.75'', Type F Worm; CLAMP - tubeImg
Alts
Select
Ref.
24Qty
1Availability
Part #
G103252Description
CYLINDER; - stabilizer, right-hand, parts list Fig. 40Img
Alts
Select
Ref.
25Qty
1Availability
Part #
G103253Description
CYLINDER; - stabilizer, left-hand, parts list Fig. 40Img
Alts
Select
Ref.
26Qty
1Availability
Part #
D94488Description
HYD TUBE 0.5'' OD; TUBE - to closed end of right-hand stabilizer cylinderImg
Alts
Select
Ref.
27Qty
1Availability
Part #
D94490Description
HYD TUBE 0.5'' OD; TUBE - to closed end of left-hand stabilizer cylinderImg
Alts
Select
Ref.
28Qty
2Availability
Part #
218-5121Description
ELBOW 90 Degree Elbow, 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; - 90 degree, male, Includes: Ref.#29Img
Alts
Select
Ref.
29Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; - elbowImg
Alts
Select
Ref.
30Qty
2Availability
Part #
D94486Description
HYD TUBE 12.7 mm OD x 420, 27 mm L; TUBE - to rod end of stabilizer cylindersImg
Alts
Select
Ref.
31Qty
2Availability
Part #
218-5060Description
HYD CONNECTOR 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; Adapter, straight, male, Incl. Ref 32 3/4''-16, 37? x 7/8''-14, O-RingImg
Alts
Select
Ref.
32Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; - adapterImg
Alts
Select
Ref.
33Qty
1Availability
Part #
218-5124Description
90 ELBOW 90 Degree Elbow, 1-5/16'' - 12 Male JIC x 1-1/16'' - 12 Male ORB; Male, Includes: Ref.#34 90?, 1 5/16''-12, 37? x 1 1/16''-12, O-RingImg
Alts
Select
Ref.
34Qty
1Availability
Part #
218-5008Description
O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; - elbowImg
Alts
Select
Ref.
35Qty
1Availability
Part #
D93279Description
HYD TUBE 25.4 mm OD x 260, 211 mm L; TUBE - power beyond port of stabilizer control valve to backhoe control valveImg
Alts
Select
Ref.
36Qty
2Availability
Part #
218-5110Description
ELBOW 90 Degree Elbow, 1-5/16'' - 12 Male JIC x 1-5/16'' - 12 Male ORB; male, Incl. Ref. 37 90?, 1 5/16''-12, 37? x 1 5/16''-12, O-RingImg
Alts
Select
Ref.
37Qty
1Availability
Part #
218-5010Description
O-RING 0.116'' Thk x 1.171'' ID, -916, Cl 6, 90 Duro; - elbowImg
Alts
Select
Ref.
38Qty
1Availability
Part #
REFDescription
INSTRUCTION; CONTROL VALVE - backhoe, see Fig. 26 for the correct assembly and componentsImg
Alts
Select
Ref.
39Qty
3Availability
Part #
13-832Description
BOLT Hex, 1/2'' - 13 x 2'', Gr 5;Img
Alts
Select
Ref.
42Qty
3Availability
Part #
25-108Description

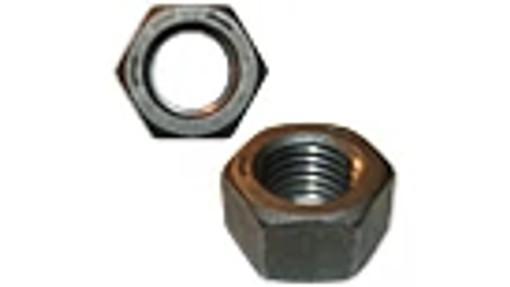

NUT 1/2''-13, G5; - hex, 1/2'' - 13 NCImg
Alts
Select
Ref.
43Qty
1Availability
Part #
D94282Description
PLATE; - control valve mountingImg
Alts
Select
Ref.
44Qty
4Availability
Part #
13-824Description
BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;Img
Alts
Select
Ref.
47Qty
4Availability
Part #
25-108Description
NUT 1/2''-13, G5; - hex, 1/2'' - 13 NCImg
Alts
Select
Ref.
48Qty
1Availability
Part #
D93281Description
HYD TUBE 1'' OD; TUBE - backhoe control valve return, models without extendable dipperImg
Alts
Select
Ref.
48Qty
1Availability
Part #
D93283Description
HYD TUBE 25.4 mm OD x 316, 268 mm L; TUBE - backhoe control valve return, models with extendable dipperImg
Alts
Select
Ref.
49Qty
1Availability
Part #
218-5123Description
ELBOW 90 Degree Elbow, 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; - 90 degree, male, Includes: Ref.#50Img
Alts
Select
Ref.
50Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; - elbowImg
Alts
Select
Ref.
51Qty
1Availability
Part #
D88966Description
HYD TUBE 19.05 mm OD x 56 mm L; TUBE - three-wayImg
Alts
Select
Ref.
52Qty
1Availability
Part #
D52800Description
QUICK FEMALE COUPLING; COUPLING - hydraulic, female, parts list Fig. 38Img
Alts
