00.00CR203[01] - PIEZAS DE MANTENIMIENTO, CORREAS, LADO DERECHO
ÍNDICE
DIAGRAMA
LISTA DE PIEZAS
BORRAR TODO
Ventana Nº de serie
Fecha de producción
Seleccionar todo
Ref.
Ctd
N.º de pieza
Alts
Descripción
Imagen
  • 1
    1
    84057085
    V-BELT V-Belt, 0.5in W x 143.7in L; Rotary Screen;FOR CR9060 AND CR9070 ONLY; (SN Break) Up to C599
  • 1
    1
    87664428
    V-BELT 3610.00 mm L; Rotary screen;FOR CR9060 AND CR9070 ONLY; (SN Break) From D600
  • 1
    1
    9513136
    CORREA V-Belt, 13 mm W x 3456 mm L; Rotary screen;FOR CR9080 ONLY
  • 1
    1
    87653464
    CORREA DE TRANSMISSI; Rotary screen;FOR CR9090 ONLY
  • 2
    1
    747177
    V-BELT V-Belt, 13mm W x 1500mm L; Rotary Screen Drive;FOR CR9070 ONLY
  • 2
    1
    9818704
    CORREA DE TRANSMISSI V-Belt, 12.7mm W x 1600mm L; Rotary screen & 1st fan drive;FOR CR9090 ONLY
  • 3
    1
    87662910
    CORREA DE TRANSMISSI Timing, 50mm W x 2600mm L; 2nd fan drive;FOR CR9090 ONLY
  • 4
    1
    87663279
    CORREA DE TRANSMISSI Flat, 35.6mm W x 1712mm L; Fan & Rotary screen intermediate drive;FOR CR9090 ONLY
  • 5
    1
    87284244
    JUEGO DE CORREAS V-Belt, 12.7mm W x 1863mm L; V-Belt, Fan drive (Set of 2);FOR CR9070 AND CR9080 ONLY
  • 6
    1
    84058339
    JUEGO DE CORREAS 1144.00 mm L; V-Belt, Bottom auger & tailings elevator drive, RH, (Set of 2); (SN Break) Up to C675
  • 6
    1
    84455757
    JUEGO DE CORREAS 16.00 mm W x 1120.00 mm L; 2, V-Belt, Bottom auger & tailings elevator drive, RH; (SN Break) Up to F676719
  • 6
    1

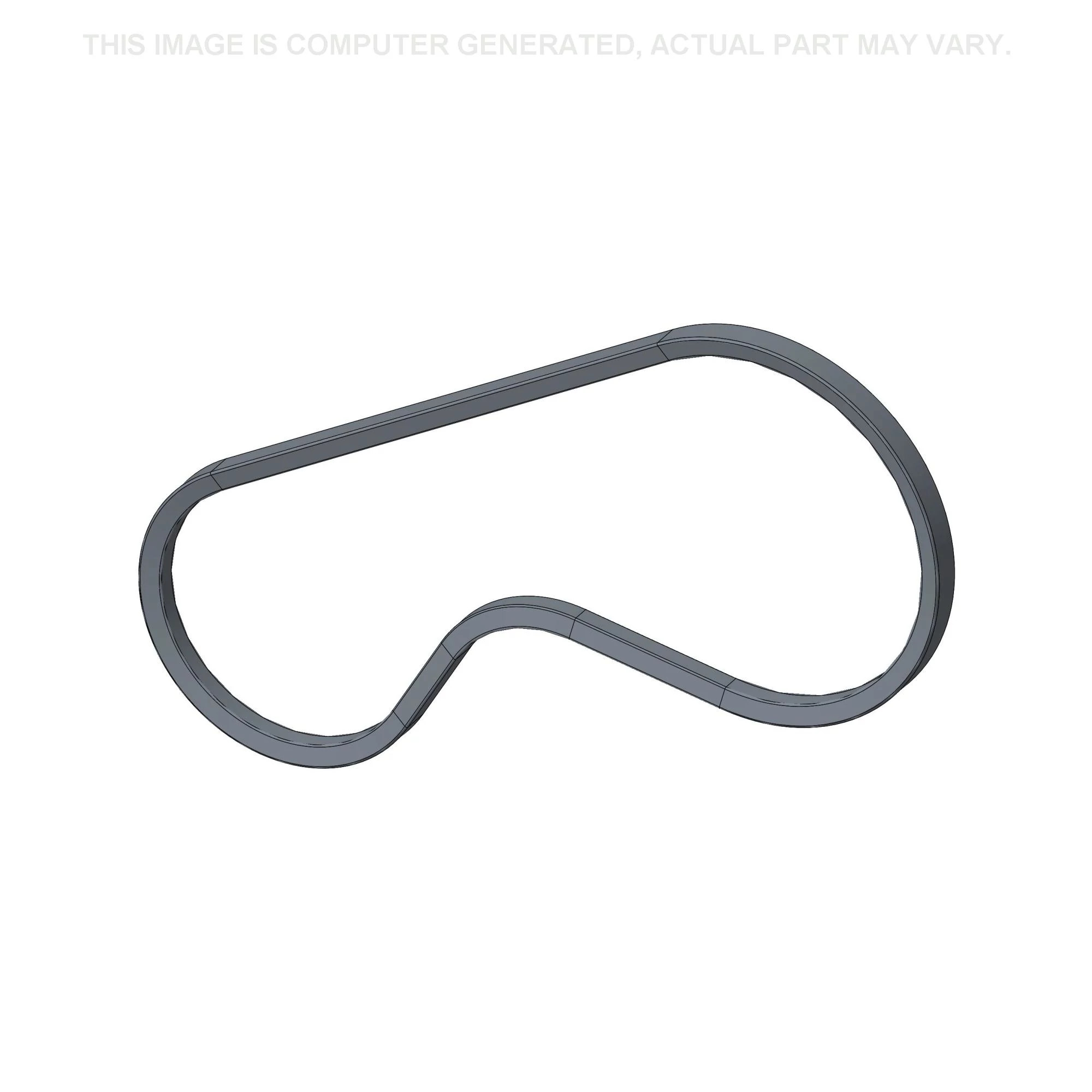

    84196804
    JUEGO DE CORREAS 1144.00 mm L; (2), Bottom auger & tailings elevator drive, RH; (SN Break) From D720
  • 7
    1

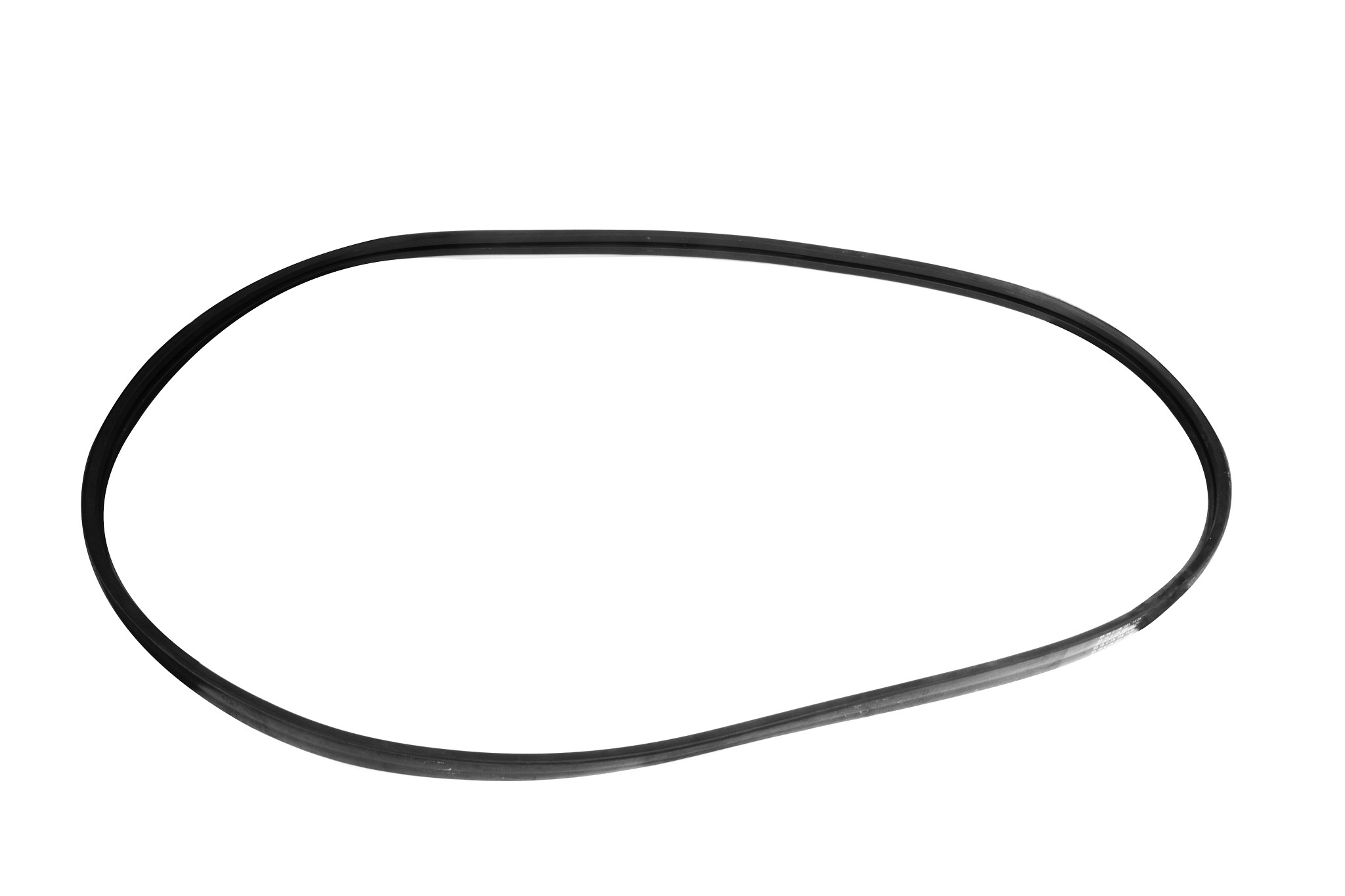

    87319821
    V-BELT V-Belt, 16 mm W x 3270 mm L; Grain elevator drive;FOR CR9060 AND CR9070 ONLY
  • 7
    1
    87319821
    V-BELT V-Belt, 16 mm W x 3270 mm L; Grain elevator drive;FOR CR9080 ONLY; (SN Break) Up to C659
  • 7
    1
    84137965
    V-BELT Flat, 3290mm L, 2 Ribs; Grain Elevator Drive;FOR CR9080 AND CR9090 ONLY; (SN Break) From D660
  • 8
    1
    86589482
    V-BELT V-Belt, 2.25in W x 195.59in L, 3 Ribs; Feeder drive;FOR CR9060, CR9070 AND CR9080 ONLY; (SN Break) Up to C626
  • 8
    1
    87741240
    CORREA 4968.00 mm L, 3 Ribs; Feeder drive, 3HB; (SN Break) From D627
  • 8
    1
    86729163
    V-BELT V-Belt, 16.76 mm W x 3750 mm L, 3 Ribs; Variable Feeder Drive;FOR CR9060 ONLY; (SN Break) Up to F627659
  • 8
    1
    86729163
    V-BELT V-Belt, 16.76 mm W x 3750 mm L, 3 Ribs; Variable Feeder Drive;FOR CR9070 AND CR9080 ONLY; (SN Break) Up to C659
  • 8
    1
    87583899
    CORREA 3645.00 mm L, 3 Ribs; Variable feeder drive;FOR CR9060, CR9070 AND CR9080 ONLY; (SN Break) From D660
  • 9
    1
    86596143
    V-BELT V-Belt, 76.99 mm W x 2197.90 mm L; Feeder Drive Variator;FOR CR9060 ONLY; (SN Break) Up to F627659
  • 9
    1
    86596143
    V-BELT V-Belt, 76.99 mm W x 2197.90 mm L; Feeder Drive Variator;FOR CR9070 AND CR9080 ONLY; (SN Break) Up to C659
  • 9
    1
    87583907
    V-BELT 76.99 mm W; Feeder drive variator;FOR CR9060, CR9070 AND CR9080 ONLY; (SN Break) From D660
  • 10
    1
    87622201
    CORREA DE TRANSMISSI; L= 2997 MM, Rotor variator;FOR CR9060 AND CR9070 ONLY; (SN Break) Up to C626
  • 10
    1
    87676816
    V-BELT 76.20 mm W x 2997.00 mm L; Rotor variator;FOR CR9060 AND CR9070 ONLY;EPDM, FIBER REINFORCED; (SN Break) From D627
  • 10
    1
    87547837
    CORREA DE TRANSMISSI; L= 2944 MM, Rotor variator;FOR CR9080 AND CR9090 ONLY; (SN Break) Up to C659
  • 10
    1
    87540195
    CORREA V-Belt, 3mm W x 2944mm L; Rotor variator;FOR CR9080 AND CR9090 ONLY;EPDM, FIBER REINFORCED; (SN Break) From D660
  • 11
    1
    87636309
    V-BELT 16.00 mm W x 1820.00 mm L; Hydraulic fan drive
  • 12
    1
    84818007
    V-BELT V-Belt, 14.24mm W x 1035mm L, 4 Ribs; Air Conditioner Unit, Compressor Drive;FOR CR9060 AND CR9070 ONLY; (SN Break) Up to C603
  • 12
    1
    84818008
    V-BELT V-Belt, 14.24mm W x 1095mm L, 4 Ribs; Air Conditioner Unit, Compressor Drive;FOR CR9060 AND CR9070 ONLY; (SN Break) From D604
  • 12
    1
    84818008
    V-BELT V-Belt, 14.24mm W x 1095mm L, 4 Ribs; Air Conditioner Unit, Compressor Drive;FOR CR9080 AND CR9090 ONLY
  • 13
    1

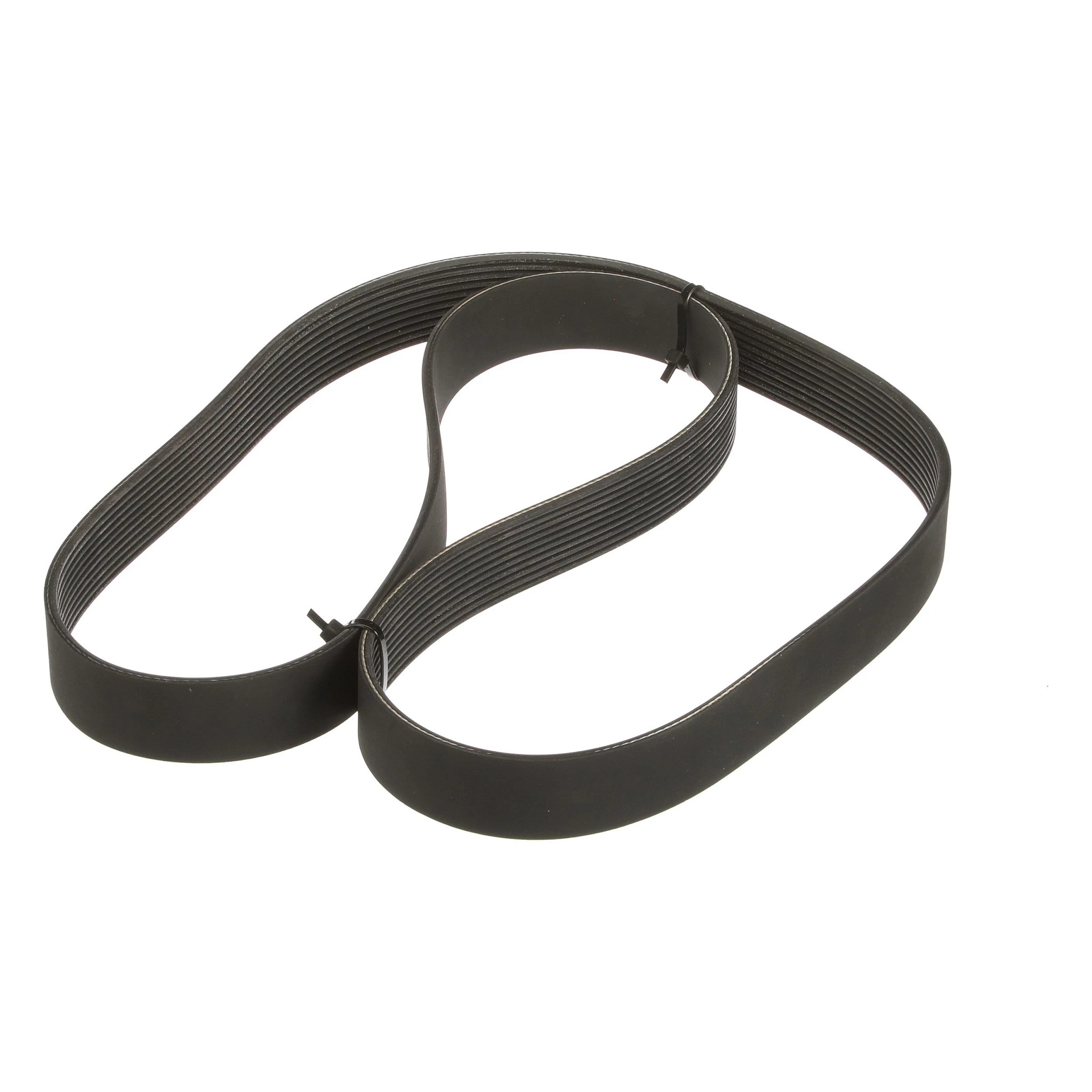

    500371653
    CORREA; Engine, Cranckshaft pulley to alternator;FOR CR9060 ONLY;FOR ENGINE MODEL F2C E9684P*E007
  • 13
    1
    500380059
    CORREA; Engine, Cranckshaft pulley to alternator;FOR CR9070 ONLY;FOR ENGINE MODEL F3A E0684S*E908
  • 13
    1
    504049425
    CORREA; Engine, Cranckshaft pulley to alternator;FOR CR9080 AND CR9090 ONLY;FOR ENGINE MODEL F3C E0684E*E004;FOR ENGINE MODEL F3B E0684N*E904
  • 14
    1
    504145203
    CORREA; Engine, Cranckshaft pulley to Airco compressor;FOR CR9060 ONLY;FOR ENGINE MODEL F2C E9684P*E007
