10.408.AL[01] - OIL COOLER PIPES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    4
    9804255
    FLANGE BOLT Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8; Not shown
  • 2
    3
    338413
    BOLT Hex, M6 x 1 x 60mm, Cl 8.8;

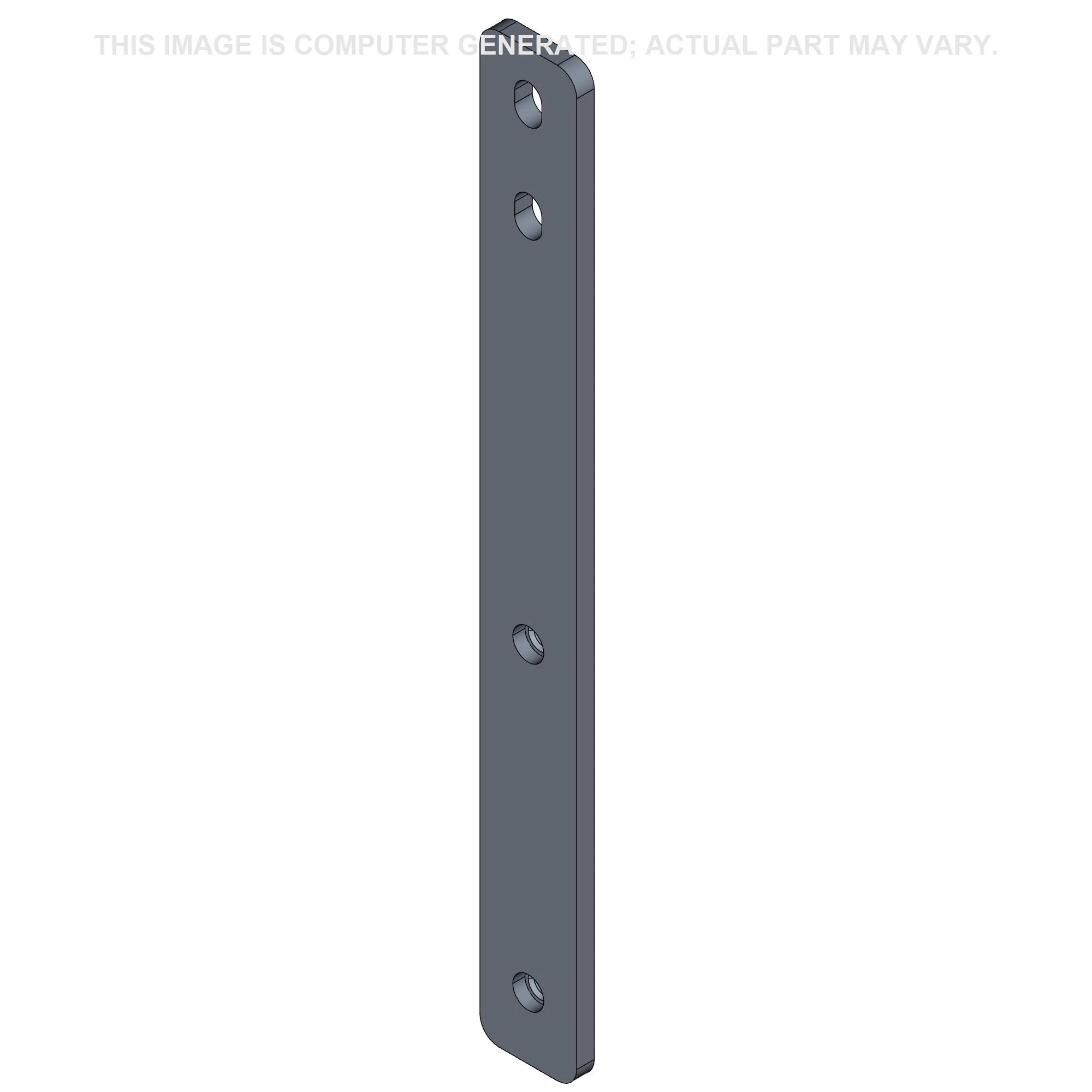

  • 3
    1
    91747520
    BRACKET; (Var) 349239500, 349239501, 349239502, 349239503, 349239504, 349239505, 393211500, 393211501, 393211502, 393211503, 393211504, 393211505

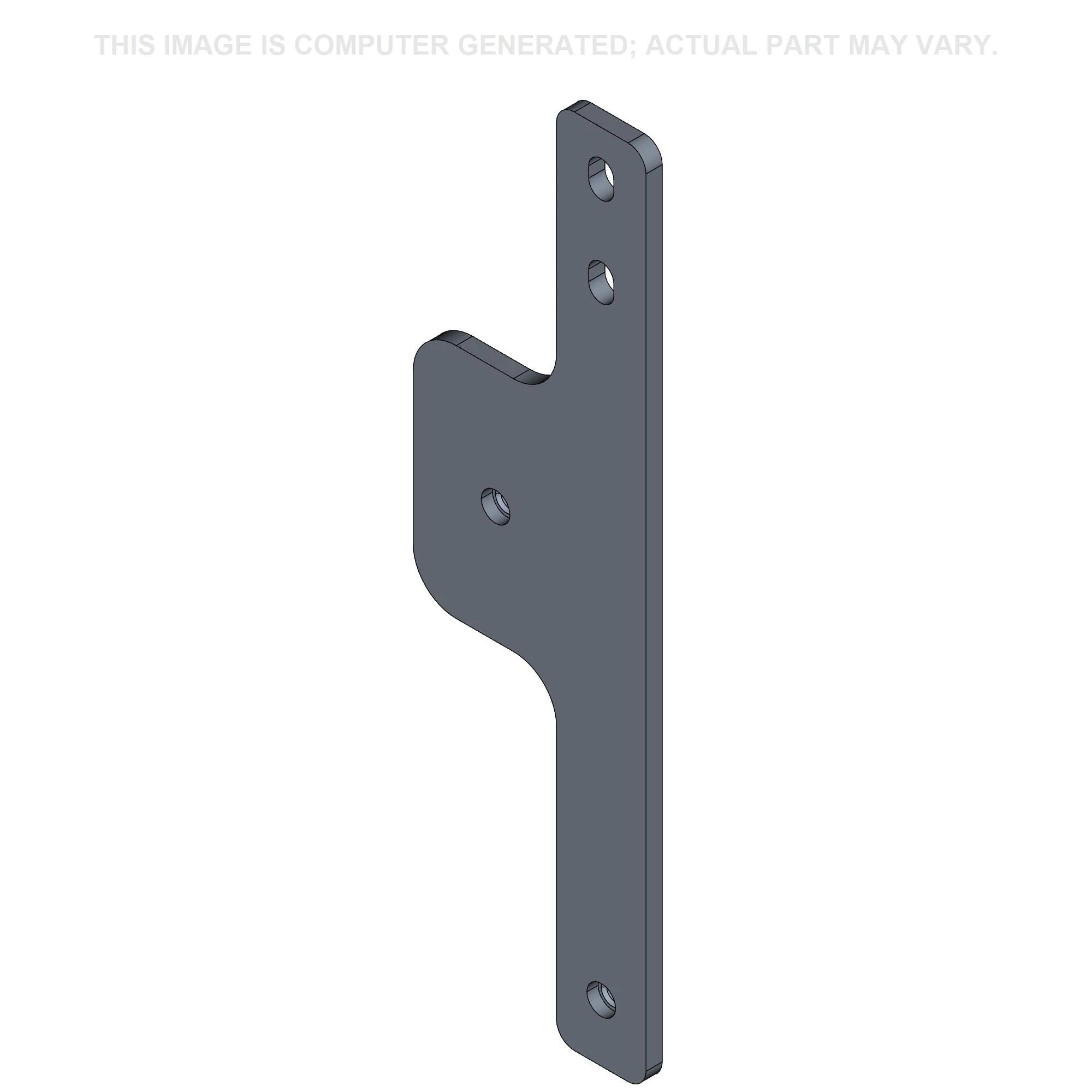

  • 3
    1
    92122592
    BRACKET; (Var) 349240500, 349240501, 349240502, 349240503, 349240504, 349240505, 393212500, 393212501, 393212502, 393212503, 393212504, 393212505
  • 4
    1
    NSS
    NOT SOLD SEPARAT;
  • 5
    3
    87000150
    CLAMP 15.869mm ID;
  • 6
    3
    87000230
    PLATE 30mm x 65mm, 9mm D, W1, ZND;

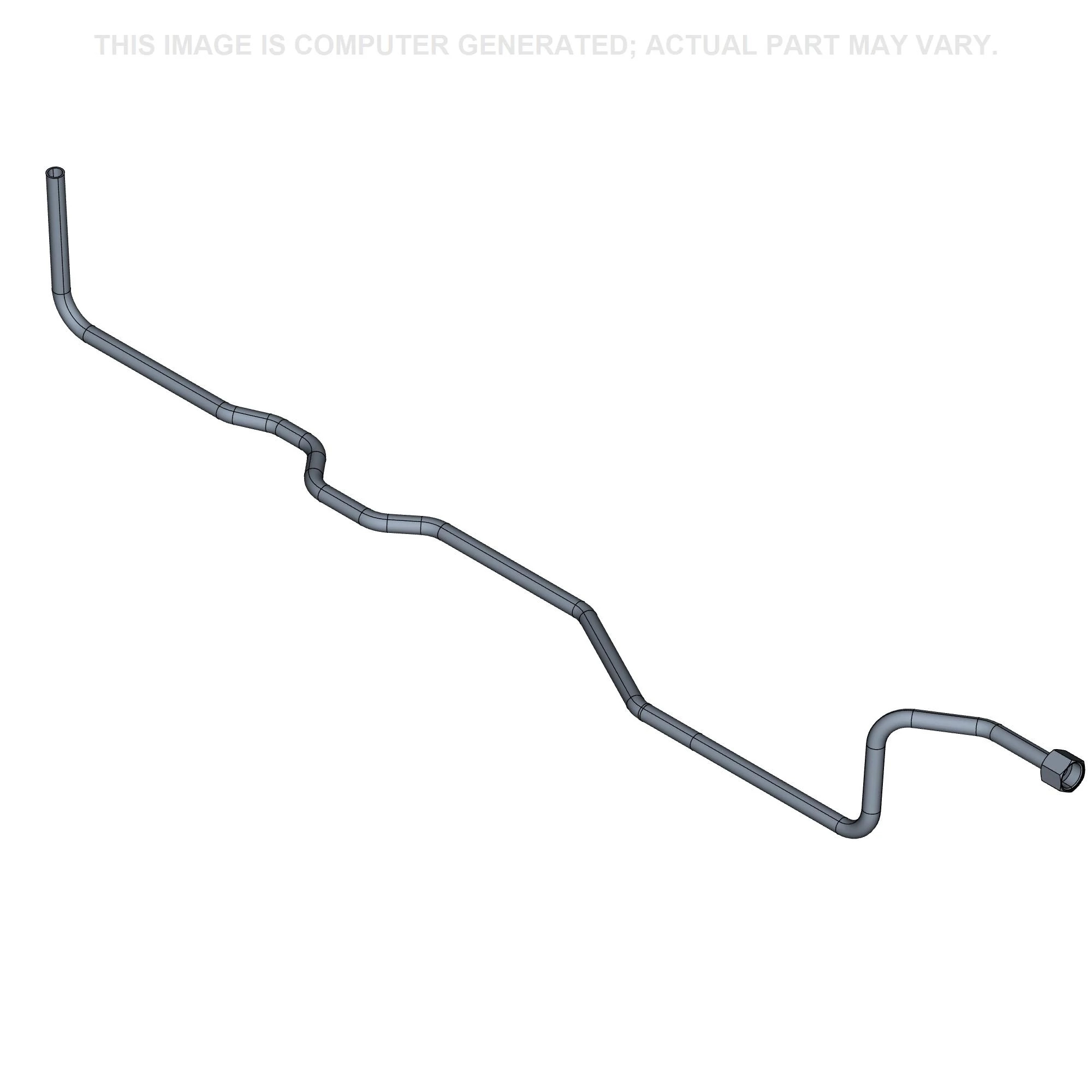

  • 7
    1
    92198957
    PIPE; (Var) 349239500, 349239501, 349239502, 349239503, 349239504, 349239505, 393211500, 393211501, 393211502, 393211503, 393211504, 393211505

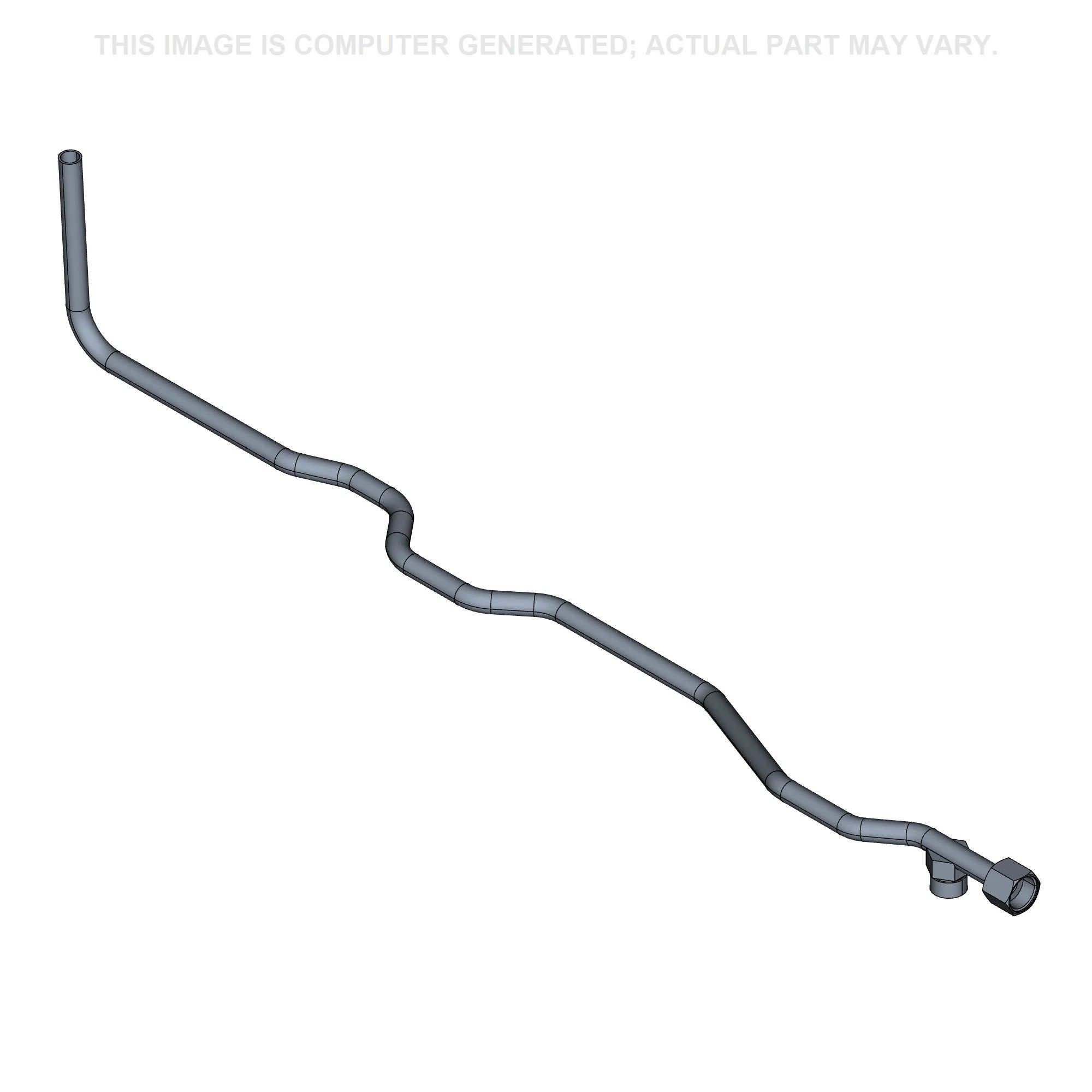

  • 7
    1
    92201413
    PIPE; (Var) 349240500, 349240501, 349240502, 349240503, 349240504, 349240505, 393212500, 393212501, 393212502, 393212503, 393212504, 393212505

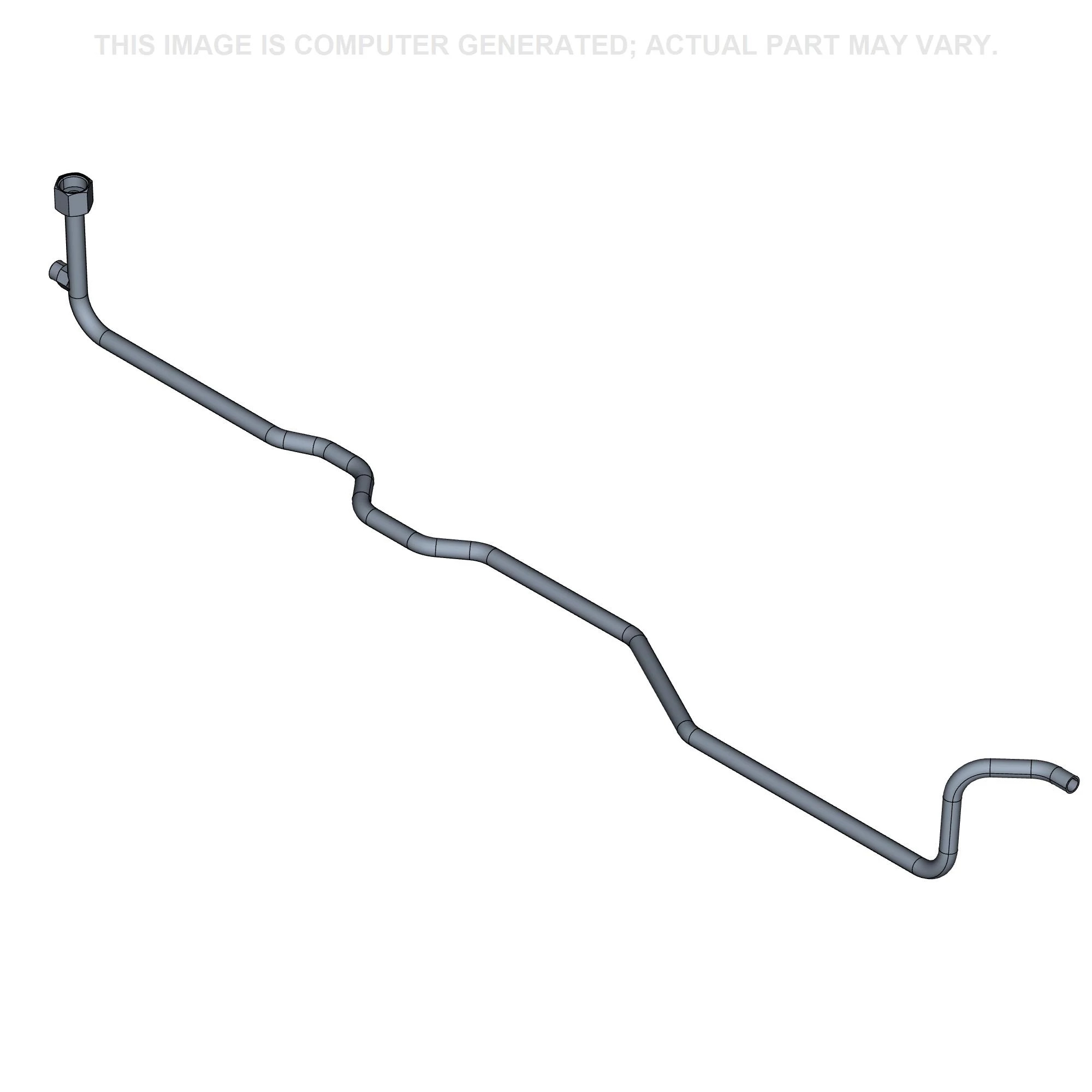

  • 8
    1
    92199001
    PIPE; (Var) 349239500, 349239501, 349239502, 349239503, 349239504, 349239505, 393211500, 393211501, 393211502, 393211503, 393211504, 393211505
  • 8
    1
    92210964
    PIPE; (Var) 349240500, 349240501, 349240502, 349240503, 349240504, 349240505, 393212500, 393212501, 393212502, 393212503, 393212504, 393212505
  • 9
    3
    86588450
    WASHER 6.6mm ID x 12mm OD x 1.6mm Thk;

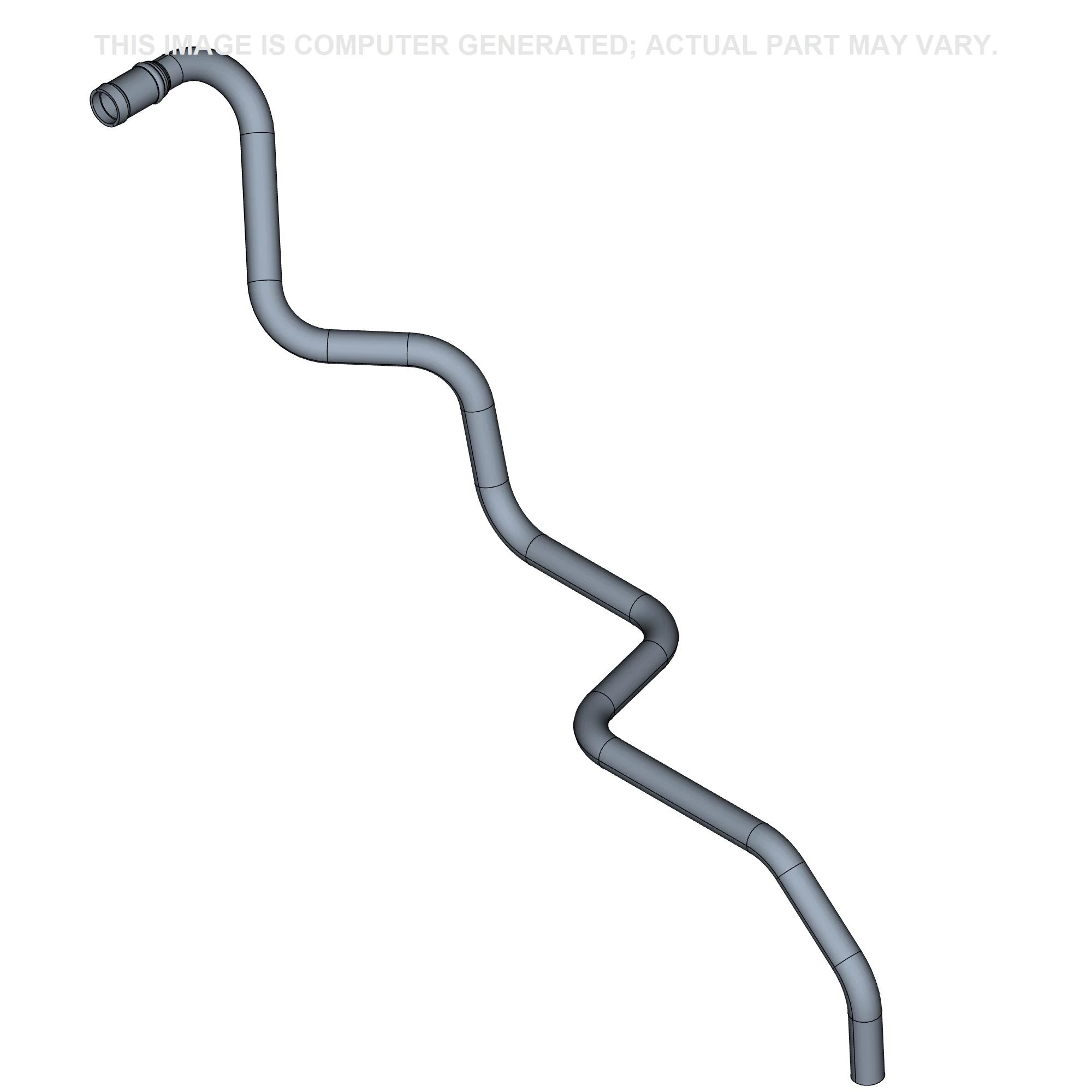

  • 10
    1
    92200371
    PIPE;

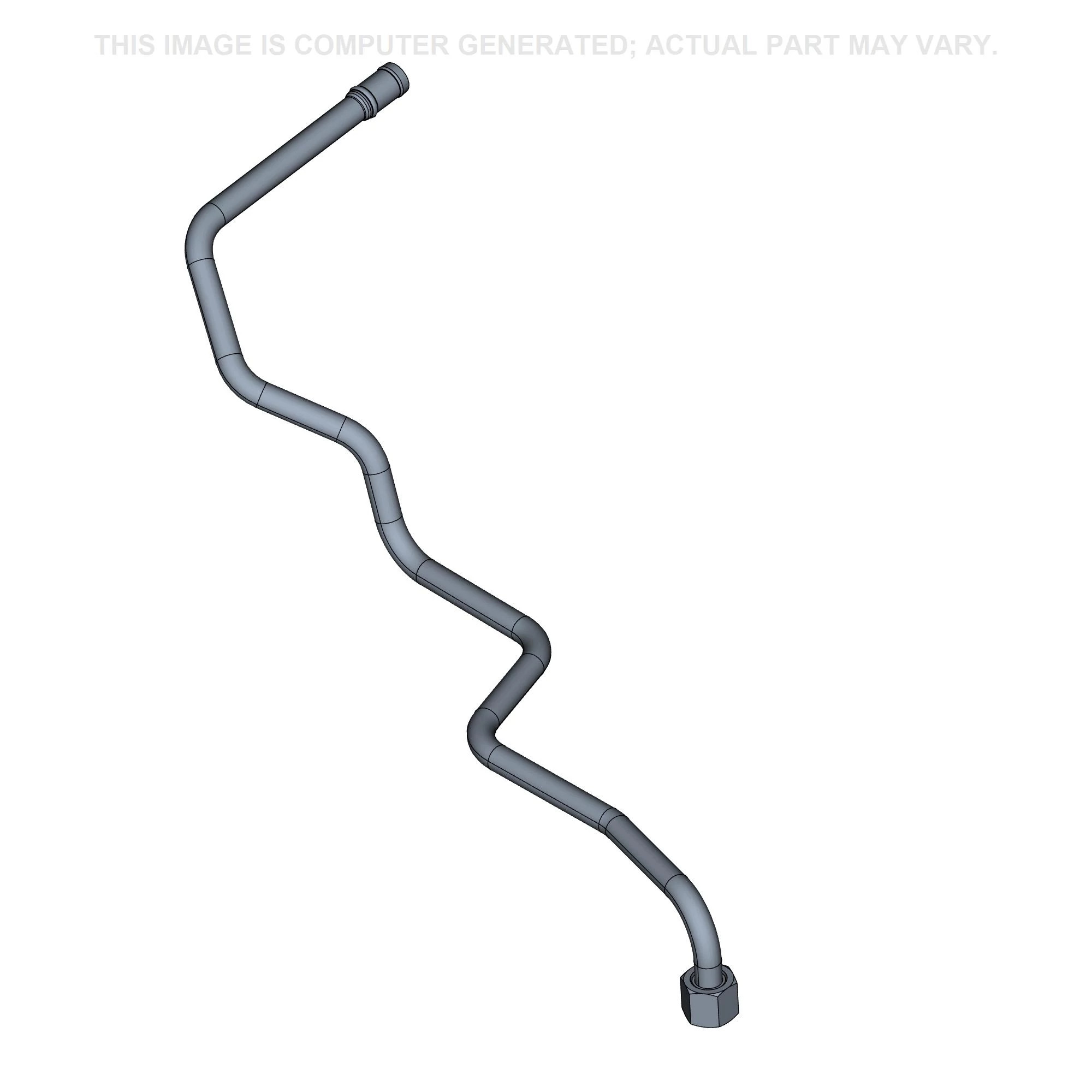

  • 11
    1
    92200368
    PIPE;
  • 12
    4
    47471898
    HOSE CLAMP 20mm - 32mm;
  • 13
    1
    92316986
    HOSE;
  • 14
    1
    92316985
    HOSE;
