TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11TUBO; ASSY, IPTO SHAFT PROTECTION
-
21NO LONGER SERVICED; FLANGE/Retired FLANGE, IPTO SHAFT BRG, INCLUDES SCREWS
-
3BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5, Full Thd;
-
31GASKET; SHAFT BRG RETAINER
-
41OIL SEAL 38.1mm ID x 60.45mm OD x 8.13mm Thk; SHAFT
-
51ANILLO DE RESORTE #156, Ext; Brg
-
61RODAMIENTO DE BOLAS 40 mm ID x 90 mm OD x 23 mm; SHAFT
-
61RODAMIENTO DE BOLAS; SHAFT
-
61RODAMIENTO DE BOLAS; SHAFT, OPTIONAL
-
71EJE; COMPRESSOR DRIVE
-
82ANILLO; SHAFT SEALING
-
91BUSHING 39.69mm ID x 50.86mm OD x 23.11mm L; LOWER SHAFT
-
101BEARING, NEEDLE Needle, 38.09mm ID x 47.64mm OD x 15.88mm W; 1004 RPM SHAFT
-
111GEAR; CLUTCH CUP -44T, W/SIDE DRIVE P.T.O.
-
111CUP; CLUTCH, W/OUTSIDE DRIVE P.T.O., INCLUDES PIN
-
1PIN 5/16'' x 1 3/8'', Coiled;
-
121PISTON; CLUTCH
-
131O-RING 69.32mm ID x 76.22mm OD x 1.75mm Thk; PISTON SEAL, INNER
-
141SEAL 0.551'' ID x 0.07'' Width; PISTON SEAL, OUTER
-
151RING 140.25mm ID x 4.5mm Thk; IPTO BRAKE
-
161CLUTCH PLATE 98.55mm ID x 157.48mm OD x 3.05mm Thk; PISTON RETURN
-
176SPRING; PISTON RETURN
-
181PLATE ASSY.; CLUTCH BACKING, INCLUDES PINS
-
6GOUJON 5/16'' x 1''; 5/26 X 1 DOWEL
-
191CIRCLIP; BACKING PLATE
-
201ANNEAU DE BUTEE 52.48mm ID x 70.1mm OD x 1.82mm Thk;
-
211HUB ASSY. 45T; CLUTCH
-
221ANNEAU D'ARRET #206, 1.936'', Ext;
-
231ROULEMENT A AIGUILLE; IPTO DRIVE SHAFT
-
231BEARING, NEEDLE; IPTO DRIVE SHAFT, OPTIONAL
-
241KIT; IPTO CLUTCH PLATE, SERVICE, CONSISTS OF 5 DISCS, 8 PLATES, 1 O-RING 401723R1, 1 O-RING 401724R1, 6 SPRINGS 66182C1
-
1PRODUCT GRAPHIC; SPARE PART IPTO SPEED, HYDROSTATIC DRIVE TRACTORS, NOT ILLUSTRATED
Select All
Select
Ref.
1Qty
1Availability
Part #
3054841R2Description
TUBO; ASSY, IPTO SHAFT PROTECTIONImg
Alts
Select
Ref.
2Qty
1Availability
Part #
401725R1Description
NO LONGER SERVICED; FLANGE/Retired FLANGE, IPTO SHAFT BRG, INCLUDES SCREWSImg
Alts
Select
Ref.
Qty
3Availability
Part #
179838Description
BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5, Full Thd;Img
Alts
Select
Ref.
4Qty
1Availability
Part #

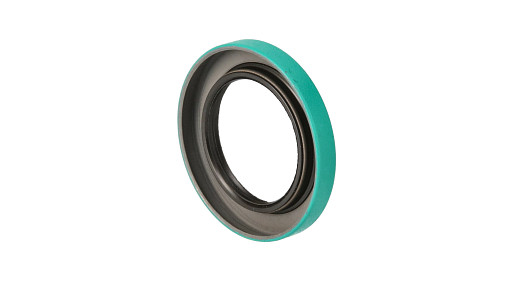

385766R91Description
OIL SEAL 38.1mm ID x 60.45mm OD x 8.13mm Thk; SHAFTImg
Alts
Select
Ref.
5Qty
1Availability
Part #
607186R1Description
ANILLO DE RESORTE #156, Ext; BrgImg
Alts
Select
Ref.
6Qty
1Availability
Part #
171082R91Description
RODAMIENTO DE BOLAS 40 mm ID x 90 mm OD x 23 mm; SHAFTImg
Alts
Select
Ref.
6Qty
1Availability
Part #
538962R91Description
RODAMIENTO DE BOLAS; SHAFT, OPTIONALImg
Alts
Select
Ref.
9Qty
1Availability
Part #
401705R2Description
BUSHING 39.69mm ID x 50.86mm OD x 23.11mm L; LOWER SHAFTImg
Alts
Select
Ref.
10Qty
1Availability
Part #
565232R91Description
BEARING, NEEDLE Needle, 38.09mm ID x 47.64mm OD x 15.88mm W; 1004 RPM SHAFTImg
Alts
Select
Ref.
11Qty
1Availability
Part #
66068C1Description
GEAR; CLUTCH CUP -44T, W/SIDE DRIVE P.T.O.Img
Alts
Select
Ref.
11Qty
1Availability
Part #
3125149R1Description
CUP; CLUTCH, W/OUTSIDE DRIVE P.T.O., INCLUDES PINImg
Alts
Select
Ref.
13Qty
1Availability
Part #

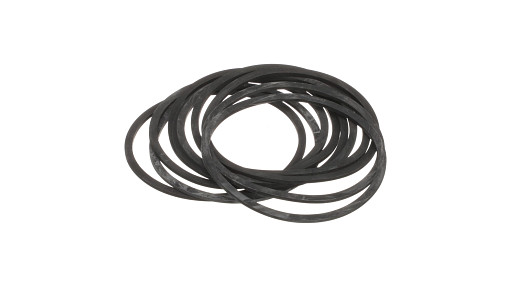

401723R1Description
O-RING 69.32mm ID x 76.22mm OD x 1.75mm Thk; PISTON SEAL, INNERImg
Alts
Select
Ref.
14Qty
1Availability
Part #

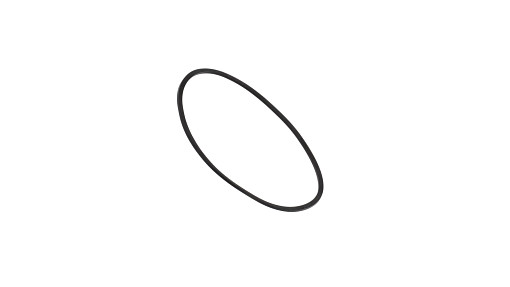

401724R1Description
SEAL 0.551'' ID x 0.07'' Width; PISTON SEAL, OUTERImg
Alts
Select
Ref.
15Qty
1Availability
Part #
404490R1Description
RING 140.25mm ID x 4.5mm Thk; IPTO BRAKEImg
Alts
Select
Ref.
16Qty
1Availability
Part #

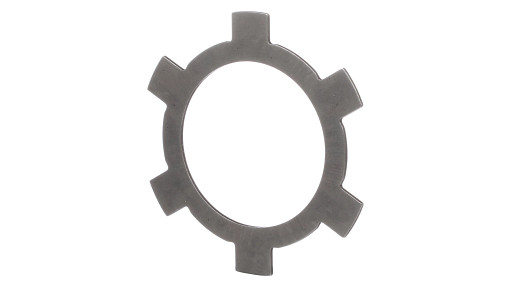

66185C1Description
CLUTCH PLATE 98.55mm ID x 157.48mm OD x 3.05mm Thk; PISTON RETURNImg
Alts
Select
Ref.
18Qty
1Availability
Part #
66186C91Description
PLATE ASSY.; CLUTCH BACKING, INCLUDES PINSImg
Alts
Select
Ref.
Qty
6Availability
Part #
20020R1Description
GOUJON 5/16'' x 1''; 5/26 X 1 DOWELImg
Alts
Select
Ref.
20Qty
1Availability
Part #

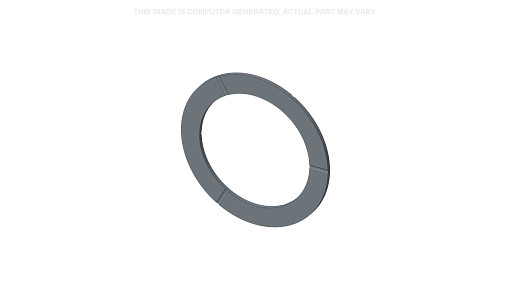

401713R1Description
ANNEAU DE BUTEE 52.48mm ID x 70.1mm OD x 1.82mm Thk;Img
Alts
Select
Ref.
22Qty
1Availability
Part #
401756R1Description
ANNEAU D'ARRET #206, 1.936'', Ext;Img
Alts
Select
Ref.
23Qty
1Availability
Part #
533325R91Description
ROULEMENT A AIGUILLE; IPTO DRIVE SHAFTImg
Alts
Select
Ref.
23Qty
1Availability
Part #
538467R91Description
BEARING, NEEDLE; IPTO DRIVE SHAFT, OPTIONALImg
Alts
Select
Ref.
24Qty
1Availability
Part #

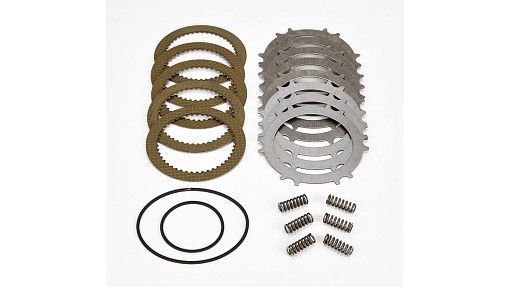

66193C91Description
KIT; IPTO CLUTCH PLATE, SERVICE, CONSISTS OF 5 DISCS, 8 PLATES, 1 O-RING 401723R1, 1 O-RING 401724R1, 6 SPRINGS 66182C1Img
Alts
Select
Ref.
Qty
1Availability
Part #
1093322R1Description
PRODUCT GRAPHIC; SPARE PART IPTO SPEED, HYDROSTATIC DRIVE TRACTORS, NOT ILLUSTRATEDImg
Alts
