TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
12NO LONGER SERVICED; Cylinder, Bucket,(86602781) Includes: Ref. 2-14;Replaced by 86618853 Bucket Cylinder, Refer to Fig. 005A for Detail
-
21LOCK NUT 3/4'' - 16;
-
31PISTON;
-
41BARREL; Cylinder
-
51PISTON ROD;
-
61CYLINDER END CAP;
-
71RING; Wear, 2.004'' ID x .50'' Thk
-
81SEAL; 3 Piece, Piston
-
91RADIATOR HOSE 2.00'' ID x 13.50'', SAE 20R4 CLASS D-2; Ring, Wear
-
101O-RING 0.139'' Thk x 1.859'' ID, -225, Cl 5, 75 Duro;
-
111SEALING WASHER; Back Up
-
121SEAL 31.75mm ID x 37.85mm OD x 6.35mm Thk; 1.250'' ID x 1.500'' OD
-
131SEAL 31.75mm ID x 43.05mm OD x 4.76mm Thk; Rod Wiper
-
141SEAL KIT; Kit, Includes Ref. 7 - 13
Select All
Select
Ref.
1Qty
2Availability
Part #
NLSDescription
NO LONGER SERVICED; Cylinder, Bucket,(86602781) Includes: Ref. 2-14;Replaced by 86618853 Bucket Cylinder, Refer to Fig. 005A for DetailImg
Alts
Select
Ref.
7Qty
1Availability
Part #
771705Description
RING; Wear, 2.004'' ID x .50'' ThkImg
Alts
Select
Ref.
9Qty
1Availability
Part #
9847627Description

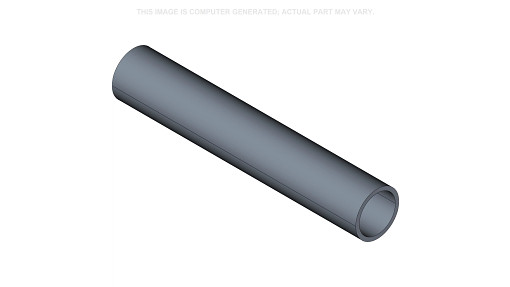

RADIATOR HOSE 2.00'' ID x 13.50'', SAE 20R4 CLASS D-2; Ring, WearImg
Alts
Select
Ref.
10Qty
1Availability
Part #
238-5225Description
O-RING 0.139'' Thk x 1.859'' ID, -225, Cl 5, 75 Duro;Img
Alts
Select
Ref.
12Qty
1Availability
Part #
86513307Description

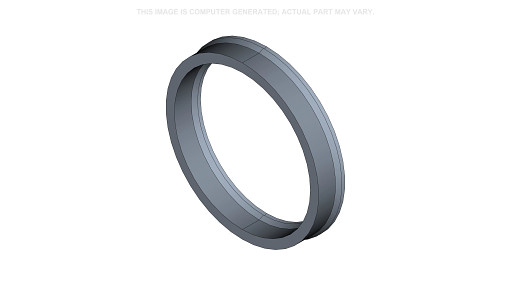

SEAL 31.75mm ID x 37.85mm OD x 6.35mm Thk; 1.250'' ID x 1.500'' ODImg
Alts
Select
Ref.
13Qty
1Availability
Part #
529340Description

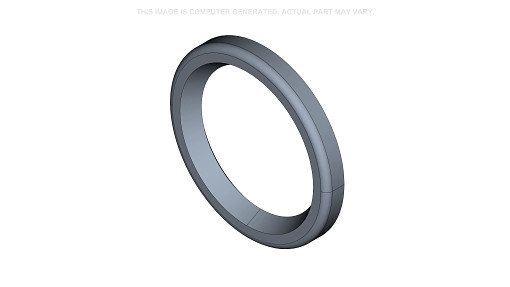

SEAL 31.75mm ID x 43.05mm OD x 4.76mm Thk; Rod WiperImg
Alts
Select
Ref.
14Qty
1Availability
Part #
86586336Description

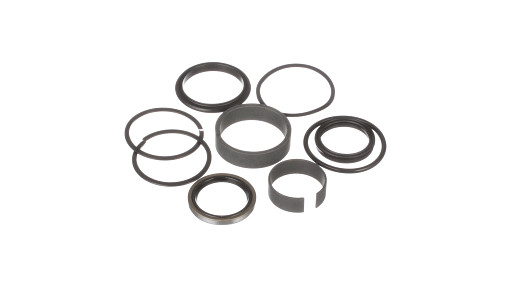

SEAL KIT; Kit, Includes Ref. 7 - 13Img
Alts
