Ref.
Qty
Part #
Alts
Description
-
12TRACK ASSY; Incl 2 - 19
-
21CHAIN; 48 link, Incl 3, 4, 10 - 14, 19
-
347LINK; RH
-
447LINK; LH
-
51LINK; Master RH
-
61LINK; Master RH
-
71LINK; Master LH
-
81LINK; Master LH
-
948BUSHING;
-
1048PIN;
-
1148PLUG 18mm OD x 25.4mm L;
-
1296SPACER;
-
1396SEAL;
-
1496RUBBER SEAL;
-
152BOLT Hex, 5/8 - 18 x 3.25, Cl 12.9; 5/8 IN - 18 UNF X 82.5 - 12.9
-
162BOLT Hex, 5/8 - 18 x 2.75, Cl 12.9; 5/8 IN - 18 UNF X 75 - 12.9
-
1748TRACK SHOE;
-
18188BOLT Hex, 5/8 - 18 x 2.25, Cl 12.9; 5/8 IN - 18 UNF X 57 - 12.9
-
19188NUT;
Select All
Ref.
2Qty
1Availability
Part #

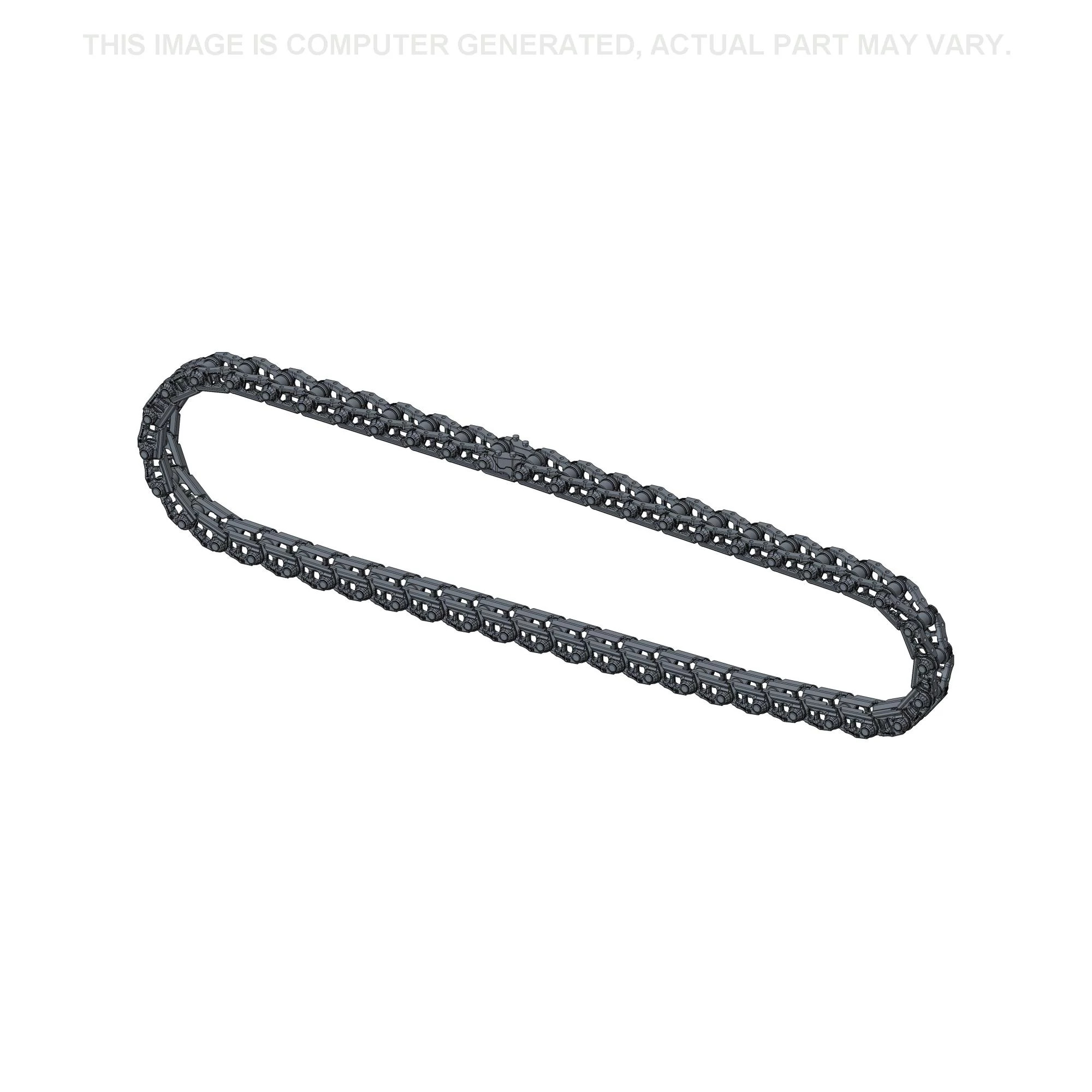

51610277Description
CHAIN; 48 link, Incl 3, 4, 10 - 14, 19Img
Alts
Ref.
15Qty
2Availability
Part #

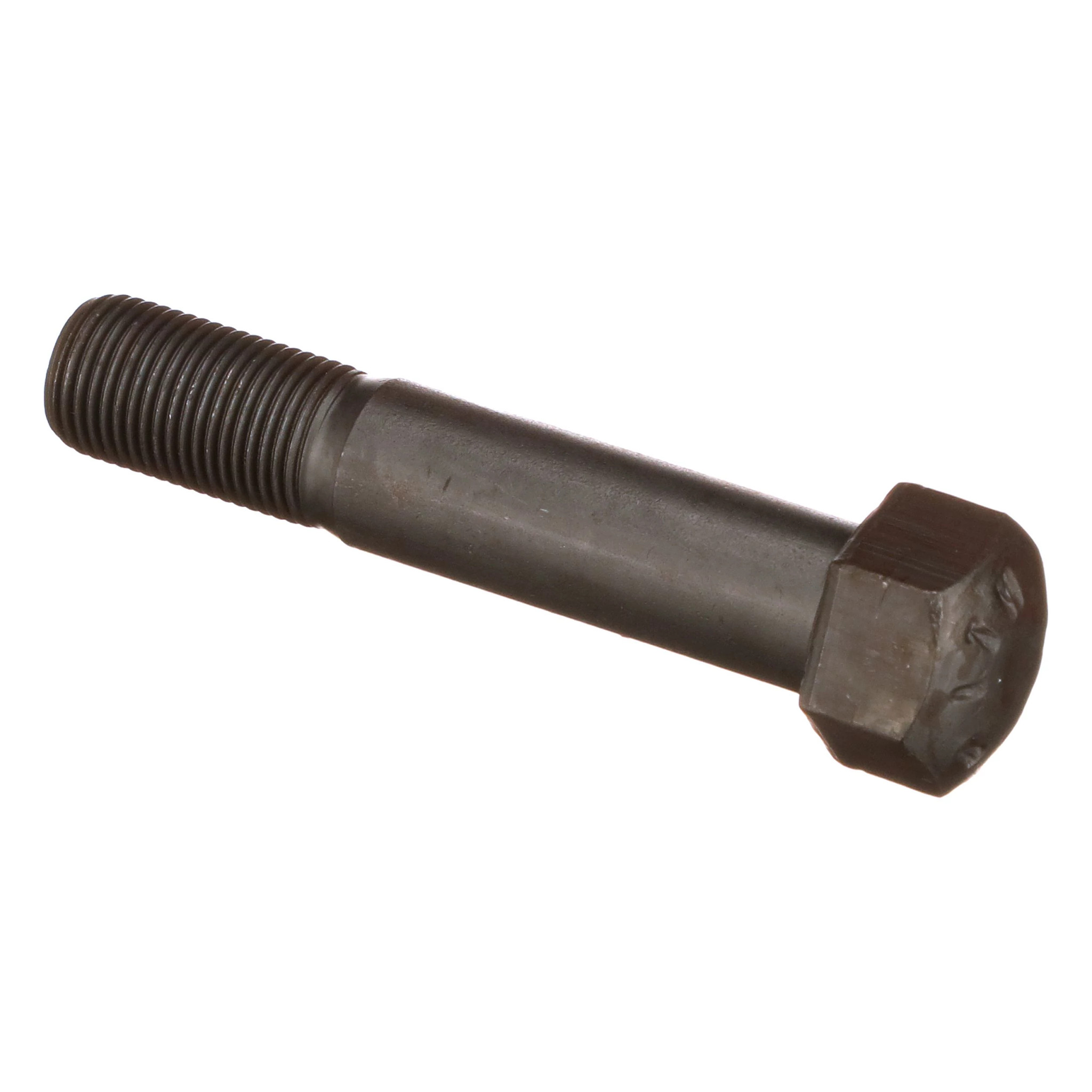

51602649Description
BOLT Hex, 5/8 - 18 x 3.25, Cl 12.9; 5/8 IN - 18 UNF X 82.5 - 12.9Img
Alts
Ref.
16Qty
2Availability
Part #

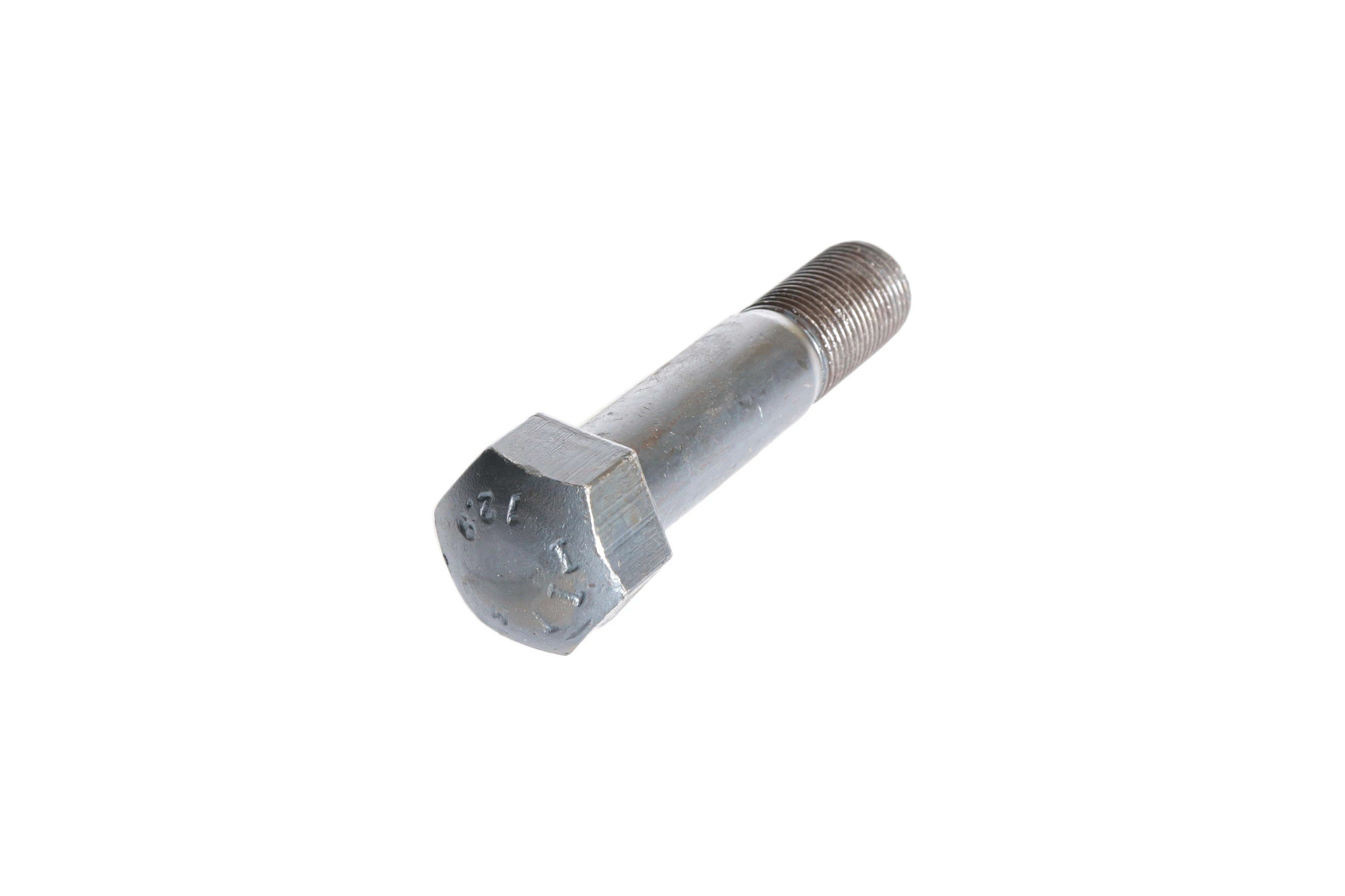

51602650Description
BOLT Hex, 5/8 - 18 x 2.75, Cl 12.9; 5/8 IN - 18 UNF X 75 - 12.9Img
Alts
Ref.
18Qty
188Availability
Part #
51602648Description
BOLT Hex, 5/8 - 18 x 2.25, Cl 12.9; 5/8 IN - 18 UNF X 57 - 12.9Img
Alts
