6-12 - DRIVE ROLLER ASSEMBLY (UPPER-RUBBER)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

2

Availability

Part #

51318

Description

BEARING ASSY; - spherical


Alts

Select

Ref.

2

Qty

1

Availability

Part #

700110467

Description

BEARING ASSY 44.45 mm ID x 92.44 mm OD x 29 mm; BEARING ASSEMBLY (includes item 1)


Alts

Select

Ref.

3

Qty

2

Availability

Part #

700120478

Description

SUPPORT; MOUNT - bearing


Alts

Select

Ref.

4

Qty

1

Availability

Part #

700120470

Description

ROLLER; - upper, rubber


Alts

Select

Ref.

5

Qty

4

Availability

Part #

7852213

Description

SHIM; WASHER - shim


Alts

Select

Ref.

6

Qty

2

Availability

Part #

50583

Description

FLANGED BEARING; - bearing


Alts

Select

Ref.

Qty

8

Availability

Part #

433-816

Description

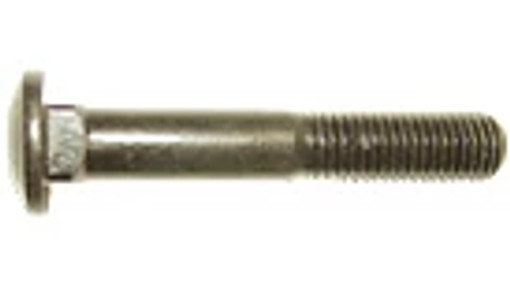

CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1'', Gr 5; 1/2-13 x 1 RHSNB


Alts

Select

Ref.

Qty

6

Availability

Part #

7703432

Description

BOLT Hex, Serr, 3/8'' - 16 x 3/4''; 3/8-16 x 3/4 HFSS


Alts

Select

Ref.

Qty

6

Availability

Part #

704247

Description

NUT; 3/8-16 HFSLN


Alts

Select

Ref.

Qty

8

Availability

Part #

704254

Description

NUT Flg, USR, 1/2''-13; 1/2-13 HFSLN


Alts
