88.100.069 - DISC COULTER PLAIN Ø 500 MM SPRING LOADED, RH
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

41652550093

Description

DIA KIT, HARVESTER; Spring loaded disc coulter cpl., RH d.500, Incl. 2-30


Alts

Select

Ref.

2

Qty

2

Availability

Part #

75545

Description

SPARE PART; Needle bearing, 35/42x20


Alts

Select

Ref.

3

Qty

2

Availability

Part #

4740517700

Description

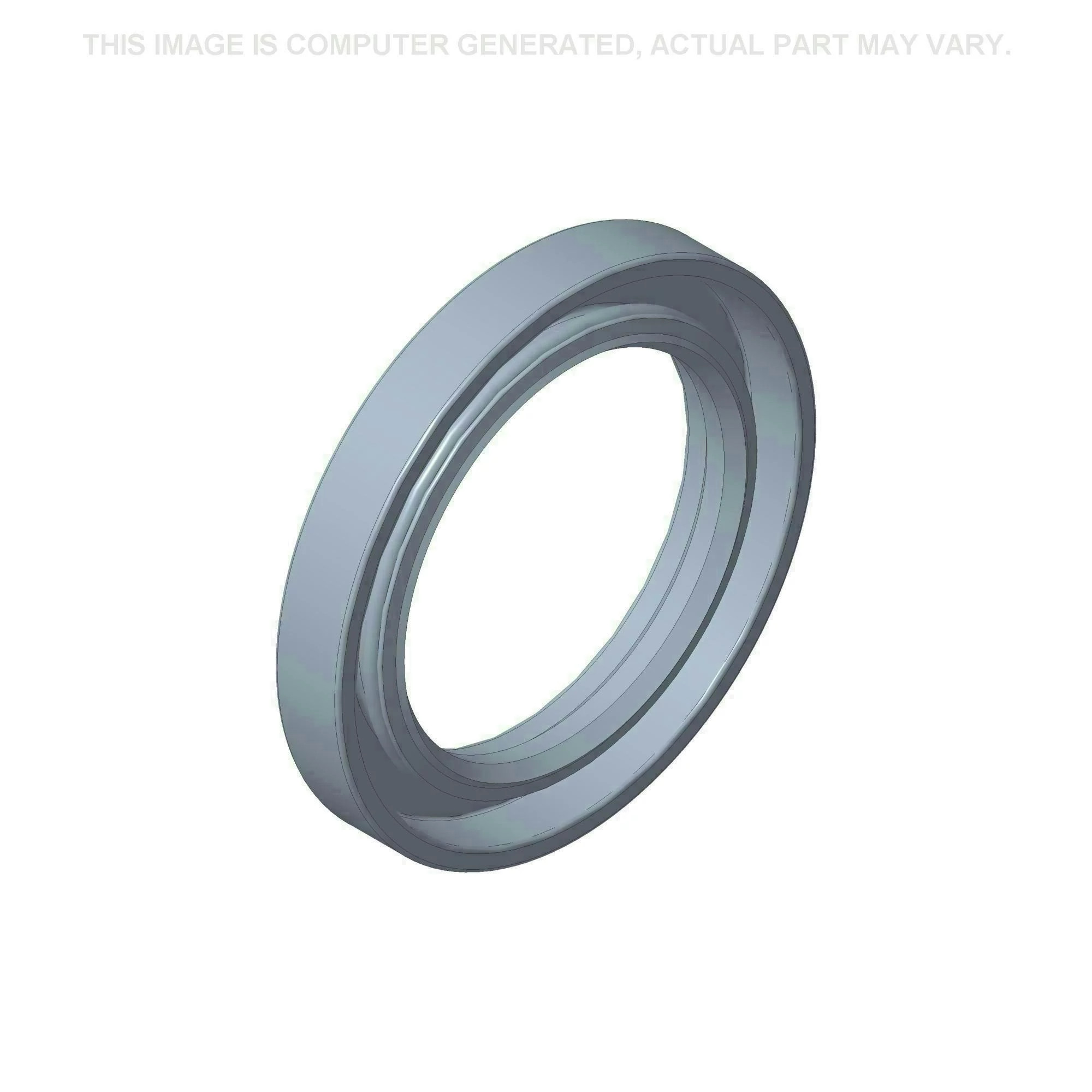

SEALING RING A35x52x7; Sealing ring, A35x52x7


Alts

Select

Ref.

4

Qty

1

Availability

Part #

4740484804

Description

O-RING 65,09x3,53; O-ring, OR 65,09x3,53


Alts

Select

Ref.

5

Qty

1

Availability

Part #

41658095900

Description

DUST CAP; Sealing washer


Alts

Select

Ref.

6

Qty

1

Availability

Part #

41658096640

Description

COVER; Cover for disc


Alts

Select

Ref.

7

Qty

2

Availability

Part #

4738882003

Description

LUBE NIPPLE AM 8x1,25 FZB; Grease nipple, AM 8x1,25 FZB


Alts

Select

Ref.

8

Qty

4

Availability

Part #

4725249351

Description

BOLT; Bolt ISO 4014 - M10 x 25-8.8 FZB


Alts

Select

Ref.

9

Qty

1

Availability

Part #

4725254351

Description

BOLT; Bolt ISO 4014 - M12 x 55-8.8 FZB


Alts

Select

Ref.

10

Qty

1

Availability

Part #

4721434901

Description

PIN; Spring Pin ISO 8752 - 6 x 50 FZB


Alts

Select

Ref.

11

Qty

2

Availability

Part #

4721438401

Description

PIN ISO 8752 - 8x45 FZB; Spring Pin ISO 8752 - 8 x 45 FZB


Alts

Select

Ref.

12

Qty

1

Availability

Part #

41658152900

Description

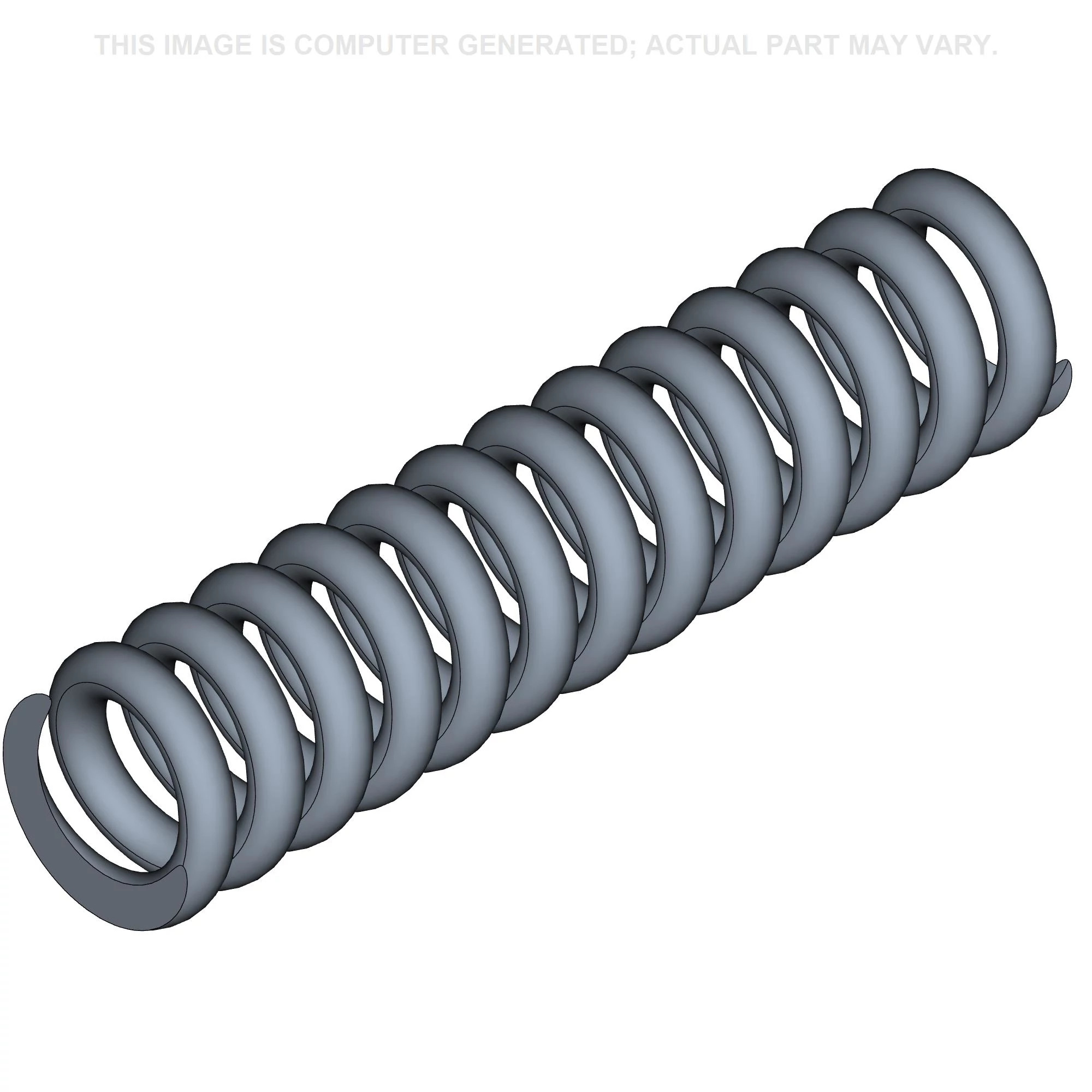

SPRING; Spring


Alts

Select

Ref.

13

Qty

1

Availability

Part #

41658096100

Description

WASHER; Washer (spring guide)


Alts

Select

Ref.

14

Qty

1

Availability

Part #

41658543800

Description

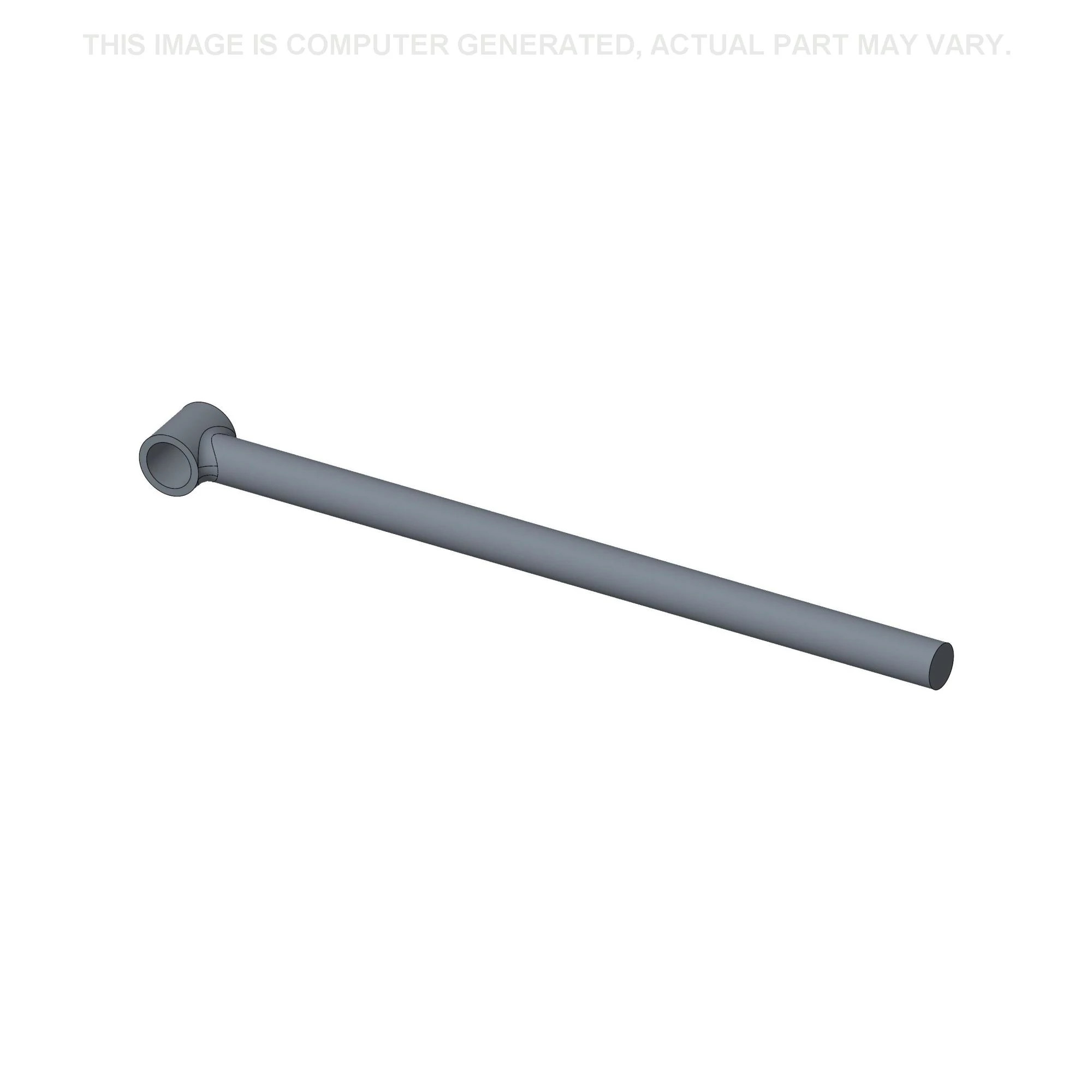

SPRING; Shank


Alts

Select

Ref.

15

Qty

1

Availability

Part #

41652524990

Description

ARM; Lever


Alts

Select

Ref.

16

Qty

2

Availability

Part #

4734118601

Description

WASHER; Washer ISO 7089 - 16


Alts

Select

Ref.

17

Qty

1

Availability

Part #

41658624009

Description

PIN DIN 7346 S, 20x36; Spring pin DIN 7346 S d.20x36


Alts

Select

Ref.

18

Qty

1

Availability

Part #

4725263351

Description

BOLT; Bolt ISO 4014 - M16 x 65-8.8 FZB


Alts

Select

Ref.

19

Qty

1

Availability

Part #

4731232451

Description

NUT; Nut ISO-4032 M16-10 MW


Alts

Select

Ref.

20

Qty

2

Availability

Part #

4731432601

Description

NUT; Hexagon Thin Nut ISO - 4035 - M20


Alts

Select

Ref.

21

Qty

1

Availability

Part #

41658588400

Description

WASHER 17/38x10; Washer, d.17/38x10


Alts

Select

Ref.

22

Qty

1

Availability

Part #

4725262451

Description

BOLT; Bolt ISO 4014- M16x 30-8.8 FZB


Alts

Select

Ref.

23

Qty

1

Availability

Part #

41650360235

Description

SCREW Nib MFBK 16x50-10.9 MW; Nib bolt MFBK 16x 50-10.9 MW


Alts

Select

Ref.

24

Qty

1

Availability

Part #

4731232401

Description

NUT; Nut ISO - 4032 - M16-8 FZB


Alts

Select

Ref.

25

Qty

1

Availability

Part #

41658066240

Description

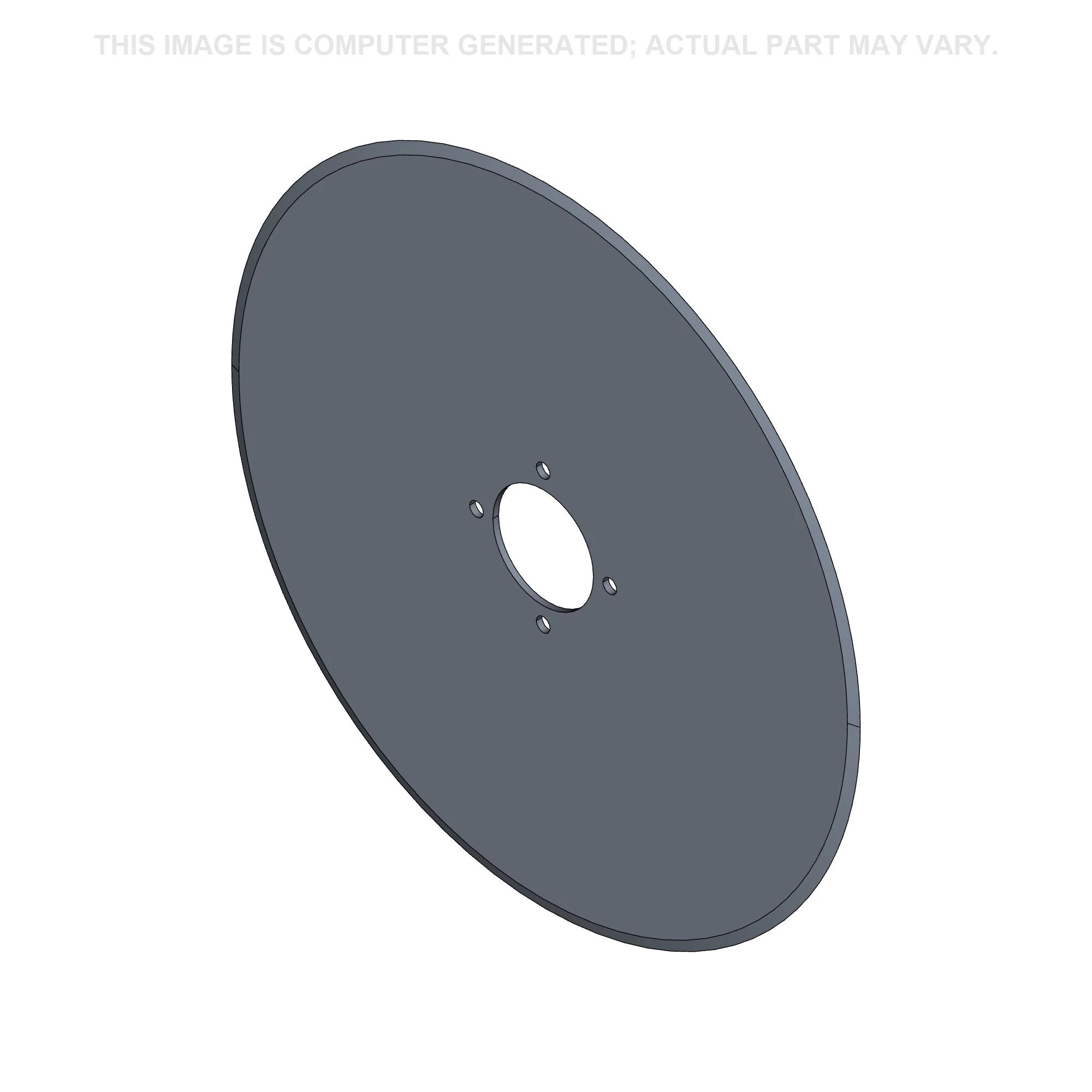

DISC; Disc coulter d.500, plain


Alts

Select

Ref.

26

Qty

1

Availability

Part #

41658107600

Description

PIN; Pin, disc coulter RH


Alts

Select

Ref.

27

Qty

1

Availability

Part #

41658663990

Description

COULTER; Disc coulter arm, RH


Alts

Select

Ref.

28

Qty

1

Availability

Part #

41658096740

Description

HUB; Hub, disc coulter


Alts

Select

Ref.

29

Qty

1

Availability

Part #

41652775190

Description

SHANK; Disc coulter shank 296x266, RH


Alts

Select

Ref.

30

Qty

1

Availability

Part #

41653530490

Description

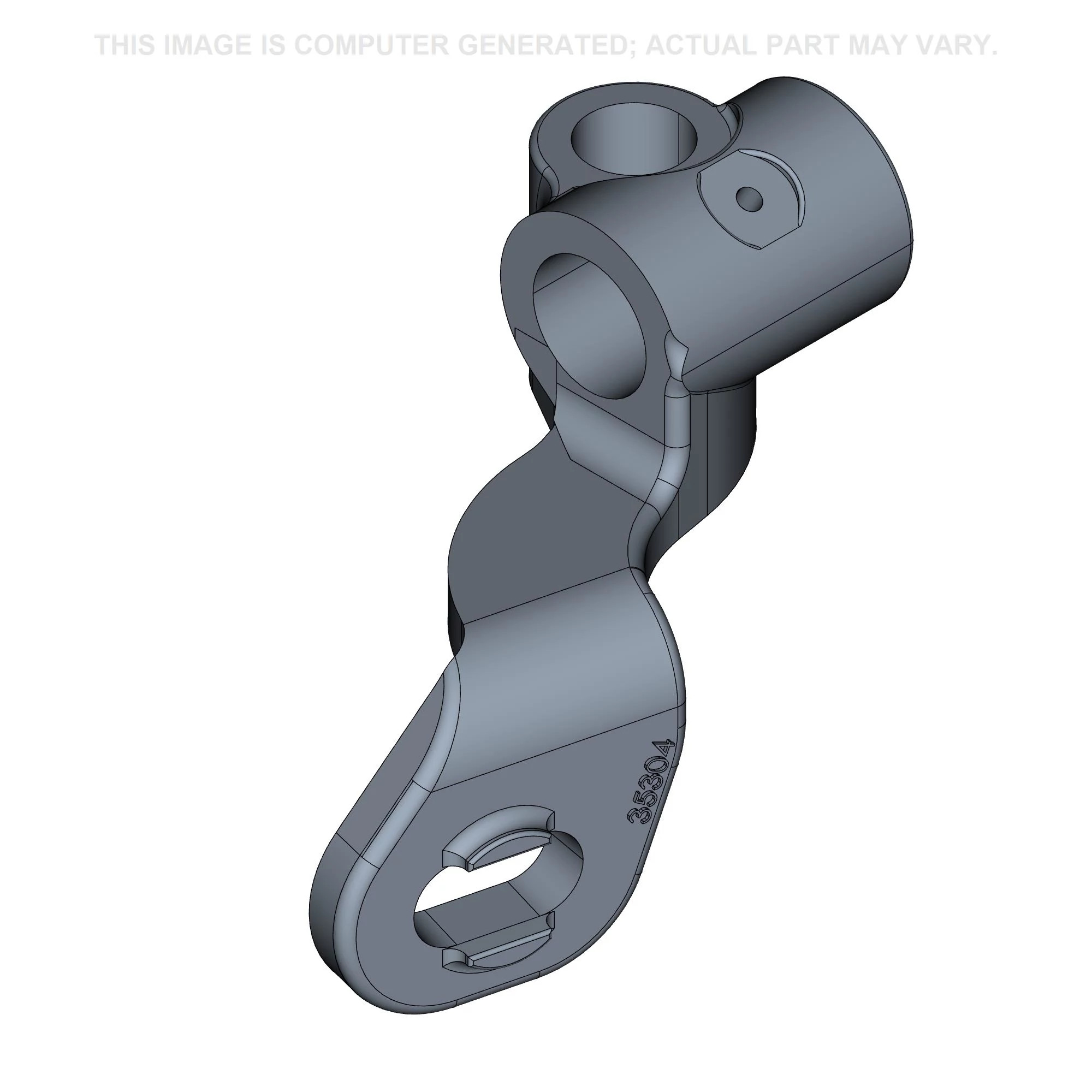

BRACKET; Disc bracket right casting
