TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11ARM; RH
-
21AUGER; Drum;BSN 642535 (615), 644871 (616), 642344 (617)
-
21DRUM; Less Auger (Not Shown);ASN 642535 (615), 644871 (616), 642344 (617)
-
31COVER; Top
-
44LOCK WASHER 3/8 0.381 CST ZND;
-
54HEX SOC SCREW BTN HD, 3/8'' - 16 x 7/8'';
-
64BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;
-
74WASHER .530'' ID x 1.125'' OD x .183'' Thk;
-
8ARDISC; 615 (5), 616 (6), 617 (7)
-
9ARFLANGE BOLT Hex, 1/2'' - 13 x 1'', Gr 8; BSN 642535 (615), 640855 (616), 637900 (617);615 (10), 616 (12), 617 (14)
-
9ARFLANGE BOLT Self-Locking, G8, 1/2''-13 x 13/16''; Binding Hd, Self-Locking, G8, 1/2''-13 x 13/16'', (Requires 1/2'' Drive Ratchet);ASN 642535 (615), 640855 (616), 637900 (617);615 (10), 616 (12), 617 (14)
-
10ARCAP; BSN 642535 (615), 640855 (616), 637900 (617);615 (10), 616 (12), 617 (14)
-
11ARBLADE Knife CCW; CCW;615 (4), 616 (6), 617 (6)
-
116BLADE; CCW, 14? Twist;615 (4), 616 (6), 617 (6);Standard Equipment ASN 658547 (615), 654261 (616), 657534 (617)
-
116KNIFE; V;615 (4), 616 (6), 617 (6)
-
116BLADE; CCW, 14? Twist, Over-serrated;615 (4), 616 (6), 617 (6)
-
12ARNUT; Knife;615 (10), 616 (12), 617 (14)
-
13ARORDER COMPONENTS; Module, CCW
-
14ARGEAR;
-
15ARGEARBOX; CCW
-
16ARSKID/SHOE; [Welded Shoe];Prior To MY 2006
-
16ARSKID/SHOE; [Formed Shoe];From MY 2006
-
17ARBOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; 615 (10), 616 (12), 617 (14)
-
18ARLOCK WASHER .515'' ID x 1.070'' OD x .120'' Thk; Belleville, 1/2'';615 (26), 616 (32), 617 (38)
-
19ARCAP; See Fig. 005
-
20ARBOLT Hex, 1/2'' - 13 x 1'', Gr 5; 615 (16), 616 (20), 617 (24)
-
21ARLOCK WASHER .515'' ID x 1.070'' OD x .120'' Thk; Belleville, 1/2'';615 (16), 616 (20), 617 (24)
-
22ARBLADE Knife CW; CW;615 (6), 616 (6), 617 (8)
-
22ARBLADE; CW, 14? Twist;Standard Equipment ASN 658547 (615), 654261 (616), 657534 (617);615 (6), 616 (6), 617 (8)
-
22ARKNIFE; V, CW;615 (6), 616 (6), 617 (8)
-
22ARBLADE; CW, 14? Twist, Over-serrated;615 (4), 616 (6), 617 (8)
-
23ARTHREADED ROD; 3/4'' x 12-13/64'', Services Both Partially and Fully-Threaded Rods
-
243ORDER COMPONENTS; Module, CW
-
25ARGEARBOX; CW
-
26ARSPACER; Short, 7-7/8'';615 (4), 616 (6), 617 (8)
-
26A4GROOVED PIN 9.53mm OD x 19.05mm L; 3/8 x 3/4'' HT
-
271SPACER; Long, 8-11/16'', Used on 5 & 7 Disc Cutter Bars, Between Modules 1 & 2, Includes: Ref. 26A
-
28ARWASHER 19.46mm ID x 35.05mm OD x 3.43mm Thk; 615 (20), 616 (24), 617 (28)
-
29ARNUT 3/4''-10, G8; 615 (20), 616 (24), 617 (28)
-
30ARSHAFT; Short, 248mm;615 (4), 616 (6), 617 (8)
-
311SHAFT; Long, 268mm, Used on 5 &7 Disc Cutter Bars Between Modules 1 & 2
-
32ARGUARD; Rock, See Figure Note;615 (5), 616 (6), 617 (7);Prior To MY 2006
-
32ARSTONEGUARD; Stoneguard, See Figure Note;615 (5), 616 (6), 617 (7);From MY 2006
-
33ARLOCK WASHER .515'' ID x 1.070'' OD x .120'' Thk; Belleville, 1/2'';615 (10), 616 (12), 617 (14)
-
34ARFLANGE BOLT Hex, 1/2'' - 13 x 1'', Gr 8; 615 (10), 616 (12), 617 (14)
-
352SUPPORT;
-
364BOLT 1/2''-13 x 1.813'' OAL, Gr 5;
-
374LOCK WASHER .515'' ID x 1.070'' OD x .120'' Thk; Belleville, 1/2''
-
382CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 3/4'', Gr 5;
-
39ARGREASE; 14 oz. Cartridge;For Use W/Shaft, Ref. 30
-
408SHOE; Skid, High
-
411KIT; High Stubble Kit
-
42ARFLANGE BOLT Hex, 1/2'' - 13 x 1'', Gr 5; 615 (6), 616 (8), 617 (10)
-
43ARKNIFE SET; Includes (10) 14? CW Blades, Ref. 22 & (10) 14? CCW Blades, Ref. 11.
-
43ARKNIFE SET; Includes (16) 14? CW Blades, Ref. 22 & (16) 14? CCW Blades, Ref. 11
-
43ARSET OF BLADES; Includes: (16) 14? CW OS Blades, Ref. 22 & (16) 14? CCW OS Blades, Ref. 11.
-
44ARREPAIR KIT; Shock Retrofit;Contains parts to retrofit two discs.
Select All
![]()
Ref.
2Qty
1Availability
Part #
86538531Description

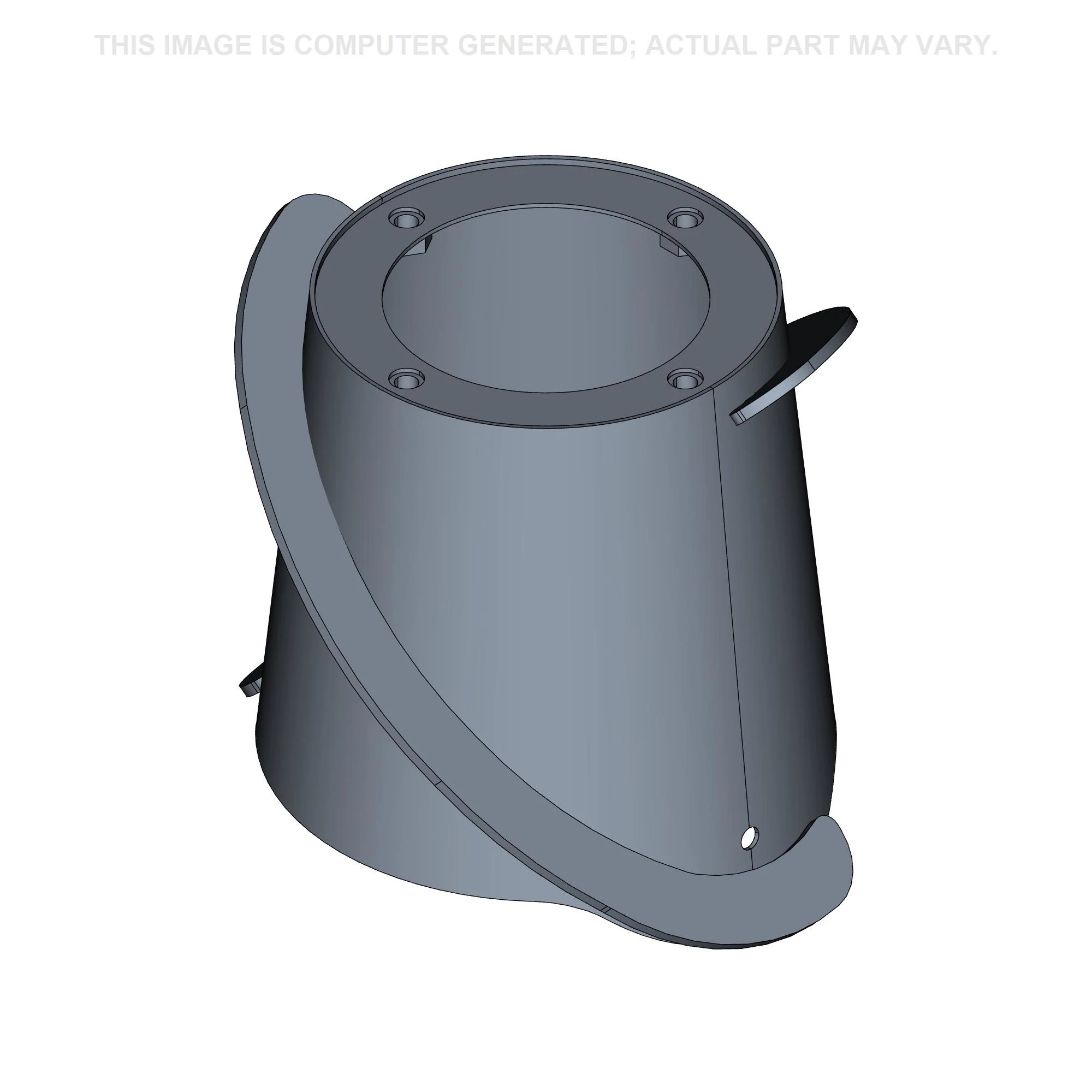

AUGER; Drum;BSN 642535 (615), 644871 (616), 642344 (617)Img
Alts
Ref.
2Qty
1Availability
Part #
86506382Description
DRUM; Less Auger (Not Shown);ASN 642535 (615), 644871 (616), 642344 (617)Img
Alts
Ref.
5Qty
4Availability
Part #
87499Description
HEX SOC SCREW BTN HD, 3/8'' - 16 x 7/8'';Img
Alts
Ref.
6Qty
4Availability
Part #
87670Description
BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;Img
Alts
Ref.
7Qty
4Availability
Part #
262183Description
WASHER .530'' ID x 1.125'' OD x .183'' Thk;Img
Alts
Ref.
9Qty
ARAvailability
Part #
86515925Description
FLANGE BOLT Hex, 1/2'' - 13 x 1'', Gr 8; BSN 642535 (615), 640855 (616), 637900 (617);615 (10), 616 (12), 617 (14)Img
Alts
Ref.
9Qty
ARAvailability
Part #
86543211Description
FLANGE BOLT Self-Locking, G8, 1/2''-13 x 13/16''; Binding Hd, Self-Locking, G8, 1/2''-13 x 13/16'', (Requires 1/2'' Drive Ratchet);ASN 642535 (615), 640855 (616), 637900 (617);615 (10), 616 (12), 617 (14)Img
Alts
Ref.
10Qty
ARAvailability
Part #
86510384Description
CAP; BSN 642535 (615), 640855 (616), 637900 (617);615 (10), 616 (12), 617 (14)Img
Alts
Ref.
11Qty
ARAvailability
Part #
9847684Description
BLADE Knife CCW; CCW;615 (4), 616 (6), 617 (6)Img
Alts
Ref.
11Qty
6Availability
Part #
86621873Description
BLADE; CCW, 14? Twist;615 (4), 616 (6), 617 (6);Standard Equipment ASN 658547 (615), 654261 (616), 657534 (617)Img
Alts
Ref.
11Qty
6Availability
Part #
87029588Description
BLADE; CCW, 14? Twist, Over-serrated;615 (4), 616 (6), 617 (6)Img
Alts
Ref.
12Qty
ARAvailability
Part #
87053834Description
NUT; Knife;615 (10), 616 (12), 617 (14)Img
Alts
Ref.
16Qty
ARAvailability
Part #
86572263Description
SKID/SHOE; [Welded Shoe];Prior To MY 2006Img
Alts
Ref.
16Qty
ARAvailability
Part #
87047426Description
SKID/SHOE; [Formed Shoe];From MY 2006Img
Alts
Ref.
17Qty
ARAvailability
Part #
87670Description
BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; 615 (10), 616 (12), 617 (14)Img
Alts
Ref.
18Qty
ARAvailability
Part #
86513238Description
LOCK WASHER .515'' ID x 1.070'' OD x .120'' Thk; Belleville, 1/2'';615 (26), 616 (32), 617 (38)Img
Alts
Ref.
20Qty
ARAvailability
Part #
87909Description
BOLT Hex, 1/2'' - 13 x 1'', Gr 5; 615 (16), 616 (20), 617 (24)Img
Alts
Ref.
21Qty
ARAvailability
Part #
86513238Description
LOCK WASHER .515'' ID x 1.070'' OD x .120'' Thk; Belleville, 1/2'';615 (16), 616 (20), 617 (24)Img
Alts
Ref.
22Qty
ARAvailability
Part #
9847683Description
BLADE Knife CW; CW;615 (6), 616 (6), 617 (8)Img
Alts
Ref.
22Qty
ARAvailability
Part #
86621872Description
BLADE; CW, 14? Twist;Standard Equipment ASN 658547 (615), 654261 (616), 657534 (617);615 (6), 616 (6), 617 (8)Img
Alts
Ref.
22Qty
ARAvailability
Part #
86532078Description
KNIFE; V, CW;615 (6), 616 (6), 617 (8)Img
Alts
Ref.
22Qty
ARAvailability
Part #
87029587Description
BLADE; CW, 14? Twist, Over-serrated;615 (4), 616 (6), 617 (8)Img
Alts
Ref.
23Qty
ARAvailability
Part #
86501934Description
THREADED ROD; 3/4'' x 12-13/64'', Services Both Partially and Fully-Threaded RodsImg
Alts
Ref.
26Qty
ARAvailability
Part #
86506032Description
SPACER; Short, 7-7/8'';615 (4), 616 (6), 617 (8)Img
Alts
Ref.
26AQty
4Availability
Part #
86515496Description
GROOVED PIN 9.53mm OD x 19.05mm L; 3/8 x 3/4'' HTImg
Alts
Ref.
27Qty
1Availability
Part #
86506070Description
SPACER; Long, 8-11/16'', Used on 5 & 7 Disc Cutter Bars, Between Modules 1 & 2, Includes: Ref. 26AImg
Alts
Ref.
28Qty
ARAvailability
Part #
86512328Description
WASHER 19.46mm ID x 35.05mm OD x 3.43mm Thk; 615 (20), 616 (24), 617 (28)Img
Alts
Ref.
29Qty
ARAvailability
Part #
86518194Description
NUT 3/4''-10, G8; 615 (20), 616 (24), 617 (28)Img
Alts
Ref.
30Qty
ARAvailability
Part #
86519042Description
SHAFT; Short, 248mm;615 (4), 616 (6), 617 (8)Img
Alts
Ref.
31Qty
1Availability
Part #
86519039Description
SHAFT; Long, 268mm, Used on 5 &7 Disc Cutter Bars Between Modules 1 & 2Img
Alts
Ref.
32Qty
ARAvailability
Part #
86565383Description
GUARD; Rock, See Figure Note;615 (5), 616 (6), 617 (7);Prior To MY 2006Img
Alts
Ref.
32Qty
ARAvailability
Part #
87047845Description
STONEGUARD; Stoneguard, See Figure Note;615 (5), 616 (6), 617 (7);From MY 2006Img
Alts
Ref.
33Qty
ARAvailability
Part #
86513238Description
LOCK WASHER .515'' ID x 1.070'' OD x .120'' Thk; Belleville, 1/2'';615 (10), 616 (12), 617 (14)Img
Alts
Ref.
34Qty
ARAvailability
Part #
86515925Description
FLANGE BOLT Hex, 1/2'' - 13 x 1'', Gr 8; 615 (10), 616 (12), 617 (14)Img
Alts
Ref.
37Qty
4Availability
Part #
86513238Description
LOCK WASHER .515'' ID x 1.070'' OD x .120'' Thk; Belleville, 1/2''Img
Alts
Ref.
38Qty
2Availability
Part #
88530Description
CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 3/4'', Gr 5;Img
Alts
Ref.
39Qty
ARAvailability
Part #
9861804DSDescription
GREASE; 14 oz. Cartridge;For Use W/Shaft, Ref. 30Img
Alts
Ref.
42Qty
ARAvailability
Part #
86533474Description
FLANGE BOLT Hex, 1/2'' - 13 x 1'', Gr 5; 615 (6), 616 (8), 617 (10)Img
Alts
Ref.
43Qty
ARAvailability
Part #
86624751Description
KNIFE SET; Includes (10) 14? CW Blades, Ref. 22 & (10) 14? CCW Blades, Ref. 11.Img
Alts
Ref.
43Qty
ARAvailability
Part #
86624752Description
KNIFE SET; Includes (16) 14? CW Blades, Ref. 22 & (16) 14? CCW Blades, Ref. 11Img
Alts
Ref.
43Qty
ARAvailability
Part #
87037027Description
SET OF BLADES; Includes: (16) 14? CW OS Blades, Ref. 22 & (16) 14? CCW OS Blades, Ref. 11.Img
Alts
Ref.
44Qty
ARAvailability
Part #
87602273Description
REPAIR KIT; Shock Retrofit;Contains parts to retrofit two discs.Img
Alts
