03.21[01] - KNIFE SHARPENER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    43168
    BOLT Hex, M16 x 2 x 40mm, Full Thd, Cl 8.8, ZND;
  • 2
    2
    140048
    BELLEVILLE WASHER M16 Bolt Size x 32mm OD x 2.8mm Thk;
  • 3
    AR
    9513615
    WASHER 16.5mm ID x 34mm OD x 0.5mm Thk;
  • 4
    2
    80370017
    RING;
  • 5
    2
    84014095
    SEAL 50mm ID x 62mm OD x 5mm Thk;
  • 6
    2
    697045
    NEEDLE BEARING Ball, 49.99mm ID x 62.02mm OD x 70mm W;
  • 7
    1
    321204
    LUBE NIPPLE Straight Con. Head, M6 x 1.0 x 16mm L;
  • 8
    1
    89835162
    SHAFT;
  • 9
    1
    84019727C
    CORE-ELECTRIC MOTOR ELECTRIC MOTOR; MAINTENANCE PARTS
  • 9
    1
    84019727
    SMALL ELECTRIC MOTOR; MAINTENANCE PARTS
  • 9
    1
    84019727R
    REMAN-ELECTRIC MOTOR ELECTRIC MOTOR; MAINTENANCE PARTS
  • 10
    4
    43128
    BOLT Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8, ZND;
  • 11
    5
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 12
    1
    89809223
    SUPPORT;
  • 13
    3
    322357
    BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;
  • 14
    3
    280641
    BOLT Hex, 1/4'' - 20 x 5/8'', Gr 5;
  • 15
    1
    84017037
    DRIVEN SPROCKET;
  • 16
    1
    84012755
    SET SCREW M6 x 5mm, Cl 8.8;
  • 17
    1
    9620443
    LINK 12.7mm Pitch;
  • 18
    1
    9617010

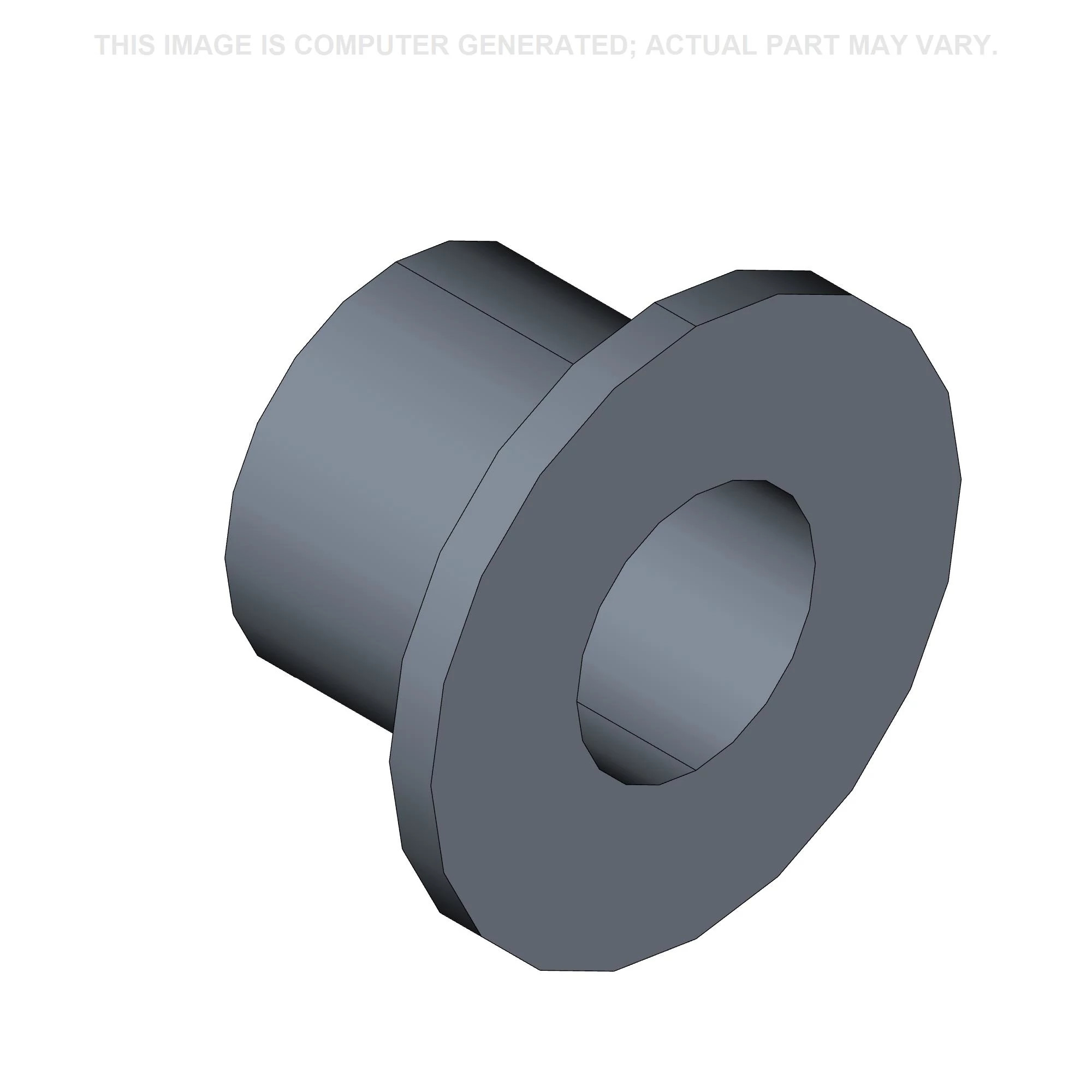

    SPACER 8.04mm ID x 18mm OD x 10.36mm L;
  • 19
    1
    9620444

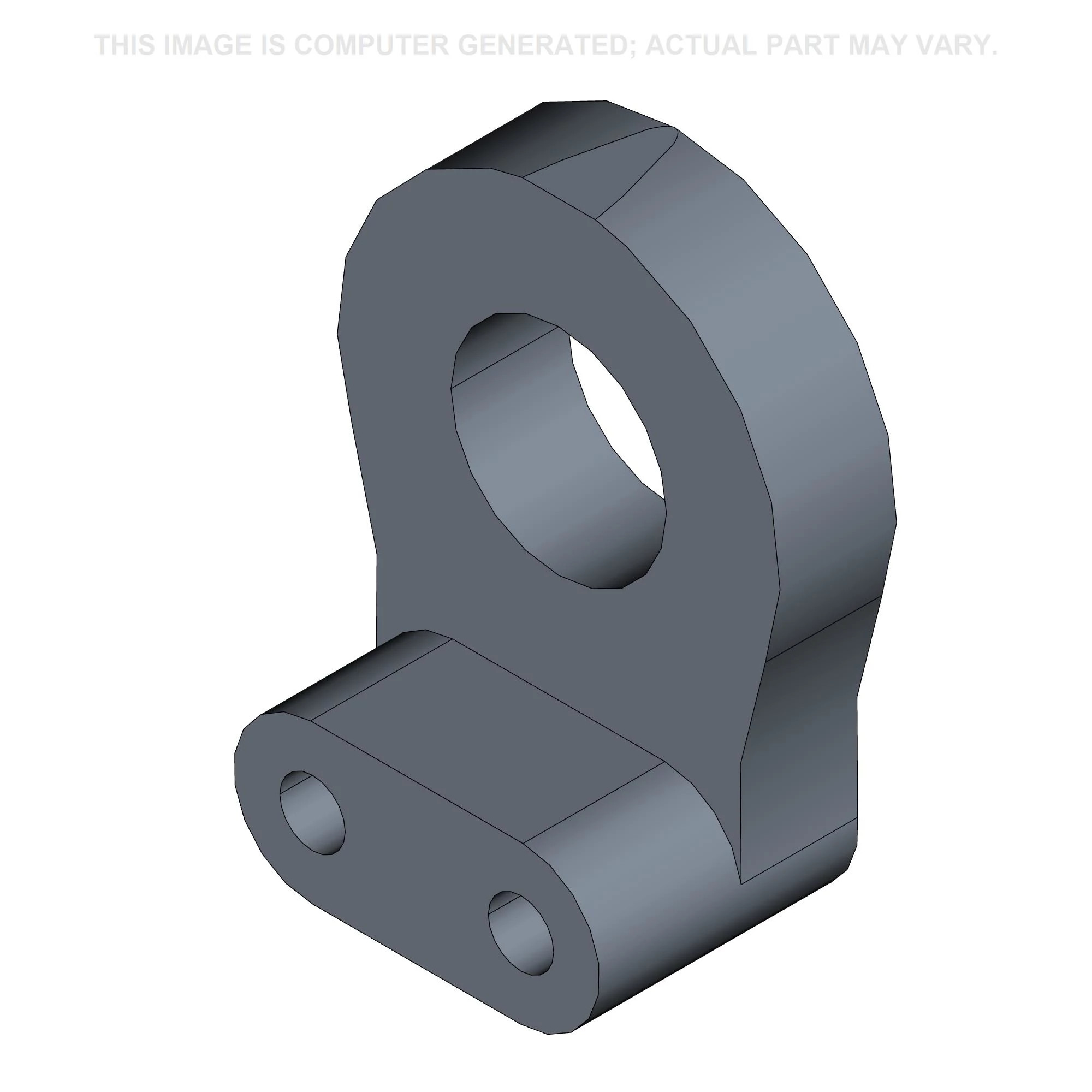

    SUPPORT;
  • 20
    1
    84041541
    BOLT Hex, M8 x 1 x 20mm, Full Thd, Cl 8.8, PLN; M8; (SN Break) From D1300
  • 20
    1
    9806833
    LOCK BOLT Prev Torque, Hex, M8 x 1 x 25mm, Cl 8.8, Full Thd; M8; (SN Break) Up to C0412
  • 21
    1
    89835411
    CHAIN; (22)
  • 22
    1
    25815
    CONNECTING LINK;
  • 23
    1
    84000304
    DRIVEN SPROCKET;
  • 24
    2
    791972
    NEEDLE BEARING 12.7mm ID x 17.475mm OD x 14.275mm W;
  • 25
    2
    791993

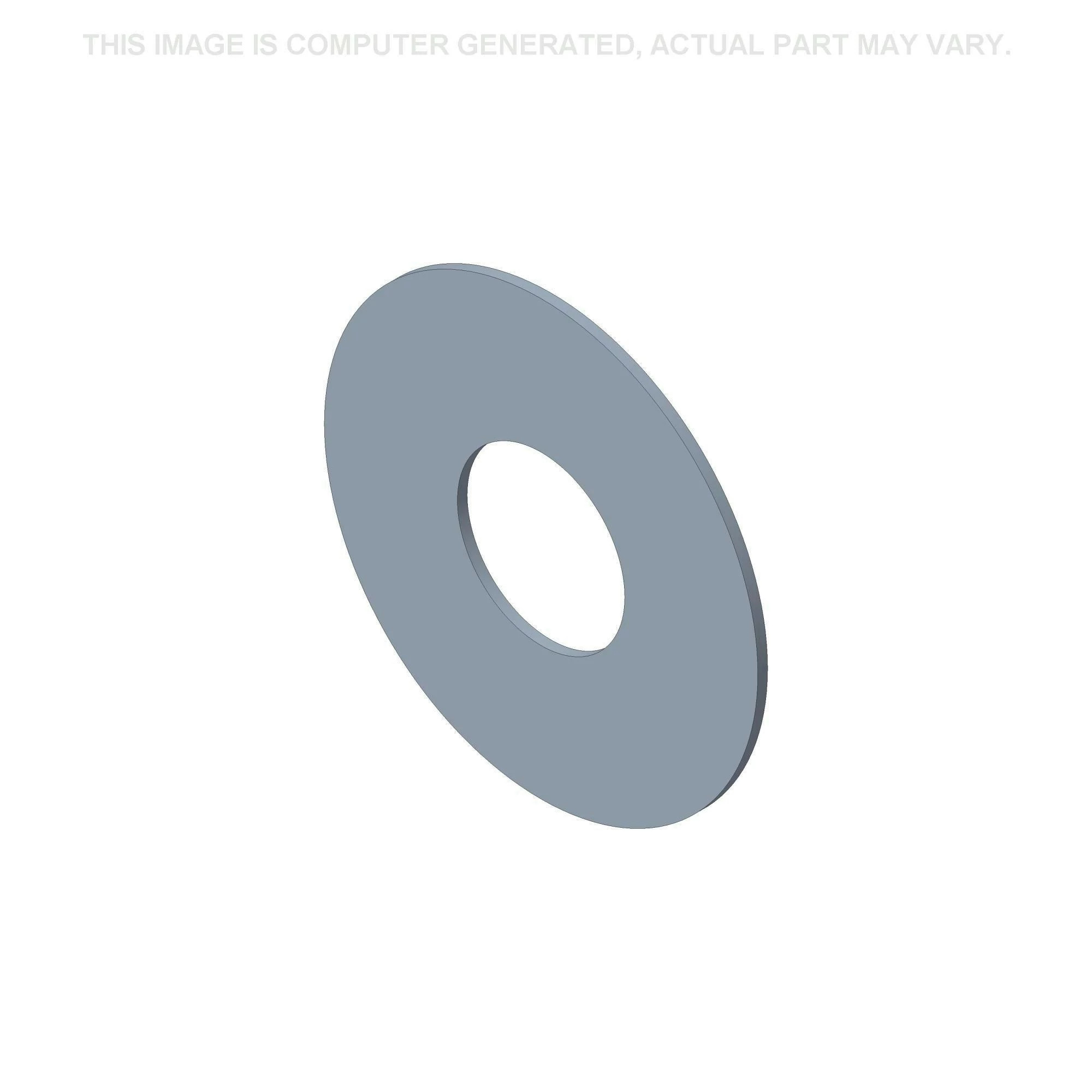

    WASHER 13.49mm ID x 34.93mm OD x 0.79mm Thk;
  • 26
    1
    84015867

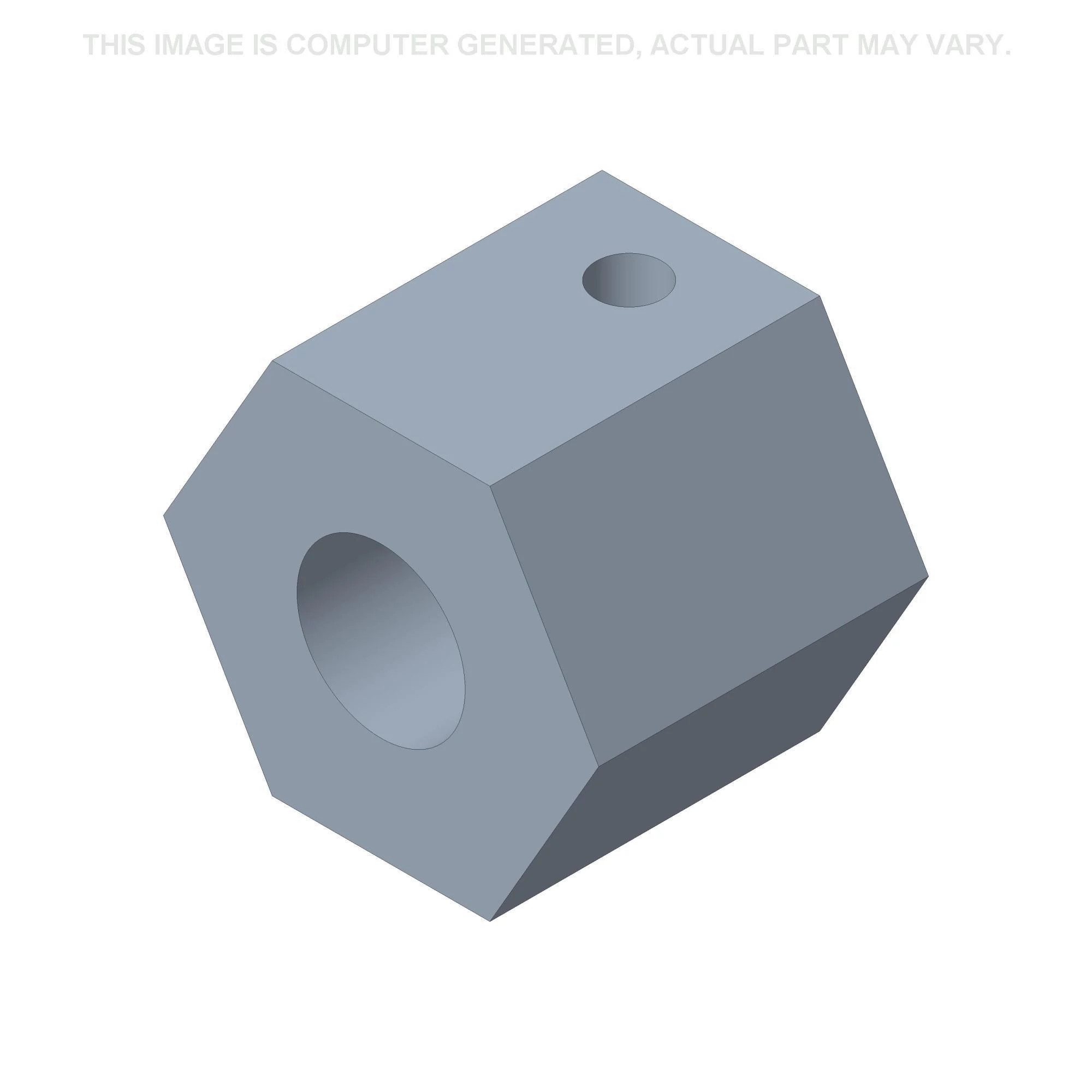

    SLEEVE;
  • 27
    1
    393871
    LOCK PIN 5mm OD x 30mm L, Slotted;
