Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
21BEARING HOUSING 66.68 mm ID x 254 mm OD x 63.5 mm; Housing, Bearing, R.H.
-
6LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
6NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11
-
3ARSHIM .010'' Thk; (.25mm) .010'' Thk
-
3ARSHIM .020'' Thk; (0.52mm) .020'' Thk
-
3ARSHIM .060'' Thk; (1.52mm) .060'' Thk
-
42ROLLER BEARING 94.98mm ID x 34mm W; Cone, Bearing
-
52BEARING CUP 150mm OD x 27mm W; Cup, Bearing
-
61BEARING ASSY 2.625'' ID x 10'' OD x 2.5937''; Housing, Bearing, L.H.;Used on & BSN 440385 (1900), 469333 (2100)
-
61PILLAR; Housing, Bearing, L.H.;Used on & ASN 440386 (1900), 469334 (2100)
-
61BEARING ASSY; Housing, Bearing, L.H., Model 2100;Used on & BSN 440385 (1900), 469333 (2100)
-
61HOUSING; Bearing, L.H., Model 2100;Used on & ASN 440386 (1900), 469334 (2100)
-
6LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
6NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11
-
7ARSHIM .003'' Thk; (.076mm) .003'' Thk
-
7ARSHIM .005'' Thk; .005'' Thk (.127mm)
-
91KNIFE HOLDER; Holder Weld Assy., Knife, Model 1900
-
1KNIFE HOLDER; Holder Weld Assy., Knife, Model 2100
-
1LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, 1/8''-27 x .66 lg
-
1LUBE NIPPLE; Fitting, Lube, 1/8'' NPT, Female
-
1012STRIP; Weld Assy., Support, Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
1012SUPPORT; Strip Weld Assy., Support, Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
1160BRACKET; Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
1172BRACKET; Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
1260SUPPORT; Knife, Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
1272SUPPORT; Knife, Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
1260SUPPORT; Knife, Model 1900;Used on Machines w/one piece Baffle (Ref. 24)
-
1272SUPPORT; Knife, Model 2100;Used on Machines w/one piece Baffle (Ref. 24)
-
120BOLT Hex, 5/8'' - 11 x 2 1/2'', Gr 5; HH, G5, 5/8''-11 x 2-1/2'', Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
144BOLT Hex, 5/8'' - 11 x 2 1/2'', Gr 5; HH, G5, 5/8''-11 x 2-1/2'', Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
120BOLT Hex, 5/8'' - 11 x 2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2'', Model 1900;Used on Machines w/one piece Baffle (Ref. 24)
-
144BOLT Hex, 5/8'' - 11 x 2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2'', Model 2100;Used on Machines w/one piece Baffle (Ref. 24)
-
120NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Model 1900
-
144NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Model 2100
-
1312KNIFE; Spiral, Double-edged, Model 1900
-
1312KNIFE; Spiral, Double-edged, Model 2100
-
60BOLT Hex, 5/8'' x 1-1/4'', Gr 8; Cap, HH, G8, 5/8''-18 x 1-1/4'', Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
72BOLT Hex, 5/8'' x 1-1/4'', Gr 8; Cap, HH, G8, 5/8''-18 x 1-1/4'', Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)
-
60BOLT Cap screw; Cap, HH, G8, 5/8''-18 x 1-1/2'', Model 1900;Used on Machines w/one piece Baffle (Ref. 24)
-
72BOLT Cap screw; Cap, HH, G8, 5/8''-18 x 1-1/2'', Model 2100;Used on Machines w/one piece Baffle (Ref. 24)
-
60WASHER 16.9mm ID x 38.55mm OD x 4mm Thk; Special, Model 1900
-
72WASHER 16.9mm ID x 38.55mm OD x 4mm Thk; Special, Model 2100
-
141SHEAR BAR; Bar, Shear, Model 1900
-
141SHEAR BAR; Bar, Shear, Replaces 635146 & 774725, Model 2100
-
152WASHER 16.5mm ID x 49mm OD x 6mm Thk;
-
162BOLT Hex, 5/8'' - 11 x 2 1/2'', Gr 5; HH, G5, 5/8''-11 x 2-1/2''
-
2LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
172WASHER 20.62mm ID x 34.92mm OD x 8mm Thk; Special
-
182NUT; Adjuster
-
192WASHER 19.46mm ID x 35.05mm OD x 3.43mm Thk;
-
202BOLT Hex, 3/4'' - 16 x 4'', Gr 8; Screw, Cap, HH, G8, 3/4''-16 x 4''
-
2LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''
-
211SUPPORT; Shear Bar, Model 1900
-
211SUPPORT; Shear Bar, Model 2100
-
1BOLT Hex, 5/8'' - 11 x 1 1/4'', Gr 5, Full Thd;
-
2BOLT Hex, 5/8'' - 11 x 1-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-3/4''
-
4BOLT Hex, 5/8'' - 11 x 3 3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 3-3/4''
-
7LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
222SPACER;
-
23ARSHIM .015'' Thk; (0.38 mm) .015'' Thk
-
23ARSHIM .024'' Thk;
-
2412BAFFLE; Model 1900;Used on Machines w/one piece Baffle (Ref. 24)
-
2412BAFFLE; Model 2100;Used on Machines w/one piece Baffle (Ref. 24)
-
251SPACER; Model 1900;Used on & ASN 440434 (1900)
Select All
Ref.
2Qty
1Availability
Part #
572463Description
BEARING HOUSING 66.68 mm ID x 254 mm OD x 63.5 mm; Housing, Bearing, R.H.Img
Alts
Ref.
Qty
6Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Ref.
4Qty
2Availability
Part #
572266Description
ROLLER BEARING 94.98mm ID x 34mm W; Cone, BearingImg
Alts
Ref.
5Qty
2Availability
Part #
572265Description
BEARING CUP 150mm OD x 27mm W; Cup, BearingImg
Alts
Ref.
6Qty
1Availability
Part #
711855Description
BEARING ASSY 2.625'' ID x 10'' OD x 2.5937''; Housing, Bearing, L.H.;Used on & BSN 440385 (1900), 469333 (2100)Img
Alts
Ref.
6Qty
1Availability
Part #
612535Description
PILLAR; Housing, Bearing, L.H.;Used on & ASN 440386 (1900), 469334 (2100)Img
Alts
Ref.
6Qty
1Availability
Part #
711857Description
BEARING ASSY; Housing, Bearing, L.H., Model 2100;Used on & BSN 440385 (1900), 469333 (2100)Img
Alts
Ref.
6Qty
1Availability
Part #
642571Description
HOUSING; Bearing, L.H., Model 2100;Used on & ASN 440386 (1900), 469334 (2100)Img
Alts
Ref.
Qty
6Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Ref.
9Qty
1Availability
Part #
9616026Description
KNIFE HOLDER; Holder Weld Assy., Knife, Model 1900Img
Alts
Ref.
Qty
1Availability
Part #
9616071Description
KNIFE HOLDER; Holder Weld Assy., Knife, Model 2100Img
Alts
Ref.
Qty
1Availability
Part #
80710Description
LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, 1/8''-27 x .66 lgImg
Alts
Ref.
Qty
1Availability
Part #
86050275Description
LUBE NIPPLE; Fitting, Lube, 1/8'' NPT, FemaleImg
Alts
Ref.
10Qty
12Availability
Part #
621567Description
STRIP; Weld Assy., Support, Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
10Qty
12Availability
Part #
621549Description
SUPPORT; Strip Weld Assy., Support, Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
11Qty
60Availability
Part #
617554Description
BRACKET; Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
11Qty
72Availability
Part #
617554Description
BRACKET; Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
12Qty
60Availability
Part #
704581Description
SUPPORT; Knife, Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
12Qty
72Availability
Part #
704581Description
SUPPORT; Knife, Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
12Qty
60Availability
Part #
642427Description
SUPPORT; Knife, Model 1900;Used on Machines w/one piece Baffle (Ref. 24)Img
Alts
Ref.
12Qty
72Availability
Part #
642427Description
SUPPORT; Knife, Model 2100;Used on Machines w/one piece Baffle (Ref. 24)Img
Alts
Ref.
Qty
120Availability
Part #
87630Description
BOLT Hex, 5/8'' - 11 x 2 1/2'', Gr 5; HH, G5, 5/8''-11 x 2-1/2'', Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
Qty
144Availability
Part #
87630Description
BOLT Hex, 5/8'' - 11 x 2 1/2'', Gr 5; HH, G5, 5/8''-11 x 2-1/2'', Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
Qty
120Availability
Part #
86505999Description
BOLT Hex, 5/8'' - 11 x 2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2'', Model 1900;Used on Machines w/one piece Baffle (Ref. 24)Img
Alts
Ref.
Qty
144Availability
Part #
86505999Description
BOLT Hex, 5/8'' - 11 x 2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2'', Model 2100;Used on Machines w/one piece Baffle (Ref. 24)Img
Alts
Ref.
Qty
120Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Model 1900Img
Alts
Ref.
Qty
144Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Model 2100Img
Alts
Ref.
13Qty
12Availability
Part #
770254Description
KNIFE; Spiral, Double-edged, Model 1900Img
Alts
Ref.
13Qty
12Availability
Part #
770255Description
KNIFE; Spiral, Double-edged, Model 2100Img
Alts
Ref.
Qty
60Availability
Part #
86246Description
BOLT Hex, 5/8'' x 1-1/4'', Gr 8; Cap, HH, G8, 5/8''-18 x 1-1/4'', Model 1900;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
Qty
72Availability
Part #
86246Description
BOLT Hex, 5/8'' x 1-1/4'', Gr 8; Cap, HH, G8, 5/8''-18 x 1-1/4'', Model 2100;Used on Machines w/two piece Support & Bracket (Ref. 10 & 11)Img
Alts
Ref.
Qty
60Availability
Part #
280732Description
BOLT Cap screw; Cap, HH, G8, 5/8''-18 x 1-1/2'', Model 1900;Used on Machines w/one piece Baffle (Ref. 24)Img
Alts
Ref.
Qty
72Availability
Part #
280732Description
BOLT Cap screw; Cap, HH, G8, 5/8''-18 x 1-1/2'', Model 2100;Used on Machines w/one piece Baffle (Ref. 24)Img
Alts
Ref.
Qty
60Availability
Part #
64053Description
WASHER 16.9mm ID x 38.55mm OD x 4mm Thk; Special, Model 1900Img
Alts
Ref.
Qty
72Availability
Part #
64053Description
WASHER 16.9mm ID x 38.55mm OD x 4mm Thk; Special, Model 2100Img
Alts
Ref.
14Qty
1Availability
Part #
86607736Description
SHEAR BAR; Bar, Shear, Replaces 635146 & 774725, Model 2100Img
Alts
Ref.
16Qty
2Availability
Part #
87630Description
BOLT Hex, 5/8'' - 11 x 2 1/2'', Gr 5; HH, G5, 5/8''-11 x 2-1/2''Img
Alts
Ref.
Qty
2Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Ref.
17Qty
2Availability
Part #
9616873Description
WASHER 20.62mm ID x 34.92mm OD x 8mm Thk; SpecialImg
Alts
Ref.
19Qty
2Availability
Part #
86512328Description
WASHER 19.46mm ID x 35.05mm OD x 3.43mm Thk;Img
Alts
Ref.
20Qty
2Availability
Part #
88736Description
BOLT Hex, 3/4'' - 16 x 4'', Gr 8; Screw, Cap, HH, G8, 3/4''-16 x 4''Img
Alts
Ref.
Qty
2Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''Img
Alts
Ref.
Qty
1Availability
Part #
280319Description
BOLT Hex, 5/8'' - 11 x 1 1/4'', Gr 5, Full Thd;Img
Alts
Ref.
Qty
2Availability
Part #
9627896Description
BOLT Hex, 5/8'' - 11 x 1-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-3/4''Img
Alts
Ref.
Qty
4Availability
Part #
16445Description
BOLT Hex, 5/8'' - 11 x 3 3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 3-3/4''Img
Alts
Ref.
Qty
7Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Ref.
23Qty
ARAvailability
Part #
163962Description
SHIM .015'' Thk; (0.38 mm) .015'' ThkImg
Alts
Ref.
24Qty
12Availability
Part #
86503030Description

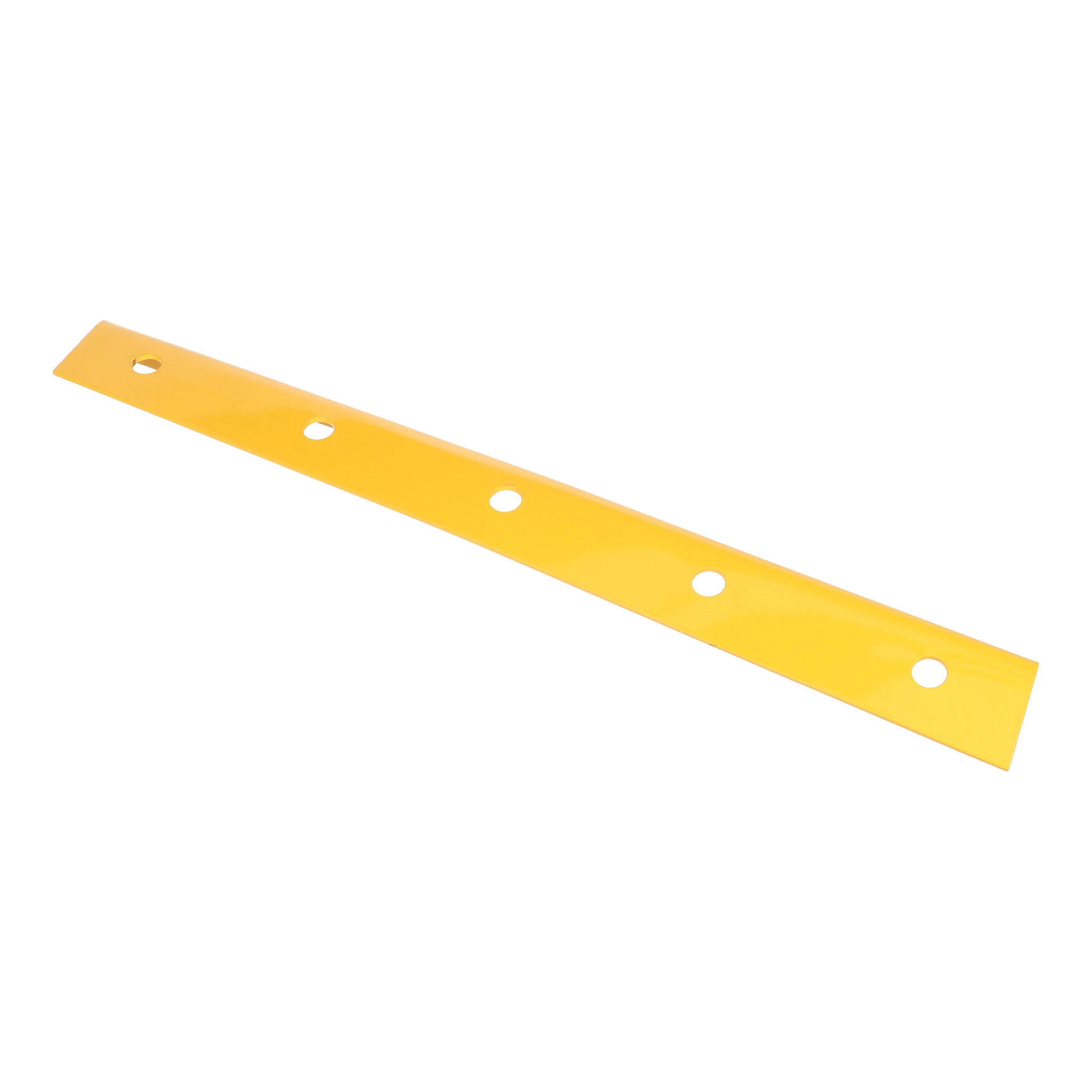

BAFFLE; Model 1900;Used on Machines w/one piece Baffle (Ref. 24)Img
Alts
Ref.
24Qty
12Availability
Part #
86503031Description
BAFFLE; Model 2100;Used on Machines w/one piece Baffle (Ref. 24)Img
Alts
Ref.
25Qty
1Availability
Part #
792550Description
SPACER; Model 1900;Used on & ASN 440434 (1900)Img
Alts
