35.100.02 - TRANSPORT HYDRAULICS 38-1/2 THROUGH 50-1/2 MODELS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    87423768
    HYDRAULIC CYLINDER Double Acting, 31.75mm Rod, 203.2mm Stroke; 3 x 8, Rephase;38-1/2 To 48-1/2 Models
  • 1
    2
    87423766
    CYLINDER Double Acting, 34.92mm Rod, 203.2mm Stroke; 3-3/4'' x 8;Used On 50-1/2 Foot Units Only
  • 2
    2
    87423770
    HYDRAULIC CYLINDER Double Acting, 31.75mm Rod, 203.2mm Stroke; 3-1/4'' x 8, Rephase;38-1/2 To 50-1/2 Models
  • 3
    2
    87423771
    CYLINDER ASSY. Double Acting, 31.75mm Rod, 203.2mm Stroke; 3-1/2'' x 8, Rephase, Monarch
  • 3
    2
    84255910

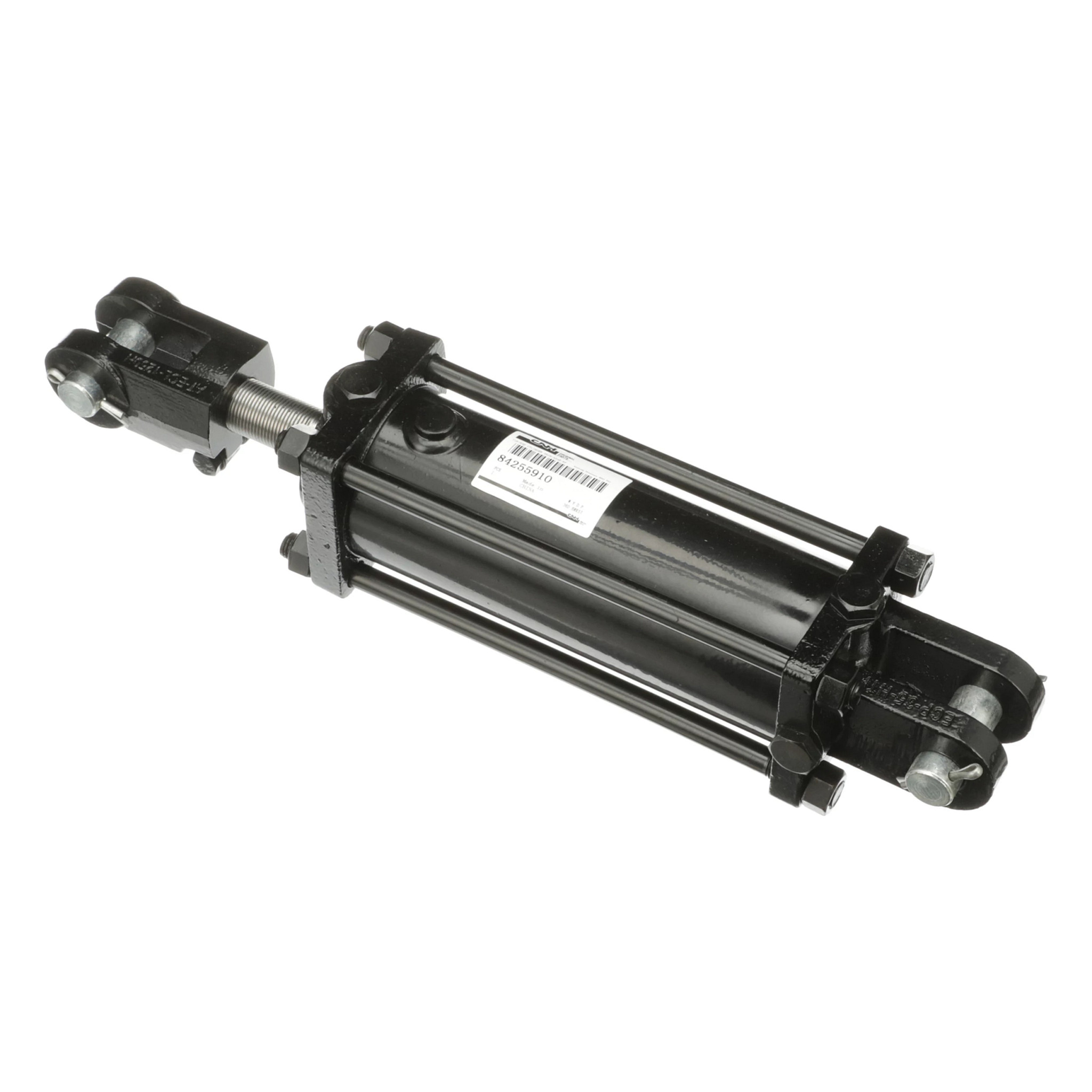

    HYDRAULIC CYLINDER Double Acting, 31.75mm Rod, 203.2mm Stroke; Replaces 87423771 - Eagle
  • 4
    1
    25600758
    HYDRAULIC HOSE 0.38'' ID x 39.00'', SAE 100R17; 38' To 44' Models
  • 4
    1
    25600614
    HYDRAULIC HOSE 0.38'' ID x 36.00'', SAE 100R17; 48' To 50' Models
  • 5
    1
    25600761
    HYDRAULIC HOSE; 3/8'' x 218'', 38 To 40 Models
  • 5
    1
    25600756
    HYDRAULIC HOSE 0.38'' ID x 242.00'', SAE 100R17; 42' To 46' Models
  • 6
    2
    25600711
    HYDRAULIC HOSE 9.65mm ID x 2362.2mm L, SAE 100R17; 38' to 46' Models
  • 6
    2
    25600727
    HYDRAULIC HOSE 0.38'' ID x 116.50'', SAE 100R17; 48' To 50' Models
  • 7
    1
    25600653
    HYDRAULIC HOSE 0.38'' ID x 294.00'', SAE 100R17; 38' to 40' Models
  • 7
    1
    25600737
    HYDRAULIC HOSE 0.38'' ID x 300.00'', SAE 100R17; 42' To 46' Models
  • 7
    1
    25600725
    HYDRAULIC HOSE 0.38'' ID x 335.00'', SAE 100R17; 48' To 50' Models
  • 8
    2
    25600734
    HYDRAULIC HOSE 0.38'' ID x 124.50'', SAE 100R17; 38' To 40' Models
  • 8
    2
    25600716
    HYDRAULIC HOSE 0.38'' ID x 139.50'', SAE 100R17; 42' to 46' Models
  • 8
    2
    25600814
    HYDRAULIC HOSE; 3/8'' x 148'', 48' To 50' Models
  • 9
    1
    25600720
    HYDRAULIC HOSE 0.38'' ID x 90.00'', SAE 100R17; 38' To 44' Models
  • 9
    1
    25600691
    HYDRAULIC HOSE 9.65mm ID x 2514.6mm L, SAE 100R17; 46' to 50' Models
  • 10
    12
    218-5106
    90 ELBOW 90 Degree Elbow, 3/4'' - 16 Male JIC x 3/4'' - 16 Male ORB; JICM x SAEM
  • 11
    2
    218-594
    TEE 3/4''-16, 37 Degree; JICM
  • 12
    1
    87404919
    STOP; 12, Transport
  • 14A
    2
    14891623
    SPECIAL PIN; 1'' x 5.30'' (12' Mainframe Only)
  • 14B
    6
    14891630
    SPECIAL PIN 25.4mm OD x 162.05mm L; 1'' x 6.30'' (14' Mainframe And Wings)
  • 16
    6
    413-840
    BOLT Hex, 1/2'' - 13 x 2-1/2'', Gr 5; NC
  • 18
    6
    86992213
    NUT; 3/8'', NC, Stover
  • 19
    2
    83918746
    WASHER 0.34'' ID x 0.69'' OD x 0.07'' Thk; 5/16'' x 0.065 (Not Shown)
  • 20
    1
    14810251
    HEADED PIN 15.88mm OD x 96.77mm L; 5/8'' x 3-1/4''
  • 21
    1
    14720411
    COTTER PIN; PIN, COTTER 1/8'' x 2, Hair
