9-52 - TRASH PLATES AND BRACKETS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    X
    464719R2
    PLATE; PLATE, steel, right hand
  • 1
    X
    476811R1
    PLATE; plastic, right hand
  • 1
    X
    467817R2
    PLATE; PLATE, steel, left hand, not illustrated
  • 1
    X
    483682R1
    PLATE; plastic, left hand, not illustrated
  • 2
    X
    484688R1
    BRACKET; right hand
  • 2
    X
    484687R1
    SUPPORT ASSY.; BRACKET, left hand, not illustrated
  • 3
    X
    1985992C1
    SUPPORT; BRACKET, special, right hand, see note
  • 3
    X
    1985991C1
    SUPPORT; BRACKET, special, left hand, see note, not illustrated
  • 4
    1
    542147R1
    SUPPORT; BRACKET, right hand, (HSCS slat bottoms)
  • 5
    2
    418-3624
    CARRIAGE BOLT #3, 3/8'' - 16 x 1 1/2'', Gr 2; BOLT, plow, 3/8 x 1-1/2
  • 6
    2
    495-81135
    WASHER 10.31mm ID x 25.4mm OD x 3.4mm Thk; 13/32 x 1 x 7/64''
  • 7
    2
    495-81009
    WASHER .469'' x 1'' x .120''; 15/32 x 1 x 1/8
  • 8
    2
    425-106
    NUT 3/8''-16, Cl 5;
  • 9
    X
    1986315C1
    PLATE; KIT, trash plate, (HSES bottoms), consists of 10 - 13
  • 10
    1
    1986316C1
    PLATE; PLATE
  • 11
    1
    1986317C1
    SUPPORT; BRACKET
  • 12
    2
    1995841C1

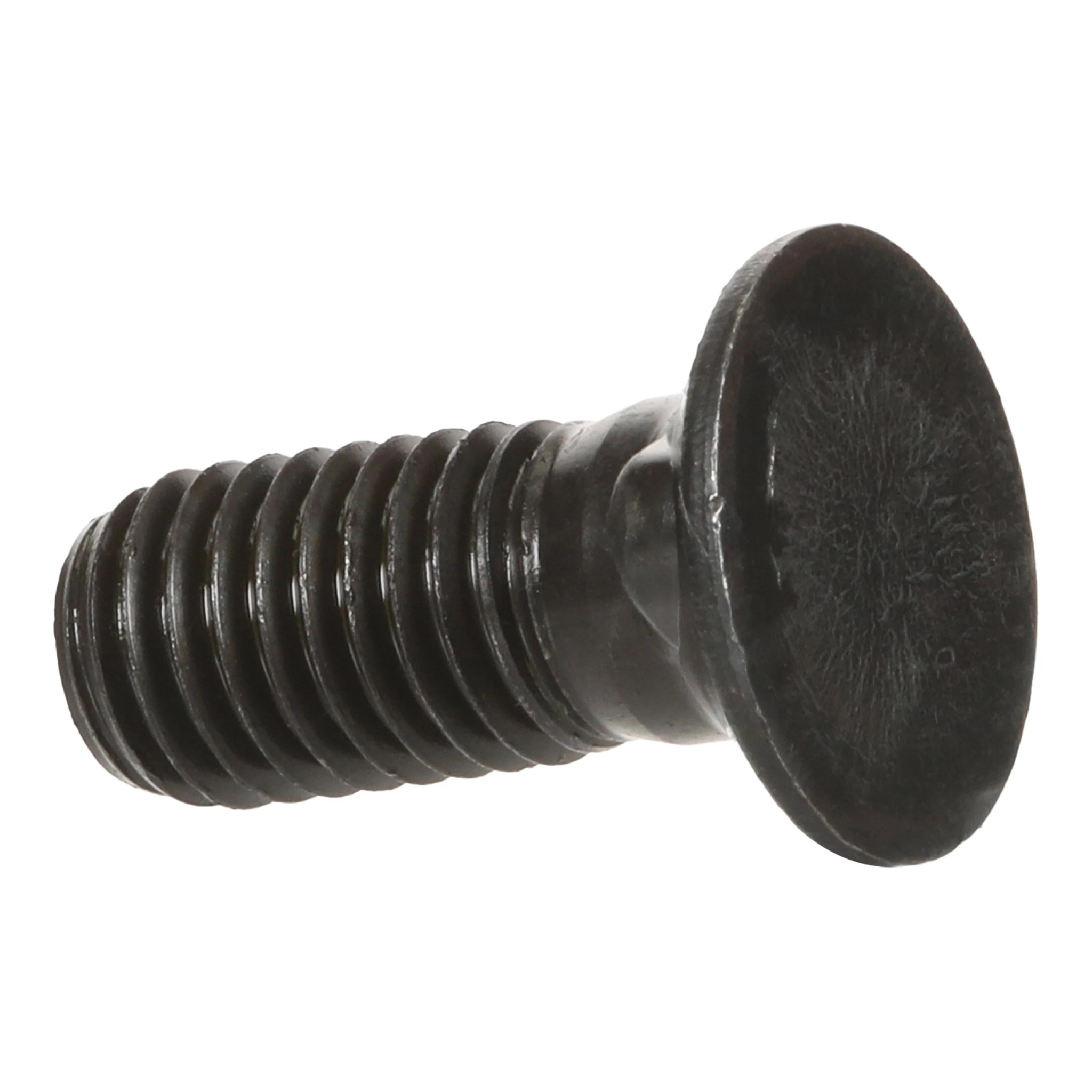

    PLOW BOLT Plow, M12 x 30mm, Cl 10.9; BOLT, special, M12 x 32
  • 13
    2
    829-1412
    NUT M12 x 1.75, Cl 10.9;
