C-06 - CARBURETED ENGINES, CONNECTING RODS AND SLEEVE SETS, C-263 ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    6
    389747R1
    RING; compression piston, top or first groove
  • 2
    6
    389751R1
    RING; compression piston, second groove
  • 5
    12
    19517D
    SPECIAL RING; RING, piston pin retainer
  • 6
    6
    278271R1
    PISTON PIN; PIN, piston
  • 6
    6
    278326R1
    PIN; piston, .005 oversize
  • 7
    6
    NSS
    NOT SOLD SEPARAT; SLEEVE, cylinder, order sleeve, piston & rings assy, for proper fuel & altitude
  • 8
    6
    NSS
    NOT SOLD SEPARAT; PISTON, order sleeve, piston & rings assy, for proper fuel and altitude
  • 9
    1
    378603R95
    PISTON ASSY.; SLEEVE SET, crankcase, consists of six sleeves, 378604R95, gasoline std altitude
  • 9
    1
    380648R95
    PISTON ASSY.; SLEEVE SET, crankcase, consists of six sleeves, 380649R95, gasoline high altitude, or LP gas
  • 9
    6
    378604R95
    PISTON ASSY.; SLEEVE ASSY, cylinder, gasoline std altitude, composed of (1) pin 278271R1, (1) piston 378605R5 (NSS), (2) ring 19517D, (1) ring 389747R1, (1) ring 389751R1, (1) ring 388355R91, (1) sleeve 367645R1 (NSS)
  • 9
    6
    380649R95
    SLEEVE; ASSY, cylinder, gasoline high altitude or LP gas, composed of (1) pin 278271R1, (1) piston 379846R5 (NSS), (2) ring 19517D, (1) ring 389747R1, (1) ring 389751R1, (1) ring 388355R91, (1) sleeve 367645R1 (NSS)
  • 10
    6
    364913R1
    BUSHING 21.84mm ID x 23.66mm OD x 33.2mm L; piston pin
  • 11
    6
    367408R11
    BEARING ASSY 60.84mm ID x 64.01mm OD x 25.48mm W; BEARING ASSY, connecting rod, 2 halves, std.
  • 11
    6
    367632R11
    BEARING ASSY; BEARING ASSY, connecting rod, 2 halves, .002 U/S
  • 11
    6
    376666R11
    BEARING ASSY; ASSY, connecting rod, 2 halves, .010 U/S
  • 11
    6
    376668R11
    CONN. ROD SHELL; BEARING ASSY, connecting rod, 2 halves, .020 U/S
  • 11
    6
    367631R11
    BEARING ASSY; ASSY, connecting rod, 2 halves, .030 U/S
  • 11
    1
    377285R91
    KIT; BEARING SET, connecting rod, .002 U/S, consists of six bearings, 367632R11
  • 11
    1
    376665R91
    BEARING; SET, connecting rod, .010 U/S, consists of six bearings, 376666R11
  • 11
    1
    376667R91
    KIT; BEARING SET, connecting rod, .020 U/S, consists of six bearings, 376668R11
  • 11
    1
    372443R91
    KIT; BEARING SET, connecting rod, .030 U/S, consists of six bearings, 367631R11
  • 12
    6
    367406R21
    ROD; W/TWO BOLTS, 316366R1 and bushing, 364913R1, connecting

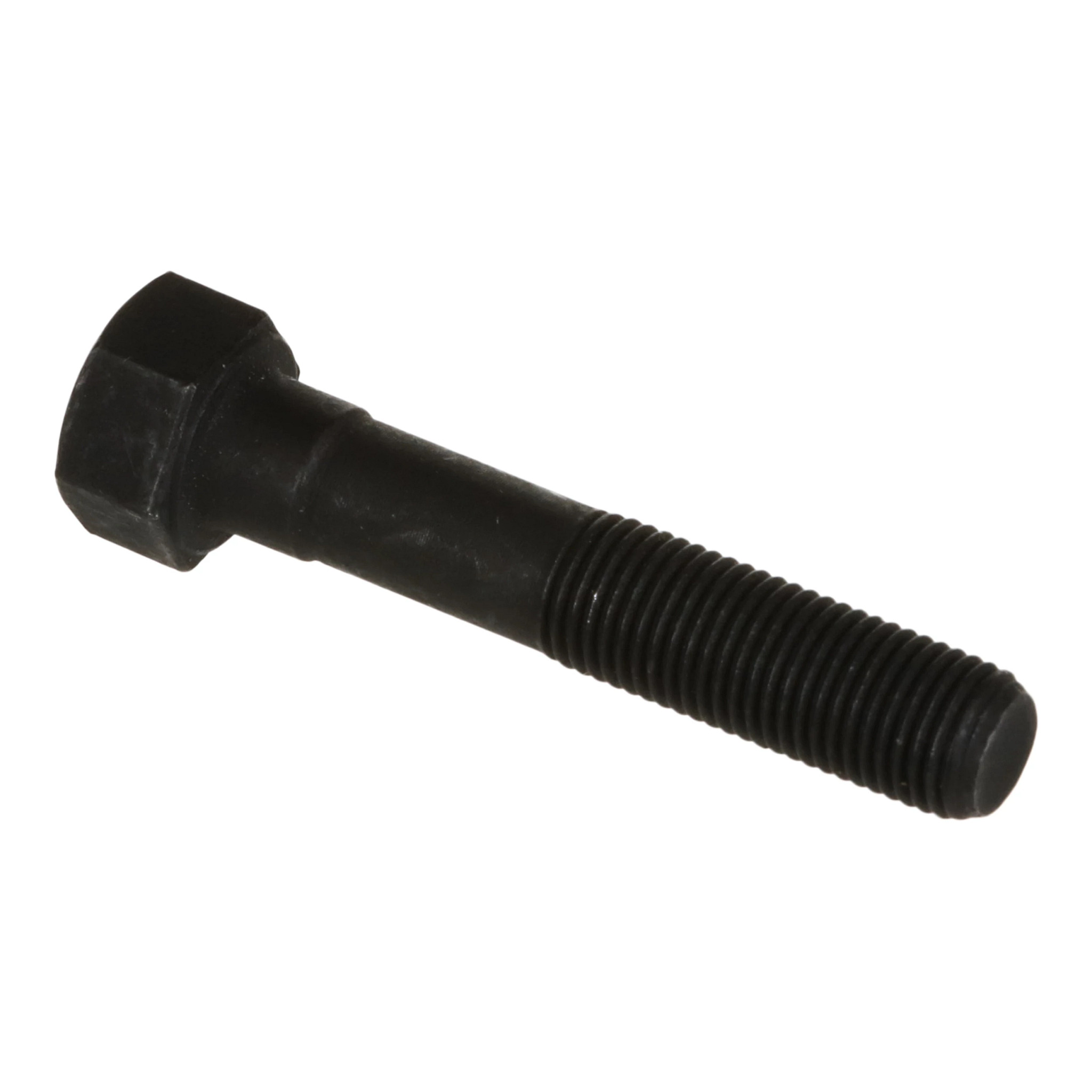

  • 13
    12
    316366R1
    BOLT 3/8'' - 24 x 2''; connecting rod
