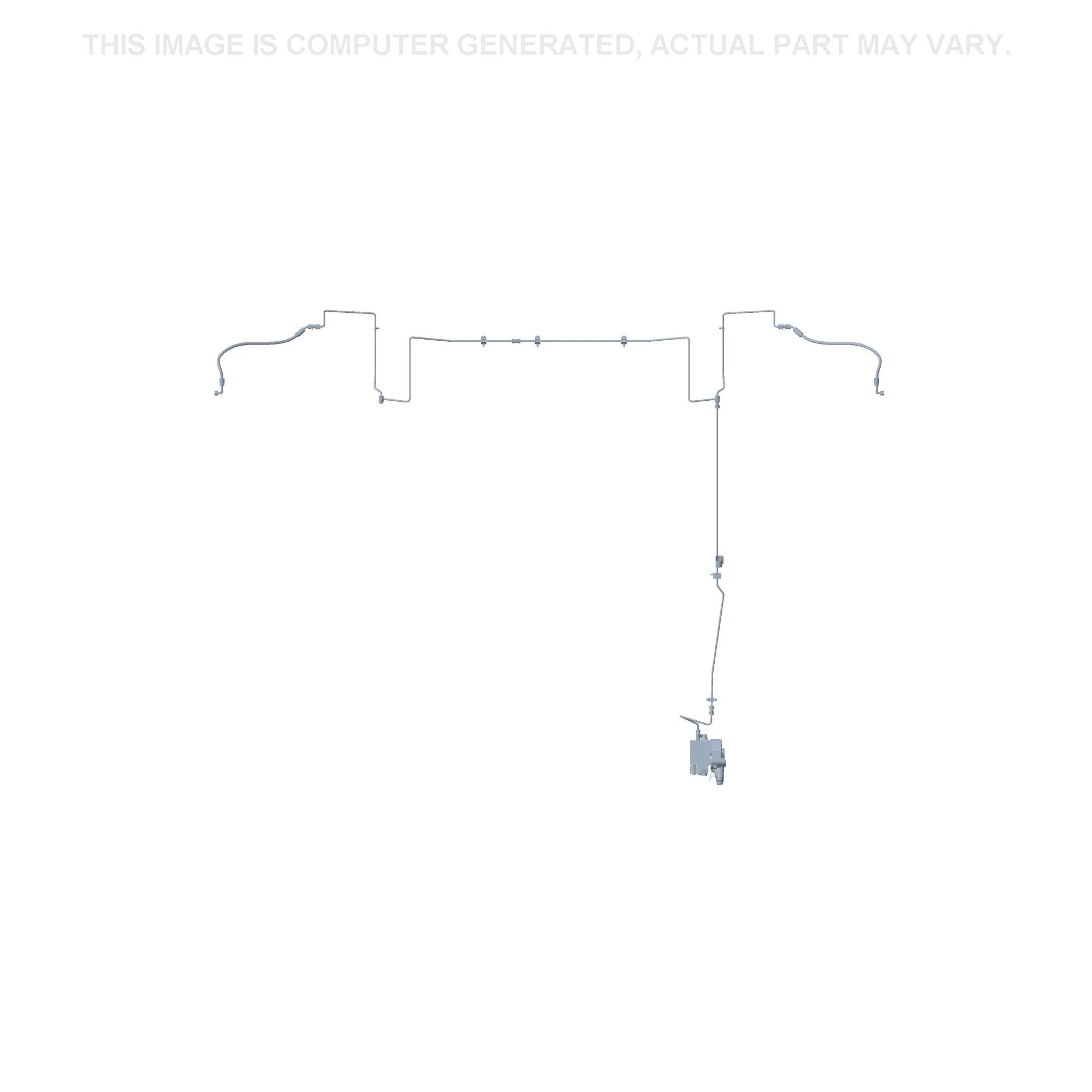

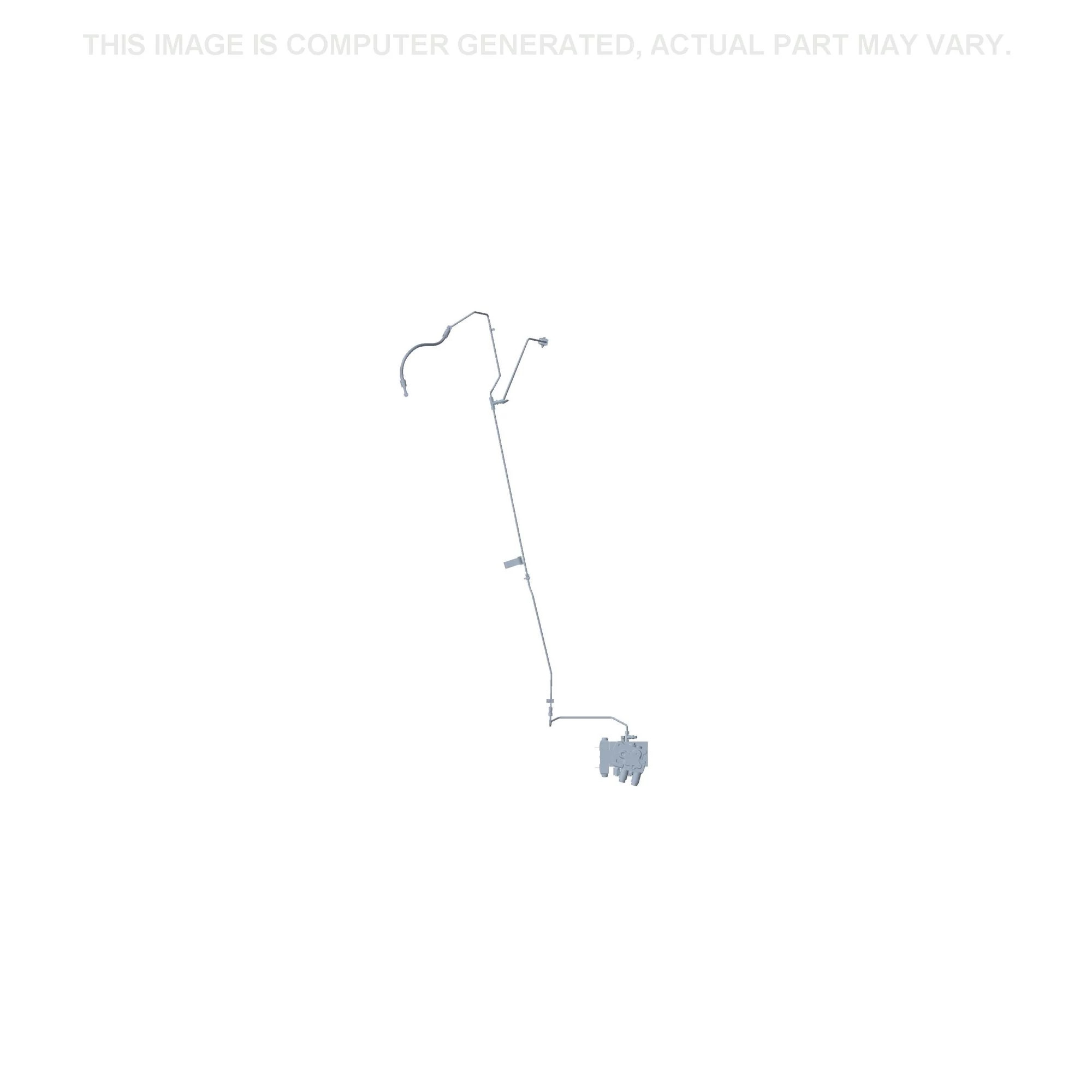

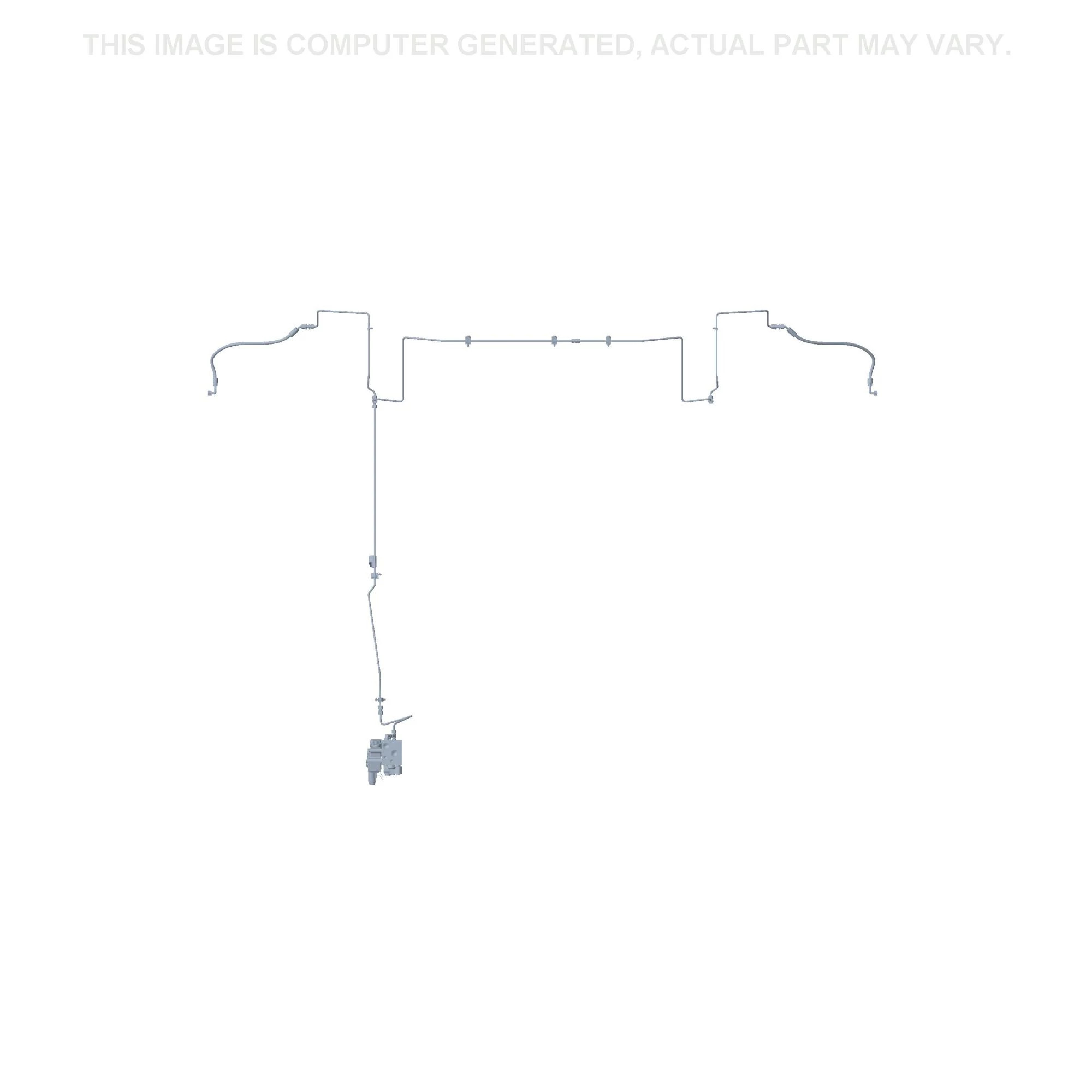

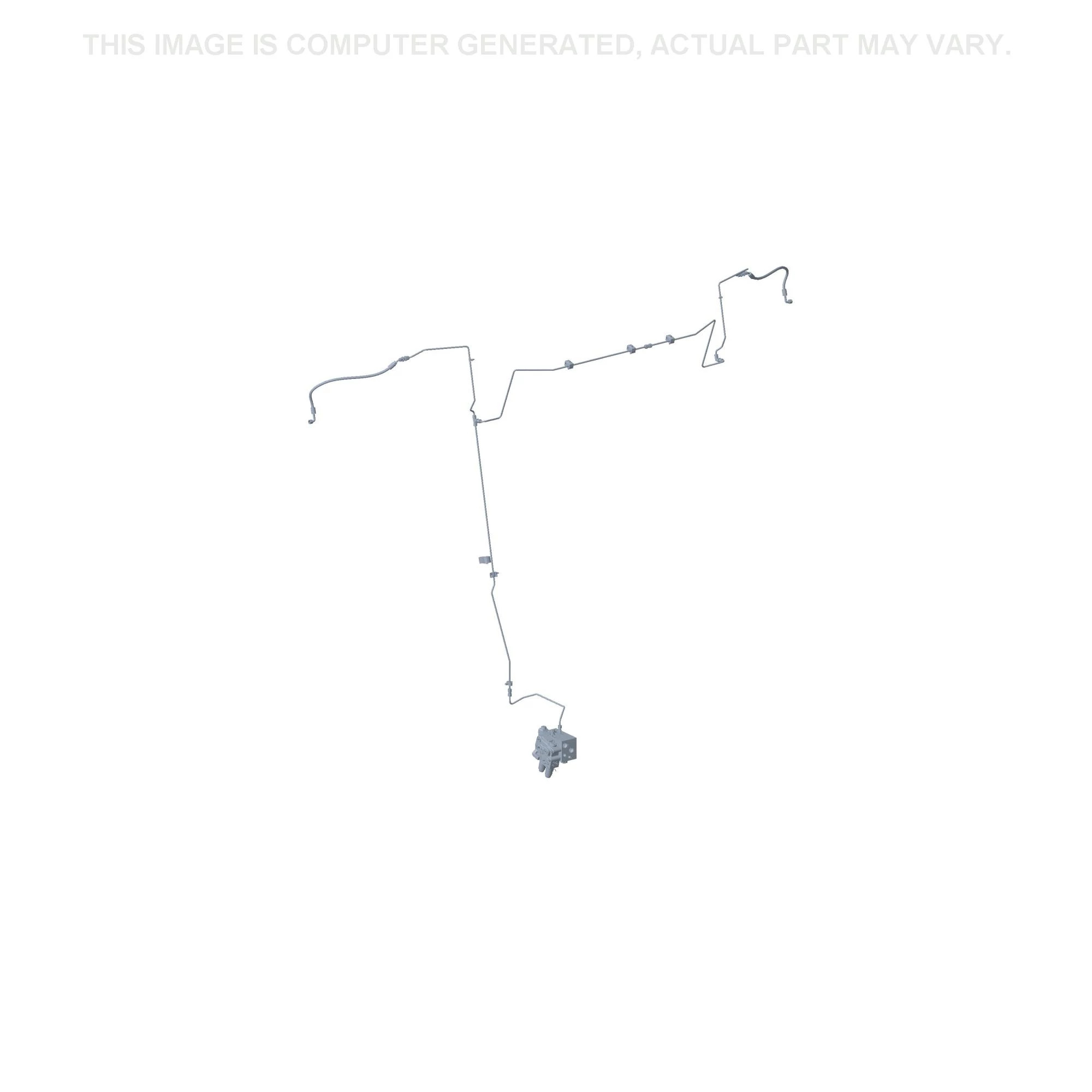

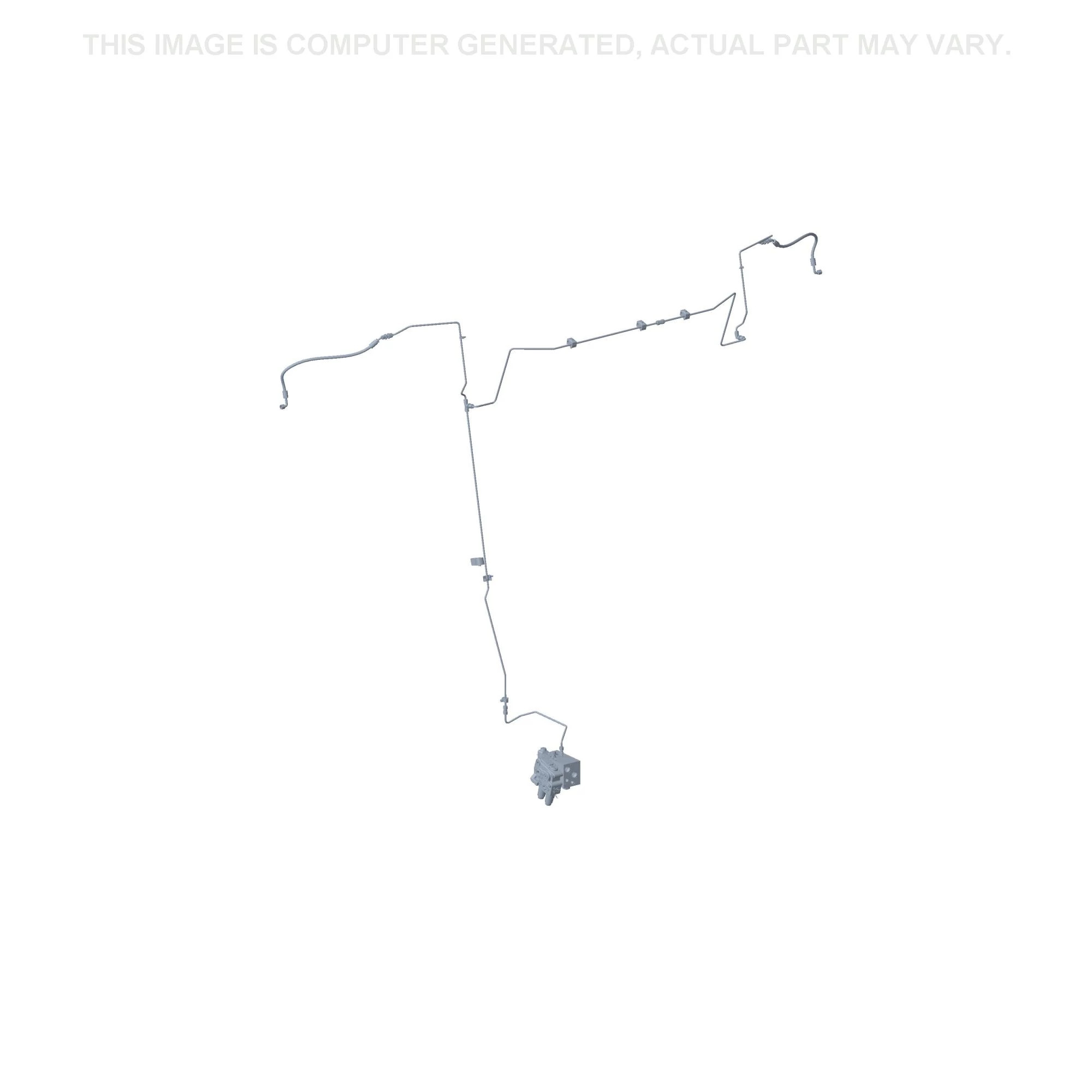

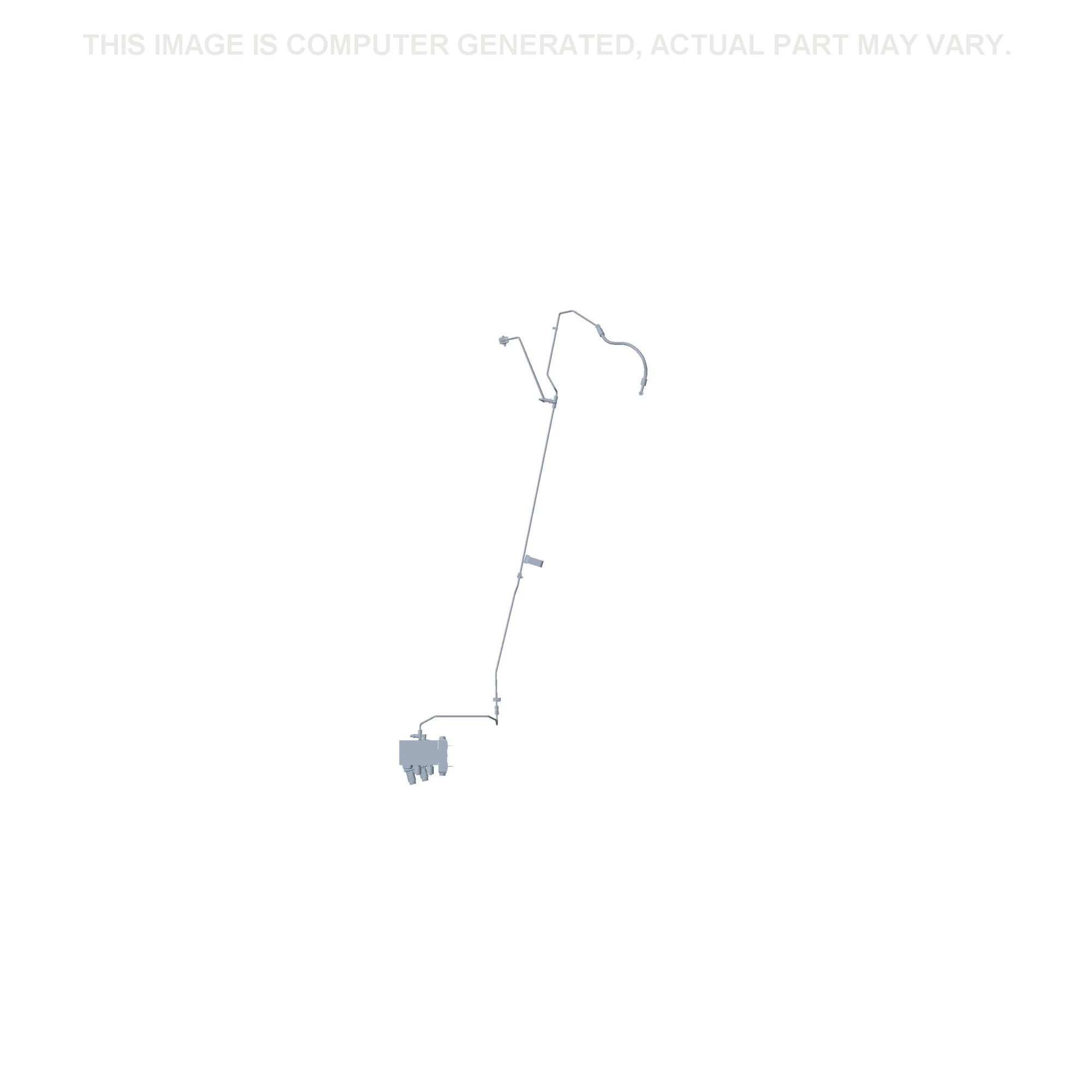

87748777 - TUBAGEM HIDRÁULICO - STEYR

Name: HYD TUBE
Brand: Case CE
SKU: 87748777
Availability: InStock

Part # 87748777

Check if this Part Fits Your Equipment

410, 360 mm L

Package Weight:

9.068 kg

Package Length:

1843 mm

Package Width:

90 mm

Package Height:

612 mm

Package Quantity

This Kit includes the following parts:

Part Number

Description

Quantity

16044321

BOLT

3
236558A1

CLAMP

1
120100

Hex Bolt - Full Thread - M6 x 20 mm L

1
773187

Cover Plate

6
86507066

M8 Flange Nut

1
9804256

Hex Flange Bolt - Cl 8.8 - Full Thread - M6 x 1 x 20

2
353308

Controdado esagonale - M6 x 1

4
86629542

Controdado esagonale - Cl 8,8 - M8 x 1,25

3
86978770

RACCORDO

2
87000159

MORSETTO

3
87010704

DADO, BLOCCAGGIO BHD

4
84431546

RACCORDO

2
87108048

CINDHIA DI FISSAGGIO

1
84149652

TUBO IDRAULICO

2
87306678

PEZZO A T

1
87317453

GOMITO

1
87317695

BULLONE

1
87698763

BULLONE FLANGIATO

1
87331950

CAP ASSY.

2
76034620

ZŁĄCZKA HYDRAULICZNA

1
76085022

ZŁĄCZKA

1
86050346

ZACISK

2

This Kit includes the following parts:
