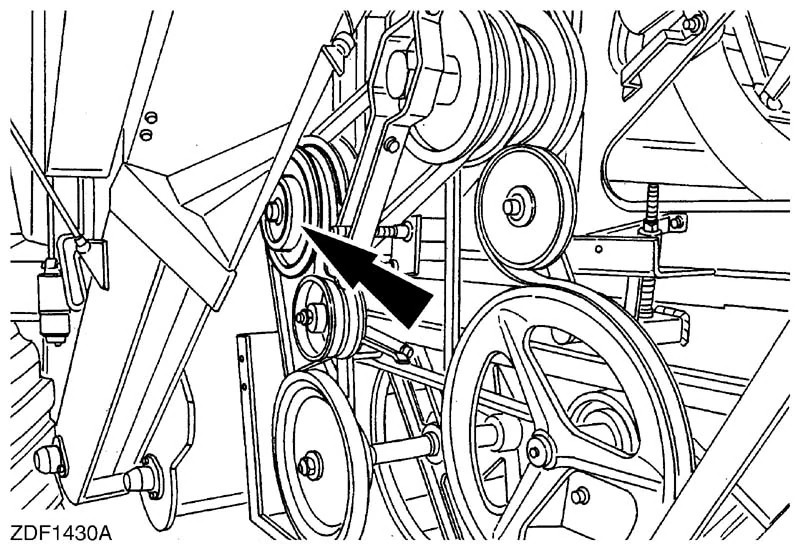

51605173 - Variator-Satz für niedrige Drehzahlen - CASE IH

This Kit includes the following parts:

• Part Number
  140020
  Description
  UNTERLEGSCHEIBE.
  Quantity
  2
• Part Number
  140048
  Description
  Tellerfeder - 32 mm AD x 2,8 mm Dicke.
  Quantity
  4
• Part Number
  140045
  Description
  Tellersicherungsscheibe – 10 mm ID x 22 mm AD x 1,6 mm Dicke.
  Quantity
  6
• Part Number
  140046
  Description
  Tellerfeder - 27 mm AD x 1,8 mm Dicke.
  Quantity
  5
• Part Number
  16043624
  Description
  SCHRAUBE.
  Quantity
  3
• Part Number
  100020
  Description
  Dado esagonale - Cl 8 - M16 x 2.
  Quantity
  4
• Part Number
  100016
  Description
  Dado esagonale - M10 x 1,5.
  Quantity
  3
• Part Number
  100037
  Description
  Controdado - Classe 8 - M10 x 1,5.
  Quantity
  1
• Part Number
  100085
  Description
  DADO.
  Quantity
  1
• Part Number
  110055
  Description
  PRIGIONIERO.
  Quantity
  3
• Part Number
  120068
  Description
  Bullone esagonale - Cl 8,8 - M10 x 1,5 x 40.
  Quantity
  2
• Part Number
  300389
  Description
  Bullone esagonale - Cl 8,8 - filettatura completa.
  Quantity
  4
• Part Number
  300388
  Description
  Bullone esagonale - M12 x 1,75 x 25 mm L.
  Quantity
  1
• Part Number
  300649
  Description
  SICHERUNGSRING.
  Quantity
  2
• Part Number
  301652
  Description
  Interner Schnappring - M110 x 4 mm.
  Quantity
  1
• Part Number
  86508568
  Description
  Sechskantschraube - Klasse 8.8 - M6 x 1 x 16.
  Quantity
  3
• Part Number
  9706685
  Description
  Sechskantmutter - 12 mm D.
  Quantity
  4
• Part Number
  9706704
  Description
  Sechskantschraube - Cl 8.8 - Vollgewinde - M10 x 1,5 x 35.
  Quantity
  2
• Part Number
  322357
  Description
  Tellerfeder - 14 mm AD x 1,3 mm Dicke.
  Quantity
  3
• Part Number
  322358
  Description
  Belleville Lock Washer - M8 Bolt Size x 18mm OD x 1.4mm Thick.
  Quantity
  3
• Part Number
  323713
  Description
  90° Lube Nipple - M6 x 1 x 18.
  Quantity
  1
• Part Number
  334054
  Description
  SPRING.
  Quantity
  1
• Part Number
  86592703
  Description
  Rondelle - Acier trempé - 21 mm (DI) x 50 mm (DE) x 6 mm d'ép..
  Quantity
  1
• Part Number
  370008
  Description
  Circlip externe - 46,19 mm DI x 2 mm d'ép..
  Quantity
  1
• Part Number
  374889
  Description
  VIS.
  Quantity
  1
• Part Number
  378244
  Description
  RONDELLE.
  Quantity
  4
• Part Number
  378245
  Description
  Rondelle - 13 mm (DI) x 28,5 mm (DE) x 2,7 mm d'épaisseur.
  Quantity
  1
• Part Number
  395606
  Description
  Rondelle.
  Quantity
  1
• Part Number
  84441735
  Description
  Demi-poulie - Moissonneuse-batteuse de récoltes agricoles.
  Quantity
  2
• Part Number
  84452112
  Description
  COURROIE.
  Quantity
  1
• Part Number
  84452155
  Description
  ROULEMENT.
  Quantity
  1
• Part Number
  87615924
  Description
  Deep Groove Ball Bearing - 6310-2RS1 - 50 mm ID x 110 mm OD x 27 mm W.
  Quantity
  1
• Part Number
  412126
  Description
  Hex Lock Nut - M12 x 1.75.
  Quantity
  1
• Part Number
  427248
  Description
  BUSHING.
  Quantity
  1
• Part Number
  430235
  Description
  SPACER.
  Quantity
  1
• Part Number
  440651
  Description
  Spring.
  Quantity
  1
• Part Number
  443898
  Description
  Ball Bearing - ISO 6205 LLU.
  Quantity
  2
• Part Number
  86500688
  Description
  Hex Nut - M6 x 1.
  Quantity
  3
• Part Number
  84431514
  Description
  HINGE.
  Quantity
  1
• Part Number
  84452136
  Description
  SPINDLE.
  Quantity
  1
• Part Number
  84452153
  Description
  BELT.
  Quantity
  1
• Part Number
  84452186
  Description
  PULLEY.
  Quantity
  1
• Part Number
  84452194
  Description
  PULLEY.
  Quantity
  1
• Part Number
  84452245
  Description
  BEARING HOUSING.
  Quantity
  1
• Part Number
  84452396
  Description
  INDICATOR.
  Quantity
  1
