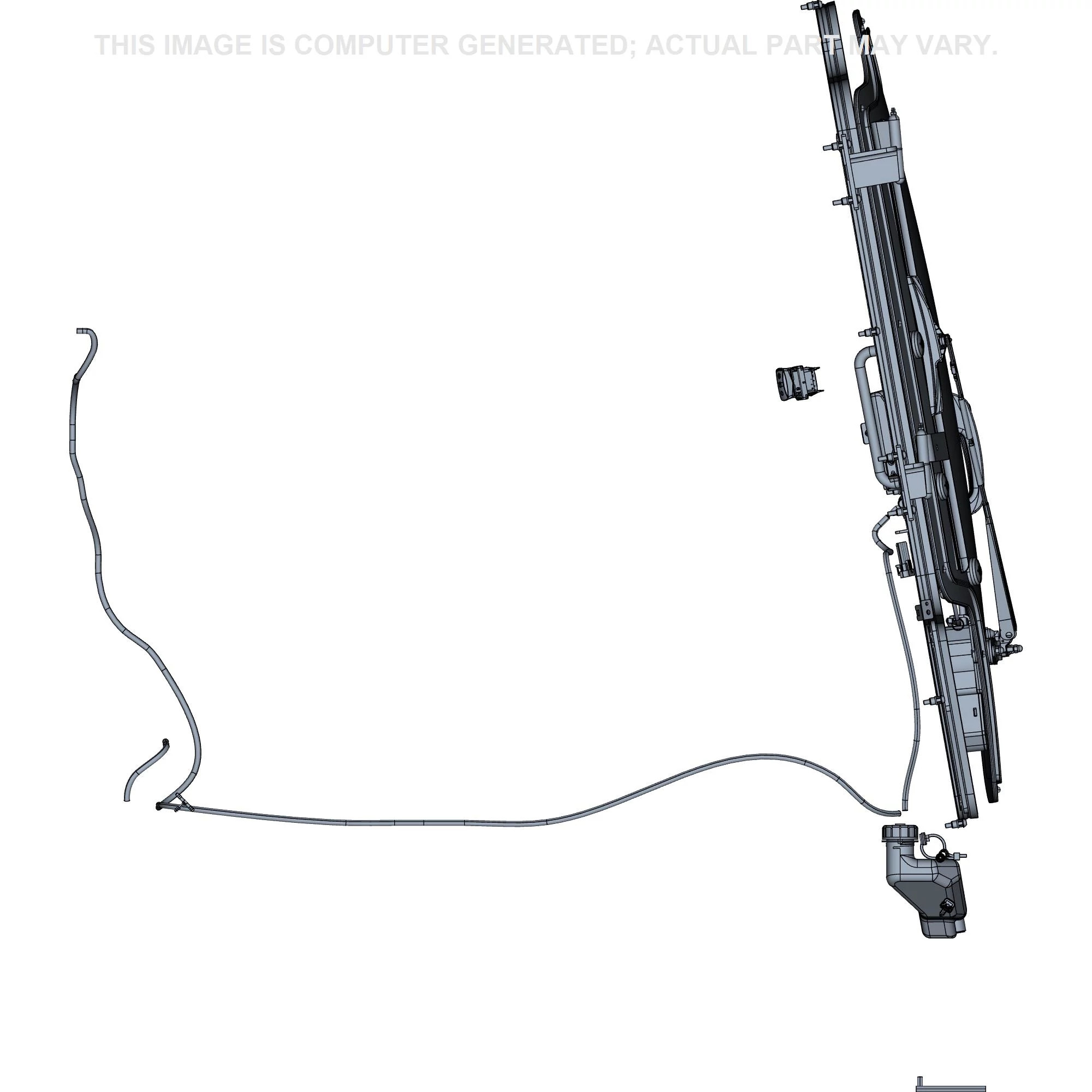

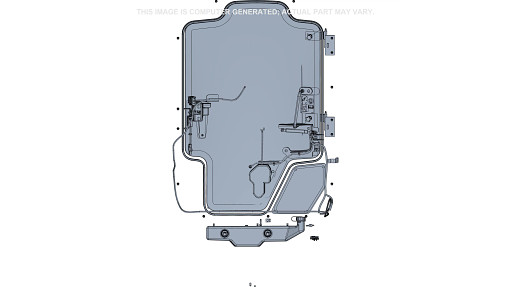

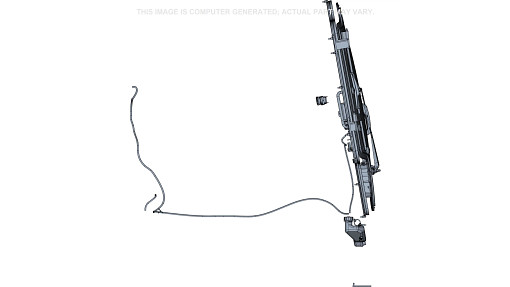

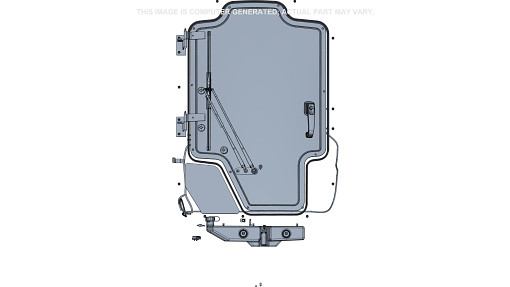

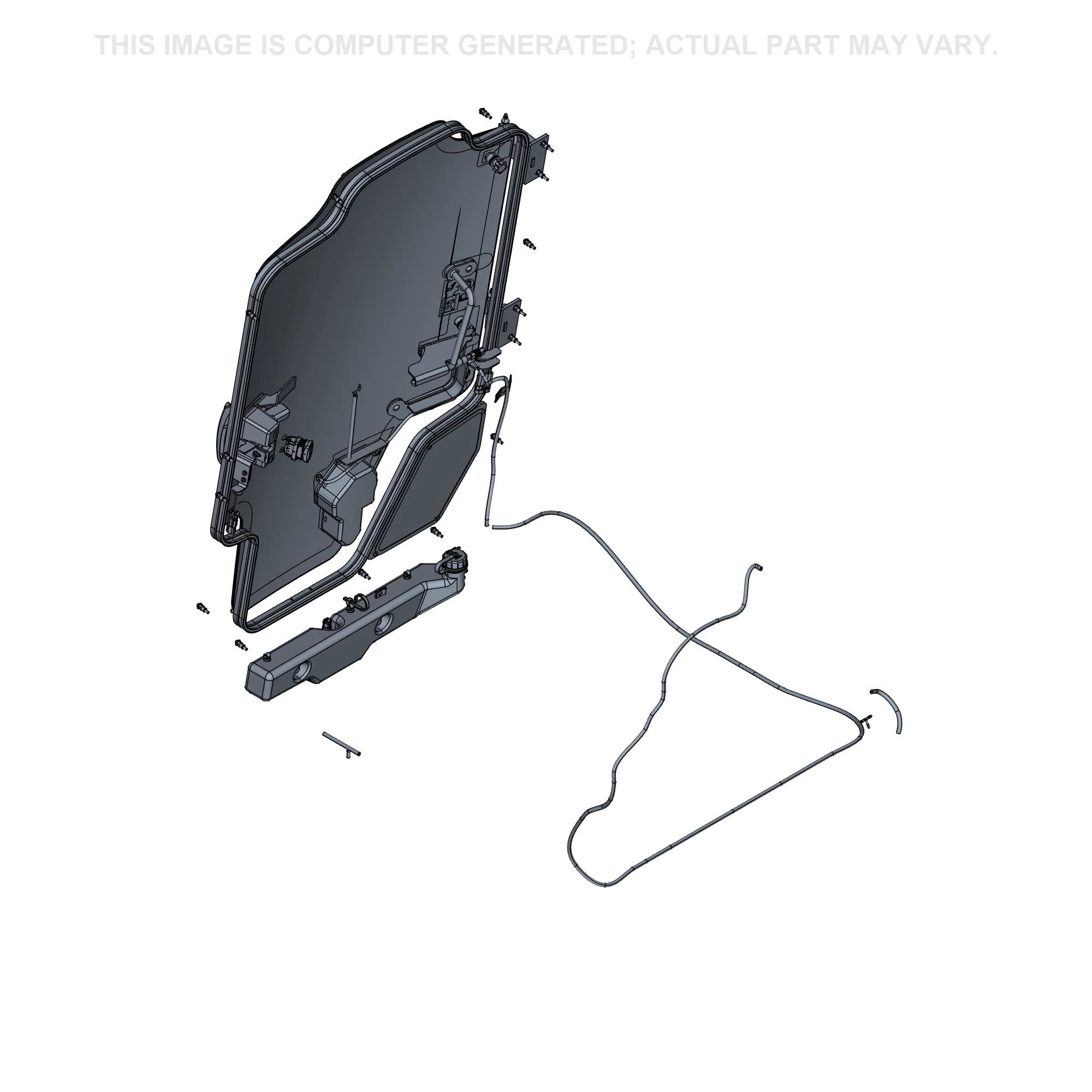

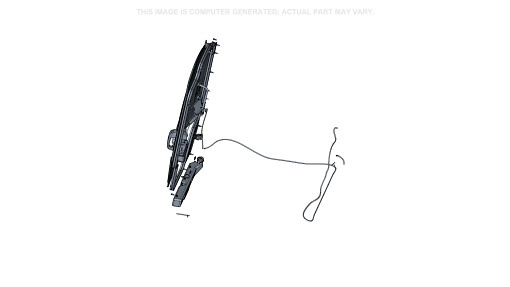

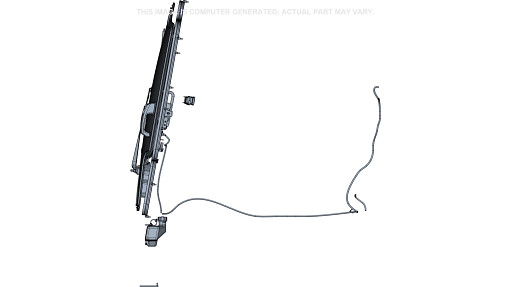

92286317 - DIA KIT CE - CASE CONSTRUCTION

Name: DIA KIT CE
Brand: Case CE
SKU: 92286317
Availability: InStock

Part # 92286317

Check if this Part Fits Your Equipment

GLASS FRONT DOOR

Package Quantity

This Kit includes the following parts:

Part Number

Description

Quantity

47491470

Türpfosten-Montagesatz

1
84305556

SCHRAUBE

11
84306335

T-STÜCK

1
84322203

Drahtbefestigungsklemme

1
9804260

FLANSCHSCHRAUBE

2
48052769

Kabinentürfenster

1
84331404

KABELSTECKVERBINDER

1
84359102

SCHRAUBE

4
48098599

HEBELSCHALTER

1
86624468

DISTANZSTÜCK

1
86625074

Federmutter - Mehrgewinde - M8 x 1,25

3
84378453

Gasdruckfeder

1
48187526

ANNAHERUNGSCHALTER

1
84475655

WASCHANLAGENSCHLAUCH

1
84183818

SCREW

2
87335499

ROCKER SWITCH

1
87392235

Non-Contact Sensor

1
87414

Lube Nipple - 1/4" - 28 x 0.256" OD x 0.56" L

2
84272827

Hex Rivet Nut - M6 x 1.0

15
87438046

Cable Tie - Black - 375.9 mm L x 8 mm W

11
84285453

HOSE WASHER

2
91796540

RESERVOIR, WINDSHIEL

1
92208227

BRACKET

1
92116955

WIRE HARNESS

1
92286365

INSTRUCTION

1
