TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11ENGINE; Engine, ISM, L565, LX565 & SL45B, BSN 77886
-
11CORE-REPLACEMENT ENG ENGINE; Engine, ISM, L565, LX565 & SL45B, BSN 77886
-
11REMAN ENGINE NON EPA (non regulated); Engine, ISM, L565, LX565 & SL45B, BSN 77886
-
11REMAN ENGINE NON EPA (non regulated); L565 & LX565, 4 Cyl., 121.7 CID, Naturally Aspirated, w/Zexel Fuel System, N.A. Only
-
1CORE-REPLACEMENT ENG ENGINE; Return Number, N.A. Only
-
11ENGINE; Engine, ISM, LX565 & SL45B, ASN 77887, Slow Fan Speed, No Longer Available, Order Long Block SBA133640
-
11SHORT ENGINE; Block, Short, ISM, L565, LX565 & SL45B, BSN 77886
-
11ENGINE; Block, Long, ISM, L565, LX565 & SL45B, ASN 77887, Slow Fan Speed, Engine Does Not Include Starter, Flywheel, Flywheel Housing, Cooling Fan, Fan Pulley, Fan Belt, Fan Holder, Alternator or Mounting Parts, Exhaust Manifold or Gasket, Oil Cooler
-
11GASKET KIT; Gasket Kit, L565, LX565 & SL45B
-
21ANGLE; Angle, RH & LH, See Figure 05A01 For Old Style
-
36BOLT Hex, 3/8'' - 16 x 1'', Gr 5; BOLT, Hex, 3/8''-16 x 1'', G5, Full Thd
-
410BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; WASHER, BELLEVILLE, M10
-
510NUT 3/8'' - 16, Gr 5; NUT, G5, 3/8''-16
-

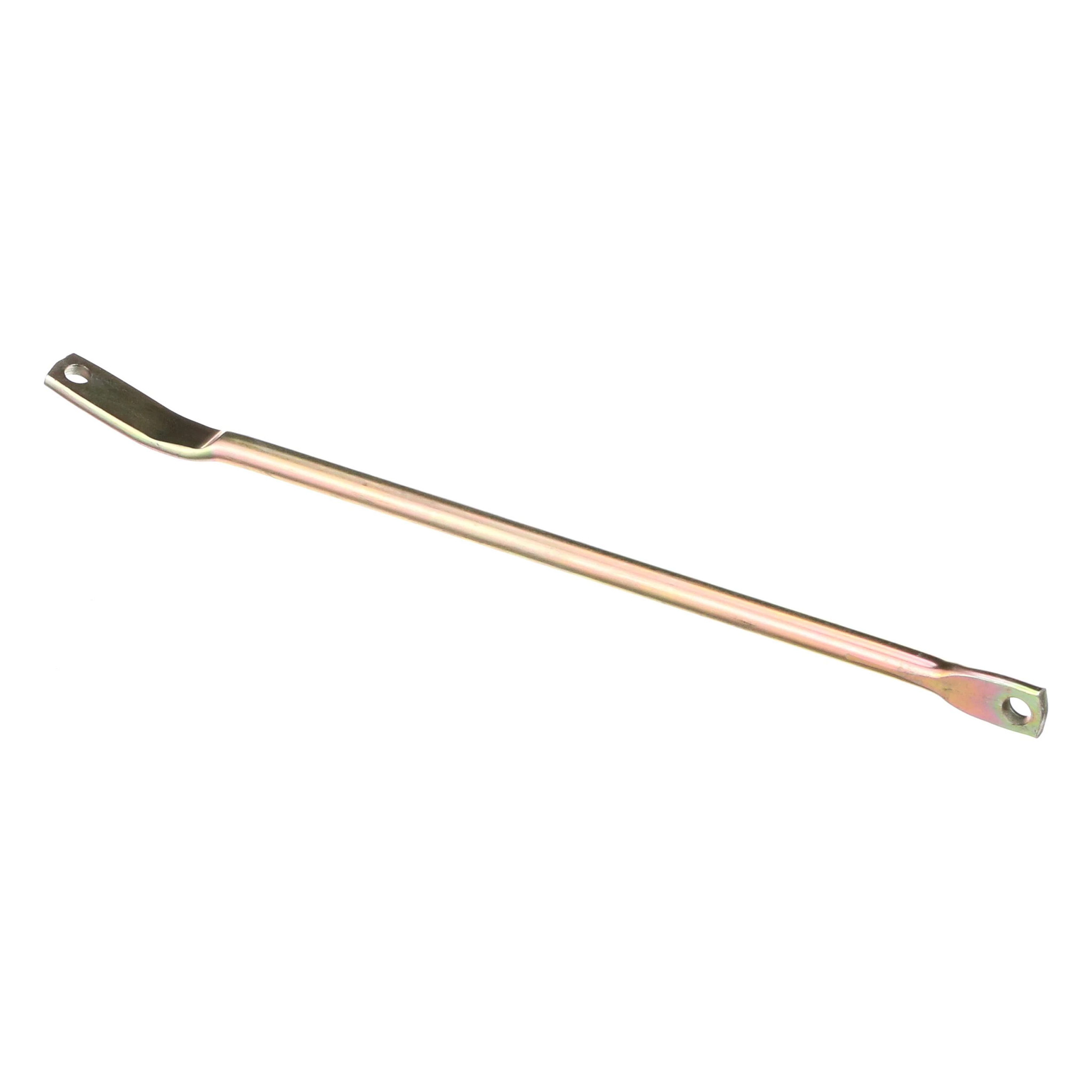

61SUPPORT; Rod
-
74SPACER 8.3mm ID x 19.05mm OD x 17.5mm L; Sleeve
-
84BOLT Hex, M8 x 1.25 x 40mm, Cl 8.8; Bolt, Hex, M8 x 40, 8.8
-
98LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
101MUFFLER; Muffler
-
111EXTENSION; Extension Weld Assy.
-
122BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd; Screw, Cap, HH, G5, 5/16''-18 x 5/8''
-
132WASHER 8.73mm ID x 42.07mm OD x 3.43mm Thk; WASHER, 11/32'' x 1 21/32'' x .135'' Thk
-
141BRACKET; Angle
-
151ROD; Rod, Straight, Use with Ref. 14
-
15A1SUPPORT; Rod, Bent, Ref.14 Not Used
-
164HOSE CLAMP #44, M32-44; CLAMP, HOSE, #44, M32-44
-
171HOSE 34.0 mm ID x 394.10 mm, SAE 20R4 CLASS D1; Hose, Radiator, 1-1/3'' ID
-
182HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, #40, 2.06/3.00 Type F Worm
-
191HOSE 50.0 mm ID, 57.2 mm ID x 366.90 mm; Formed
-
201AIR CLEANER; Air Cleaner Assy., Screen Inlet
-
201AIR CLEANER; Air Cleaner Assy., 35? Inlet
-
201AIR CLEANER; Air Cleaner Assy., 10? Inlet, Slow Fan Speed Engine
-
211BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 5; Bolt, Hex, 5/16''-18 x 2 1/2'', G5
-
221LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, 5/16''-18, GC
-
231CLAMP CLAMP CLOSED 44.4MM INSUL 3/8 BOLT; Clamp
-
251SHROUD; Shroud Weld Assy.
-
264CARRIAGE BOLT Sq Nk, 3/8'' - 16 x 3/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 3/8''-16 x 3/4''
-
271COVER; Cover
-
282SPACER; Spacer, Split
-
292BOLT Hex, M6 x 1 x 80mm, Cl 8.8; Screw, Cap, HH, CL 8.8, M6 x 1 x 80
-
302BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk; WASHER, BELLEVILLE, M6
-
311COVER; Cover
-

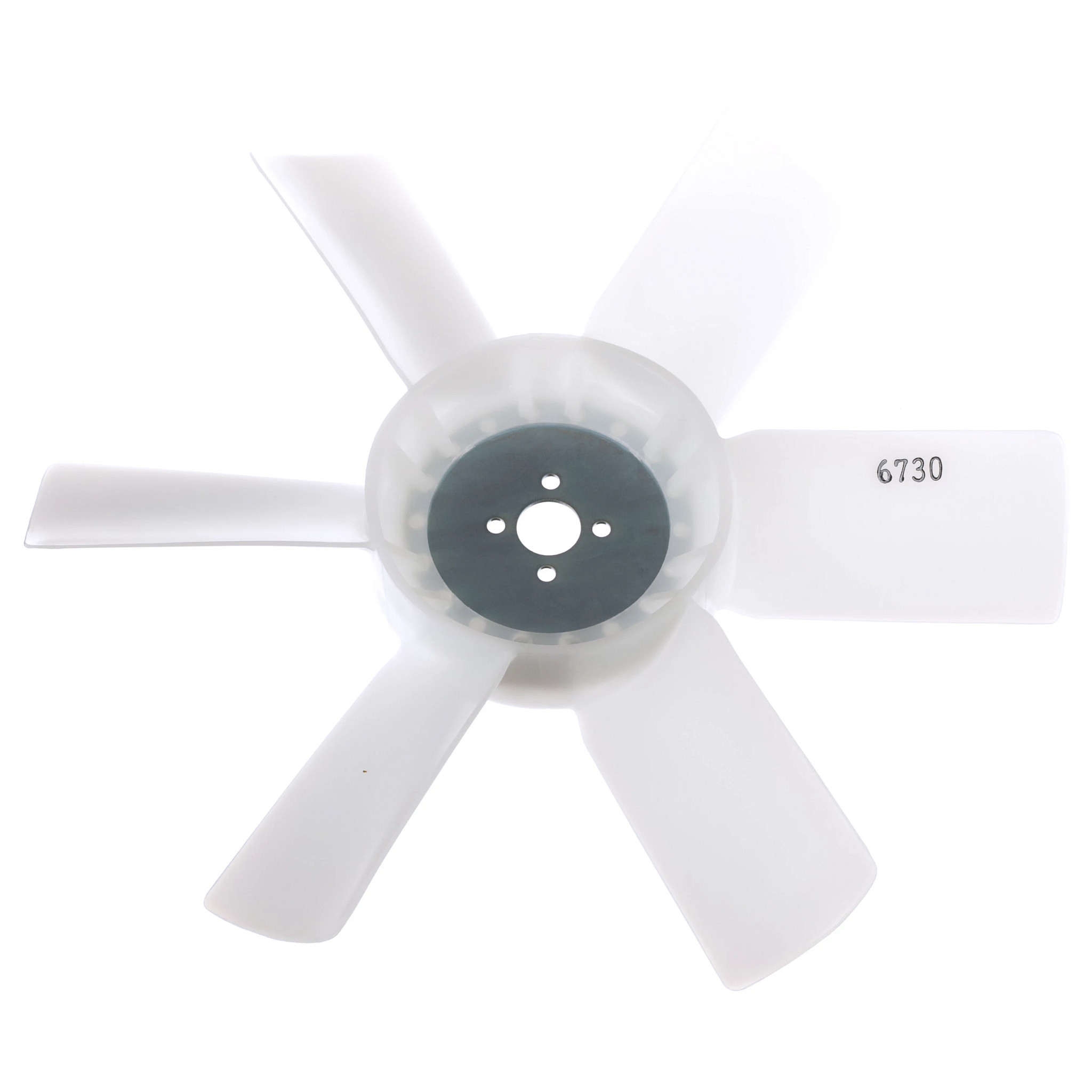

321FAN; Fan
-
331RADIATOR HOSE 34.00 mm ID x 246.00 mm, SAE 20R4 CLASS D1 or SAE 20R4 CLASS D2;
-
341SUPPORT; Rod Assy., Less High Flow
-
352BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20
-

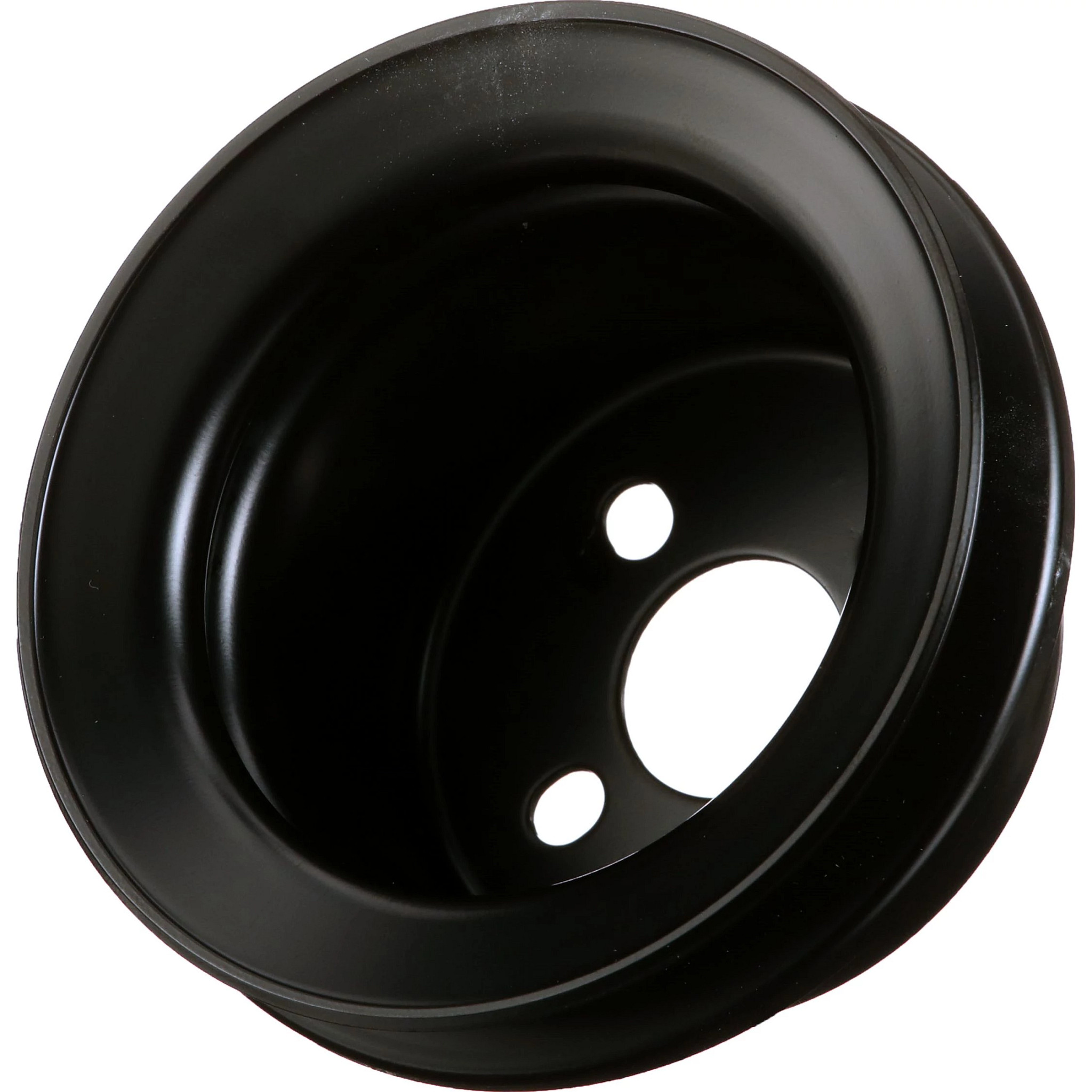

361PULLEY; Pulley, Fan
-
371HOLDER; Spacer
-
381GASKET; Gasket
-
391ANGLE; Angle, Less High Flow
-
401WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; WASHER, (1/2'') M13 x 25 x 3.5, HT
-
411LOCK NUT 1/2'' - 13, Gr C; Nut, Lock, GC, 1/2''-13
-
421BOLT Hex, 1/2'' - 13 x 3'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 3''
-
432BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20
-
442LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
452BOLT Hex, M14 x 1.5 x 30mm, Cl 8.8; Screw, Cap, HH, CL 8.8, M14 x 1.5 x 30
-
462WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; WASHER, (1/2'') M13 x 25 x 3.5, HT
Select All
Ref.
1Qty
1Availability
Part #
9616594Description
ENGINE; Engine, ISM, L565, LX565 & SL45B, BSN 77886Img
Alts
Ref.
1Qty
1Availability
Part #
87298317Description
CORE-REPLACEMENT ENG ENGINE; Engine, ISM, L565, LX565 & SL45B, BSN 77886Img
Alts
Ref.
1Qty
1Availability
Part #
87298316Description
REMAN ENGINE NON EPA (non regulated); Engine, ISM, L565, LX565 & SL45B, BSN 77886Img
Alts
Ref.
1Qty
1Availability
Part #
87298316Description
REMAN ENGINE NON EPA (non regulated); L565 & LX565, 4 Cyl., 121.7 CID, Naturally Aspirated, w/Zexel Fuel System, N.A. OnlyImg
Alts
Ref.
Qty
1Availability
Part #
87298317Description
CORE-REPLACEMENT ENG ENGINE; Return Number, N.A. OnlyImg
Alts
Ref.
1Qty
1Availability
Part #
86557220Description
ENGINE; Engine, ISM, LX565 & SL45B, ASN 77887, Slow Fan Speed, No Longer Available, Order Long Block SBA133640Img
Alts
Ref.
1Qty
1Availability
Part #
SBA110006810Description
SHORT ENGINE; Block, Short, ISM, L565, LX565 & SL45B, BSN 77886Img
Alts
Ref.
1Qty
1Availability
Part #
SBA133640Description
ENGINE; Block, Long, ISM, L565, LX565 & SL45B, ASN 77887, Slow Fan Speed, Engine Does Not Include Starter, Flywheel, Flywheel Housing, Cooling Fan, Fan Pulley, Fan Belt, Fan Holder, Alternator or Mounting Parts, Exhaust Manifold or Gasket, Oil CoolerImg
Alts
Ref.
1Qty
1Availability
Part #
SBA195906990Description
GASKET KIT; Gasket Kit, L565, LX565 & SL45BImg
Alts
Ref.
2Qty
1Availability
Part #
86545777Description
ANGLE; Angle, RH & LH, See Figure 05A01 For Old StyleImg
Alts
Ref.
3Qty
6Availability
Part #
88206Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5; BOLT, Hex, 3/8''-16 x 1'', G5, Full ThdImg
Alts
Ref.
4Qty
10Availability
Part #
140045Description
BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; WASHER, BELLEVILLE, M10Img
Alts
Ref.
5Qty
10Availability
Part #
9628503Description
NUT 3/8'' - 16, Gr 5; NUT, G5, 3/8''-16Img
Alts
Ref.
7Qty
4Availability
Part #
86534692Description

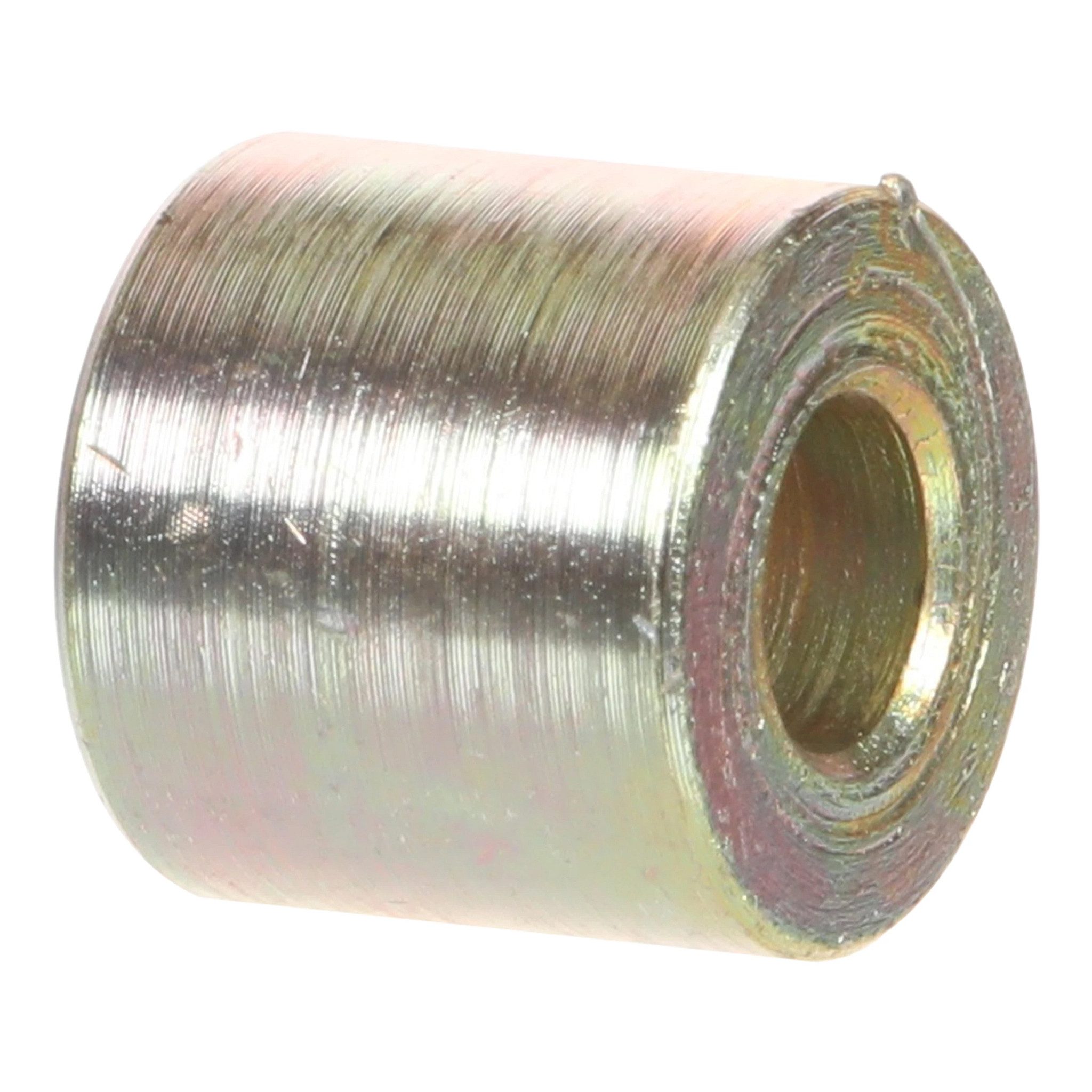

SPACER 8.3mm ID x 19.05mm OD x 17.5mm L; SleeveImg
Alts
Ref.
8Qty
4Availability
Part #
43129Description
BOLT Hex, M8 x 1.25 x 40mm, Cl 8.8; Bolt, Hex, M8 x 40, 8.8Img
Alts
Ref.
9Qty
8Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
12Qty
2Availability
Part #
9627874Description
BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd; Screw, Cap, HH, G5, 5/16''-18 x 5/8''Img
Alts
Ref.
13Qty
2Availability
Part #
322Description
WASHER 8.73mm ID x 42.07mm OD x 3.43mm Thk; WASHER, 11/32'' x 1 21/32'' x .135'' ThkImg
Alts
Ref.
15AQty
1Availability
Part #
86640738Description

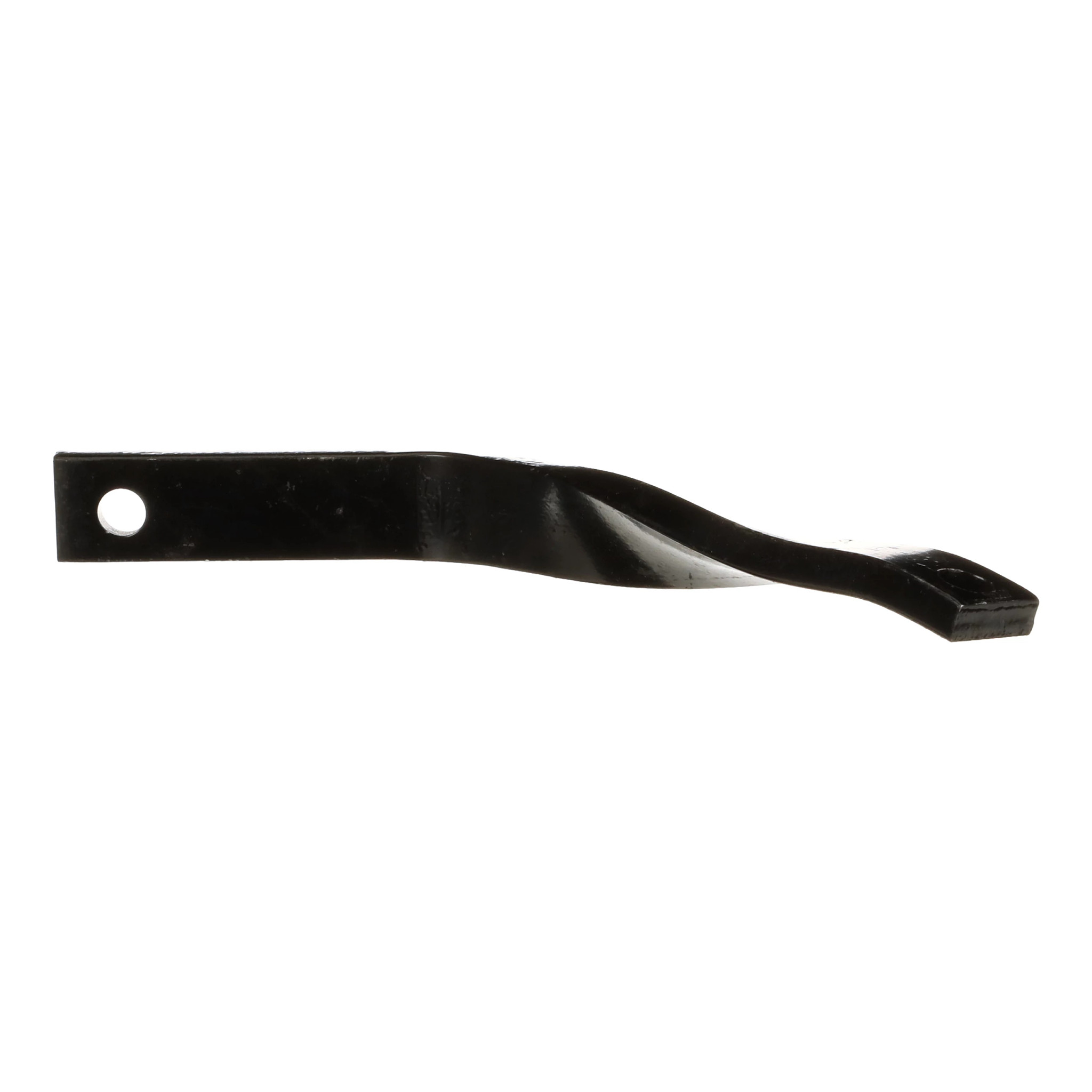

SUPPORT; Rod, Bent, Ref.14 Not UsedImg
Alts
Ref.
16Qty
4Availability
Part #
82012725Description
HOSE CLAMP #44, M32-44; CLAMP, HOSE, #44, M32-44Img
Alts
Ref.
17Qty
1Availability
Part #
9802105Description
HOSE 34.0 mm ID x 394.10 mm, SAE 20R4 CLASS D1; Hose, Radiator, 1-1/3'' IDImg
Alts
Ref.
18Qty
2Availability
Part #
82012728Description
HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, #40, 2.06/3.00 Type F WormImg
Alts
Ref.
19Qty
1Availability
Part #
9802106Description
HOSE 50.0 mm ID, 57.2 mm ID x 366.90 mm; FormedImg
Alts
Ref.
20Qty
1Availability
Part #
9842356Description
AIR CLEANER; Air Cleaner Assy., Screen InletImg
Alts
Ref.
20Qty
1Availability
Part #
86518732Description
AIR CLEANER; Air Cleaner Assy., 35? InletImg
Alts
Ref.
20Qty
1Availability
Part #
86557583Description
AIR CLEANER; Air Cleaner Assy., 10? Inlet, Slow Fan Speed EngineImg
Alts
Ref.
21Qty
1Availability
Part #
88346Description
BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 5; Bolt, Hex, 5/16''-18 x 2 1/2'', G5Img
Alts
Ref.
22Qty
1Availability
Part #
280736Description
LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, 5/16''-18, GCImg
Alts
Ref.
23Qty
1Availability
Part #
603022Description
CLAMP CLAMP CLOSED 44.4MM INSUL 3/8 BOLT; ClampImg
Alts
Ref.
26Qty
4Availability
Part #
280430Description
CARRIAGE BOLT Sq Nk, 3/8'' - 16 x 3/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 3/8''-16 x 3/4''Img
Alts
Ref.
29Qty
2Availability
Part #
86508570Description
BOLT Hex, M6 x 1 x 80mm, Cl 8.8; Screw, Cap, HH, CL 8.8, M6 x 1 x 80Img
Alts
Ref.
30Qty
2Availability
Part #
322357Description
BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk; WASHER, BELLEVILLE, M6Img
Alts
Ref.
33Qty
1Availability
Part #
86619638Description
RADIATOR HOSE 34.00 mm ID x 246.00 mm, SAE 20R4 CLASS D1 or SAE 20R4 CLASS D2;Img
Alts
Ref.
35Qty
2Availability
Part #
120104Description
BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20Img
Alts
Ref.
40Qty
1Availability
Part #
65319Description
WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; WASHER, (1/2'') M13 x 25 x 3.5, HTImg
Alts
Ref.
41Qty
1Availability
Part #
88871Description
LOCK NUT 1/2'' - 13, Gr C; Nut, Lock, GC, 1/2''-13Img
Alts
Ref.
42Qty
1Availability
Part #
87339Description
BOLT Hex, 1/2'' - 13 x 3'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 3''Img
Alts
Ref.
43Qty
2Availability
Part #
120104Description
BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20Img
Alts
Ref.
44Qty
2Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
45Qty
2Availability
Part #
9516470Description
BOLT Hex, M14 x 1.5 x 30mm, Cl 8.8; Screw, Cap, HH, CL 8.8, M14 x 1.5 x 30Img
Alts
Ref.
46Qty
2Availability
Part #
65319Description
WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; WASHER, (1/2'') M13 x 25 x 3.5, HTImg
Alts
