008 - POWER TAKE OFF, POWER PIVOT
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    242039
    BEARING COVER 4.75'' ID x 8'' OD x 3.375''; Tipping Bearing
  • 2
    43138
    BOLT Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd; 565
  • 2
    120112
    BOLT Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd; 570, 575
  • 2
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 2
    1
    28114
    U-BOLT; #10-24 x 1-15/16'', Twine Guide
  • 2
    322357
    BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;
  • 2
    87304
    NUT #10-24;
  • 3
    1
    28110
    GUIDE; Twine, Porcelain, (Early Units)
  • 3
    1
    86543545
    GUIDE; Twine, Cast Iron
  • 4
    1
    86629487

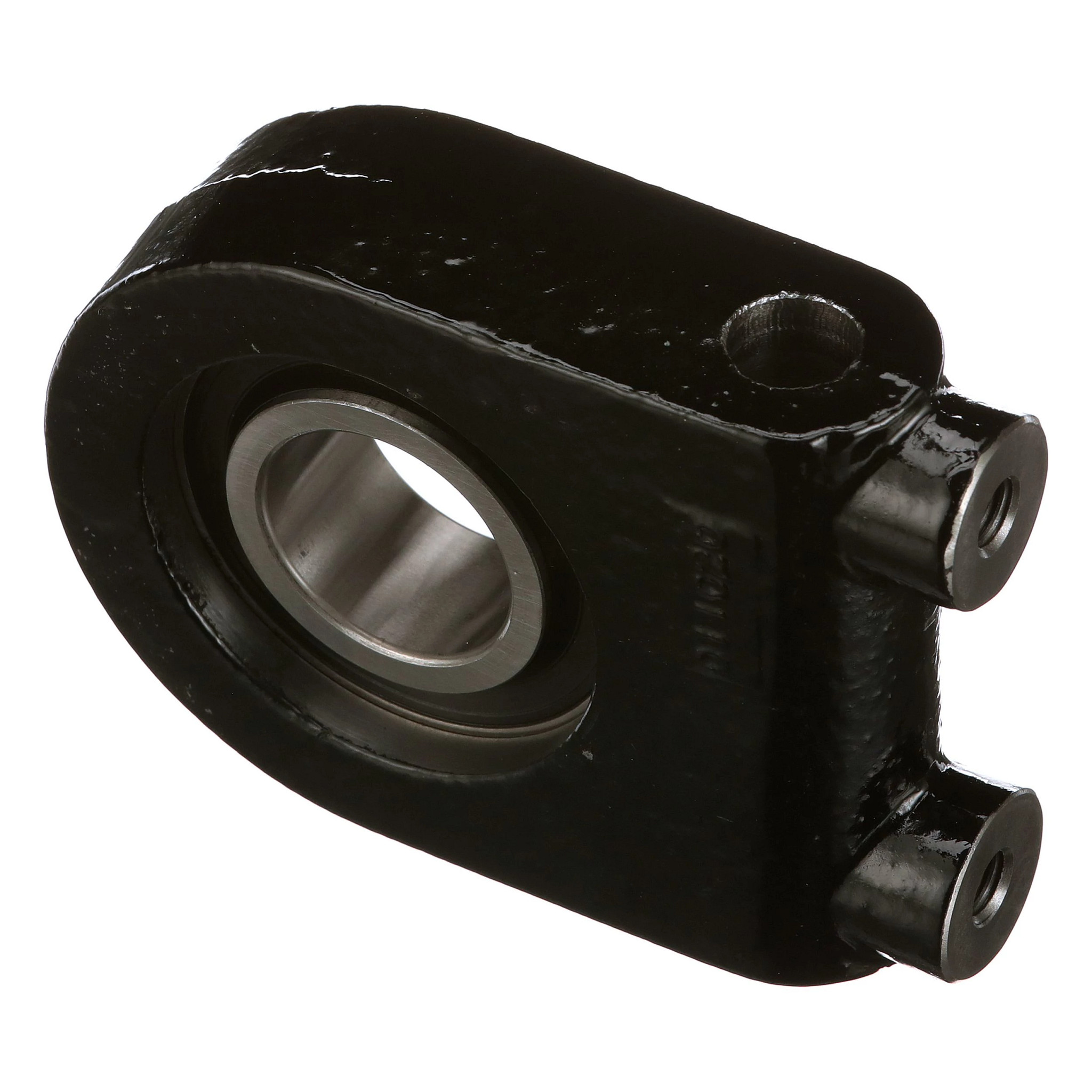

    BEARING ASSY Flanged, 34.99mm ID; Includes: Ref. 5 & 6
  • 5
    1
    9808112
    BALL BEARING 34.99mm ID x 71.88mm OD x 25mm W;
  • 6
    1
    86577949

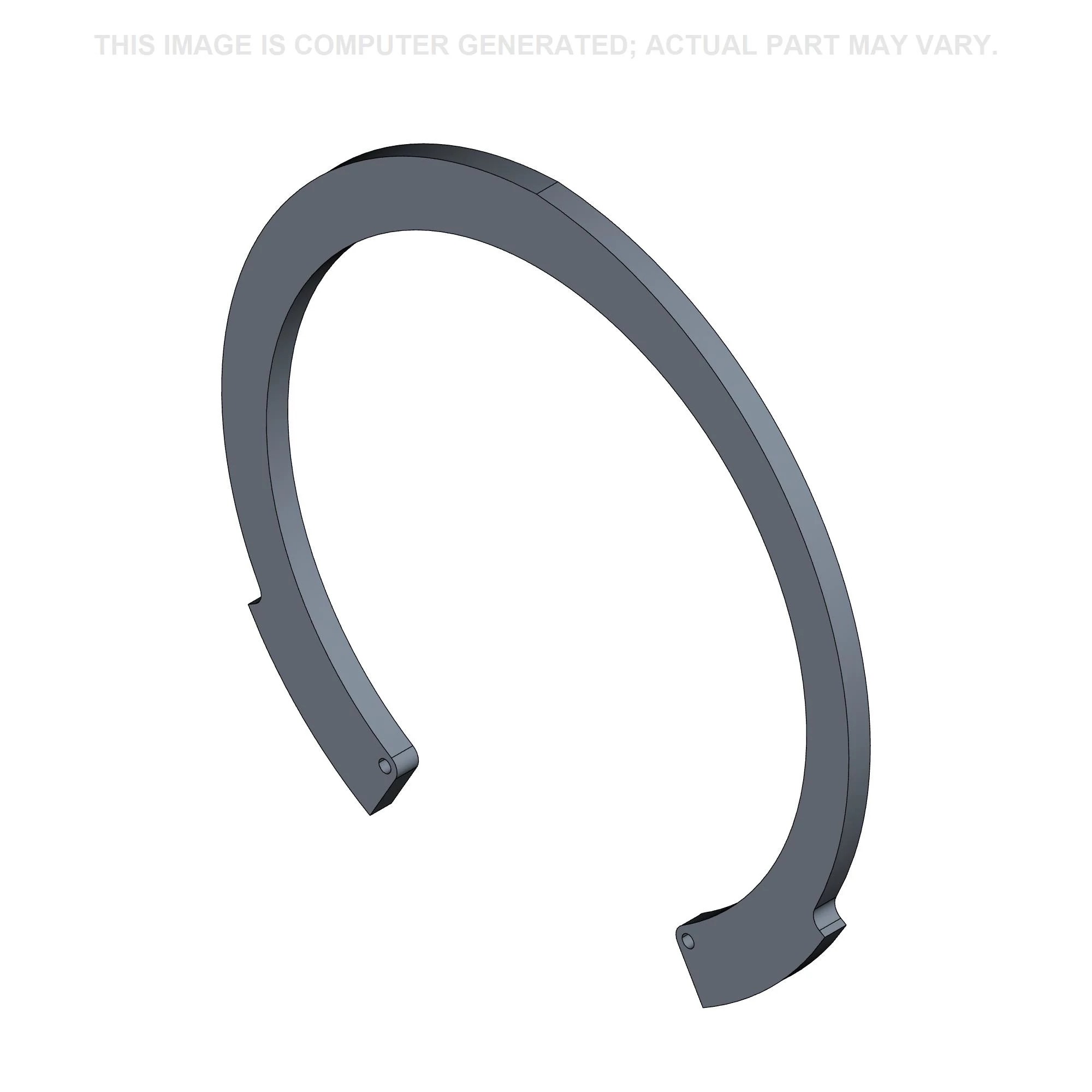

    SNAP RING 3.156'', Int, #315;
  • 7
    1
    285182

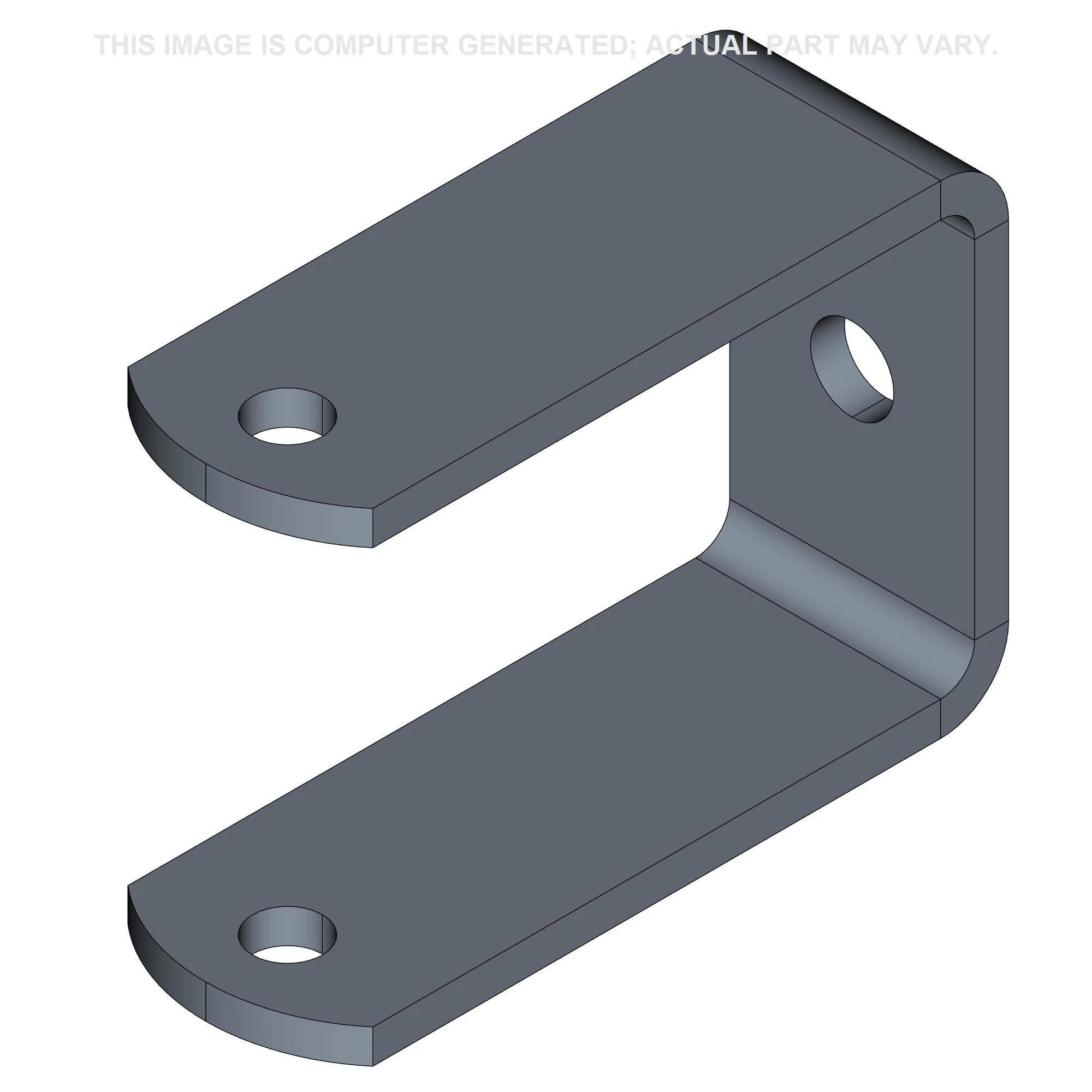

    YOKE;
  • 8
    1
    29851
    PIN 15.87mm OD x 128.8mm L; Clevis, 5/8'' x 4-9/16''
  • AR
    80299
    WASHER 0.69'' ID x 1.75'' OD x 0.13'' Thk;
  • AR
    394818
    COTTER PIN M5 x 25;
  • 9
    1
    573958
    BOLT Hex, 3/4 - 16 x 2.5, Gr 5; Cap, HH, Drilled, G5, 3/4''-16 x 2-1/2''
  • 10
    1
    516161
    WASHER; 25/32'' ID x 2-3/8'' OD x 1/4'' Thick
  • 11
    1
    87040148
    WASHER 19.81mm ID x 47.497mm OD x 6.35mm Thk;
  • 12
    AR
    187426
    SHIM .015'' Thk;
  • 13
    1
    578092
    WASHER 19.4mm ID x 47.6mm OD x 3.43mm Thk; 3/4'', Hardened
  • 14
    1
    87340
    LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND;
  • 15
    1
    88886
    SLOTTED NUT 3/4''-16;
  • 16
    1
    86013355
    COTTER PIN; Heat Treated, Plated, 3/16'' x 1-1/2''
  • 17
    1
    579555
    ARM; Pivot
  • 18
    1
    579553
    SUPPORT; Ratchet
  • 19
    1
    579577

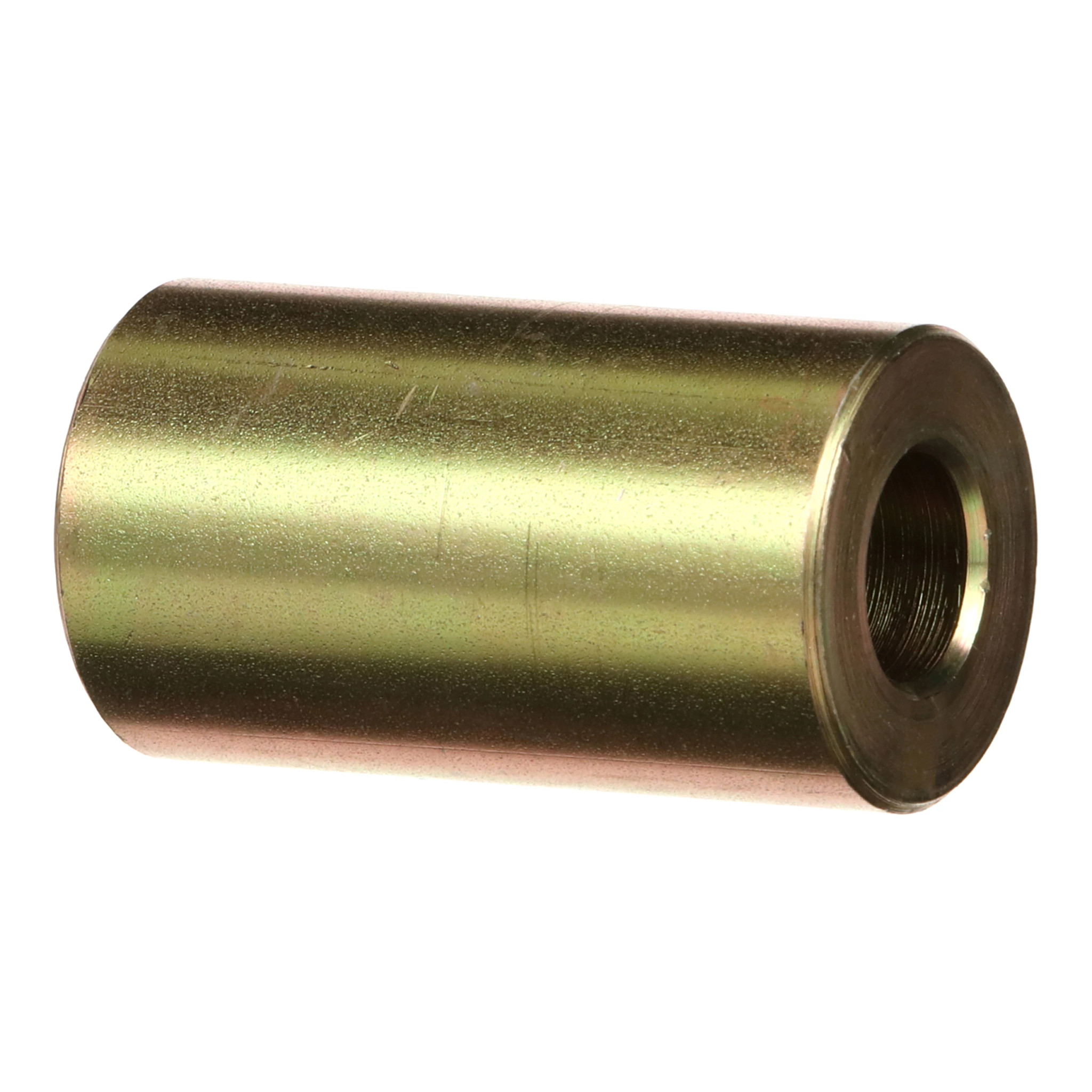

    SPACER;
  • 20
    1
    9637417
    BOLT Hex, 1/2'' - 13 x 3-1/2'', Gr 5;
  • 21
    1
    80679
    LOCK WASHER 1/20.507 CST ZND;
  • 22
    1
    280431
    NUT 1/2''-13, G5;
  • 23
    1
    682146
    SUPPORT;
  • 4
    9706687
    BOLT Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd;
  • 4
    86513238
    LOCK WASHER .515'' ID x 1.070'' OD x .120'' Thk; Belleville, 1/2''
  • 24
    1
    280316
    BOLT Hex, 3/4'' - 10 x 7'', Gr 5;
  • 25
    1
    86511191
    WASHER 0.81'' ID x 2'' OD x 0.15'' Thk;
  • 26
    1
    788355
    SPRING; 565
  • 26
    1
    115150
    SPRING; 570, 575
  • 27
    1
    280375
    NUT 3/4'' - 10, Gr C;
  • 28
    1
    280534
    PLOW BOLT #3, 3/8'' - 16 x 2'', Gr 5;
  • 29
    1
    80680
    LOCK WASHER 3/8 0.381 CST ZND;
  • 30
    1
    9628503
    NUT 3/8'' - 16, Gr 5;
  • 31
    2
    167444
    SPACER;
