TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11SHAFT; Flywheel Shaft
-
21BALL BEARING 1.5748'' ID x 3.5433'' OD x 0.9055''; Flywheel Housing, Rear Bearing
-
31BALL BEARING 44.99mm ID x 85mm OD x 19mm W; Flywheel Housing, Front Bearing
-
41NO LONGER SERVICED; Clutch Flywheel;44949
-
6BOLT Hex, 3/8'' - 24 x 1 1/4'', Gr 5, Full Thd; Screw, Cap, HH, G5, 3/8''-24 x 1-1/4''
-
6LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
51HOUSING; Flywheel Housing
-
16BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
-
16LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
8NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
-
1SET SCREW 3/8'' x 1 1/4''; Set, Square Hd., 3/8'' x 1-1/2''
-
1JAM NUT 3/8''-16, G2; Nut, Jam, G2, 3/8''-16
-
61PIN; 1-1/8'' x 4-1/16'', Idler Shaft
-
71WASHER 29.37mm ID x 50.8mm OD x 3.17mm Thk; 1/8'' Thick
-
81WASHER; 1/32'' Thick
-
91NO LONGER SERVICED; Gearshift Lever, LH, Includes: Ref. 11A, 1280;46274
-
101NO LONGER SERVICED; Gearshift Lever, RH, Includes: Ref. 11, 1280;44865
-
111DRIVE BUSHING; Bushing, 1280
-
11A1SLEEVE; Bushing, 1280
-
122YOKE 3/8'' - 24; End, Adjustable
-
132CLEVIS PIN 8.33mm OD x 30.66mm L; Pin, Clevis, 3/8'' x 1-1/16''
-
2COTTER PIN 3/32'' OD x 3/4'' L; Pin, Split (Cotter), 3/32'' x 3/4''
-
142HOUSING; Shifting Link
-
2JAM NUT 3/8''-16, G2; Nut, Jam, G2, 3/8''-16
-
152NO LONGER SERVICED; Shifting Link Connector
-
2SET SCREW Sq Hd, 5/16'' - 18 x 3/4'', Cup Pt; Set, Sq Hd, Cup Pt, 5/16''-18 x 3/4''
-
162CLEVIS PIN; Pin, Clevis, 1/4'' x 1-3/8''
-
2COTTER PIN 1/16'' x 1/2''; Pin, Split (Cotter), 1/16'' x 1/2''
-
2JAM NUT Jam, 5/16''-18, G2; Jam, G2, 5/16''-18
-
171NO LONGER SERVICED; Transmission & Rear Axle, Refer to Fig. 064 & 065;44935
-
4BOLT Hex, 5/8'' - 11 x 2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2''
-
2BOLT; Cap, HH, G5, 5/8''-11 x 1-3/4''
-
2BOLT Hex, 5/8'' - 11 x 1 1/4'', Gr 5, Full Thd;
-
8LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
4NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11
-
182WHEEL ASSY; Wheel Disc & Rim, Rear
-
18A2NO LONGER SERVICED; Tractor Tire, Rear, 10'' x 24'' or 52085 Tire, 11'' x 24'';44988
-
18B2TUBE; Inner Tube, 10'' x 24'' or 52086 Tube, 11'' x 24''
-
1JAM NUT 3/8''-16, G2; Nut, Jam, G2, 3/8''-16
-
1916NUT; Rear Wheel, 9/16'' NF
-
20ARLOCK WASHER Int Tooth, 1/4''; Shim, 16 Ga.
-
20ARSHIM .036'' Thk; 20 Gauge .036'' Thk
-
21ARSHIM .060'' Thk; 16 Gauge .060'' Thk
-
21ARSHIM .036'' Thk; 20 Gauge .036'' Thk
-
226BOLT Spcl, Hex, 5/16'' - 18 x 3/4'', Gr 2; Screw, Cap, HH, G2, 5/16''-18 x 3/4'', Clutch
-
6LOCK WASHER Ext Tooth, 5/16''; Washer, Lock, Ext T, 5/16''
-
231CLUTCH; Includes: Ref. 24 & 25
-
241PLATE; Pressure Plate, 10''
-
251PLATE; Driven Plate, 10''
-
262X; Gear Shift Lever Grip, 1280
-
271KNOB; Gear Shift Handle Knob, 1281
-
281LEVER; 1281
-
291PLATE; Shifting Plate, 1281
-
1SCREW Slotted Truss Hd, 1/4'' - 20 x 5/8''; Truss Hd, G2, 1/4''-20 x 5/8''
-
301LEVER; Shift Arm, RH, Includes: Ref. 32, 1281
-
311LEVER; Shift Arm, LH, Includes: Ref. 32, 1281
-
324BUSHING; 1281
-
332HOSE 1.125'' ID x 0.47'';
-
341SHAFT; 1281
-
ARWASHER 0.81'' ID x 1.47'' OD x 0.13'' Thk; SAE, 3/4''
-
2COTTER PIN 1/8'' OD x 1-1/4'' OAL; PIN, SPLIT (COTTER), 1/8'' x 1-1/4''
-
35ARWASHER; .036'' x .78'' ID x 1-1/2'' OD
-
35ARWASHER 0.78'' ID x 1.25'' OD x 0.06'' Thk; Spacer, 1281 25/32'' x 1 1/4'' x .06'' Thk
-
36ARSPACER; This is a service part only, used when replacing either Ref. #30 or #31 on machines produced prior to SN 1658, 1281
-
1COTTER PIN 3/16'' OD x 1-3/4'' L; Pin, Split (Cotter), 3/16'' x 1-3/4''
Select All
![]()
Ref.
2Qty
1Availability
Part #
52431Description
BALL BEARING 1.5748'' ID x 3.5433'' OD x 0.9055''; Flywheel Housing, Rear BearingImg
Alts
Ref.
3Qty
1Availability
Part #
44936Description
BALL BEARING 44.99mm ID x 85mm OD x 19mm W; Flywheel Housing, Front BearingImg
Alts
Ref.
Qty
6Availability
Part #
86631589Description
BOLT Hex, 3/8'' - 24 x 1 1/4'', Gr 5, Full Thd; Screw, Cap, HH, G5, 3/8''-24 x 1-1/4''Img
Alts
Ref.
Qty
6Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
Qty
16Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
Qty
1Availability
Part #
80409Description
SET SCREW 3/8'' x 1 1/4''; Set, Square Hd., 3/8'' x 1-1/2''Img
Alts
Ref.
Qty
1Availability
Part #
86509499Description
JAM NUT 3/8''-16, G2; Nut, Jam, G2, 3/8''-16Img
Alts
Ref.
7Qty
1Availability
Part #
27373Description

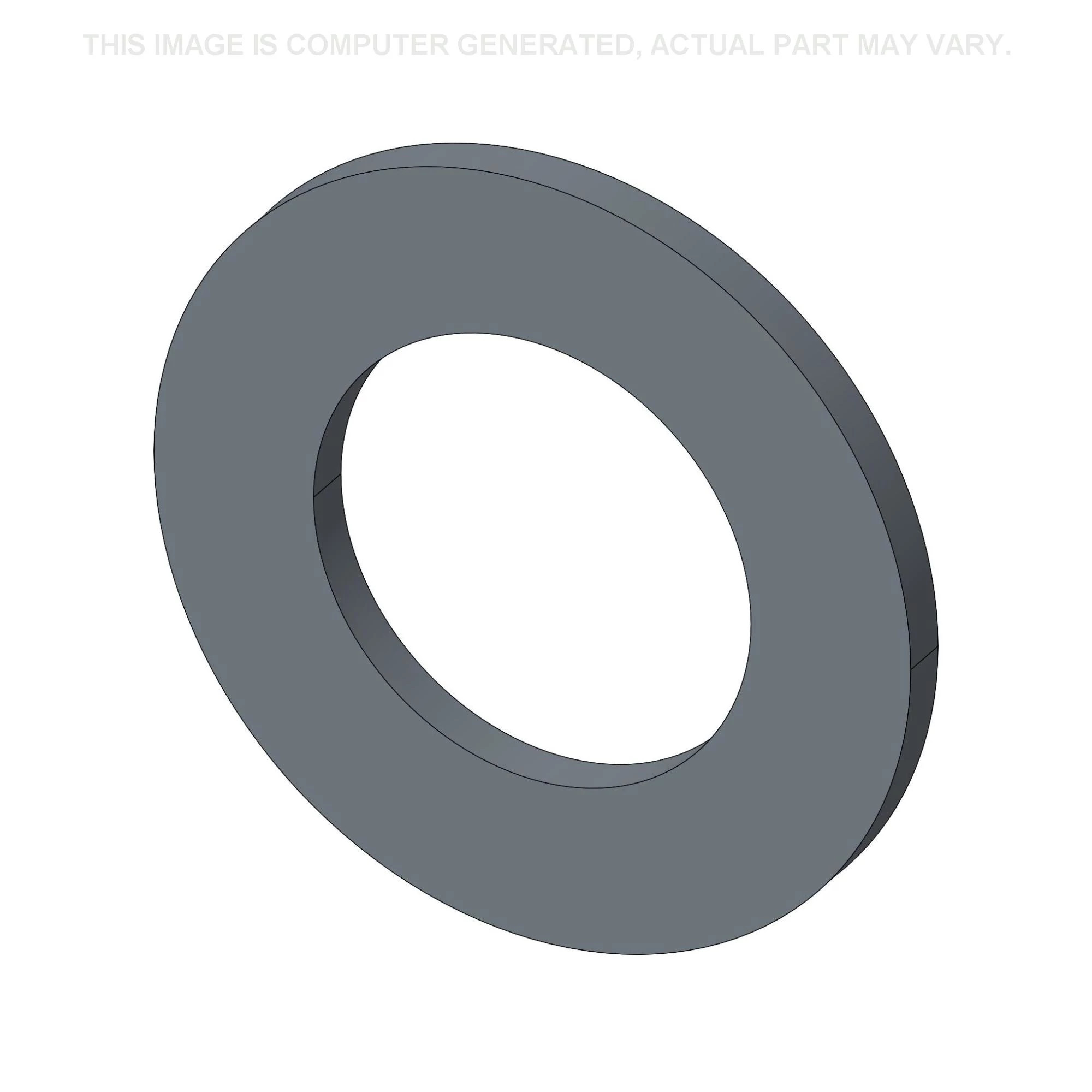

WASHER 29.37mm ID x 50.8mm OD x 3.17mm Thk; 1/8'' ThickImg
Alts
Ref.
9Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Gearshift Lever, LH, Includes: Ref. 11A, 1280;46274Img
Alts
Ref.
10Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Gearshift Lever, RH, Includes: Ref. 11, 1280;44865Img
Alts
Ref.
13Qty
2Availability
Part #
510390Description
CLEVIS PIN 8.33mm OD x 30.66mm L; Pin, Clevis, 3/8'' x 1-1/16''Img
Alts
Ref.
Qty
2Availability
Part #
280250Description
COTTER PIN 3/32'' OD x 3/4'' L; Pin, Split (Cotter), 3/32'' x 3/4''Img
Alts
Ref.
Qty
2Availability
Part #
86509499Description
JAM NUT 3/8''-16, G2; Nut, Jam, G2, 3/8''-16Img
Alts
Ref.
15Qty
2Availability
Part #
NLSDescription
NO LONGER SERVICED; Shifting Link ConnectorImg
Alts
Ref.
Qty
2Availability
Part #
86512812Description
SET SCREW Sq Hd, 5/16'' - 18 x 3/4'', Cup Pt; Set, Sq Hd, Cup Pt, 5/16''-18 x 3/4''Img
Alts
Ref.
16Qty
2Availability
Part #
47835Description
CLEVIS PIN; Pin, Clevis, 1/4'' x 1-3/8''Img
Alts
Ref.
Qty
2Availability
Part #
280236Description
COTTER PIN 1/16'' x 1/2''; Pin, Split (Cotter), 1/16'' x 1/2''Img
Alts
Ref.
Qty
2Availability
Part #
9626568Description
JAM NUT Jam, 5/16''-18, G2; Jam, G2, 5/16''-18Img
Alts
Ref.
17Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Transmission & Rear Axle, Refer to Fig. 064 & 065;44935Img
Alts
Ref.
Qty
4Availability
Part #
86505999Description
BOLT Hex, 5/8'' - 11 x 2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2''Img
Alts
Ref.
Qty
2Availability
Part #
280319Description
BOLT Hex, 5/8'' - 11 x 1 1/4'', Gr 5, Full Thd;Img
Alts
Ref.
Qty
8Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Ref.
18AQty
2Availability
Part #
NLSDescription
NO LONGER SERVICED; Tractor Tire, Rear, 10'' x 24'' or 52085 Tire, 11'' x 24'';44988Img
Alts
Ref.
18BQty
2Availability
Part #
44989Description
TUBE; Inner Tube, 10'' x 24'' or 52086 Tube, 11'' x 24''Img
Alts
Ref.
Qty
1Availability
Part #
86509499Description
JAM NUT 3/8''-16, G2; Nut, Jam, G2, 3/8''-16Img
Alts
Ref.
20Qty
ARAvailability
Part #
493-21026Description
LOCK WASHER Int Tooth, 1/4''; Shim, 16 Ga.Img
Alts
Ref.
22Qty
6Availability
Part #
46352Description
BOLT Spcl, Hex, 5/16'' - 18 x 3/4'', Gr 2; Screw, Cap, HH, G2, 5/16''-18 x 3/4'', ClutchImg
Alts
Ref.
Qty
6Availability
Part #
280278Description
LOCK WASHER Ext Tooth, 5/16''; Washer, Lock, Ext T, 5/16''Img
Alts
Ref.
Qty
1Availability
Part #
84468Description
SCREW Slotted Truss Hd, 1/4'' - 20 x 5/8''; Truss Hd, G2, 1/4''-20 x 5/8''Img
Alts
Ref.
30Qty
1Availability
Part #
130709Description
LEVER; Shift Arm, RH, Includes: Ref. 32, 1281Img
Alts
Ref.
31Qty
1Availability
Part #
130708Description
LEVER; Shift Arm, LH, Includes: Ref. 32, 1281Img
Alts
Ref.
Qty
ARAvailability
Part #
87381Description
WASHER 0.81'' ID x 1.47'' OD x 0.13'' Thk; SAE, 3/4''Img
Alts
Ref.
Qty
2Availability
Part #
87395Description
COTTER PIN 1/8'' OD x 1-1/4'' OAL; PIN, SPLIT (COTTER), 1/8'' x 1-1/4''Img
Alts
Ref.
35Qty
ARAvailability
Part #
45960Description
WASHER; .036'' x .78'' ID x 1-1/2'' ODImg
Alts
Ref.
35Qty
ARAvailability
Part #
249100Description
WASHER 0.78'' ID x 1.25'' OD x 0.06'' Thk; Spacer, 1281 25/32'' x 1 1/4'' x .06'' ThkImg
Alts
Ref.
36Qty
ARAvailability
Part #
130777Description
SPACER; This is a service part only, used when replacing either Ref. #30 or #31 on machines produced prior to SN 1658, 1281Img
Alts
Ref.
Qty
1Availability
Part #
87399Description
COTTER PIN 3/16'' OD x 1-3/4'' L; Pin, Split (Cotter), 3/16'' x 1-3/4''Img
Alts
