35.355.010 - VAR - 715842116 - JOYSTICK HYDR LINES, CONTROL VALVE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Hydraulic Vavle Kit W/ Joystick, Incl 2 - 30, Order Through Wholegoods 715842116


Alts

Select

Ref.

2

Qty

1

Availability

Part #

LDR10550062

Description

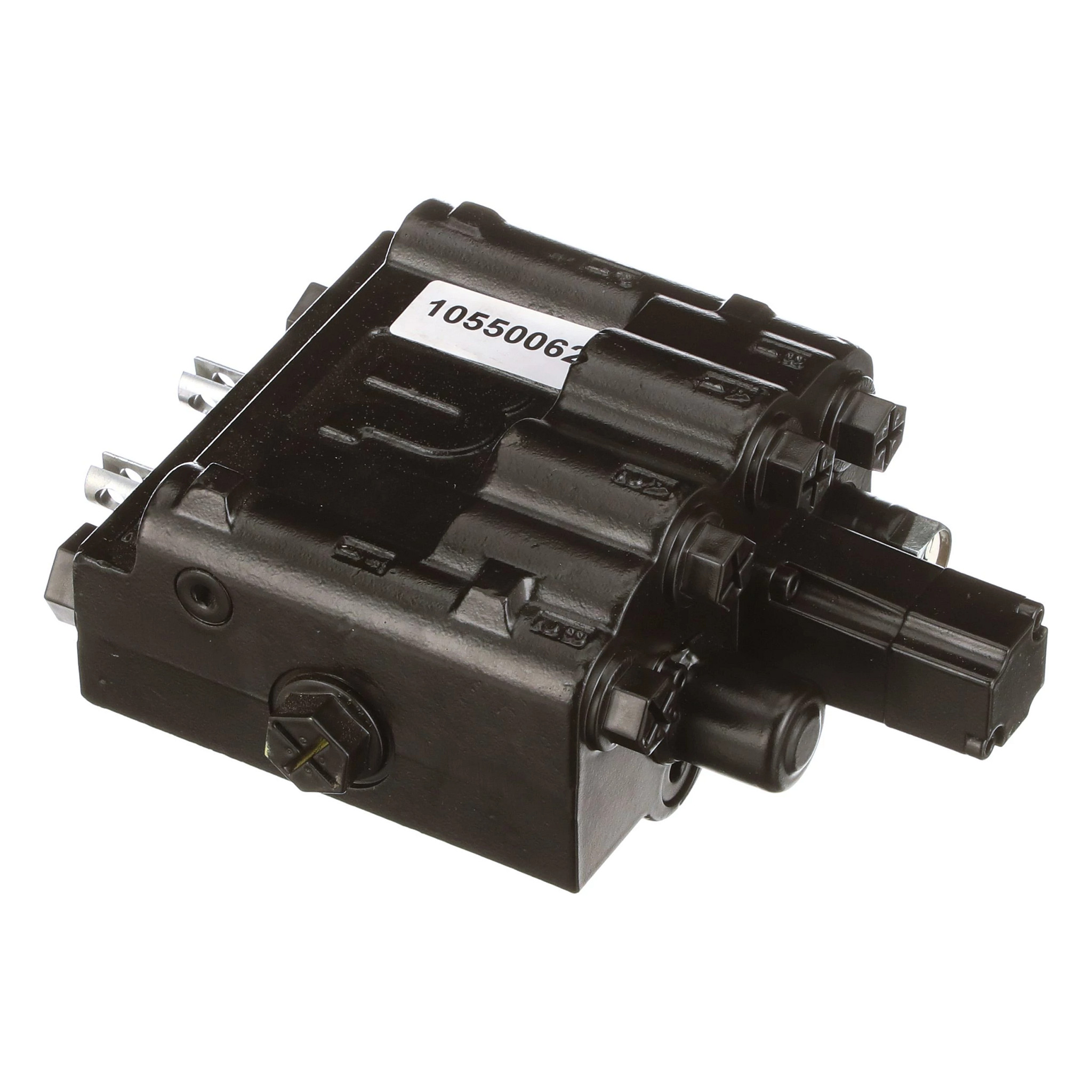

CONTROL VALVE; Hydraulic


Alts

Select

Ref.

3

Qty

1

Availability

Part #

LDR10360022

Description

KIT; Mounting Bracket, Incl 26 - 30


Alts

Select

Ref.

4

Qty

2

Availability

Part #

LDR5002062

Description

SCREW; M8


Alts

Select

Ref.

5

Qty

2

Availability

Part #

LDR5011053

Description

NUT; M8


Alts

Select

Ref.

6

Qty

4

Availability

Part #

LDR5013101

Description

WASHER 8.40mm ID x 16mm OD x 1.50mm Thk;


Alts

Select

Ref.

7

Qty

6

Availability

Part #

LDR5033606

Description

CABLE TIE; Hydraulic Hose


Alts

Select

Ref.

8

Qty

2

Availability

Part #

LDR5020943

Description

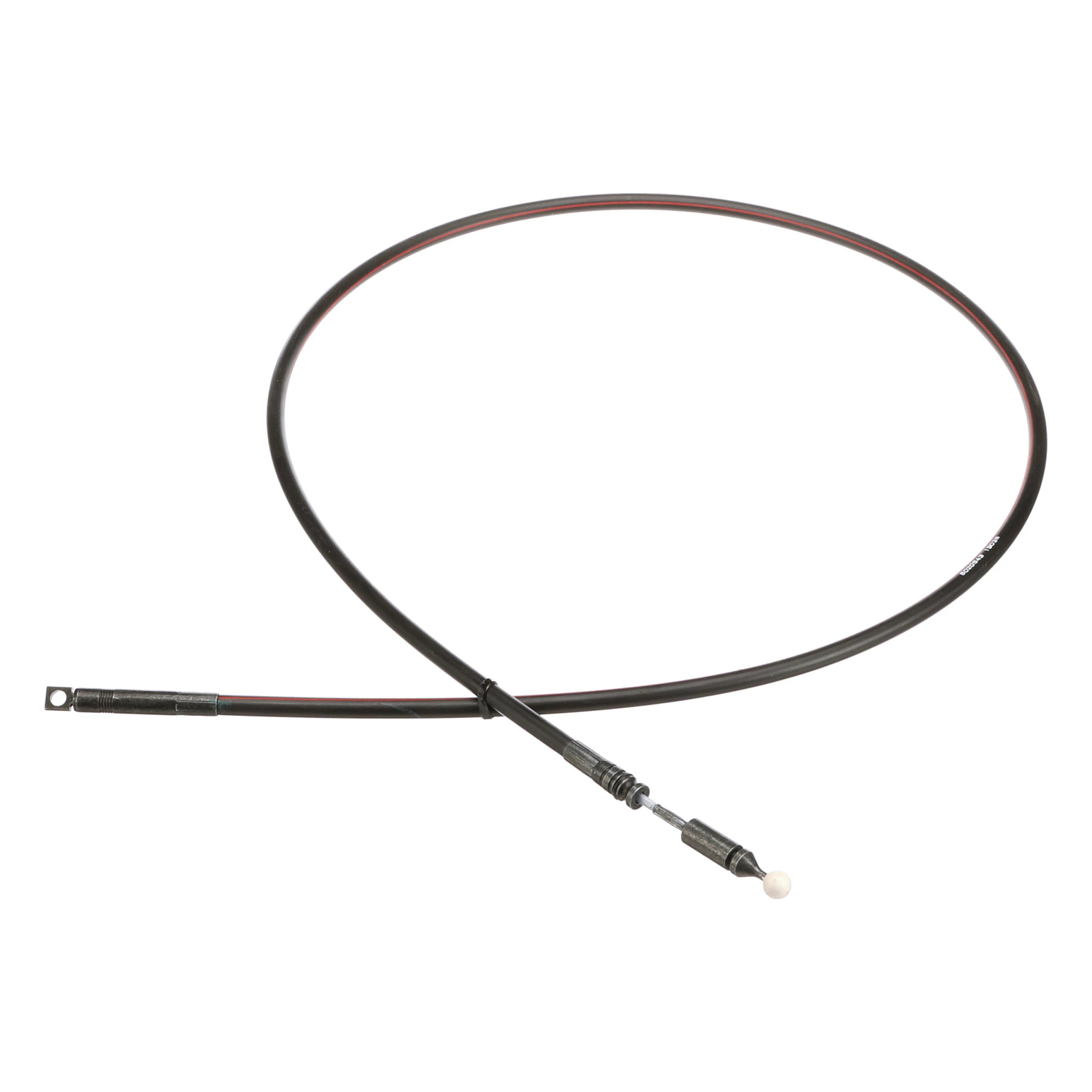

CABLE; Joystick, 1800 mm;See 35.355.010 for Service kit Joystick Cable.


Alts

Select

Ref.

9

Qty

2

Availability

Part #

LDR9031589

Description

HYDRAULIC HOSE; 1-1/16'' JIC x 1'' UNF x 2150mm L


Alts

Select

Ref.

10

Qty

1

Availability

Part #

LDR9031590

Description

HYDRAULIC HOSE; 1-1/16'' JIC x 1'' UNF x 2300mm L


Alts

Select

Ref.

11

Qty

1

Availability

Part #

LDR5027936

Description

ELBOW; 1-1/16'' UNF JIC x 1-1/16'' UNF JIC


Alts

Select

Ref.

12

Qty

1

Availability

Part #

LDR10358866

Description

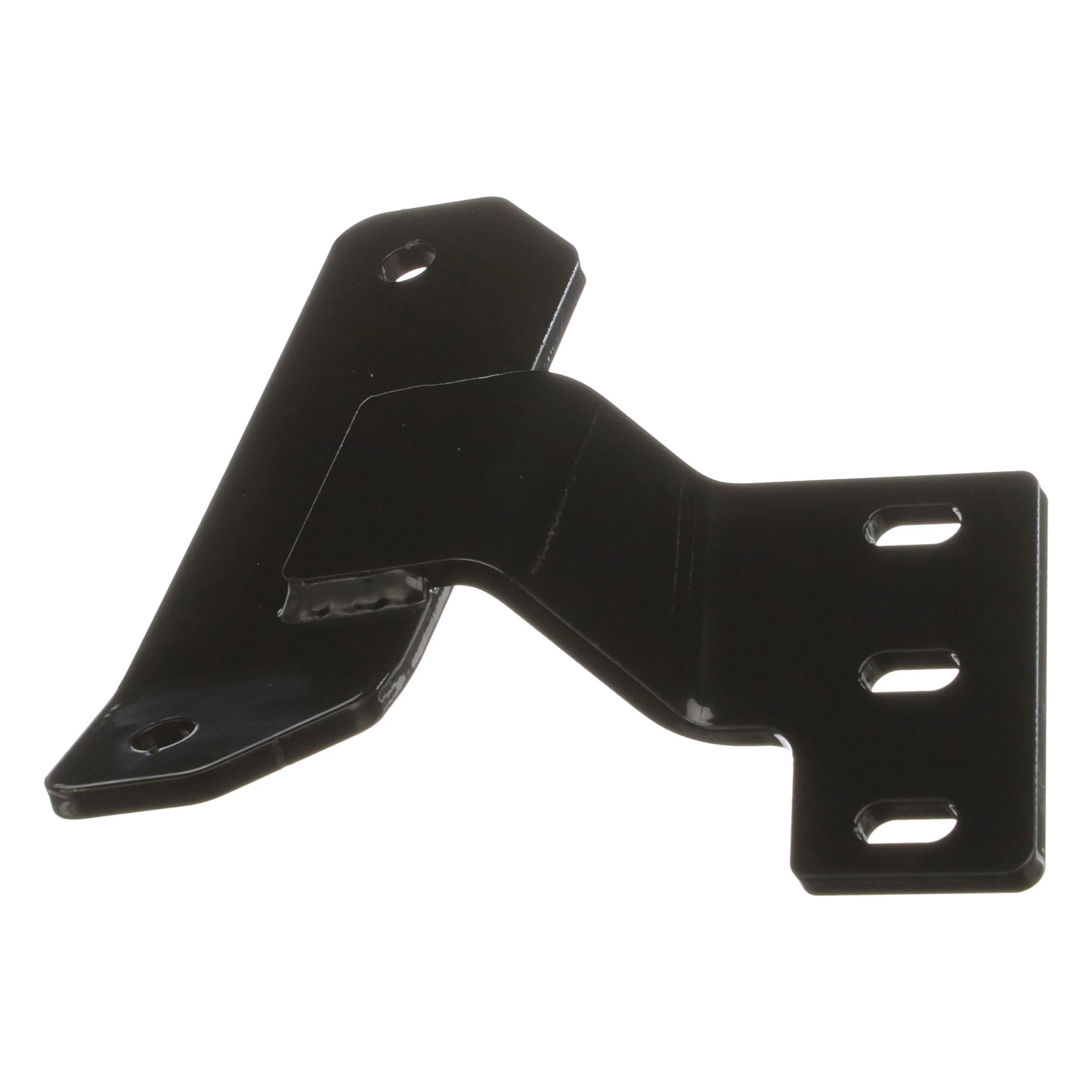

SUPPORT; Joystick


Alts

Select

Ref.

13

Qty

1

Availability

Part #

LDR10358869

Description

SPACER; 45mm Thk


Alts

Select

Ref.

14

Qty

1

Availability

Part #

LDR10358870

Description

SPACER; 55mm Thk


Alts

Select

Ref.

15

Qty

1

Availability

Part #

LDR5002082

Description

SCREW; M10 x 70mm L, Cl 8.8


Alts

Select

Ref.

16

Qty

1

Availability

Part #

LDR5002092

Description

VIS; M10 x 80mm L, Cl 8.8


Alts

Select

Ref.

17

Qty

2

Availability

Part #

LDR5013110

Description

RONDELLE 10.50mm ID x 22mm OD x 2mm;


Alts

Select

Ref.

18

Qty

2

Availability

Part #

LDR5011554

Description

NUT M10; Locking


Alts

Select

Ref.

19

Qty

1

Availability

Part #

LDR5201142

Description

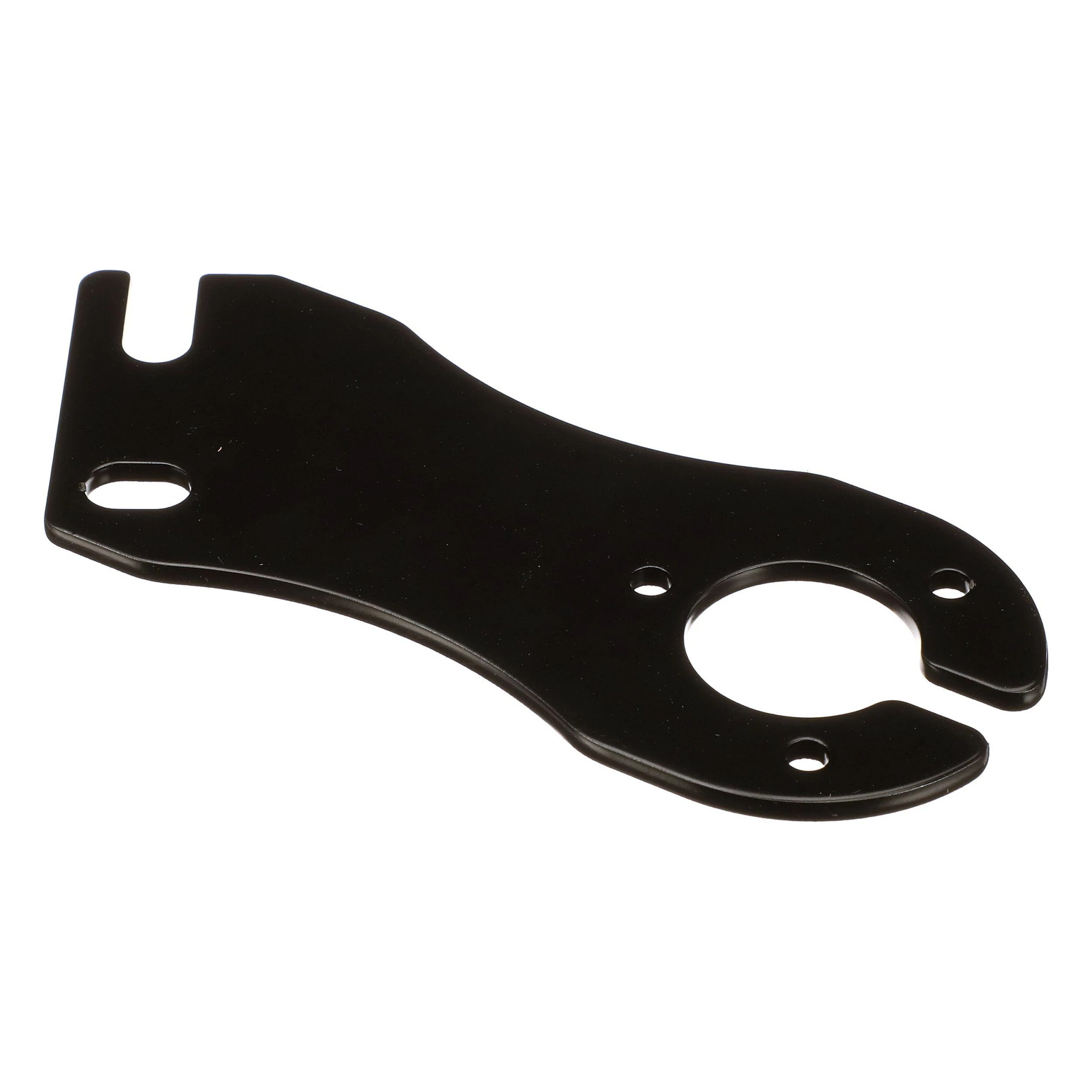

BRACKET; Mounting


Alts

Select

Ref.

20

Qty

1

Availability

Part #

LDR5020938

Description

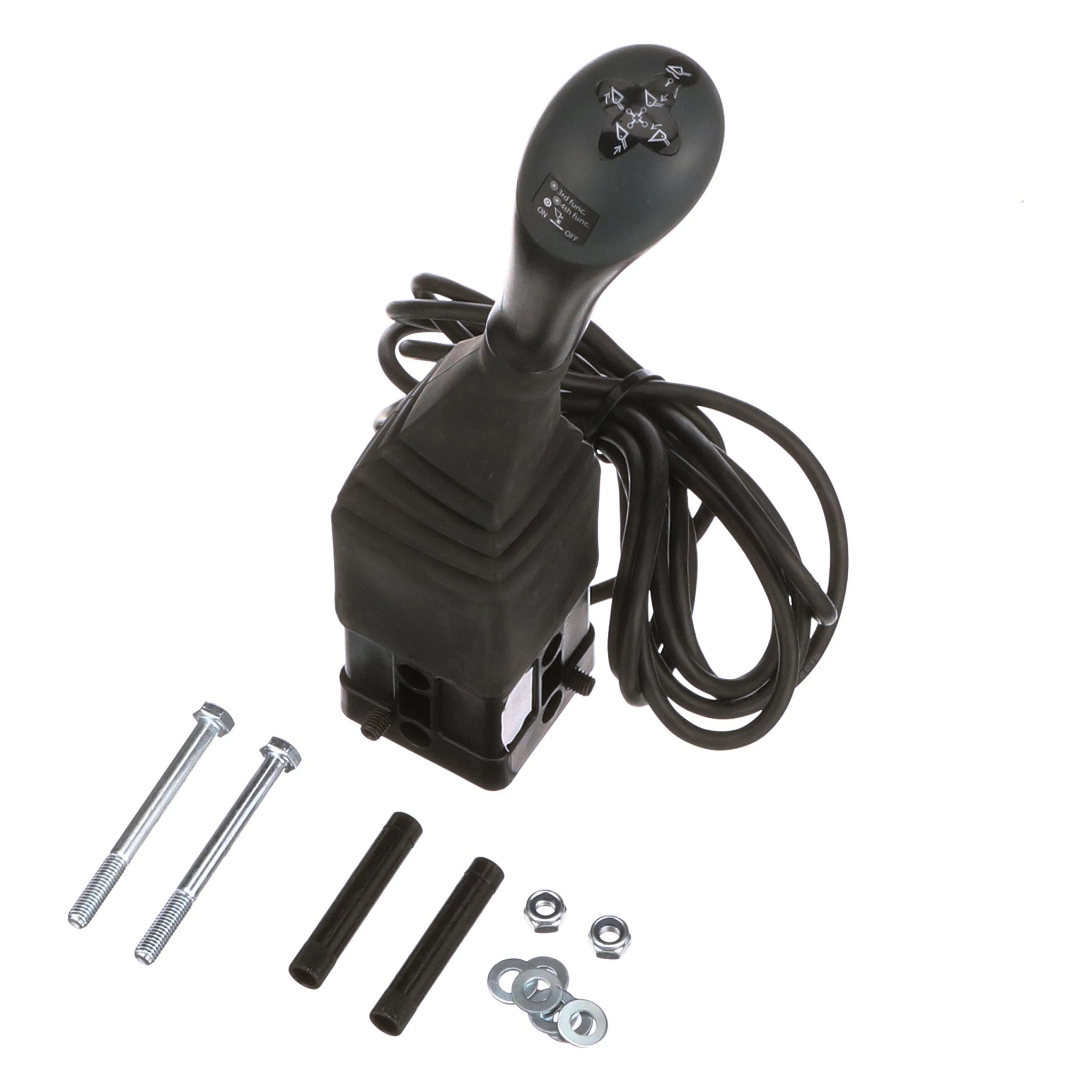

JOYSTICK; Assy


Alts

Select

Ref.

21

Qty

2

Availability

Part #

LDR5013854

Description

RONDELLE M20;


Alts

Select

Ref.

22

Qty

2

Availability

Part #

LDR5027463

Description

ADAPTATEUR;


Alts

Select

Ref.

23

Qty

4

Availability

Part #

LDR5044131

Description

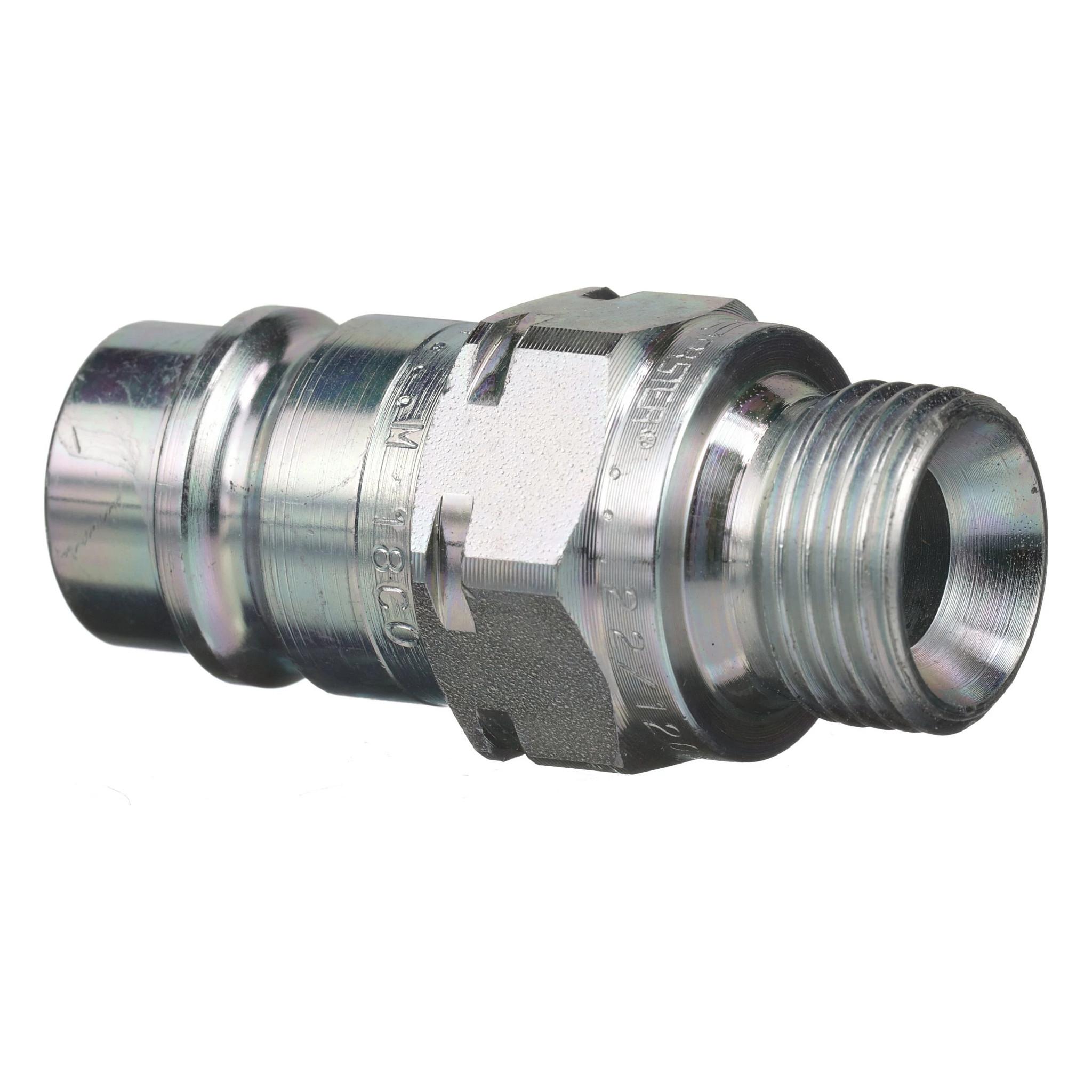

ACCOUPLEMENT RAPIDE;


Alts

Select

Ref.

24

Qty

4

Availability

Part #

LDR5013853

Description

WASHER;


Alts

Select

Ref.

25

Qty

1

Availability

Part #

LDR10360032

Description

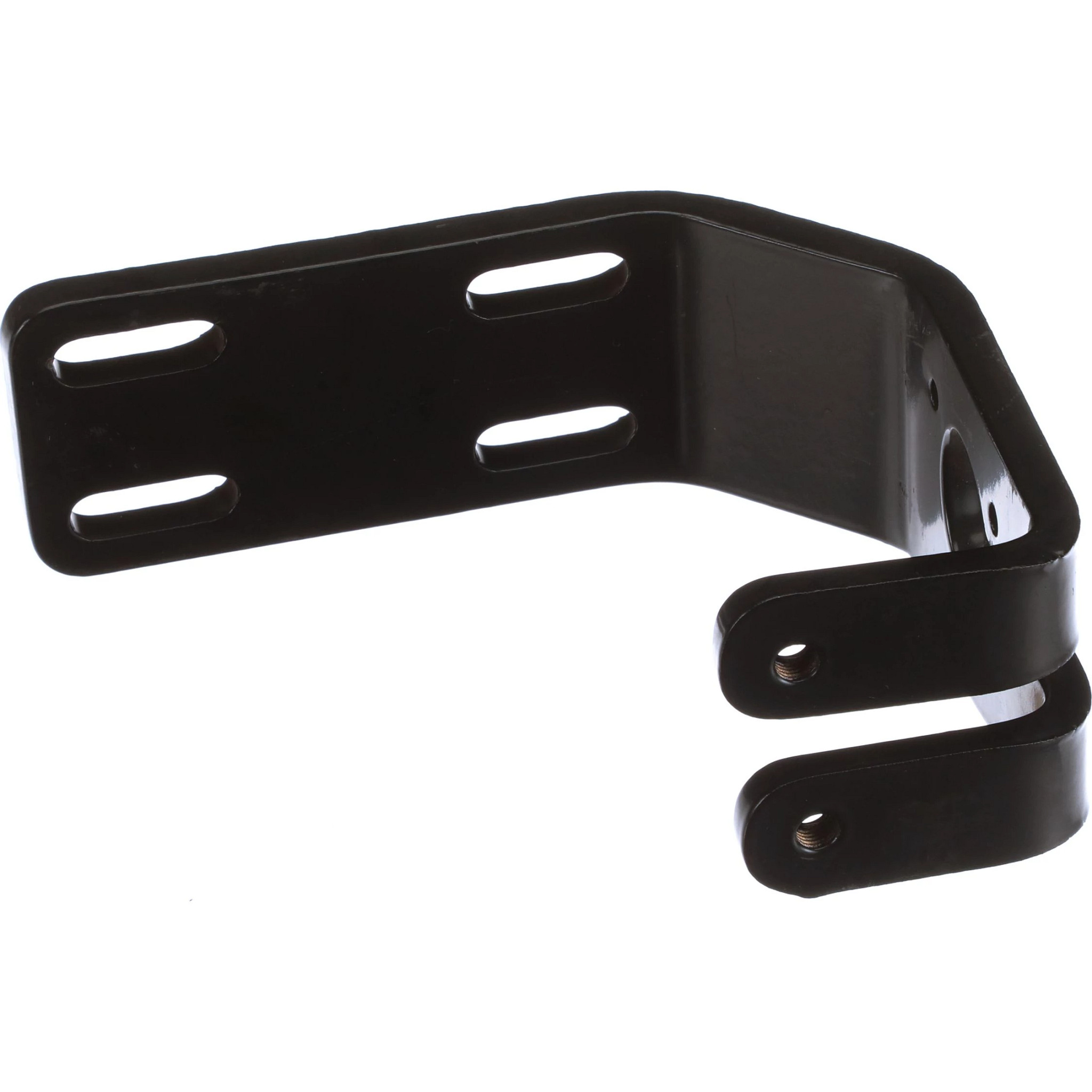

BRACKET;


Alts

Select

Ref.

26

Qty

2

Availability

Part #

LDR5005999

Description

VIS M10 x 45mm;


Alts

Select

Ref.

27

Qty

2

Availability

Part #

LDR5002084

Description

SCREW M10 x 35mm, Cl 8.8;


Alts

Select

Ref.

28

Qty

2

Availability

Part #

LDR5011054

Description

NUT M10, Cl 8.8;


Alts

Select

Ref.

29

Qty

4

Availability

Part #

LDR5013110

Description

WASHER 10.50mm ID x 22mm OD x 2mm;


Alts

Select

Ref.

30

Qty

2

Availability

Part #

LDR5002089

Description

BOLT M10 x 25mm, Cl 8.8;


Alts
