Ref.
Qty
Part #
Alts
Description
-
11BEARING COVER 4.75'' ID x 8'' OD x 3.375''; Shield, Tipping Bearing
-
2BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2'', Hd PTO
-
2BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4'', Std PTO
-
2LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
2WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
-

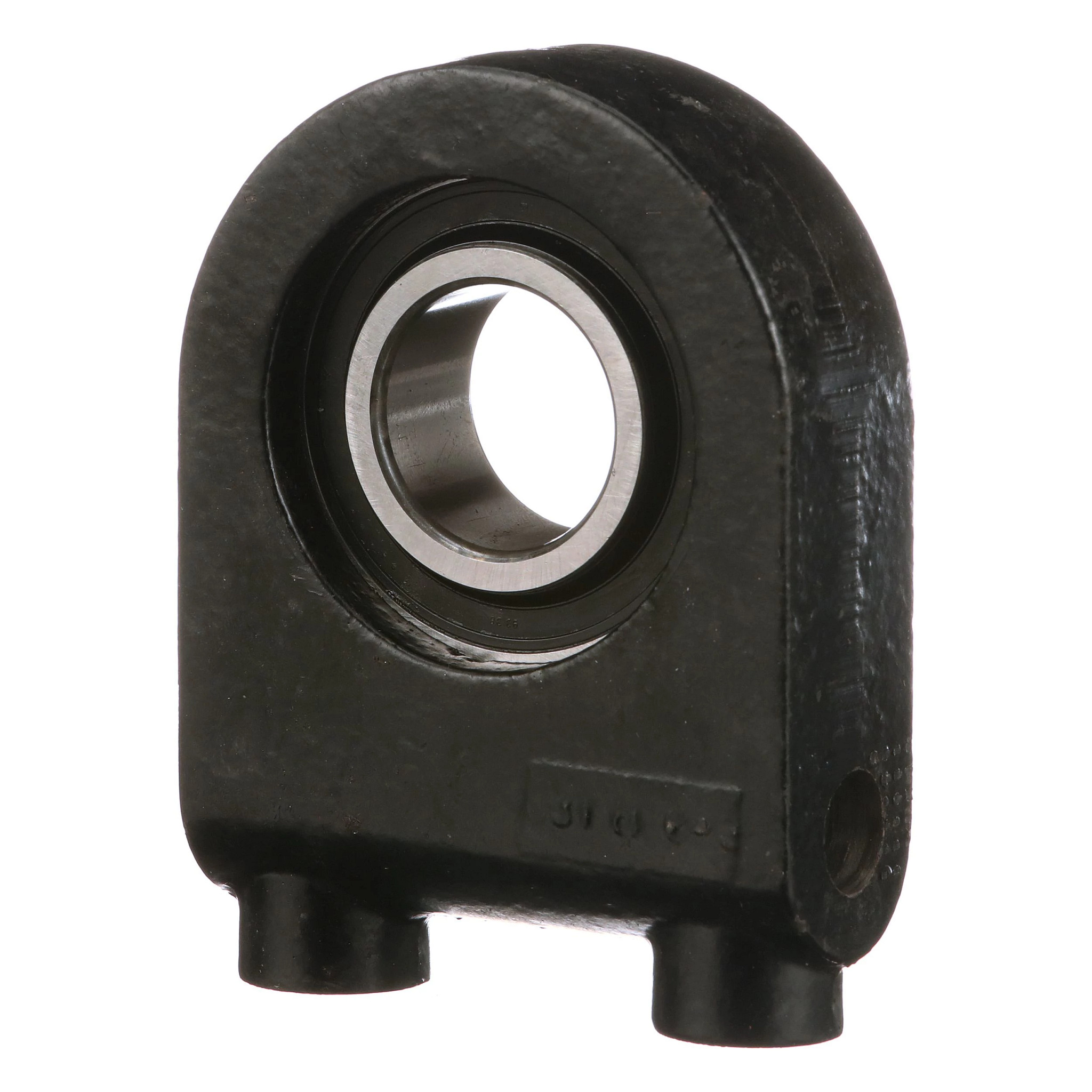

21BEARING ASSY; Bearing Assy., Includes: Ref. 3, 4 & 5
-
31SNAP RING 3.156'', Int, #315; Ring, Snap, 3.156'', Int, #315
-
41BALL BEARING 34.99mm ID x 71.88mm OD x 25mm W; Bearing, Ball
-
51BEARING HOUSING 2.5625'' ID x 3.313'' OD x 1.375''; Bearing
-
61YOKE;
-
1BOLT Hex, 3/4 - 16 x 2.5, Gr 5; Cap, HH, Drilled, G5, 3/4''-16 x 2-1/2''
-
1LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''
-
1SLOTTED NUT 3/4''-16; Nut, Slotted, G2, 3/4''-16
-
71PIN 15.87mm OD x 128.8mm L; Clevis, 5/8'' x 4-9/16'', Yoke
-
2WASHER 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8''
-
1COTTER PIN M5 x 25; PIN, SPLIT (COTTER), M5 x 25
-

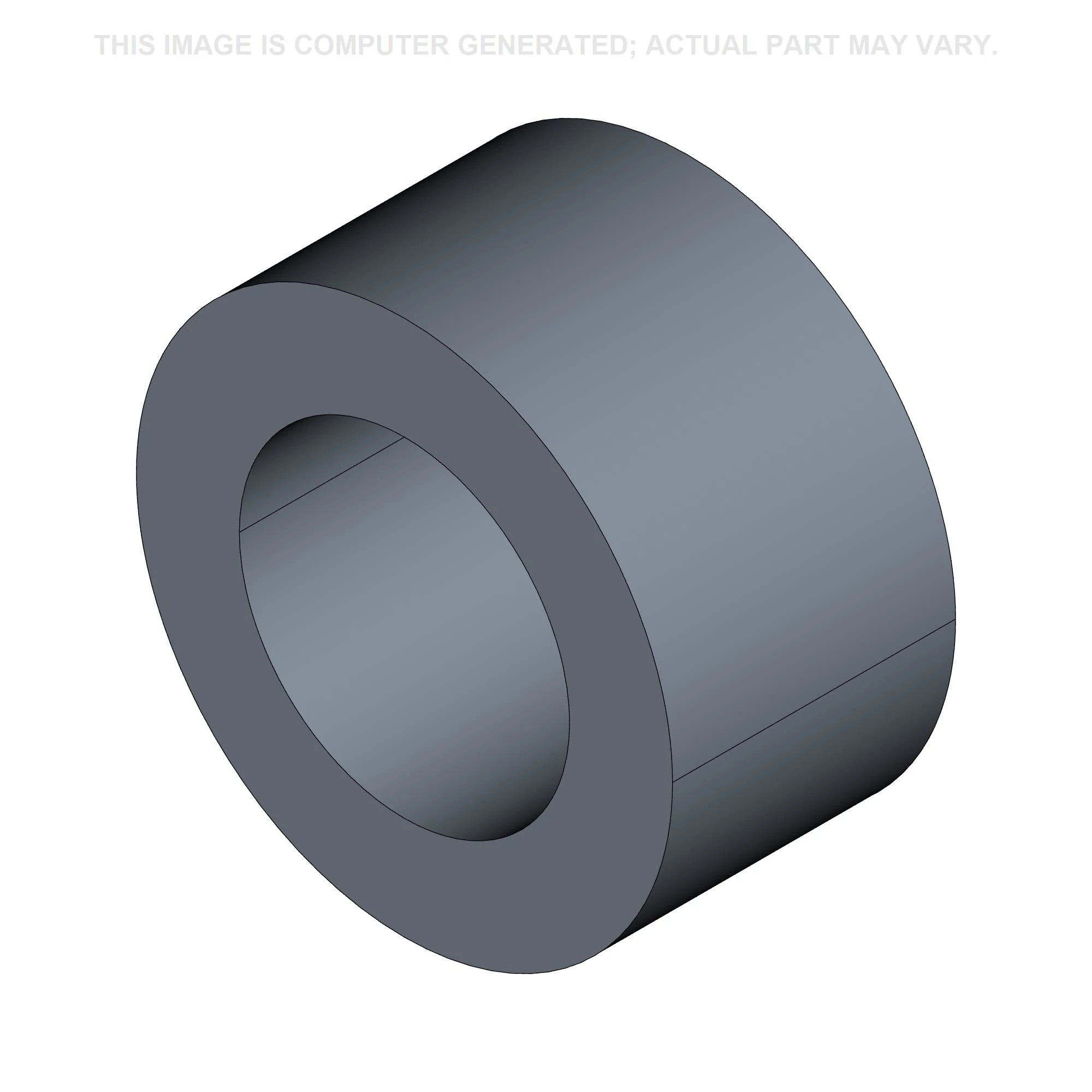

81BUSHING; Spacer
-
91WASHER .766'' ID x 1.075'' OD; Special, 49/64'' x 1-7/8''
-
101WASHER; Special, 25/32'' x 2-3/8''
-
111SPRING; 1'' O.D. x 5''
-
121SPRING; 1-1/4'' O.D. x 5-5/8''
-
131SUPPORT; Weld Assy.;No Longer Serviced
-
1WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; (3/8'') M10 x 22.2 x 2.87 Thk, HT
-
2NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
-
141SUPPORT; Weld Assy.;No Longer Serviced
-
4BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;
-
4LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
151SPARE PART; Pivot Bar Weld Assy.;No Longer Serviced
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
163BALL; No Longer Serviced
-
171WASHER 25.8mm ID x 39.69mm OD x 0.99mm Thk; Special (1-1/64'' x 1-9/16'') M26 x 39 x 0.9 Thk
-
181SUPPORT; Weld Assy.;No Longer Serviced
-
1WOODRUFF KEY #9, 3/16'' x 3/4''; Key, Woodruff, # 9, 3/16'' x 3/4''
-
191WASHER 25.8mm ID x 49.21mm OD x 3.17mm Thk; Special, 1-1/64'' x 1-15/16''
-
201COMPRESSION SPRING; No Longer Serviced
-
1WASHER; Hardened, 3/4''
-
1NUT 3/4'' - 10, Gr C; Nut, Lock, GC, 3/4''-10
-
211SHIELD; No Longer Serviced
-
2SELF-TAP SCREW Hex Hd, 5/16'' x 3/4''; Screw, Self-Tapping, HH, 5/16'' x 3/4''
-
1BOLT Hex, 5/16'' - 18 x 1/2'', Gr 5, Full Thd;
-
3WASHER 0.38'' ID x 0.88'' OD x 0.08'' Thk;
-
3LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
221GUIDE; Twine
-
231U-BOLT; #10-24 x 1-15/16'', Twine Guide
-
2LOCK WASHER 4.9mm ID x 8.48mm OD x 1.19mm Thk; Washer, Lock, #10
-
2SQUARE NUT; Square, G2, #10-24
-
24ARWASHER 0.16'' ID x 0.38'' OD x 0.05'' Thk;
-
251COTTER PIN .176'' OD x 1.50'' L; Pin, Split, Cotter, Hardened, 3/16'' x 1-1/2''
-
262SPACER; Heavy Duty PTO
Select All
Ref.
1Qty
1Availability
Part #
242039Description
BEARING COVER 4.75'' ID x 8'' OD x 3.375''; Shield, Tipping BearingImg
Alts
Ref.
Qty
2Availability
Part #
88044Description
BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2'', Hd PTOImg
Alts
Ref.
Qty
2Availability
Part #
88434Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4'', Std PTOImg
Alts
Ref.
Qty
2Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
2Qty
1Availability
Part #
34373Description
BEARING ASSY; Bearing Assy., Includes: Ref. 3, 4 & 5Img
Alts
Ref.
3Qty
1Availability
Part #
86577949Description
SNAP RING 3.156'', Int, #315; Ring, Snap, 3.156'', Int, #315Img
Alts
Ref.
4Qty
1Availability
Part #
9808112Description
BALL BEARING 34.99mm ID x 71.88mm OD x 25mm W; Bearing, BallImg
Alts
Ref.
5Qty
1Availability
Part #
34056Description
BEARING HOUSING 2.5625'' ID x 3.313'' OD x 1.375''; BearingImg
Alts
Ref.
Qty
1Availability
Part #
573958Description
BOLT Hex, 3/4 - 16 x 2.5, Gr 5; Cap, HH, Drilled, G5, 3/4''-16 x 2-1/2''Img
Alts
Ref.
Qty
1Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''Img
Alts
Ref.
Qty
1Availability
Part #
88886Description
SLOTTED NUT 3/4''-16; Nut, Slotted, G2, 3/4''-16Img
Alts
Ref.
7Qty
1Availability
Part #
29851Description
PIN 15.87mm OD x 128.8mm L; Clevis, 5/8'' x 4-9/16'', YokeImg
Alts
Ref.
Qty
2Availability
Part #
87365Description
WASHER 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8''Img
Alts
Ref.
Qty
1Availability
Part #
394818Description
COTTER PIN M5 x 25; PIN, SPLIT (COTTER), M5 x 25Img
Alts
Ref.
9Qty
1Availability
Part #
56867Description
WASHER .766'' ID x 1.075'' OD; Special, 49/64'' x 1-7/8''Img
Alts
Ref.
13Qty
1Availability
Part #
285948Description
SUPPORT; Weld Assy.;No Longer ServicedImg
Alts
Ref.
Qty
1Availability
Part #
285072Description
WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; (3/8'') M10 x 22.2 x 2.87 Thk, HTImg
Alts
Ref.
14Qty
1Availability
Part #
285941Description
SUPPORT; Weld Assy.;No Longer ServicedImg
Alts
Ref.
Qty
4Availability
Part #
87670Description
BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;Img
Alts
Ref.
Qty
4Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Ref.
15Qty
1Availability
Part #
285951Description
SPARE PART; Pivot Bar Weld Assy.;No Longer ServicedImg
Alts
Ref.
Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Ref.
17Qty
1Availability
Part #
26129Description
WASHER 25.8mm ID x 39.69mm OD x 0.99mm Thk; Special (1-1/64'' x 1-9/16'') M26 x 39 x 0.9 ThkImg
Alts
Ref.
18Qty
1Availability
Part #
285946Description
SUPPORT; Weld Assy.;No Longer ServicedImg
Alts
Ref.
Qty
1Availability
Part #
80810Description
WOODRUFF KEY #9, 3/16'' x 3/4''; Key, Woodruff, # 9, 3/16'' x 3/4''Img
Alts
Ref.
19Qty
1Availability
Part #
25769Description
WASHER 25.8mm ID x 49.21mm OD x 3.17mm Thk; Special, 1-1/64'' x 1-15/16''Img
Alts
Ref.
Qty
1Availability
Part #
280375Description
NUT 3/4'' - 10, Gr C; Nut, Lock, GC, 3/4''-10Img
Alts
Ref.
Qty
2Availability
Part #
87887Description
SELF-TAP SCREW Hex Hd, 5/16'' x 3/4''; Screw, Self-Tapping, HH, 5/16'' x 3/4''Img
Alts
Ref.
Qty
1Availability
Part #
88574Description
BOLT Hex, 5/16'' - 18 x 1/2'', Gr 5, Full Thd;Img
Alts
Ref.
Qty
3Availability
Part #
80664Description
WASHER 0.38'' ID x 0.88'' OD x 0.08'' Thk;Img
Alts
Ref.
Qty
3Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
23Qty
1Availability
Part #
28114Description
U-BOLT; #10-24 x 1-15/16'', Twine GuideImg
Alts
Ref.
Qty
2Availability
Part #
80684Description
LOCK WASHER 4.9mm ID x 8.48mm OD x 1.19mm Thk; Washer, Lock, #10Img
Alts
Ref.
24Qty
ARAvailability
Part #
86511189Description
WASHER 0.16'' ID x 0.38'' OD x 0.05'' Thk;Img
Alts
Ref.
25Qty
1Availability
Part #
164086Description
COTTER PIN .176'' OD x 1.50'' L; Pin, Split, Cotter, Hardened, 3/16'' x 1-1/2''Img
Alts
