55.200.AB[01] - AIR CONDITIONER CAB
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    363832A5
    EVAPORATOR; Core
  • 2
    1
    360256A1
    A/C HOSE 0.375 Inch OD x 0.035 Inch Wall, Thermoplastic Core; Pressure Cab
  • 3
    1
    360257A1
    A/C HOSE 0.625 Inch OD x 0.049 Inch Wall, Thermoplastic Core; Suction Cab
  • 4
    1
    381111A2
    AIR INTAKE TUBE 228mm L; Fresh Air Intake
  • 5
    1
    381113A2
    INSULATOR 3mm Thk; Fresh Air Sleeve
  • 6
    2
    281-18712
    SELF-TAP SCREW Hex Wash Hd, 1/4'' x 3/4'';
  • 7
    1
    D143417

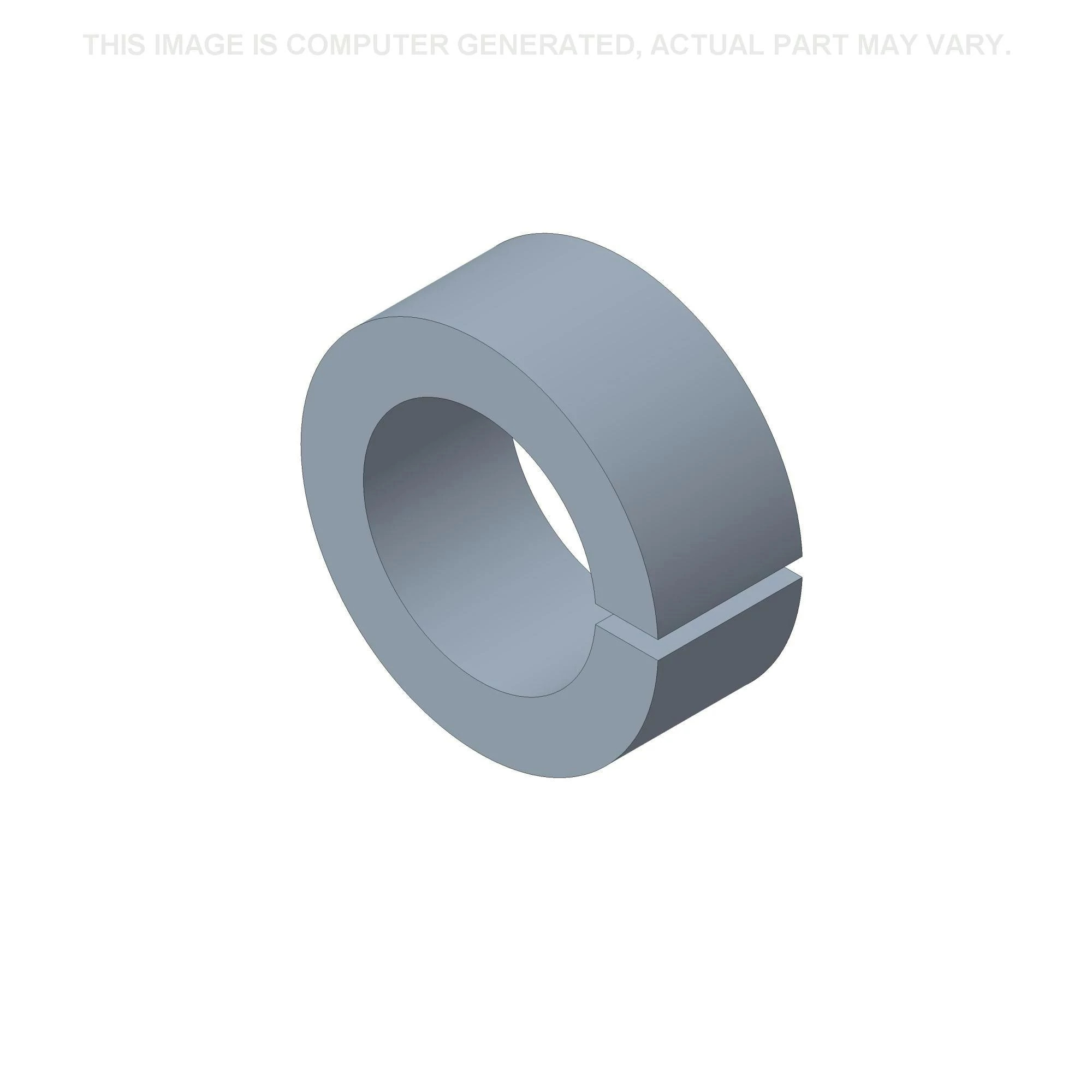

    SPACER 10.31mm ID x 15.88mm OD x 6.4mm L; Steel
  • 8
    1
    D143427
    CLAMP 10mm ID x 42mm L; Tube
  • 9
    1
    614-8030
    BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd;
  • 10
    1
    825-2408
    FLANGE NUT M8 x 1.25, Flg, Cl 8;
  • 11
    1
    370381A1
    ROTARY SWITCH; Thermostat
  • 12
    1
    400379A1
    KNOB 23mm; Spring Clip 23mm
  • 13
    4
    365789A1
    DRAIN VALVE; Evap Core
  • 14
    4
    214-1406
    HOSE CLAMP #06, 0.44'' - 0.78'', Type F Worm;
  • 15
    2
    383794A2
    PLUG; A Post
  • 16
    2
    383795A2
    PLUG 67mm L x 38mm Thk; C Post
  • 16
    2
    395470A1
    PLUG 65mm L x 38mm Thk; C Post Wide
  • 17
    1
    87440283
    FOAM INSULATION; Firewall Lower
  • 18
    1
    87451021
    PROTECTIVE COVER; Firewall Upper
  • 19
    1
    87615800
    HOSE 16.88 mm ID x 549.00 mm; Evap Core Drain
  • 20
    4
    L11541
    CABLE TIE 203.2mm L, Nylon; 7 - 8 Inch
  • 21
    1
    386535A1
    VALVE, THERMAL EXPAN; Expansion Valve (Not Shown)
