02-03 - DEAERATION SYSTEM
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    REF
    INSTRUCTION; RADIATOR;See Figure 02-02
  • 2
    1
    87381277
    HOSE; Coolant
  • 3
    1
    87455330

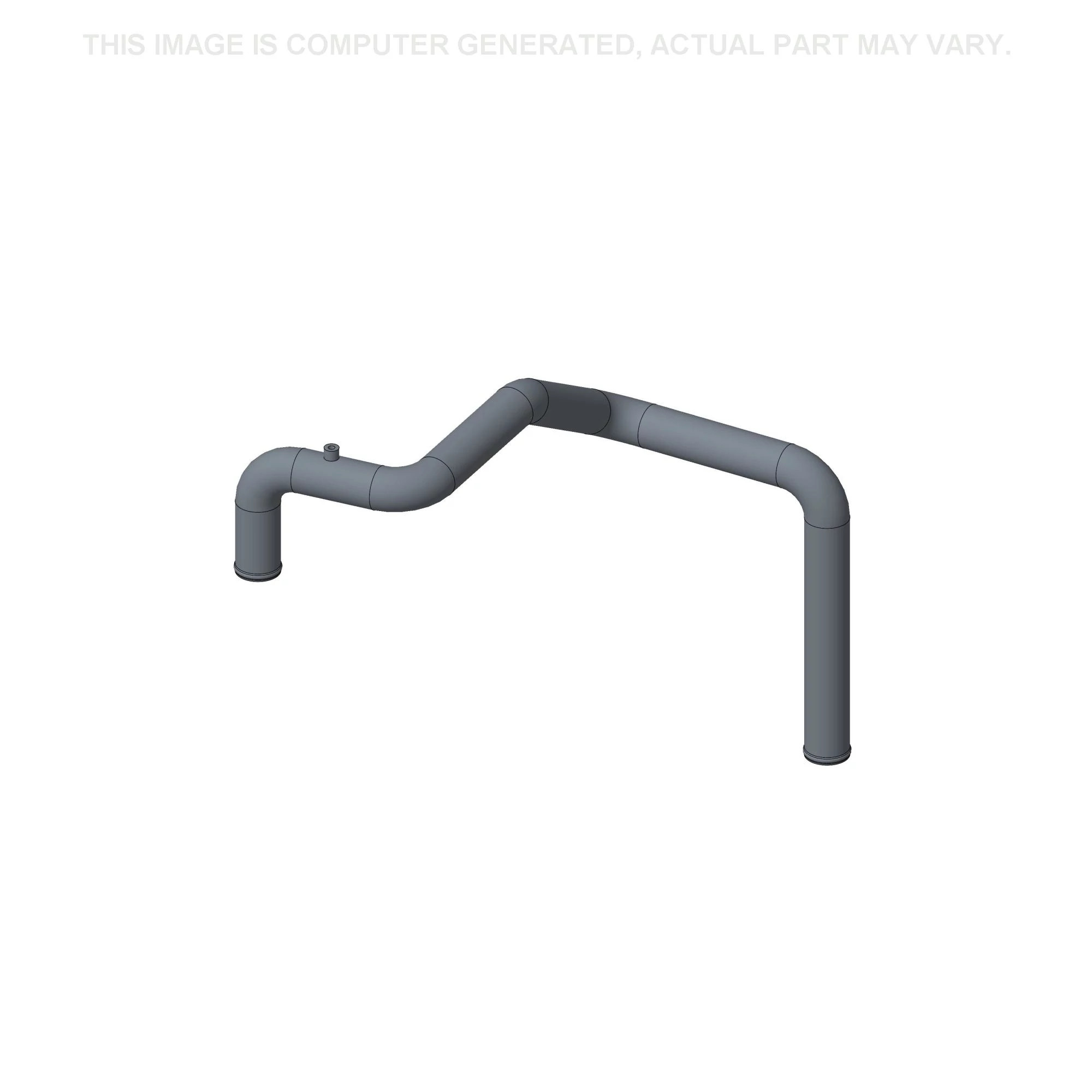

    TUBE 437.4 mm L; Radiator
  • 4
    1
    433405A1
    RADIATOR HOSE 56.40 mm ID x 100.00, SAE J20 or SAE 20R4 CLASS D1; (SN Break) Up to Z8RZ01721
  • 5
    1
    87455329
    TUBE; Radiator; (SN Break) Up to Z8RZ01721
  • 6
    1
    433405A1
    RADIATOR HOSE 56.40 mm ID x 100.00, SAE J20 or SAE 20R4 CLASS D1;
  • 7
    AR
    L115548
    HOSE CLAMP 57.15mm - 79.38mm;
  • 8
    1
    87733724
    HOSE; Engine, Coolant Outlet, Inc. 21, If Used; (SN Break) From Z8RZ01721
  • 8
    1
    84246483

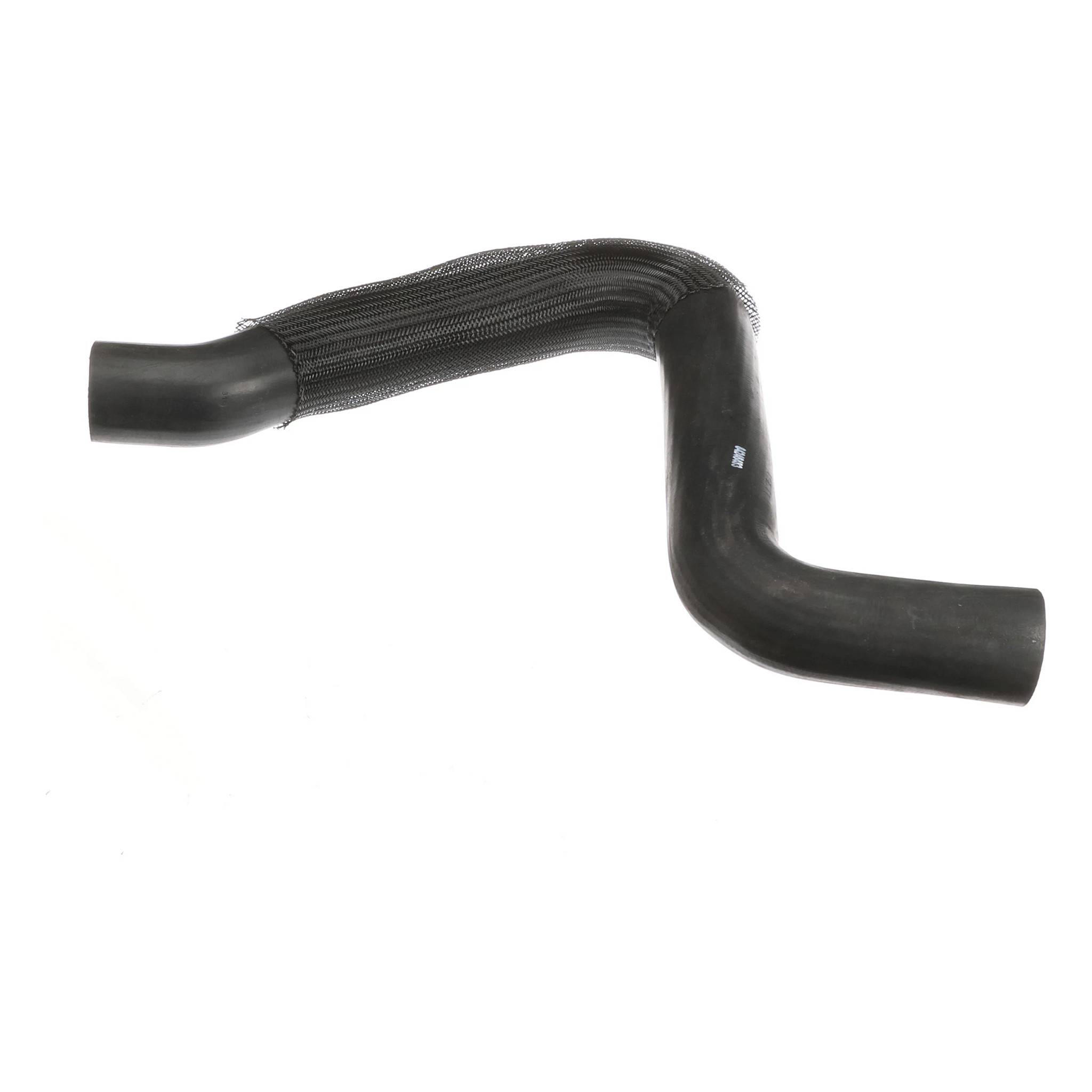

    HOSE; Engine, Coolant Outlet, With Spring Insert, Inc. 2, If Used; (SN Break) From Z8RZ01721
  • 9
    2
    87403515
    BOLT Hex, M8 x 20mm, Cl 8.8; M8 x 20, 8.8
  • 10
    1
    87413715
    RESERVOIR; Deaeration Tank
  • 11
    1
    A170241
    RADIATOR CAP; 15 psi
  • 12
    8
    555-1
    BOLT Hvy Hex, M8 x 16mm, Cl 8.8;
  • 13
    1
    255682A2

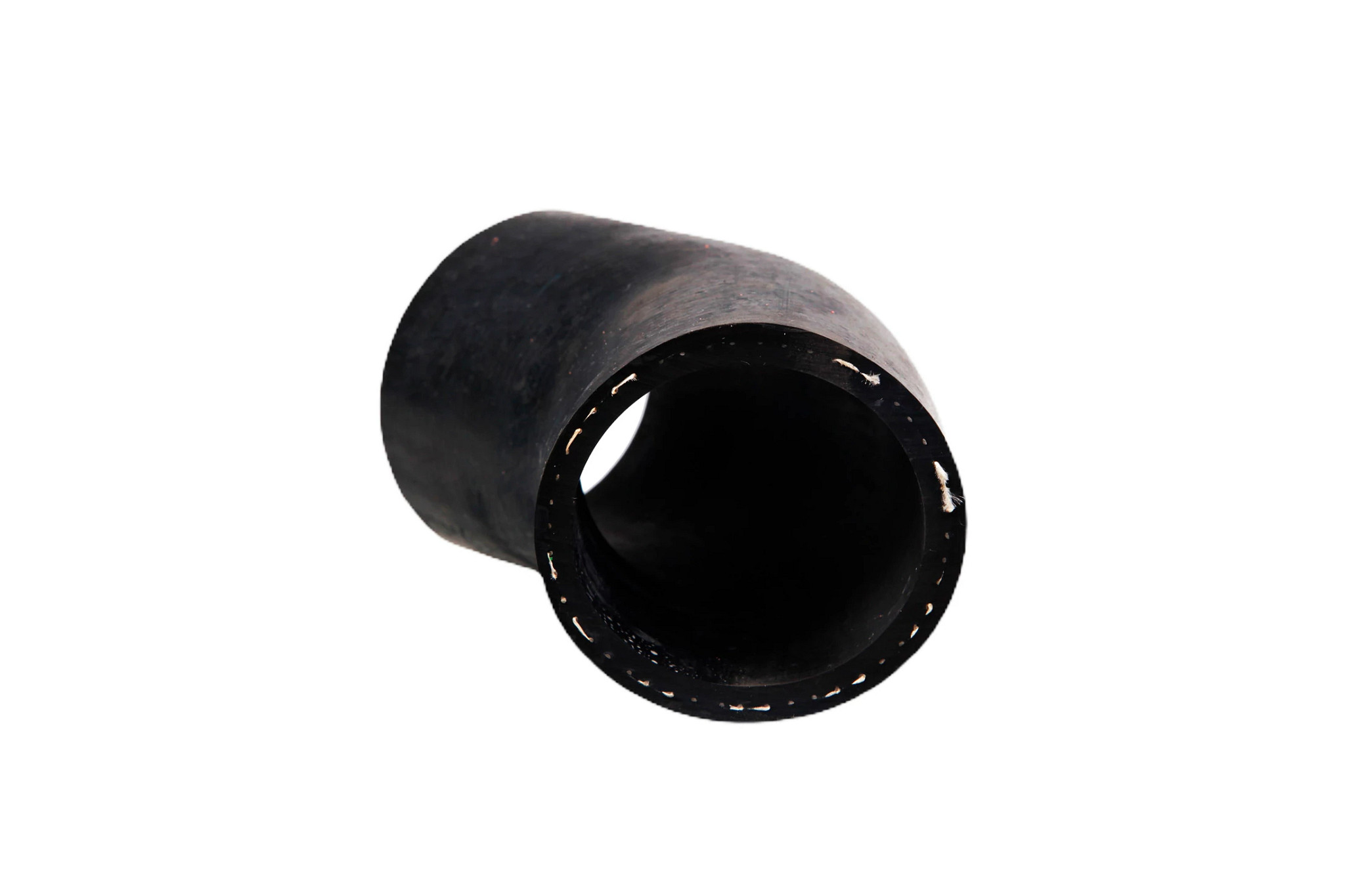

    HOSE 56.4mm ID; Radiator; (SN Break) Up to Z8RZ01721
  • 14
    3
    844-12025
    BOLT Hvy Hex, M12 x 25mm, Cl 8.8;
  • 15
    3
    87445732

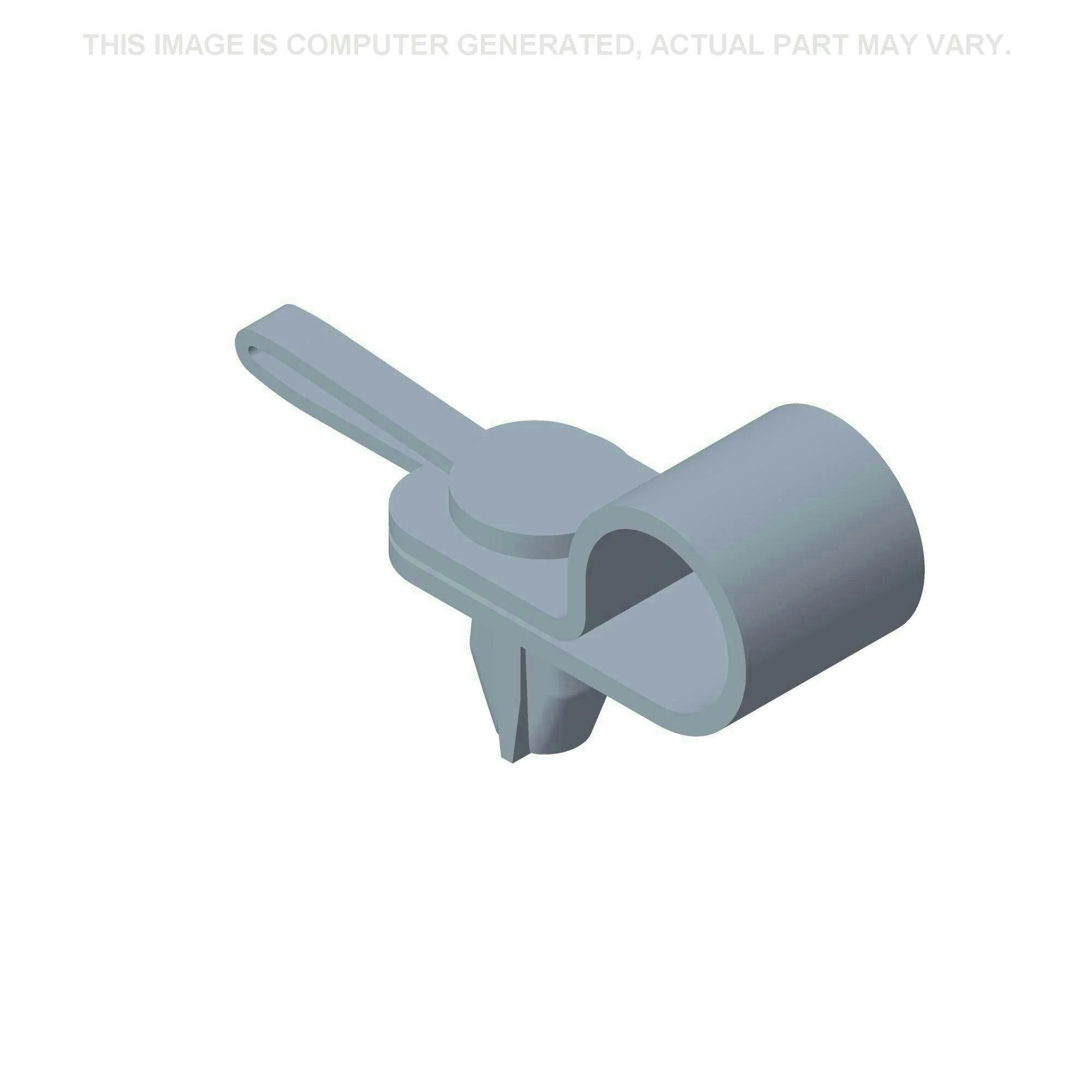

    CLAMP;
  • 16
    1
    87430751

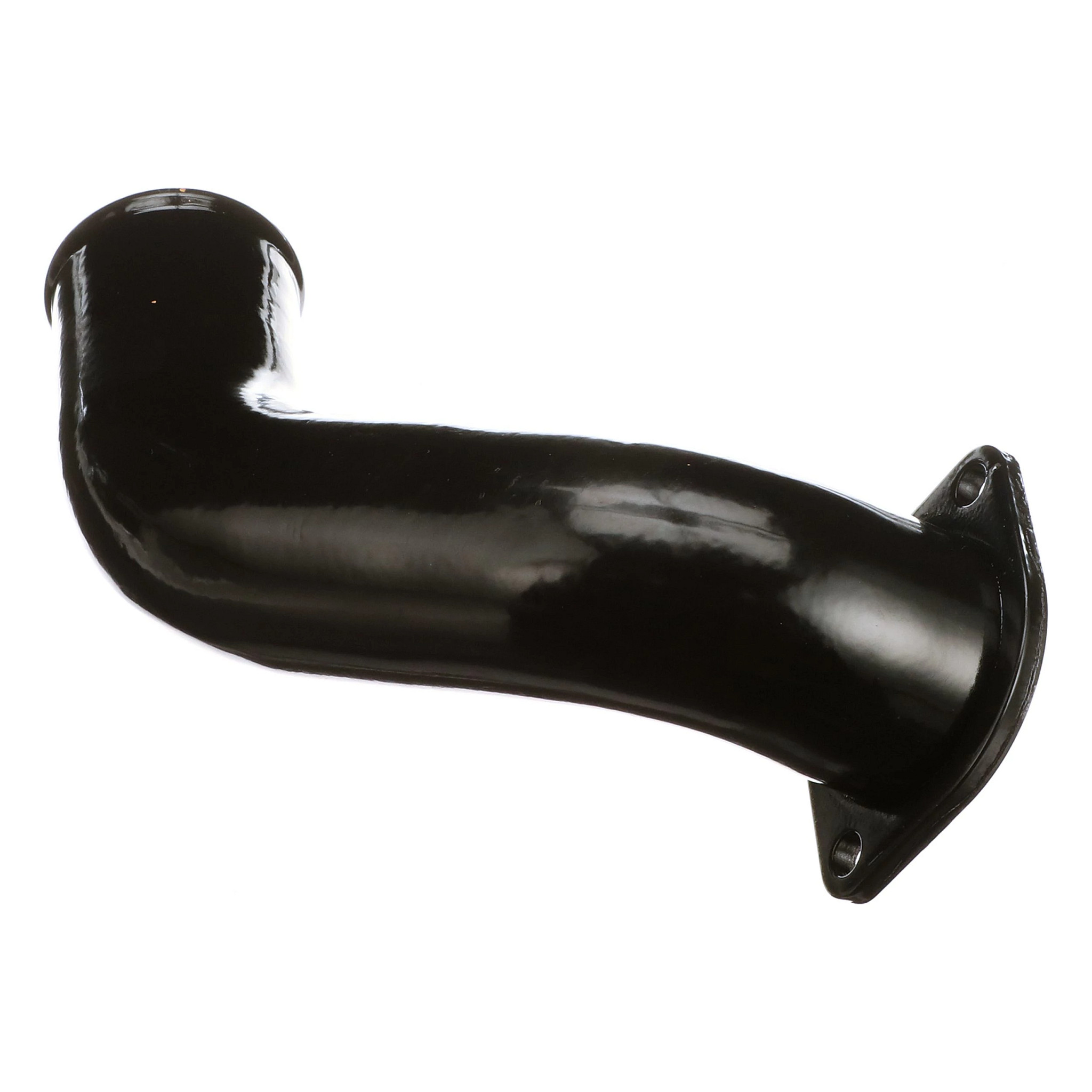

    TUBE 134, 115 mm L;
  • 17
    1
    J945603
    GASKET 1.65mm Thk;
  • 18
    1
    L127093

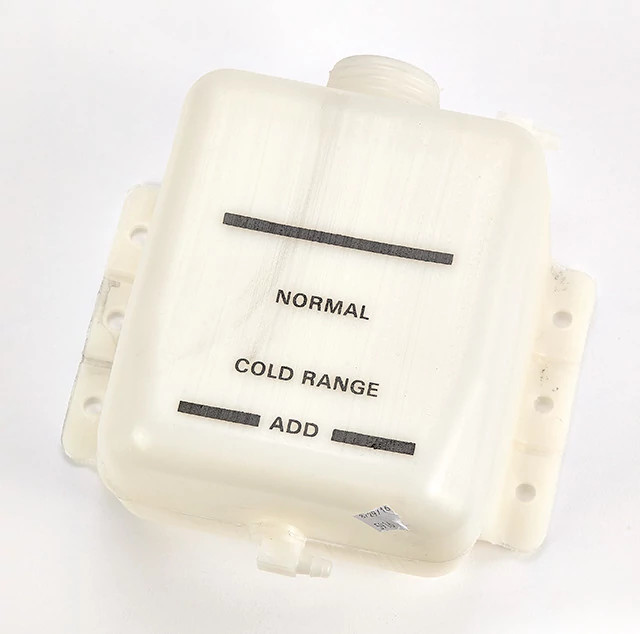

    RESERVOIR;
  • 19
    1
    238903A1
    FILLER CAP;
  • 20
    1
    87339308

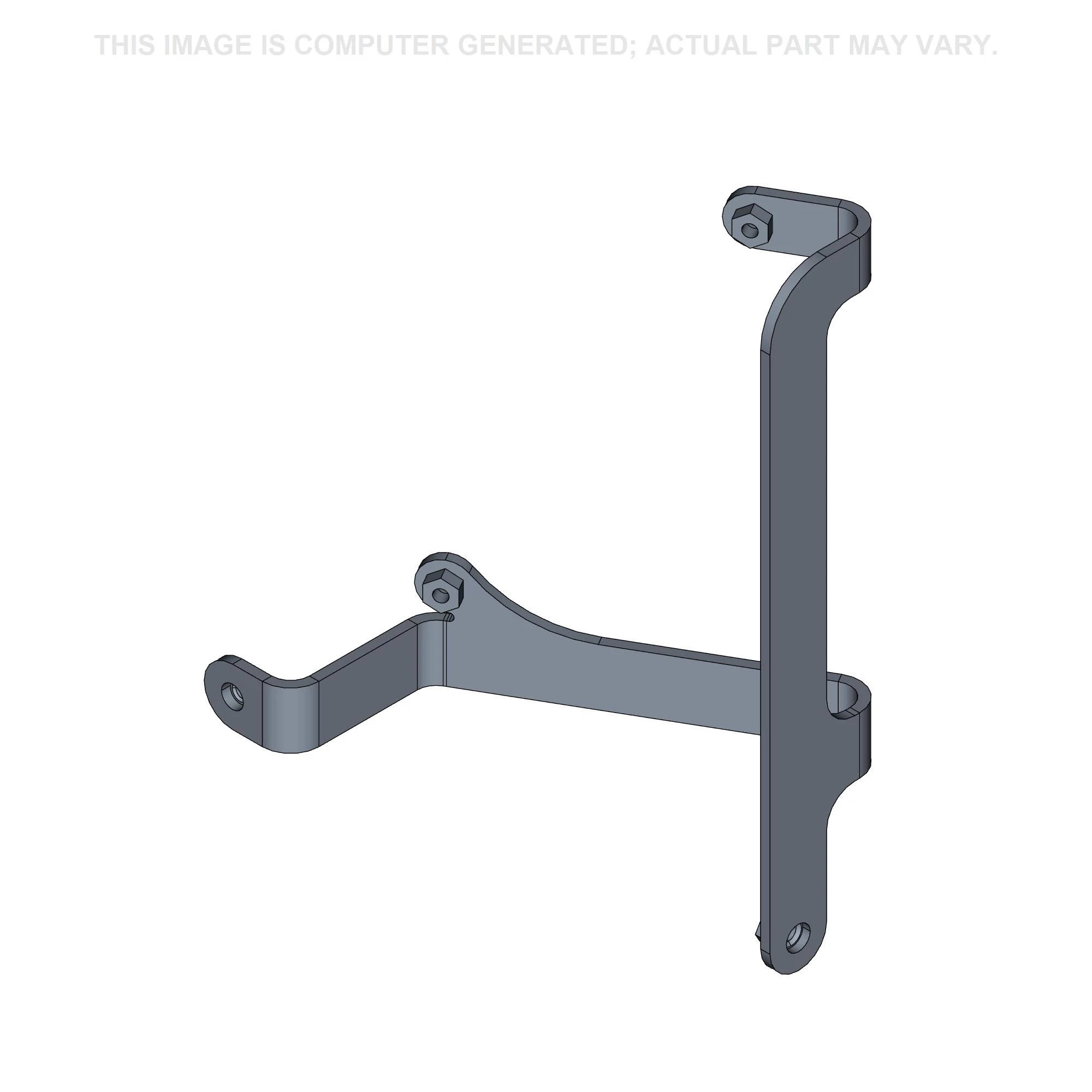

    BRACKET; Deaeration Tank
  • 21
    1
    87733645

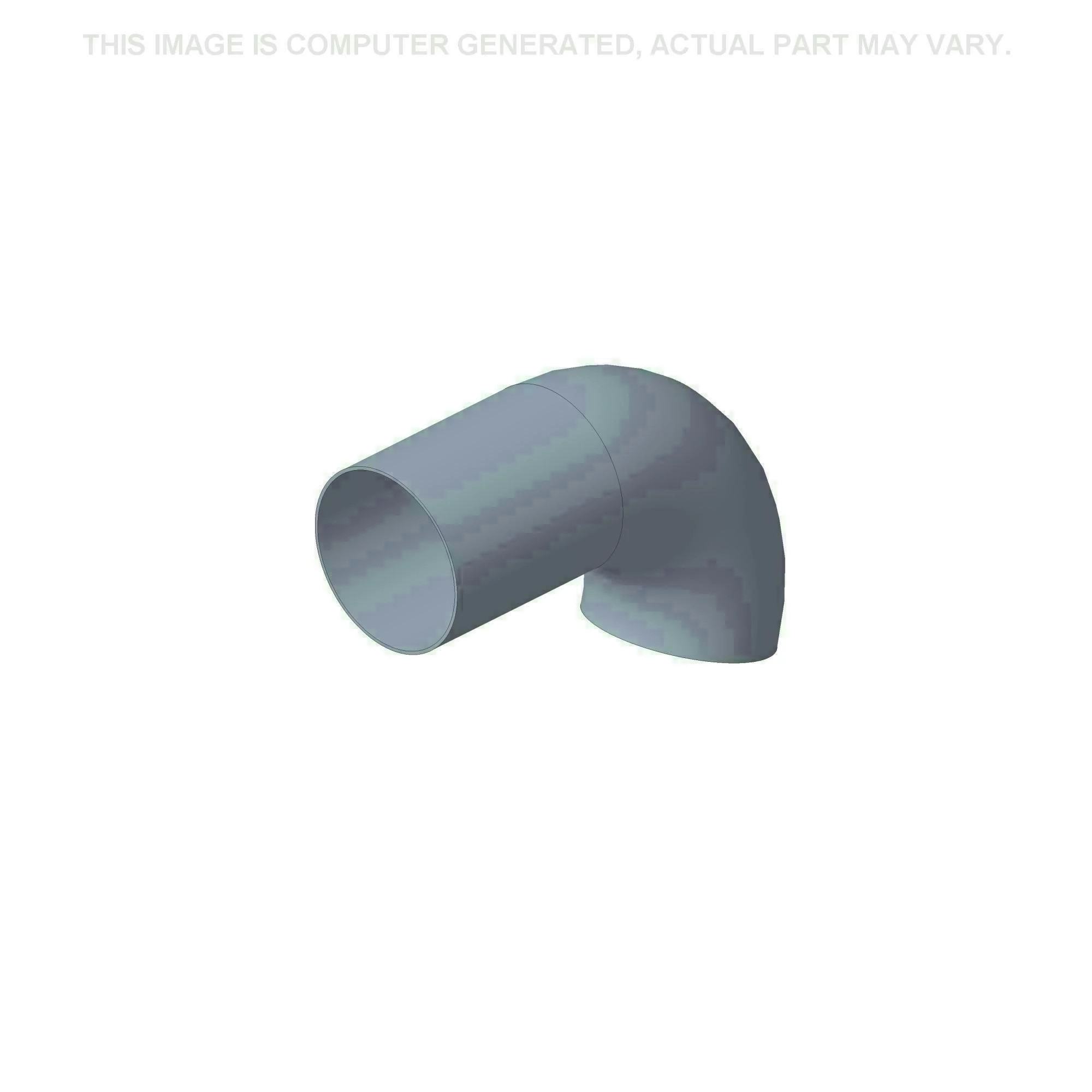

    SLEEVE 64mm ID x 76.2mm OD x 540mm L; Protective
  • 22
    1
    844-8060
    BOLT Hex Flng, M8 x 1.25 x 60mm, Cl 8.8;
  • 23
    1
    118576A1
    CLAMP;
  • 24
    1
    1347127C1

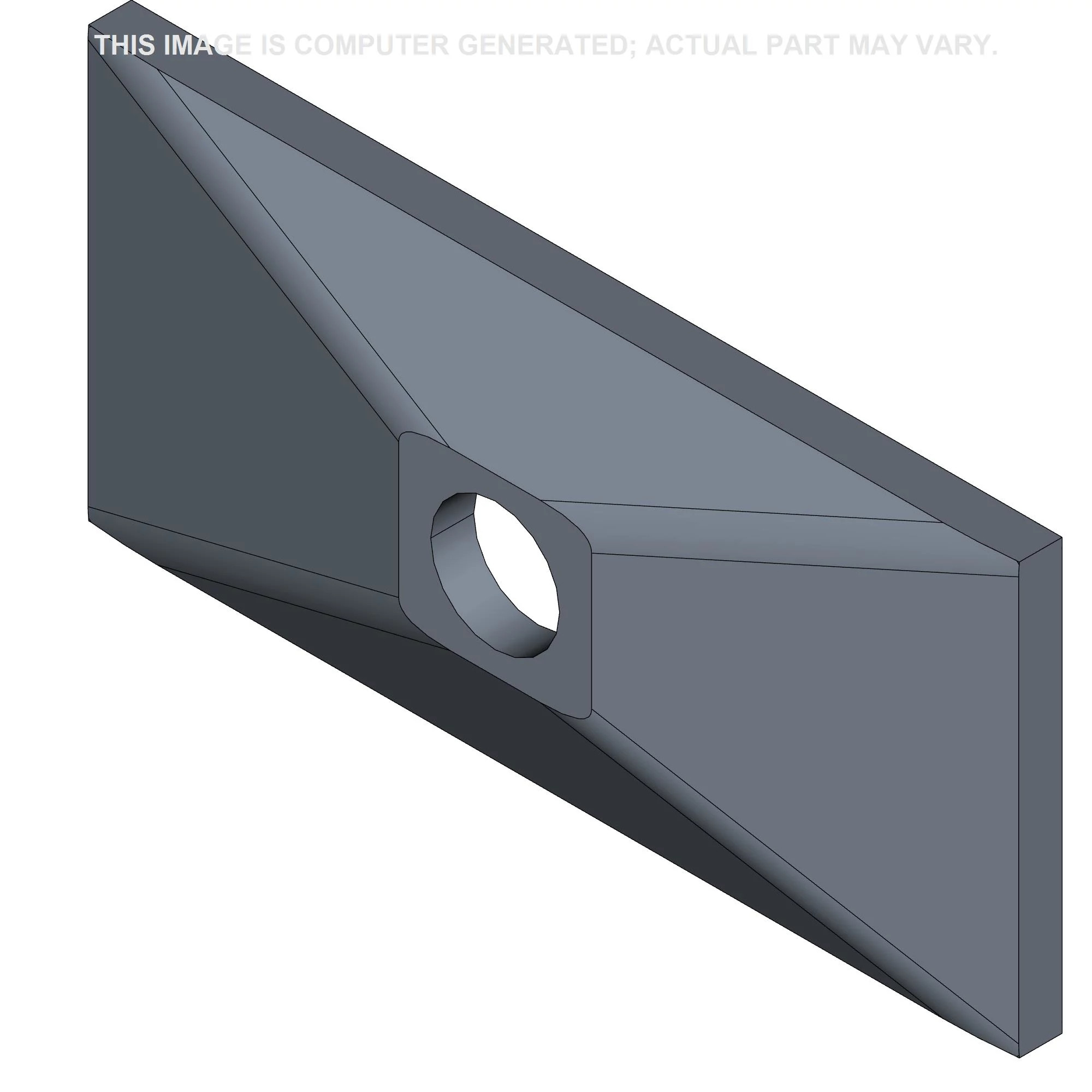

    PLATE; Clamp
  • 25
    1
    217-130
    ELBOW 90 Degree Elbow, 1/4'' Hose Barb x 1/8'' Male NPTF;
  • 26
    1
    87442539
    HOSE 6.35 mm ID x 1490.00 mm, SAE 30R7; Cut From 382997C2
  • 27
    1
    87525458
    HOSE 6.35 mm ID x 1790.00 mm, SAE 30R7; Cut From 382997C2
  • 28
    1
    217-154

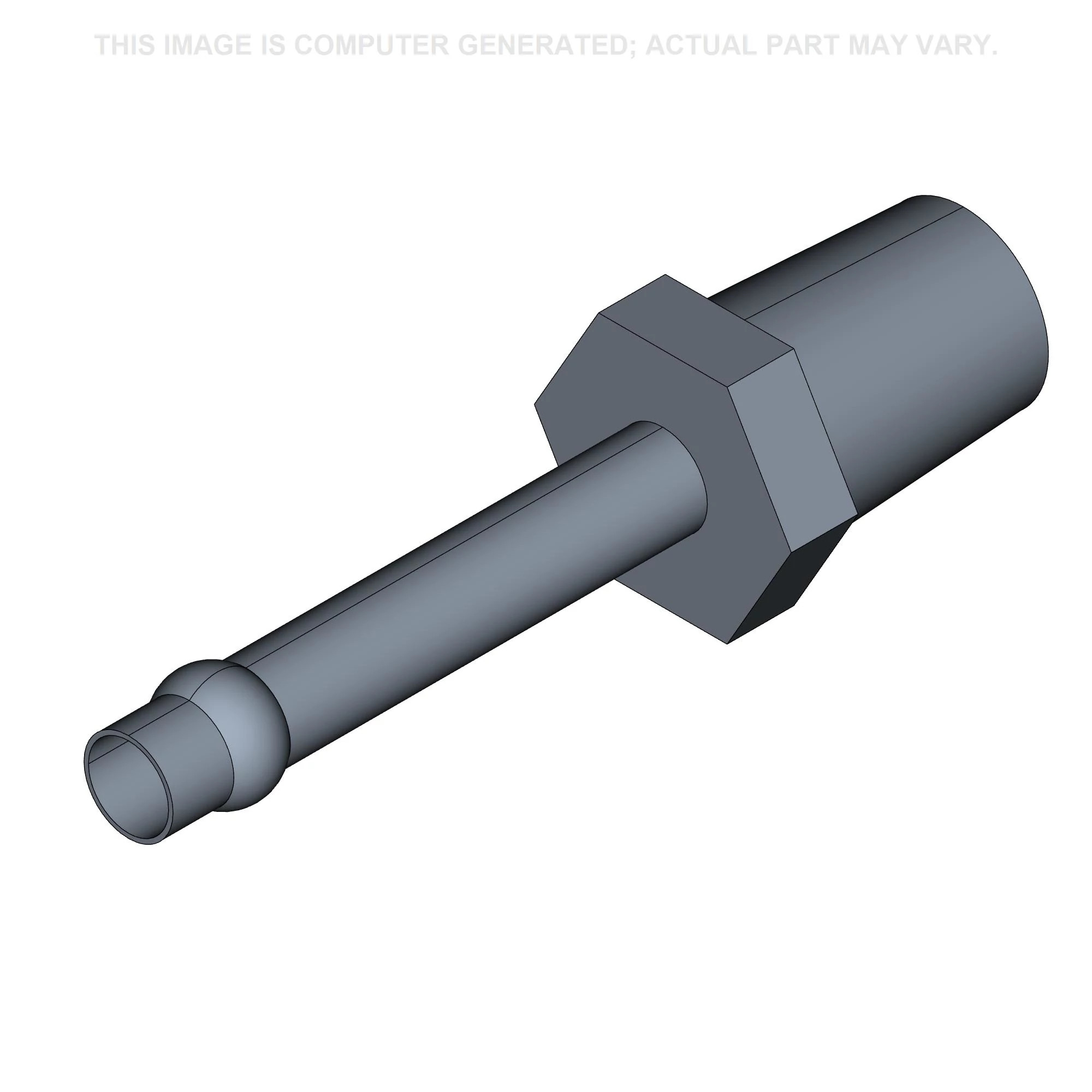

    FITTING 1/4'' Hose Barb x 1/4'' Male NPTF;
  • 29
    6
    87589798
    HOSE CLAMP; 0.5''
  • 30
    1
    87395776
    HOSE; Deaeration Tank to Engine, 249 mm (9.8'');Cut From 429211A1
  • 31
    1
    825-2408
    FLANGE NUT M8 x 1.25, Flg, Cl 8;
  • 32
    2
    214-1412
    HOSE CLAMP #12, 0.69'' - 1.25'', Type F Worm;
  • 33
    1
    87338147
    RADIATOR HOSE 6.35mm ID x 2225mm L; Cut From 382997C2
  • 34
    1
    242070A1

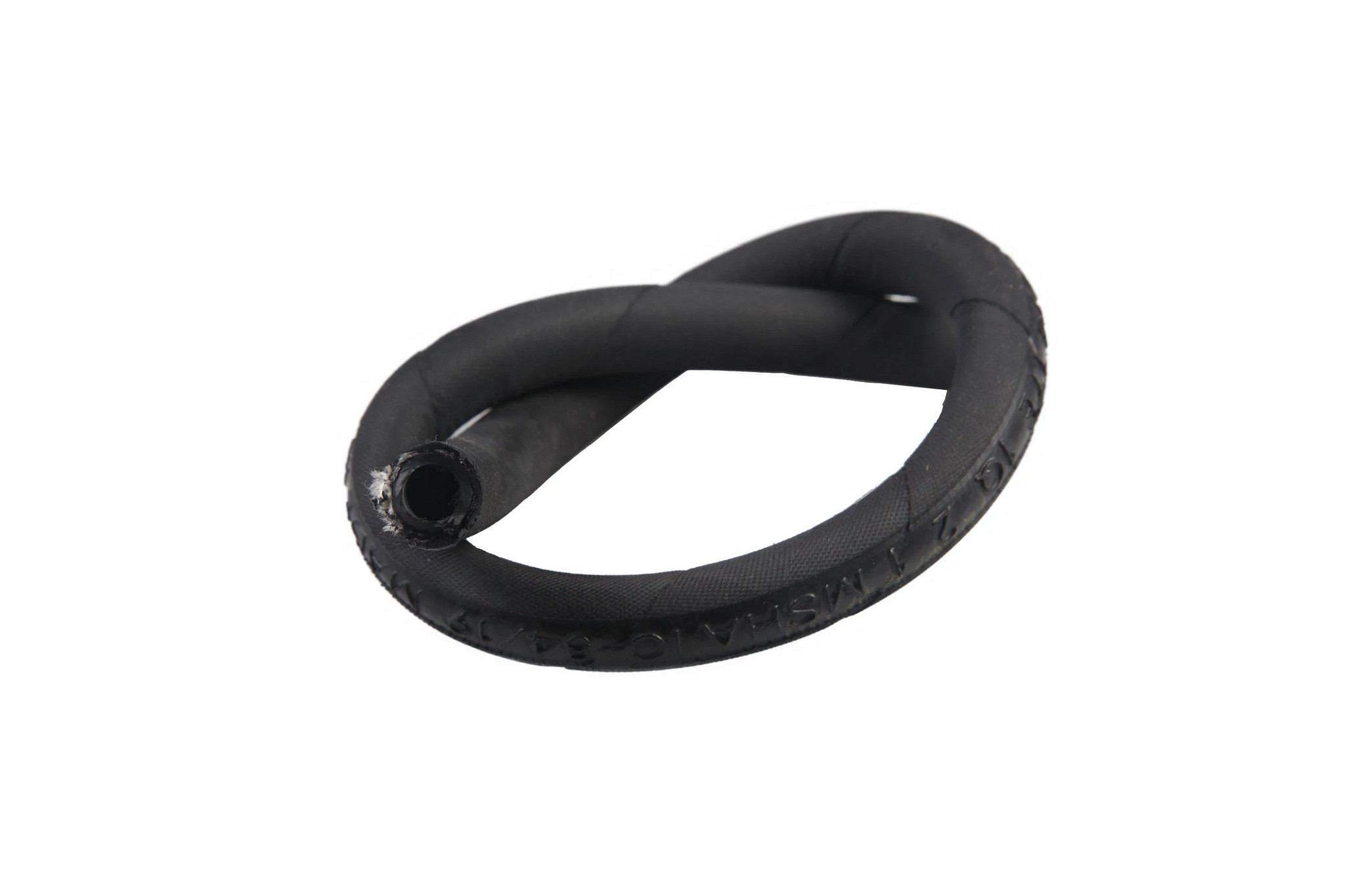

    HOSE 7.9mm ID x 450mm L, SAE 30R7;
  • 35
    1
    214-1308

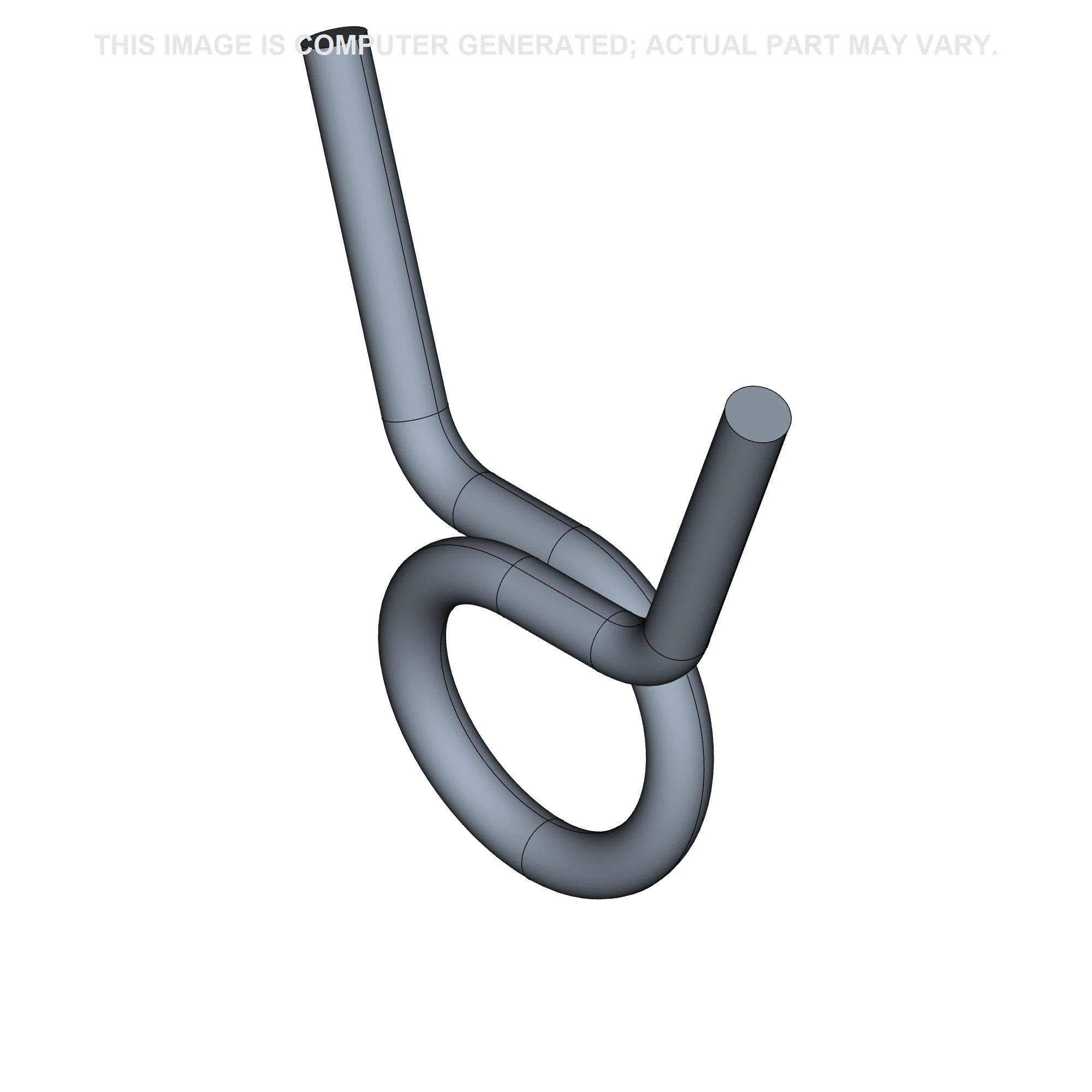

    HOSE CLAMP #8, 1/2'', Spring;
  • 36
    1
    218-536
    ELBOW 45 Degree, 1 1/1''6-12, 37 Degree x 3/4''-14, NPTF; If Equipped
  • 36
    1
    218-446
    HYD CONNECTOR 1-1/16'' - 12 Male JIC x 3/4'' - 14 Male NPTF; Straight Connector, If Equipped
  • 37
    1
    87381548
    BRACKET; Coolant Recovery Bottle
  • 38
    1
    87395778
    TUBE; Use With 45 Degree Elbow
  • 38
    1
    87746650

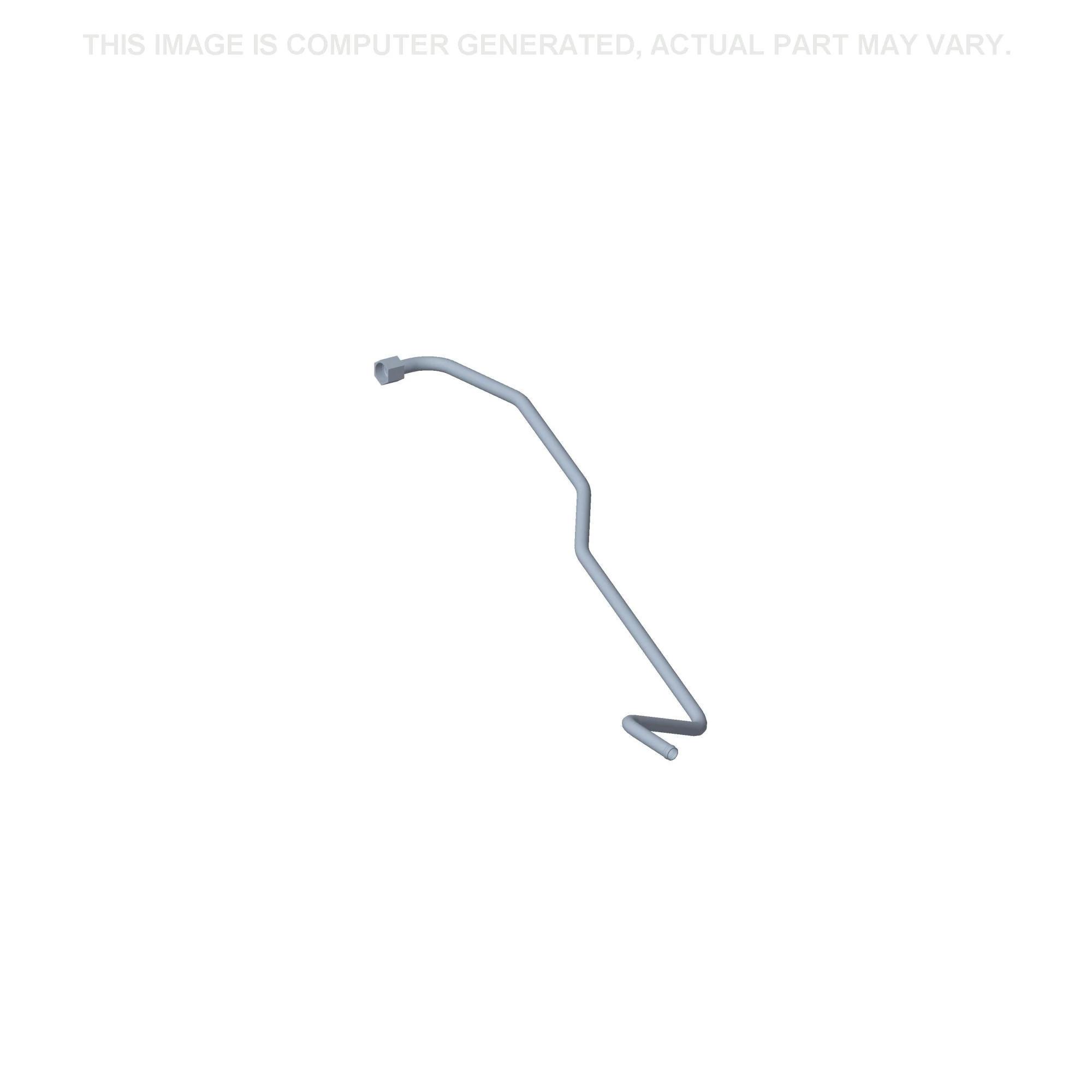

    TUBE .75'' OD; Use With Straight Fitting
