TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11CYLINDER; ASSEMBLY - swing, L.H., 3-1/2'' (89 mm) I.D. x 11'' (279 mm) stroke, Includes: Ref. 2 - 23
-
11CYLINDER; ASSEMBLY - swing, R.H., 3-1/2'' (89 mm) x 11 '' (279 mm) stroke, Includes: Ref. 2 - 23
-
21TUBE 18.19'' L; ASSEMBLY - cylinder, L.H., Includes: Ref. 3
-
21TUBE; ASSEMBLY - cylinder, R.H., Includes: Ref. 3
-
32BUSHING 44.68mm ID x 53.98mm OD x 25.4mm L; - tube trunnion
-
1GLAND; ASSEMBLY - cylinder, Includes: Ref. 5 - 11
-
51NOT SOLD SEPARAT; GLAND - cylinder
-
61NOT SOLD SEPARAT; RING - retaining
-
71WIPER SEAL 38mm ID x 50.7mm OD x 7.92mm W; WIPER - piston rod;Part of Seal Kit P/N G102411
-
81BEARING; - center;Part of Seal Kit P/N G102411
-
91CUP; SEAL - piston rod
-
101O-RING 0.139'' Thk x 3.484'' ID, -238, Cl 5, 75 Duro; - gland;Part of Seal Kit P/N G102411
-
111BACK-UP RING 89.28mm ID x 95.38mm OD x 1.4mm Thk; - back-up;Part of Seal Kit P/N G102411
-
121SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; SCREW - self tapping, No. 8 - 32 NC x 1/4''
-
131ROD; ASSEMBLY - piston, 1-1/2'' (38 mm) dia., Includes: Ref. 14
-
142BUSHING 38.4mm ID x 47.63mm OD x 19.05mm L; - piston rod
-
151PISTON; - cylinder
-
161SEAL Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk; - piston;Part of Seal Kit P/N G102411
-
171RING Square, 5.28mm Thk x 75.31mm ID; - back-up;Part of Seal Kit P/N G102411
-
182SEAL Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk; Part of Seal Kit P/N G102411
-
191VALVE SPRING; SPRING - relief
-
201PIN 9.2mm OD x 92mm L; - sliding, spring guide
-
211BOLT 1 - 14 UNS-2A x 92mm L; BOLT - 1'' - 14NF x 3'', grade 8
-
221WASHER 26.97mm ID x 47.63mm OD x 3.58mm Thk; - hardened
-
231LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - grease, straight, 1/8'' NPT
-
1SEAL; KIT - seal, Includes: Ref. 7, 8, 10, 11, 16, 17 and 18
-
1SEAL 38mm ID x 50mm OD x 9.5mm Thk; - piston rod, service option - extreme heat or cold
Select All
Ref.
1Qty
1Availability
Part #
G101285Description
CYLINDER; ASSEMBLY - swing, L.H., 3-1/2'' (89 mm) I.D. x 11'' (279 mm) stroke, Includes: Ref. 2 - 23Img
Alts
Ref.
1Qty
1Availability
Part #
G101284Description
CYLINDER; ASSEMBLY - swing, R.H., 3-1/2'' (89 mm) x 11 '' (279 mm) stroke, Includes: Ref. 2 - 23Img
Alts
Ref.
2Qty
1Availability
Part #
G101439Description
TUBE 18.19'' L; ASSEMBLY - cylinder, L.H., Includes: Ref. 3Img
Alts
Ref.
2Qty
1Availability
Part #
G101438Description
TUBE; ASSEMBLY - cylinder, R.H., Includes: Ref. 3Img
Alts
Ref.
3Qty
2Availability
Part #
D34340Description
BUSHING 44.68mm ID x 53.98mm OD x 25.4mm L; - tube trunnionImg
Alts
Ref.
Qty
1Availability
Part #
G34645Description
GLAND; ASSEMBLY - cylinder, Includes: Ref. 5 - 11Img
Alts
Ref.
7Qty
1Availability
Part #
D95142Description
WIPER SEAL 38mm ID x 50.7mm OD x 7.92mm W; WIPER - piston rod;Part of Seal Kit P/N G102411Img
Alts
Ref.
8Qty
1Availability
Part #
G34302Description
BEARING; - center;Part of Seal Kit P/N G102411Img
Alts
Ref.
10Qty
1Availability
Part #
G15457Description
O-RING 0.139'' Thk x 3.484'' ID, -238, Cl 5, 75 Duro; - gland;Part of Seal Kit P/N G102411Img
Alts
Ref.
11Qty
1Availability
Part #
G32126Description
BACK-UP RING 89.28mm ID x 95.38mm OD x 1.4mm Thk; - back-up;Part of Seal Kit P/N G102411Img
Alts
Ref.
12Qty
1Availability
Part #
187-1031Description
SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; SCREW - self tapping, No. 8 - 32 NC x 1/4''Img
Alts
Ref.
13Qty
1Availability
Part #
G33475Description
ROD; ASSEMBLY - piston, 1-1/2'' (38 mm) dia., Includes: Ref. 14Img
Alts
Ref.
14Qty
2Availability
Part #
D32919Description

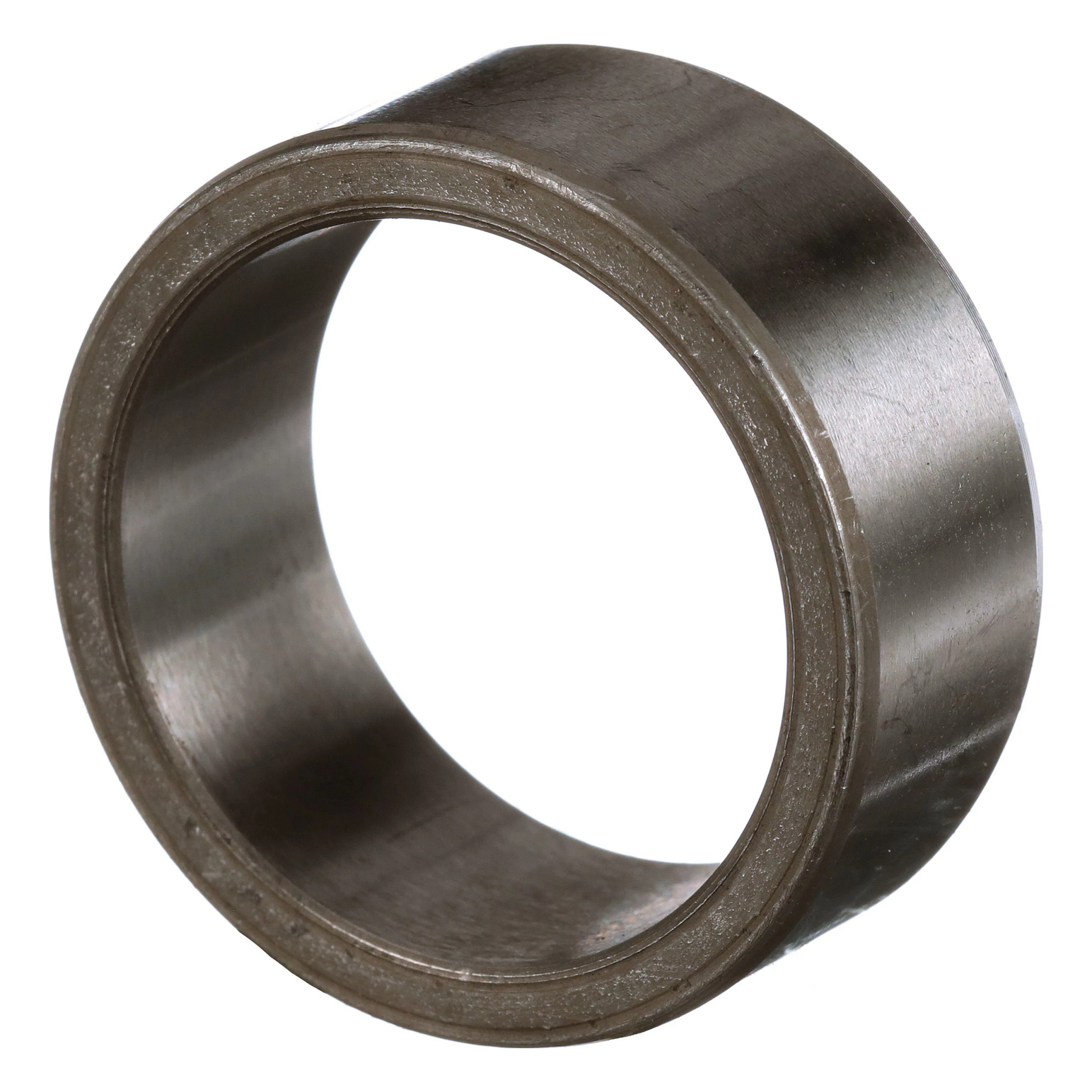

BUSHING 38.4mm ID x 47.63mm OD x 19.05mm L; - piston rodImg
Alts
Ref.
16Qty
1Availability
Part #
G102286Description
SEAL Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk; - piston;Part of Seal Kit P/N G102411Img
Alts
Ref.
17Qty
1Availability
Part #
G100710Description
RING Square, 5.28mm Thk x 75.31mm ID; - back-up;Part of Seal Kit P/N G102411Img
Alts
Ref.
18Qty
2Availability
Part #
G100711Description
SEAL Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk; Part of Seal Kit P/N G102411Img
Alts
Ref.
20Qty
1Availability
Part #
G100049Description
PIN 9.2mm OD x 92mm L; - sliding, spring guideImg
Alts
Ref.
21Qty
1Availability
Part #
D44571Description
BOLT 1 - 14 UNS-2A x 92mm L; BOLT - 1'' - 14NF x 3'', grade 8Img
Alts
Ref.
22Qty
1Availability
Part #
G32303Description
WASHER 26.97mm ID x 47.63mm OD x 3.58mm Thk; - hardenedImg
Alts
Ref.
23Qty
1Availability
Part #
219-1Description
LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - grease, straight, 1/8'' NPTImg
Alts
Ref.
Qty
1Availability
Part #
G102411Description
SEAL; KIT - seal, Includes: Ref. 7, 8, 10, 11, 16, 17 and 18Img
Alts
Ref.
Qty
1Availability
Part #
G100776Description
SEAL 38mm ID x 50mm OD x 9.5mm Thk; - piston rod, service option - extreme heat or coldImg
Alts
